Asus ROG THOR 850W Platinum II
![](/images/custom/site/kv(16).jpg)
The Quietest 850W Platinum Power Supply
Back with a vengeance, the second iteration of the ROG Thor 850W Platinum wields cooling and component upgrades that make it the quietest PSU in its class*. And to compliment the latest high-end ROG motherboards and bring additional flair to beastly rigs, we've added a mirrored side panel that neatly frames the OLED display.
![](/images/custom/site/rog-heatsinks(1).jpg)

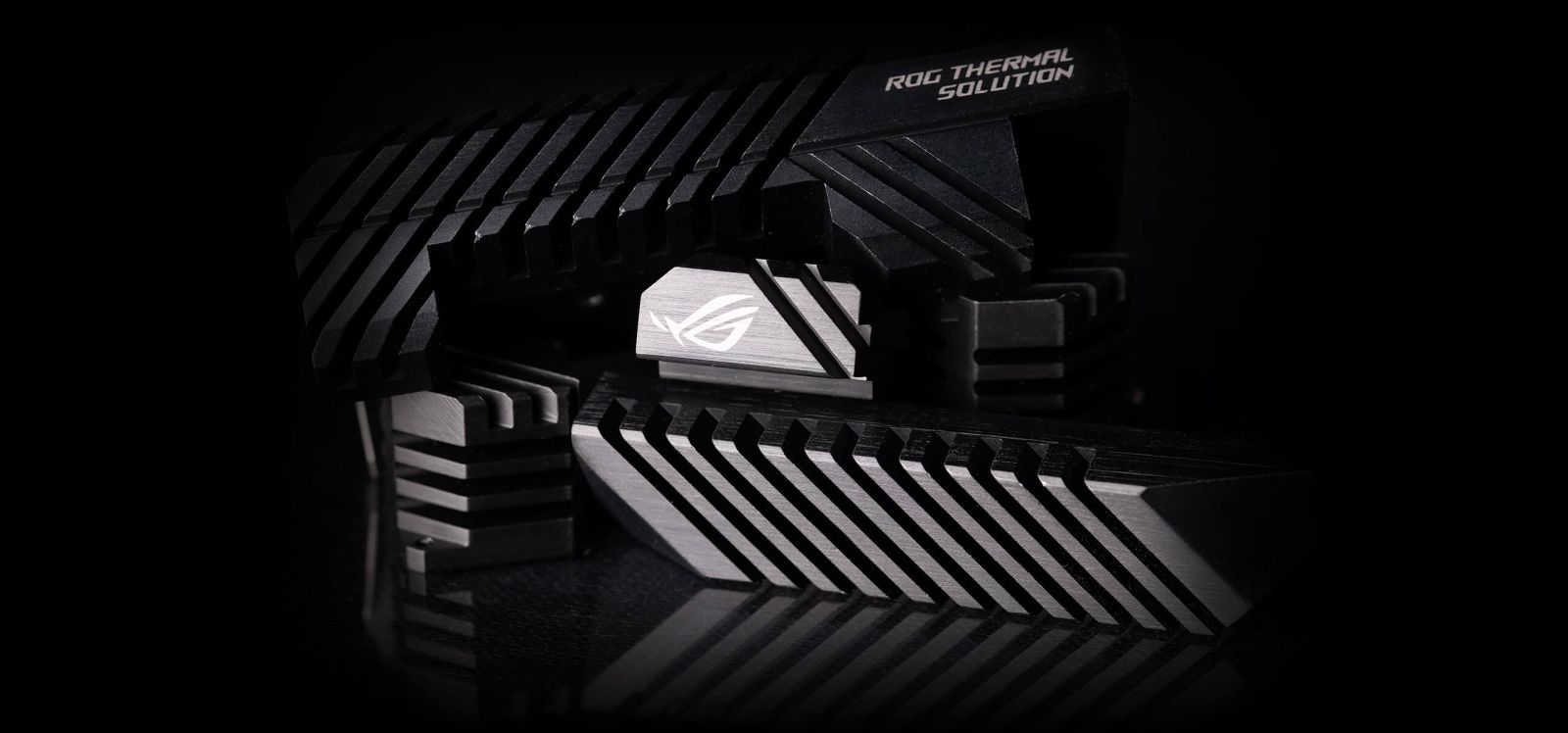

ROG Heatsinks
ROG heatsinks have 2x more volume than traditional designs, facilitating lower temperatures, longer component lifespan, and extended 0dB operation.
![](/images/custom/site/ROG-THOR-850P2.jpg)

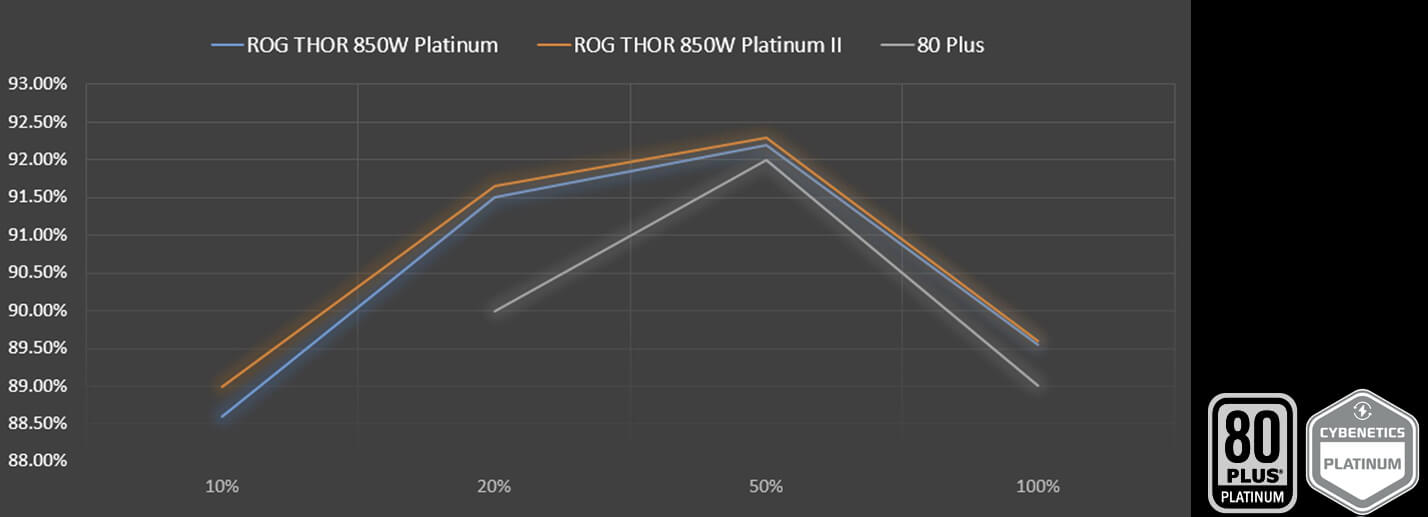

80 Plus Platinum Certification
The ROG Thor 850W Platinum II utilizes low-ESR Japanese capacitors to ensure efficient operation. These upgrades enable an 80 PLUS Platinum certification, which guarantees 89% efficiency at 100% load and 92% efficiency at 50% load. The increased efficiency results in less heat, reduces fan noise, and increases reliability.
![](/images/custom/site/Screenshot%20from%202024-06-21%2010-38-27.png)

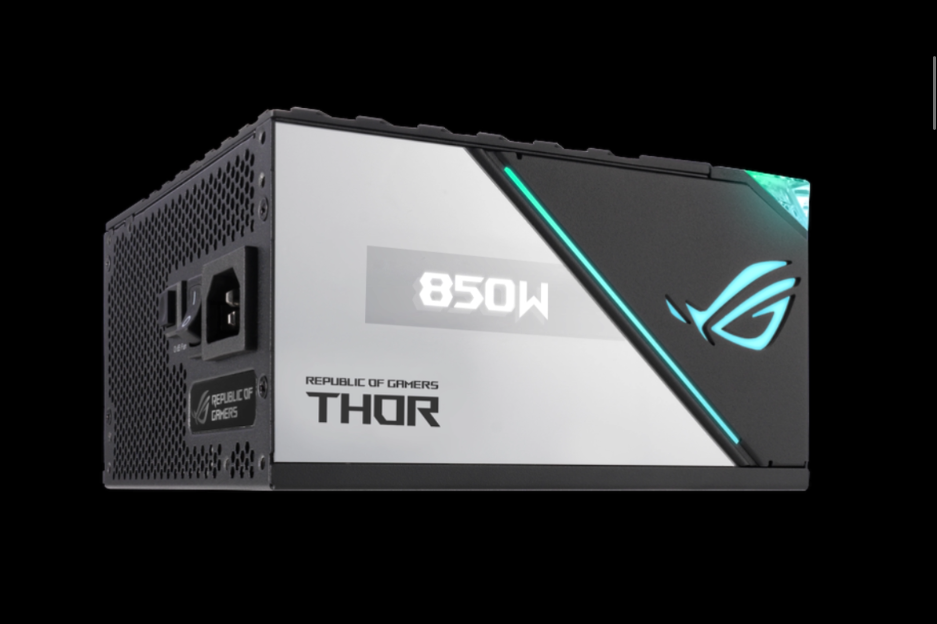

OLED Power Display
The built-in OLED panel makes it easy to tune your system for best performance and efficiency.
![](/images/custom/site/Screenshot%202024-06-21%20at%2010-38-47%20ROG%20THOR%20850W%20Platinu%5B___%5D.png)

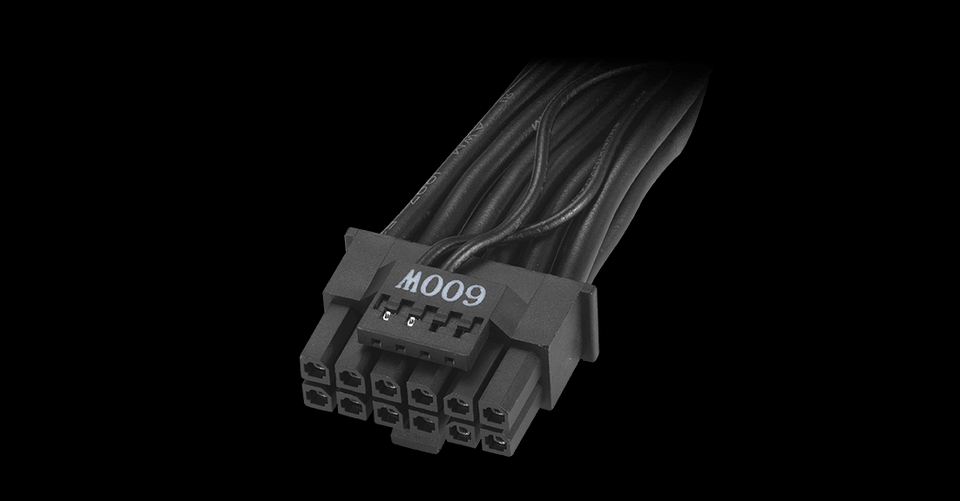

PCIe Gen 5.0 Ready
Each ROG Thor 850W Platinum II PSU is bundled with a 16-pin PCIe cable that can pipe up to 600W of power to PCIe Gen 5.0 graphics cards. Get ready for the future of power delivery.
Specs:
PFC Type Active PFC
Dimensions 160 x 150 x 86 mm
Efficiency 80Plus Platinum
Protection Features OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials ROHS
AC Input Range 100-240Vac
Thermal Features ROG Thermal Solution
DC Output Voltage +3.3V +5V +12V -12V +5Vsb
Maximum Load 20A 20A 71A 0.3A 3A
Combined Load 100W 100W 852W 3.6W 15W
Total Output 850W
Cable Connectors
MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 1 (component side)
PCI-E 6+2-pin x 3
SATA x 10
PERIPHERAL x 6
Weight 1.865kg (Single)
AURA SYNC ARGB
Cybenetics Noise Level Certification A++
0dB Technology Supported. The fan shuts off entirely when the PSU is under certain load
JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
Виж още Захранвания Настолни компютри Asus
Виж всички Захранвания Настолни компютри в категорията
Технически характеристики
Изходна мощност: | 850 W |
---|---|
Модулен блок: | Да |
Форм фактор: | ATX |
