Asus ROG STRIX X570-E Gaming WIFI II
The ROG Strix X570-E Gaming WiFi II motherboard delivers the quintessential ROG experience. It is bristling with features such as new passive chipset cooling, WiFi 6E, plus improved overclocking and audio performance, along with DIY-friendly conveniences to help seasoned builders and beginners alike. With futuristic aesthetics complemented by onboard RGB illumination, the Strix X570-E Gaming WiFi II motherboard has everything you need to build a formidable gaming rig that rises above the rest.

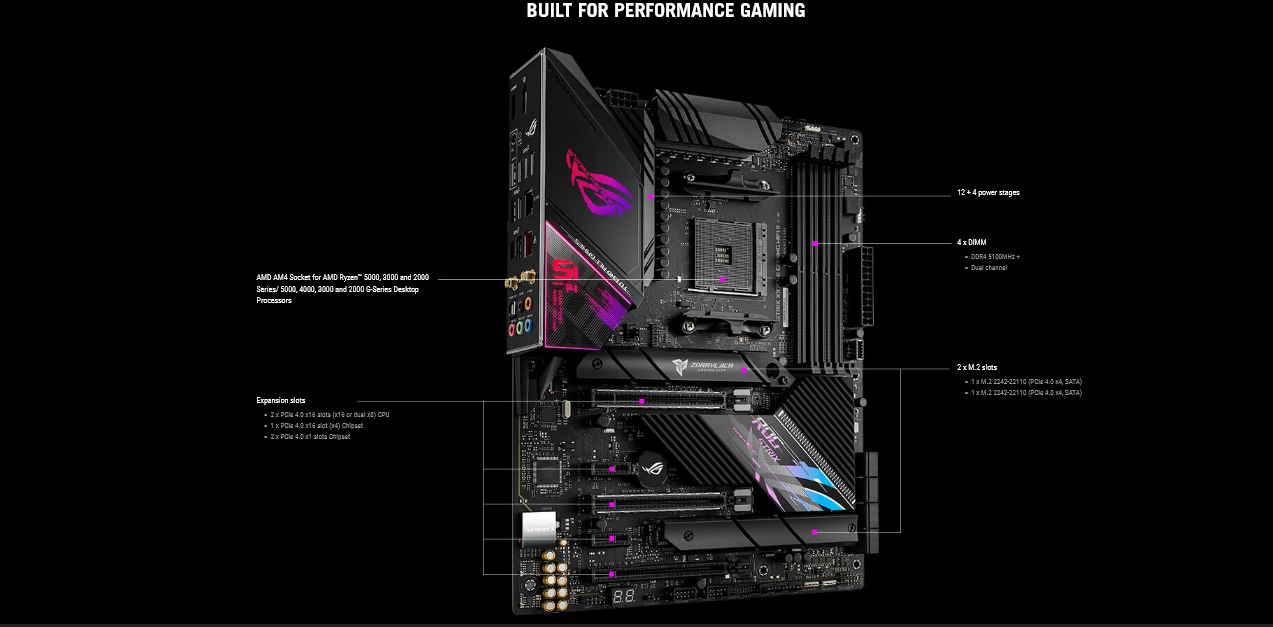

- AMD AM4 socket: Ready for AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors; supports up to two M.2 drives and features USB 3.2 Gen 2 and AMD StoreMI to maximize connectivity and speed
- Optimal Power Solution: 12+4 power stages with ProCool II power connector, alloy chokes and durable capacitors to support multi-core processors
- Comprehensive Cooling: Passive chipset heatsink, VRM heatsink with 8 mm heatpipe, dual on-board M.2 heatsinks and a water pump header
- Best Gaming Connectivity: Supports PCIe® 4.0, HDMI® 2.0, and DisplayPort™ 1.2, and features dual M.2, USB 3.2 Type-A and USB 3.2 Gen 2 Type-C connectors
- 5-Way Optimization: Automated system-wide tuning including custom overclocking and cooling profiles
- Industry-Leading Gaming Audio: High fidelity audio with SupremeFX S1220A, DTS® Sound Unbound and Sonic Studio III
- High-Performance Networking: 2.5 Gbps LAN and Intel Gigabit Ethernet with ASUS LANGuard, WiFi 6E (802.11ax) with MU-MIMO and gateway teaming via GameFirst V
- DIY Friendly Design: M.2 Q-Latch, patented pre-mounted I/O shield, ASUS SafeSlot and BIOS FlashBack™
- Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including RGB headers and Gen 2 addressable headers
Undeniably ROG Strix

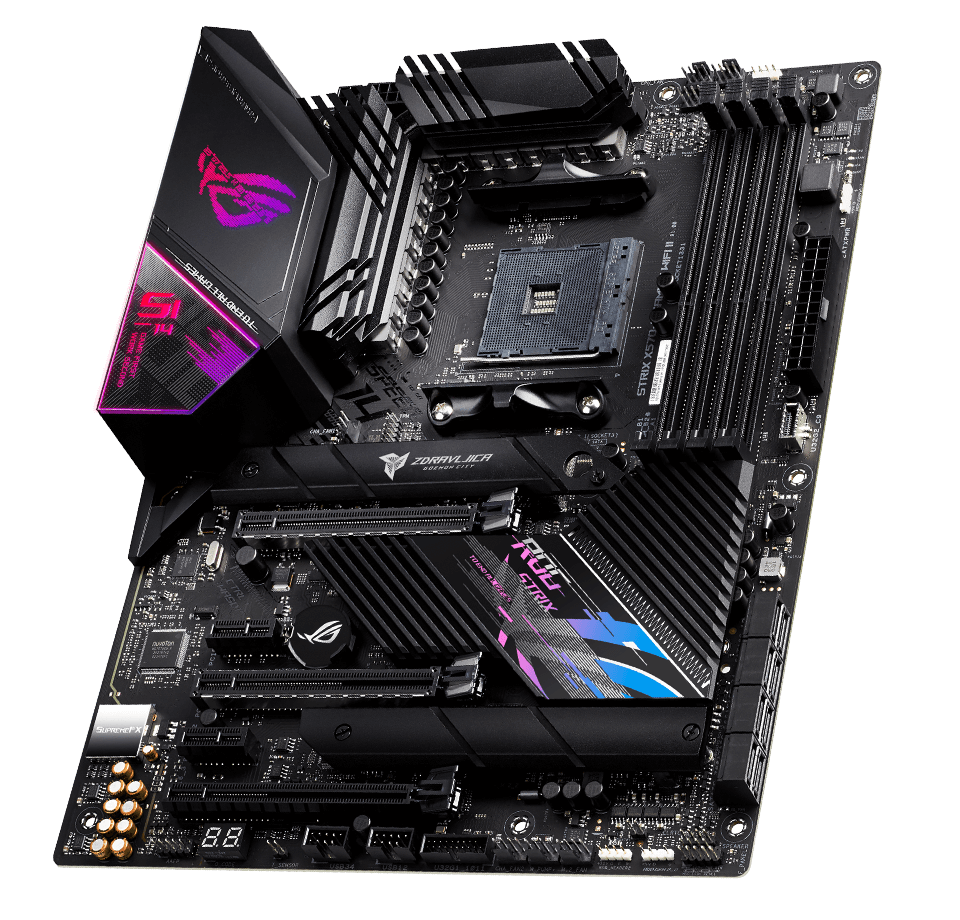

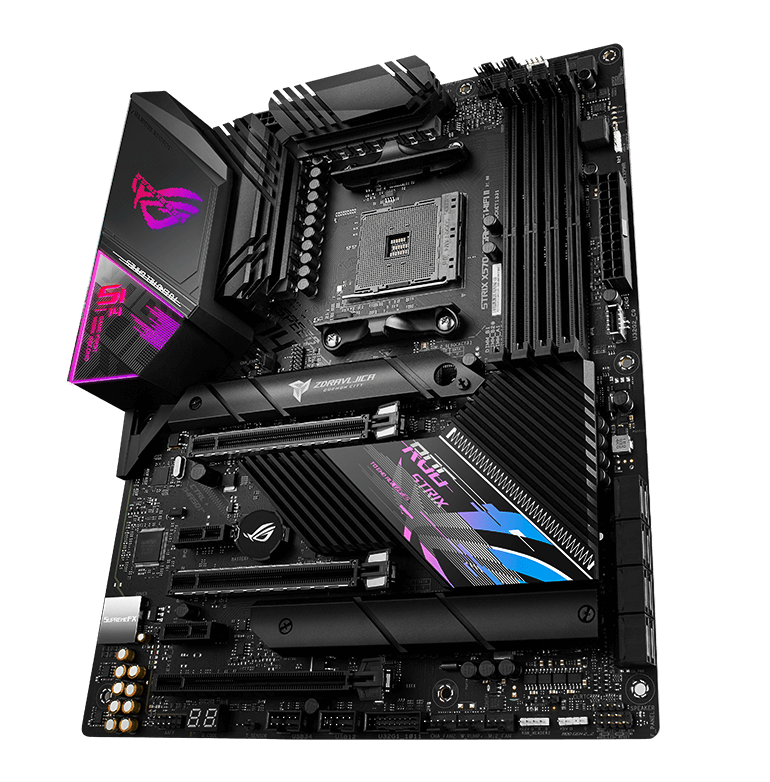

The ROG Strix X570-E Gaming WiFi II boasts striking aesthetics with a pixelated ROG logo and cyber text across the VRM cover, as well as diagonal grooves that cut across the chipset heatsink and motherboard. Together, they combine to create a motherboard that’s distinctively ROG.
CPU
Chipset
Memory
AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors
4 x DIMM, Max. 128GB, DDR4 4600(O.C.)/4400(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133, un-buffered memory
AMD Ryzen™ 5000 and 4000 G-Series Processors
4 x DIMM, Max. 128GB, DDR4 5100(O.C)/4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133, un-buffered memory
AMD Ryzen™ 2000 Series Desktop Processors
4 x DIMM, max. 128GB, DDR4 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133, un-buffered memory
AMD Ryzen™ 2000 and 3000 G-Series Desktop Processors
4 x DIMM, max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133, un-buffered memory
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.
Graphics
1 x DisplayPort
1 x HDMI® port
- Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz
- Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz
Expansion Slots
AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors
2 x PCIe 4.0 x16 (x16 or dual x8)*
AMD Ryzen™ 5000 G Series/4000 G-Series/ 2000 Series Processor
2 x PCIe 3.0 x16 (x16 or dual x8)*
AMD Ryzen™ 2000 G-Series/ 3000 G-Series Processor
1 x PCIe 3.0 x16 (x8 mode)*
AMD X570 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
2 x PCIe 4.0 x1
*PCIeX16_3 slot shares bandwidth with PCIeX1_2.
Storage
AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors:
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
AMD Ryzen™ 5000 G-Series/4000 G-Series/ 3000 G-Series/ 2000 G-Series/2000 Series Processor
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)
AMD X570 Chipset
M.2_2 slot (Key M), type2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
8 x SATA 6Gb/s ports
Supports RAID 0, 1, 10
Ethernet
1 x Realtek 2.5Gb Ethernet
1 x Intel® I211-AT 1Gb Ethernet
Anti-surge LANGuard
ROG GameFirst Technology
Wireless & Bluetooth
Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth v5.2
* WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later.
USB
AMD RyzenTM 5000, 5000 G-Series, 4000 G-Series, and 3000 Series Desktop Processors
- 4 x USB 3.2 Gen2 ports (4 ports at back panel, Type-A)
AMD RyzenTM 3000 G-Series, 2000, and 2000 G-Series Desktop Processors
- 4 x USB 3.2 Gen 1 ports (4 ports at back panel, Type-A)
AMD X570 chipset
- 1 x USB 3.2 Gen2 front panel connector
- 4 x USB3.2 Gen2 (at back panel, 3x Type-A, 1x Type-C)
- 2 x USB3.2 Gen1 ports (at front panel)
- 4 x USB 2.0 ports (at front panel)
Audio
Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- SupremeFX Shielding Technology
- Gold-plated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
Back Panel I/O Ports
8 x USB 3.2 Gen 2 ports (7 x Type-A + 1 x USB Type-C®)
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Intel® I211-AT 1Gb Ethernet port
1 x Realtek 2.5Gb Ethernet port
5 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
Intrernal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
2 x 4-pin Chassis Fan headers
1 x 4-pin M.2 Fan header
1 x W_PUMP+ header
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
8 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
2 x Addressable Gen 2 headers
2 x AURA RGB headers
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x SPI TPM header (14-1pin)
1 x Speaker header
1 x 10-1 pin System Panel header
1 x Thermal Sensor headerВиж още Дънни платки за AMD процесори Asus
Виж всички Дънни платки за AMD процесори в категорията
| Процесор сокет: | AM4 |
|---|---|
| Чипсет: | X570 |
| Поддържана памет: | DDR4 |
| Брой слотове за RAM памет: | 4 |
| Storage интерфейси: | SATA 6Gbit/s, M.2 |
| RAID: | Да |
| Безжични мрежи: | Wi-Fi 6 (802.11ax) |
| Bluetooth: | Да |
| Видео слот: | PCI-E |
| Multi-Graphics технология: | Няма |
| Видео изход: | DP HDMI |
| Форм фактор: | ATX |
| Видеокарта: | Вградена |
