Видео карта Nvidia GF RTX 4090, 24GB, Asus ROG Strix BTF OC Edition, PCI-E 4.0, GDDR6X, 384-bit, DisplayPort, HDMI

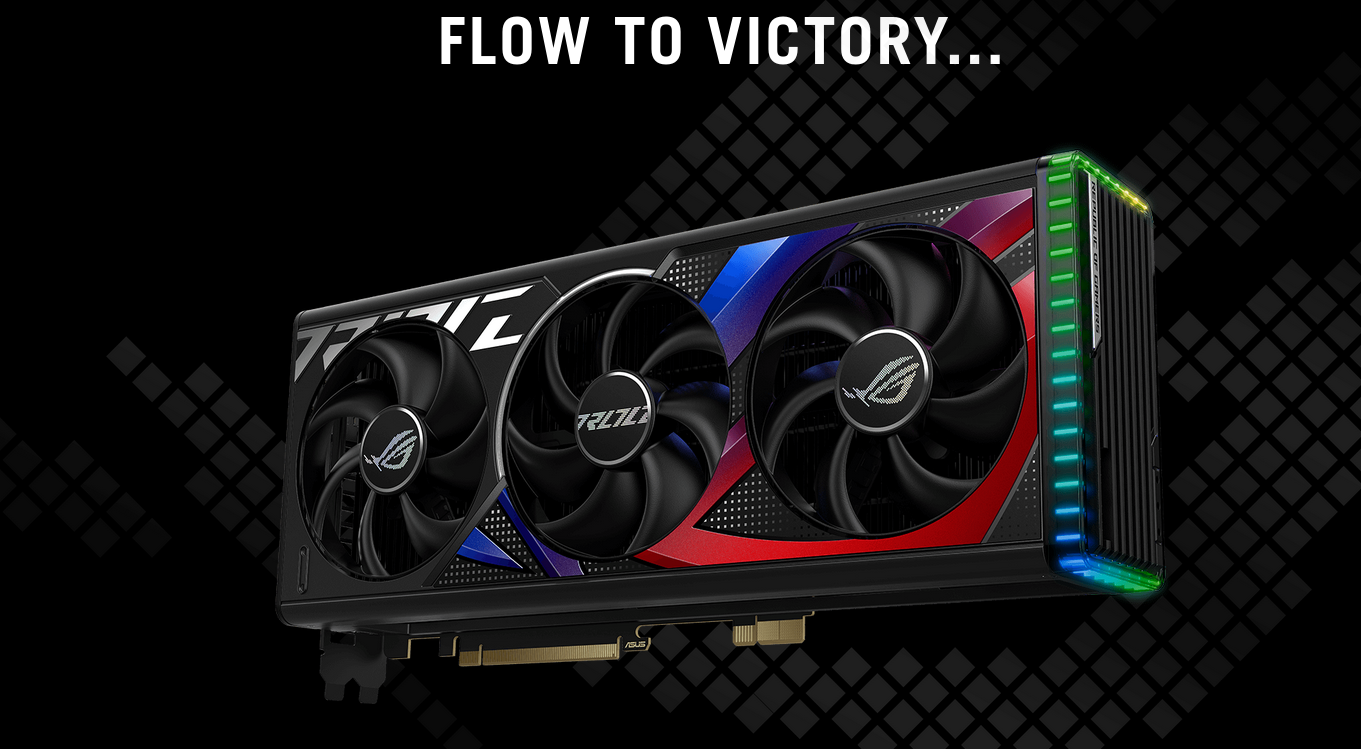

ROG Strix GeForce RTX 4090 BTF OC Edition 24GB GDDR6X

• AI Performance: 1368 AI TOPS
• Powered by NVIDIA DLSS3, ultra-efficient Ada Lovelace arch, and full ray tracing
• 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
• 3rd Generation RT Cores: Up to 2x ray tracing performance
• OC edition: boost clock 2640 MHz (OC mode)/ 2610 MHz (default mode)
• Graphics card high-power gold finger for power transmission, and prevent GPU sag
• Eliminate the need for traditional 16-pin external power connections to the graphics card
• Axial-tech fans scaled up for 23% more airflow

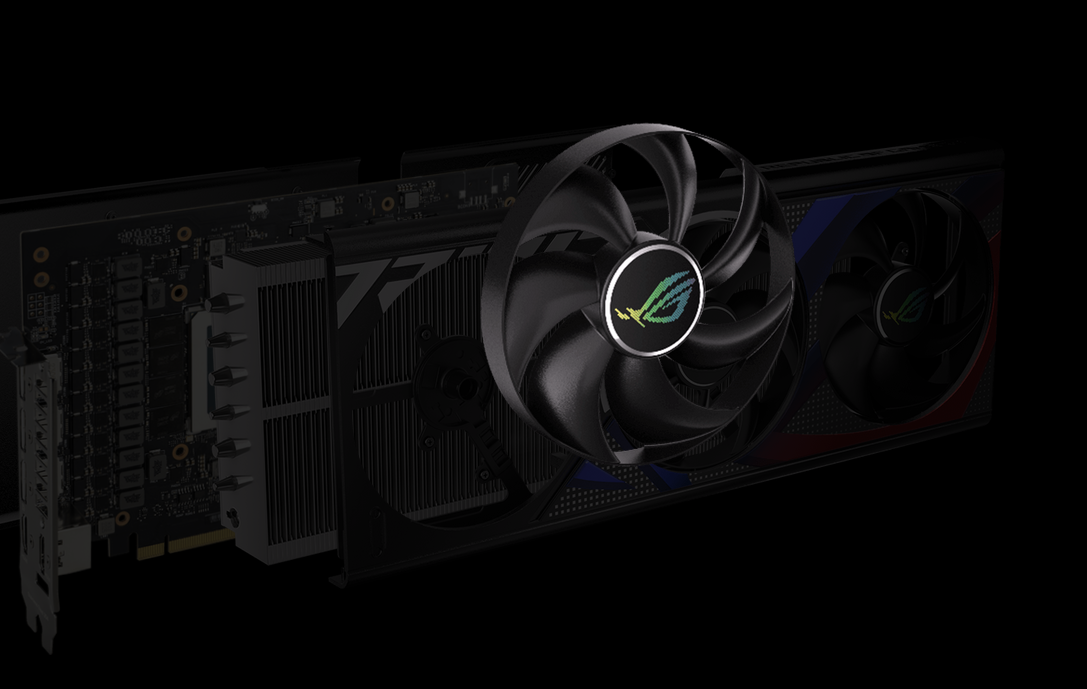

• New patented vapor chamber with milled heatspreader for lower GPU temps
• 3.5-slot design: massive fin array optimized for airflow from the three Axial-tech fans
• Diecast shroud, frame, and backplate add rigidity and are vented to further maximize airflow and heat dissipation
• Digital power control with high-current power stages and 15K capacitors to fuel maximum performance
• Auto-Extreme precision automated manufacturing for higher reliability
• GPU Tweak III software provides intuitive performance tweaking, thermal controls, and system monitoring

With the incredible sum of its parts

The ROG Strix GeForce RTX™ 4090 BTF Edition brings a whole new meaning to going with the flow.
Inside and out, every element of the card gives the monstrous GPU headroom to breathe freely and achieve ultimate performance.
The unleashed reign of the NVIDIA Ada Lovelace architecture is here.

Axial-tech Upgrades

A Fresh Spin

Bigger and better. Axial-tech fans spin on dual-ball bearings and have been scaled up to propel 23% more air through the card, setting the stage for lower temperatures, less noise, and higher performance.

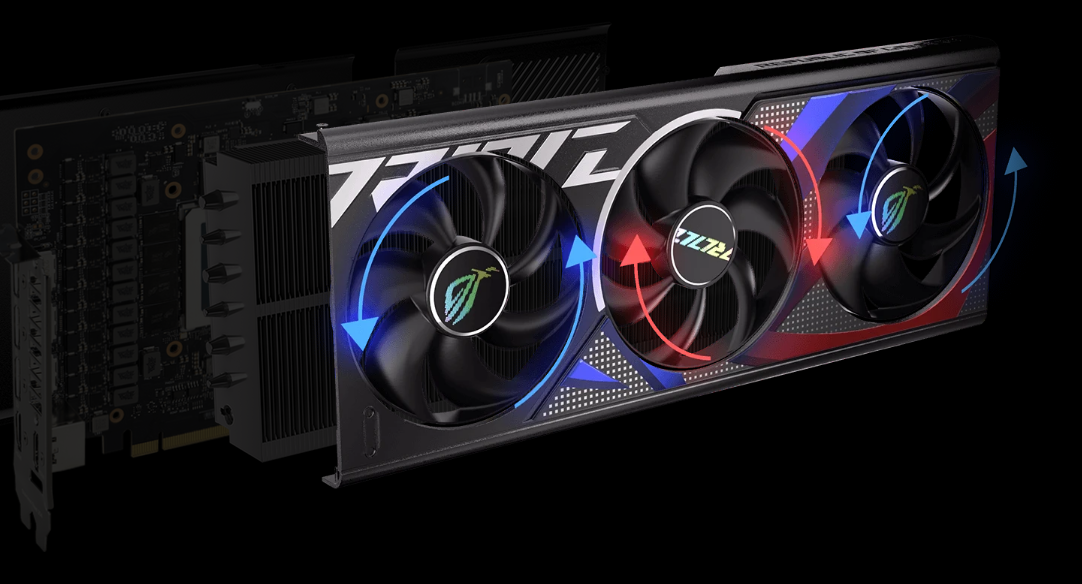

Reverse Rotation and 0dB Technology

Orchestrated Chill

The two side fans spin counterclockwise to minimize turbulence and maximize air dispersion through the heatsink. All three fans come to a standstill when GPU temps are below 50 Celsius, letting you play less-demanding games or perform light tasks in relative silence. Fans start up again when temps are over 55°C, referencing a speed curve that balances performance and acoustics for work or play.

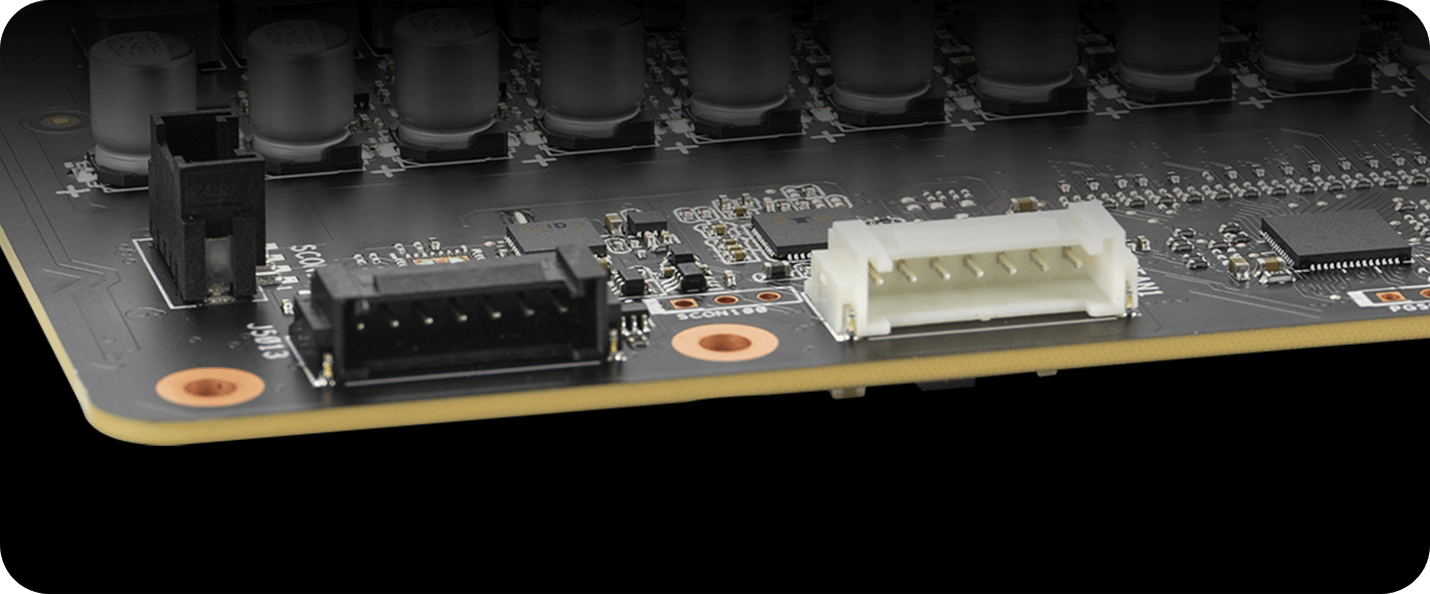

FanConnect II

Hook up

Two PWM FanConnect headers provide additional DIY flexibility. Chassis fans can be directly attached to the card and tuned with a curve that is based on CPU and GPU temperatures, delivering extra intake or exhaust for demanding 3D tasks.

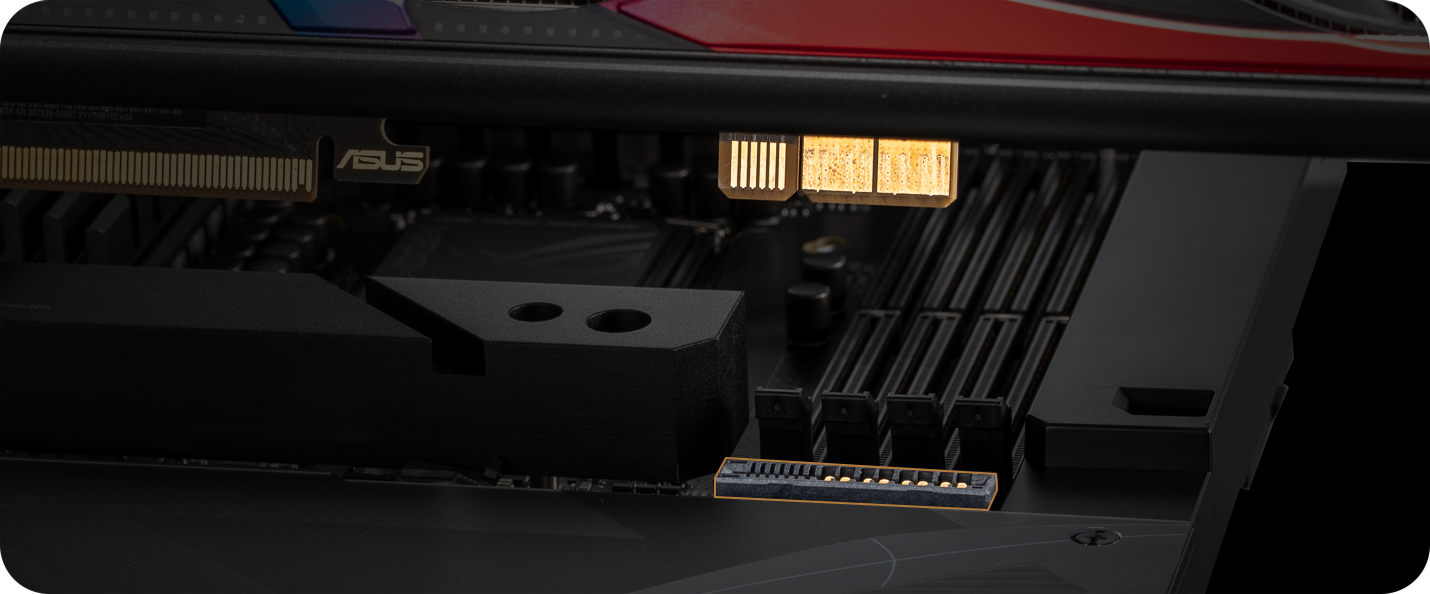

Graphics Card High-Power (GC-HPWR) Gold Finger

A Clutter-Free Future

The graphics card high-power (GC-HPWR) gold finger is capable to deliver up to 600W through the “graphics card high-power slot” on BTF motherboards, eliminating visible external power connectors for a cleaner build. This design also adds structural support, preventing graphics card sag and ensuring a sleek setup.

Specifications:

Graphic Engine

NVIDIA® GeForce RTX™ 4090

AI Performance

1368

Bus Standard

PCI Express 4.0

OpenGL

OpenGL®4.6

Video Memory

24GB GDDR6X

Engine Clock

OC mode: 2640 MHz
Default mode: 2610 MHz (Boost clock)

CUDA Core

16384

Memory Speed

21 Gbps

Memory Interface

384-bit

Resolution

Digital Max Resolution 7680 x 4320

Interface

Yes x 2 (Native HDMI 2.1a)

Yes x 3 (Native DisplayPort 1.4a)

HDCP Support Yes (2.3)

Maximum Display Support

4

NVlink/ Crossfire Support

No

Software

ASUS GPU Tweak III & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.

Dimensions

357.6 x 149.3 x 70.1mm

Recommended PSU

1000W

Power Connectors

PCIe high-power connector

Slot

3.5 Slot

AURA SYNC

ARGB
