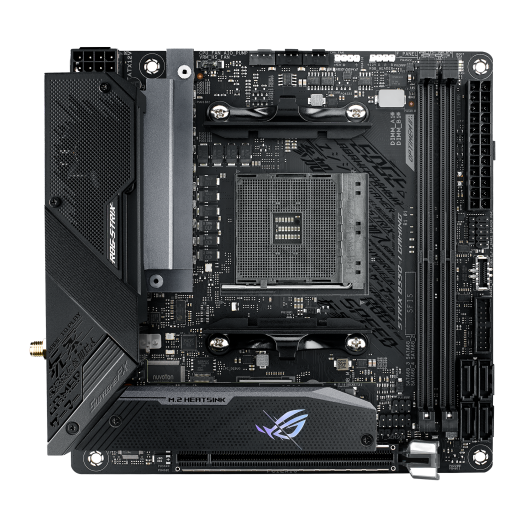

Дънна платка Asus ROG STRIX B550-I GAMING Wi-Fi, B550, AM4, PCI-E 4.0, (DisplayPort&HDMI), 4x SATA3 6.0 Gb/s, 2x M.2, 1x USB 3.2 Gen2 Type-C, Mini-ITX

• AMD AM4 socket: Ready for Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
• Best gaming connectivity: PCIe® 4.0-ready, dual M.2, USB 3.2 Gen 2 Type-C® plus HDMI™ 2.1 and DisplayPort 1.4 output 
• Smooth networking: Onboard WiFi 6 (802.11ax) and Intel® 2.5 Gb Ethernet with ASUS LANGuard 
• Robust power solution: Teamed power stages with ProCool II power connector, high-quality alloy chokes and durable capacitors
• Renowned software: Intuitive dashboards for UEFI BIOS and ASUS AI Networking make it easy to configure gaming builds 
• DIY-friendly design: Includes Q-connector, BIOS FlashBack™ and FlexKey
• Unmatched personalization: ASUS-exclusive Aura Sync RGB lighting, including Aura RGB header and addressable Gen 2 RGB header
• Industry-leading Gaming Audio: Audio USB Type-C®, AI Noise Canceling Microphone, SupremeFX S1220A codec, DTS® Sound Unbound™ and Sonic Studio III for immersive audio 

Specifications:

CPU

* Refer to www.asus.com for CPU support list
AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
Chipset

AMD B550

Memory

Dual Channel Memory Architecture
OptiMem II
ECC Memory (ECC mode) support varies by CPU.
2 x DIMM, Max. 64GB, DDR4 5100(O.C)/5000(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3800(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory *
AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors

Graphic

1 x HDMI 2.1(4K@60HZ) *
1 x DisplayPort  1.4 *
*Graphics specifications may vary between CPU types.

Expansion Slots

1 x PCIe 4.0 x16 (x16 mode)
AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors
1 x PCIe 3.0 x16 (x16 mode)

Storage

1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support
AMD B550 Chipset :
4 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10
Total supports 2 x M.2 slot(s) and 4 x SATA 6Gb/s ports
AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors :
AMD RyzenTM 4000 G-Series Processors :
1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support
1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support

LAN

Intel® I225-V 2.5Gb Ethernet
ASUS LANGuard

Wireless Data Network

Intel® Wi-Fi 6 AX200
Supports dual band frequency 2.4/5 GHz
Supports channel bandwidth: HT20/HT40/HT80/HT160

Bluetooth

Bluetooth v5.1*
*BT 5.1 function will be ready in Windows 10 build 19041 or later.

Audio

SupremeFX7.1 Surround Sound High Definition Audio CODEC S1220A
- Dual OP Amplifiers
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality120dBSNR stereo playback outputand113dBSNR recording input
- Supports up to 32-Bit/192kHz playback *
Audio Feature :
- Rear audio USB Type-C® port
- LED-illuminated design
- Audio Shielding
- Premium Japanese audio capacitors

USB Ports

Rear USB Port ( Total 6 )
4 x USB 3.2 Gen 2 port(s)(1 x USB Type-C® +3 x Type-A)
1 x USB 2.0 port(s)
1 x USB 2.0 port(s)(1 x audio USB Type-C® )
Front USB Port ( Total 5 )
1 x USB 3.2 Gen 2 front panel connector port(s)(1 x USB Type-C®)
2 x USB 3.2 Gen 1 port(s)
2 x USB 2.0 port(s)

Software Features

ROG Exclusive Software
- RAMCache III
- ROG CPU-Z
- GameFirst VI
- Sonic Studio III + Sonic Studio Virtual Mixer
- Sonic Radar III
- DTS® Sound Unbound
- Overwolf
- Anti-virus software
ASUS Exclusive Software Features
Armoury Crate
- Aura Creator
- Aura Sync
-AI Noise Cancelling Microphone
AI Suite 3:
- 5-way Optimization
TPU
EPU
DIGI+ VRM
Fan Xpert 4
Turbo APP
- EZ update
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
FlexKey

ASUS Special Features

Aura Sync
- Standard RGB header(s)
- Addressable Gen 2 RGB header(s)
ASUS Q-Design
- ASUS Q-CODE
- ASUS Q-DIMM
- ASUS Q-LED (DRAM [yellow],CPU [red], VGA [white], Boot Device [yellow green)
- ASUS Q-Slot
ASUS Thermal Solution
- Aluminum M.2 heatsink
ASUS EZ DIY
-BIOS Flashback™ button
-BIOS FlashBack™ LED
-Clear CMOS header
-Procool
-Pre-mounted I/O shield
- SafeSlot
Rear audio USB Type-C® connector

Back I/O Ports

1 x Intel® I225-V 2.5Gb Ethernet
1 x DisplayPort
1 x HDMI
4 x USB 3.2 Gen 2  (1 x USB Type-C®+3 x Type-A)
2 x USB 2.0 (one port can be switched to USB BIOS FlashBack™1 for audio USB Type-C®)
1 x BIOS FlashBack™ Button(s)
1 x ASUS Wi-Fi Module
3 x LED-illuminated audio jacks

Internal I/O Ports

1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x Aura RGB Strip Header(s)
1 x Addressable Gen 2 header(s)
1 x USB 3.2 Gen 1 front panel TypeC™ connector
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
2 x M.2 Socket 3 with M Key design, type 2242/2260/2280 storage devices support (Supports both SATA & PCIE SSD)
4 x SATA 6Gb/s connector(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Thermal sensor connector(s)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x Speaker connector
1 x VRM_HS_FAN Header

Accessories

User´s manual
I/O Shield
4 x SATA 6Gb/s cable(s)
2 x M.2 Screw Package
1 x Supporting DVD
1 x ROG Strix stickers
1 x M.2 bracket
1 x Cable ties pack(s)
1 x Wi-Fi Antenna(s)
1 x Extension cable for Addressable LED
1 x Panel cable
1 x ROG Thank you card
1 x ROG audio USB Type-C® cable

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Operating System

Windows® 10 64-bit

Form Factor

Mini ITX Form Factor
6.7 inch x 6.7 inch ( 17 cm x 17 cm )

Note

* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1-Channel audio.
