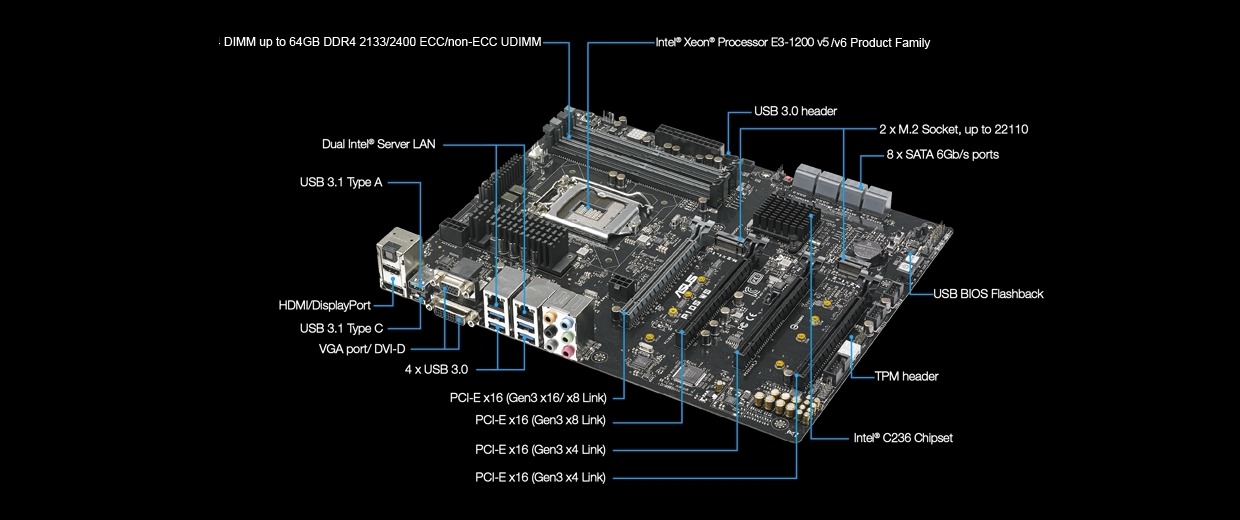

Optimized for Professional Workstation Builds
-
Optimized integrated graphic power supported latest API
-
Quad PCIE3.0 x16 slots for flexible extended add-on cards
-
Drive three independent displays simultaneously with HDMI, DisplayPort, DVI-D, VGA ports
-
Performance increasing and data redundancy with Dual M.2 by SATA mode
-
The latest 10Gb/s USB 3.1 on board for high transfer speed
CPU
Build in Intel® Socket 1151 for 7th/6th Generation Core™ i7/Core™ i5/Core™ i3/for Xeon® E3-1200 v6/v5 and 7th/6th generation CoreTM, Pentium® and Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology
Chipset
Build in Intel® C236
Memory
4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz ECC, Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Graphic
Integrated Graphics Processor
Multi-VGA output support : HDMI/DVI-D/DisplayPort ports
VGA port
- Supports VGA with max. resolution 1920 x 1200 @ 60 Hz
- Supports HDMI with max. resolution 4096 x 2160 @ 60 Hz / 4096 x 2160 @ 24 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
- Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz
Maximum shared memory of 512 MB (for iGPU exclusively)
Supports Intel® HD Graphics, InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Multi-GPU Support
Supports AMD Quad-GPU CrossFireX™ Technology
Expansion Slots
1 x PCIe 3.0/2.0 x16 (x16/x8)
1 x PCIe 3.0/2.0 x16 (x8 mode) *1
1 x PCIe 3.0/2.0 x16 (x4 mode) *2
1 x PCIe 3.0/2.0 x16 (x4 mode) *2
Storage
Intel® C236 Chipset :
8 x SATA 6Gb/s port(s),
2 x M.2 Socket 3*3, with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode)
Support Raid 0, 1, 5, 10
Intel® Rapid Storage Technology Enterprise supports
LAN
Intel® I210, 2 x Gigabit LAN Controller(s)
Support Teaming Technology
Audio
Realtek® ALC1150 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 112 dB SNR stereo playback output (Line-out at rear) and 104 dB SNR recording input (Line-in)
Audio Feature :
- Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound
- DTS Connect
- DTS Studio Sound
- Optical S/PDIF out port(s) at back panel
- BD Audio Layer Content Protection
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Audio amplifier: Provides the highest-quality sound for headphone and speakers
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Top notch audio sensation delivers according to the audio configuration
Separate layer for left and right track, ensuring both sound deliver equal quality
USB Ports
Built-in Controller :
4 x USB 2.0 port(s) (Type-A, 4 at mid-board)
Built-in Controller : *4
6 x USB 3.0 port(s) (4 at back panel, , Type-A)
Built-in Controller :
2 x USB 3.1 port(s) (2 at back panel, , Type-A + USB Type-CTM)
Special Features
ASUS EPU :
- EPU
ASUS Digital Power Design :
(3 -phase for CPU, 2 -phase for iGPU)
- Industry leading Digital 1 Phase DRAM Power Design
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
Operating System Support
Windows® 10
Windows® 8.1
Windows® 7
Back I/O Ports
1 x DVI-D
1 x DisplayPort
1 x HDMI
2 x LAN (RJ45) port(s)
1 x USB 3.1 Gen 2 Type-A,
1 x USB 3.1 Gen 2 USB Type-CTM
4 x USB 3.1 Gen 1
1 x Optical S/PDIF out
1 x 8-channel Audio I/O
1 x VGA
Internal I/O Ports
1 x AAFP connector
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
2 x M.2 Socket 3
1 x COM port(s) connector(s)
8 x SATA 6Gb/s connector(s)
1 x CPU OPT Fan connector(s) (1 x 4 -pin)
1 x CPU fan with PWM control
4 x Chassis Fan connector(s) (4 x 4 -pin)
1 x S/PDIF out header(s)
1 x 8-pin EATX 12 V Power connector
1 x 6-pin EATX 12 V_1 Power connector(s)
1 x 24-pin EATX Power connector(s)
1 x System panel(s) (Q-Connector)
1 x DRCT header(s)
1 x MemOK! button(s)
1 x EPU switch(es)
1 x Power-on button(s)
1 x Clear CMOS button(s)
1 x USB BIOS Flashback® button(s)
1 x 14-1 pin TPM connector
Accessories
User's manual
I/O Shield
1 x COM port cable(s)
8 x SATA 6Gb/s cable(s)
2 x M.2 Screw Package
1 x Q-connector(s) (2 in 1)
1 x SCD
BIOS
16 MB Flash ROM, EFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 5.0a, ASUS EZ Flash Utility, ASUS CrashFree BIOS 3
Manageability
WfM 2.0, DMI 3.0, WOL by PME, WOR by PME, PXE
Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Виж още Дънни платки за Intel процесори Asus
Виж всички Дънни платки за Intel процесори в категорията
Технически характеристики
Процесор сокет: | LGA 1151 |
---|---|
Чипсет: | C236 |
Поддържана памет: | DDR4 |
Брой слотове за RAM памет: | 4 |
Storage интерфейси: | SATA 6Gbit/s, M.2 |
RAID: | Да |
Безжични мрежи: | Не |
Bluetooth: | Не |
Видео слот: | PCI-E |
Multi-Graphics технология: | CrossFireX |
Видео изход: | DP HDMI DVI VGA (D-Sub) |
Форм фактор: | ATX |
