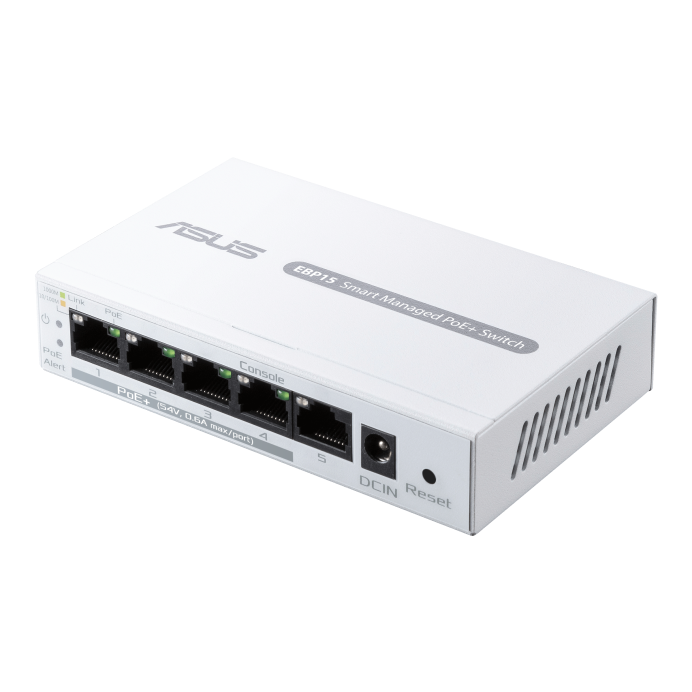

Суич ASUS ExpertWiFi EBP15, 5 порта, 1000Mbps, 5x 10/100/1000Mbps RJ45 (4x PoE+)

5-Port GbE smart managed PoE+ switch, 4 PoE+ ports, 60W, Supports PoE priority setting, Perfect for PoE APs, IP Cameras, VoIP Phones, Centralized app management with ExpertWiFi router

• Power over Ethernet — 4 PoE+ ports capable of delivering up to 60 watts of power offer a convenient solution for powering various PoE-enabled devices.
• VLAN for Added Security — Each of the Ethernet ports can be assigned to one or more VLAN IDs that provides additional security for your business.
• Fluent Network Experience with QoS — Dedicated bandwidth priority based on Quality of Service traffic management ensures better delivery of mission-critical traffic such as voice and video, without delay.
• Multimedia Traffic Optimization — IGMP snooping to prevent traffic congestion and optimize multicast traffic distribution, ensuring better network experiences during video conferencing or media streaming.
• Device Management Made Easy — The ASUS ExpertWiFi router on your network enables conveniently centralized control over the EBP15 and connected devices.

Your Business Network Expert Within Reach

The ASUS ExpertWiFi EBP15 offers versatile connectivity options. When connected to an ExpertWiFi router, the EBP15 can manage connected devices through ExpertWiFi AiMesh mode. When connected to a non-ExpertWiFi router, the EBP15 can still control connected devices using standalone mode. As businesses expand, owners can connect the wired router to EBP15 and access point for broader coverage, ensuring the scalability and extendability of ExpertWiFi.

Fast, Versatile Connectivity to Accommodate the Business Scenarios

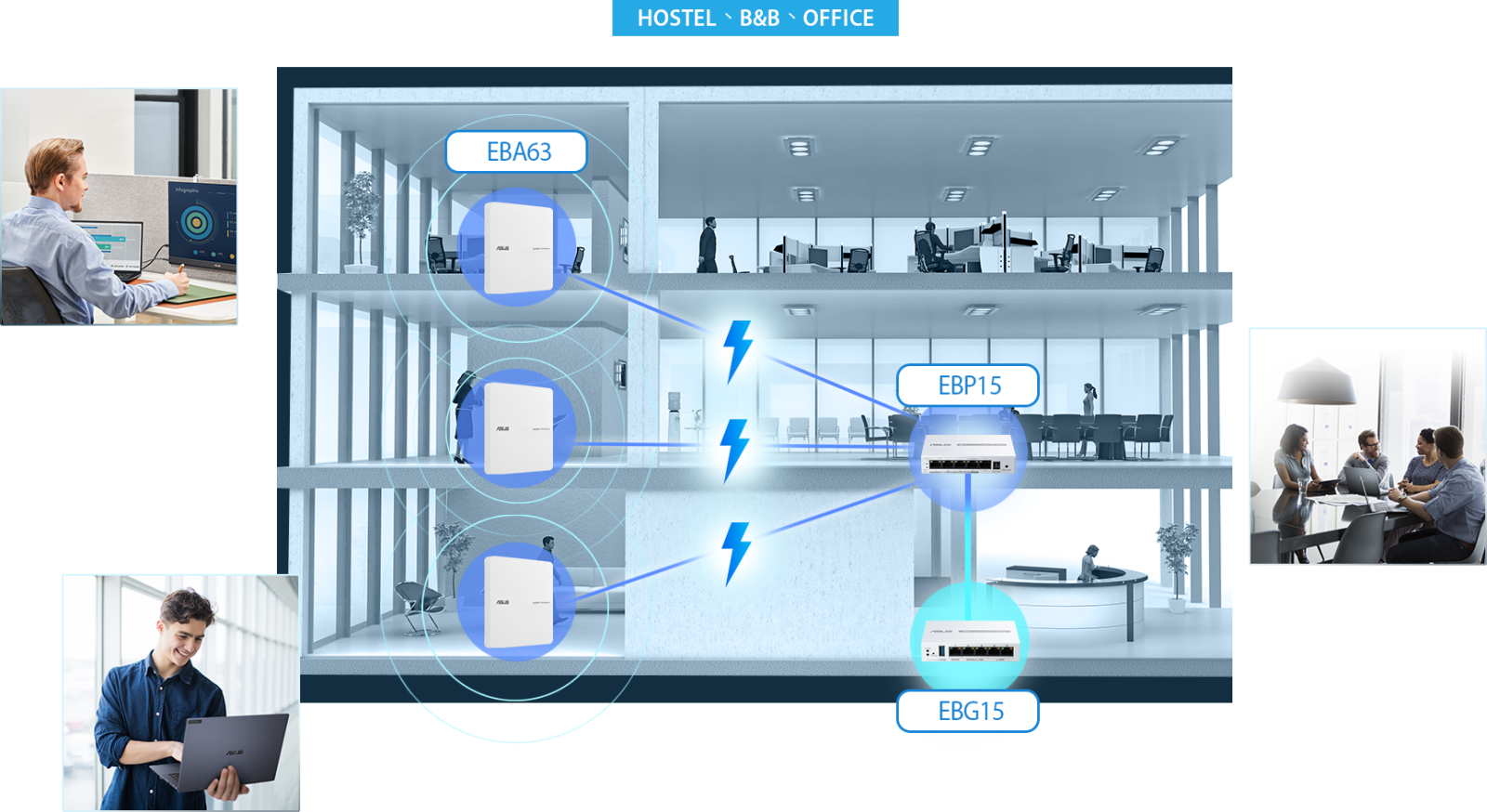

For a larger or multi-story space, you can build a strong and stable network by connecting the EBG15 gigabit VPN wired router and the EBP15 PoE+ switch to three EBA63 PoE access points. If you require additional network coverage, you can easily add more EBA63 units to your existing business network.

Standalone Mode

With the web-based user interface, you can manage your PoE+ switch easily and conveniently.

Specifications:

Port Attributes

Five 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX

Standard

IEEE 802.1p
IEEE 802.1q
IEEE 802.3ab
IEEE 802.3af
IEEE 802.3at
IEEE 802.3i
IEEE 802.3u
IEEE 802.3x
IPv4

Color

White

PoE Budget

60 watts

Performance

MAC Address : Up to 8 K
Buffer Memory : 4 Mbits

LED Indicator

System power ON/OFF
PoE Alert
Link, Speed, activity, and PoE indicators per port built into each RJ-45 port

Power Supply

AC input: 100V~240V (50~60 Hz)
DC output: 54V with 1.25A

PoE Ports

Standard: 802.3 af/at compliant
PoE Ports: Port 1 - Port 4
Per Port Max: 30W

Management

Quality of Service
IGMP Snooping
Port Mirroring
Loop Detection/Prevention
Web-based GUI
ExpertWiFi APP (with ExpertWiFi products only)

Environmental

Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -20℃~70℃ (-4℉~158℉)
Operating Humidity: 10%~95%RH non-condensing
Storage Humidity: 5%~95%RH non-condensing

Product Category

PoE+ Switch

Software Features

ExpertWiFi AiMesh Mode (with ExpertWiFi router only): centrally control the connected devices via ASUSWRT/ExpertWiFi app
Standalone Mode: IGMP Snooping, VLAN, Loop Detection/Prevention, Port Mirroring, Port-based QoS, 802.1p CoS, Firmware Update, PoE priority setting, PoE status

Security

SSL/TLS

Product Weight (g)

248g

Product Dimensions

121 x 75 x 26mm
