Мрежеста система Asus ExpertWiFi EBM68, 7800Mbps, 2.4GHz (574 Mbps)/ 5GHz (2402 Mbps)/ 5GHz (4804 Mbps), 3x LAN 100/1000, 1x WAN 100/1000/2500, 6 вътрешни антени, 2 броя

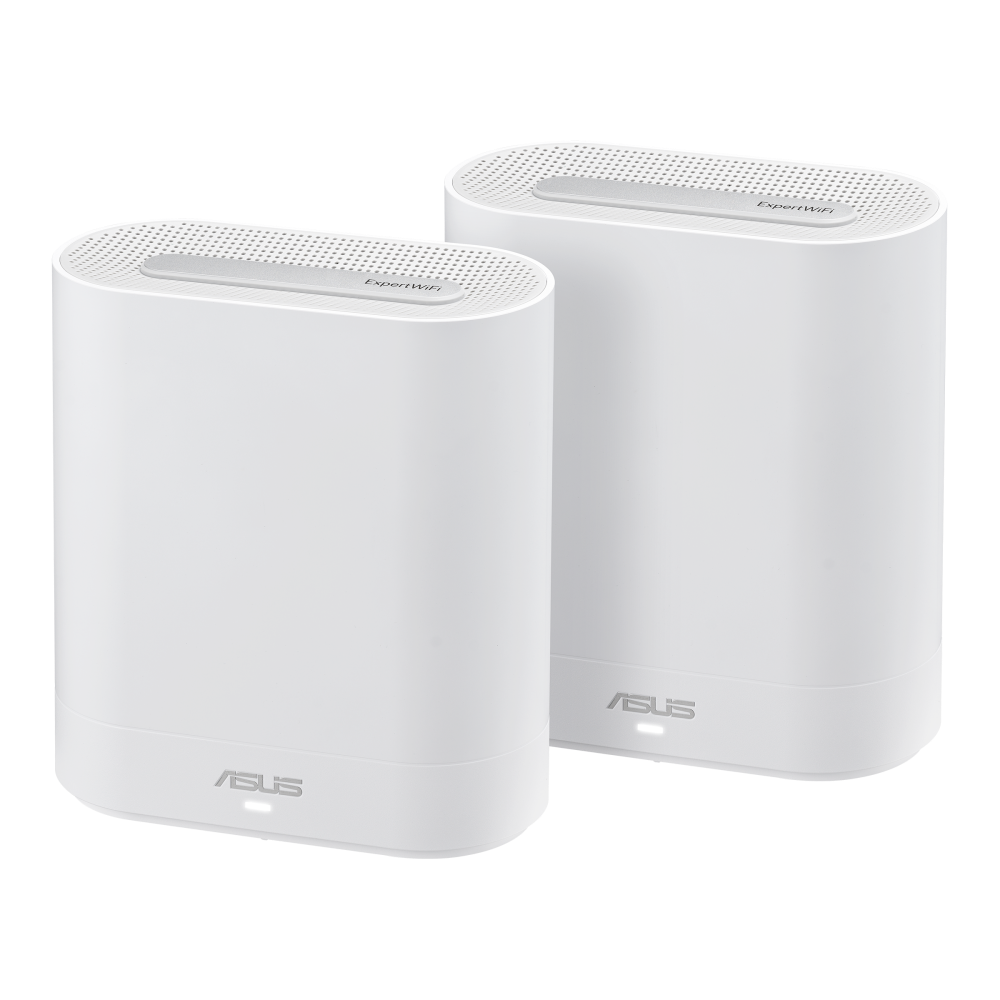

Asus ExpertWiFi EBM68

• Separate and Secure Usage – Up to five SSIDs and VLAN support to separate and prioritize devices for different business scenarios
• Customizable Guest Portal – Guest portals can be tailored to meet your business needs, with custom portal types, branding and visual templates to fit particular business styles
• Backup WAN for Stable Connectivity – The USB port can be used as a backup WAN by connecting it to a mobile phone with hotspot to maintain a reliable internet connection
• Extendable WiFi Coverage – ExpertWiFi provides up to 12 mesh node connections to extend your business network with AiMesh features.
• Commercial-grade Network Security – ExpertWiFi comes with ASUS AiProtection Pro and safe browsing features to secure your business WiFi environment.

Specifications:

Network Standard

IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6

Product Segment

AX7800 ultimate AX performance : 574+2402+4804Mbps

Data Rate

802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) : up to 300 Mbps
WiFi 5 (802.11ac) (1024QAM): up to 4333Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
WiFi 6 (802.11ax) (5GHz-1) : up to 2402Mbps
WiFi 6 (802.11ax) (5GHz-2) : up to 4804Mbps

Antenna

Internal antenna x 6

Transmit / Receive

2.4GHz 2x2
5GHz-1 2x2
5GHz-2 4x4

Processor

1.7 GHz quad-core processor

Memory

256 MB Flash 1 GB RAM

Boosts Speed

OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 1024-QAM high data rate 20/40/80/160 MHz bandwidth * The 160MHz bandwidth may be unavailable in the 5GHz band in some regions / countries due to regulatory restrictions.

Operating Frequency

2.4 GHz
5 GHz-1
5 GHz-2

Operating Mode

Wireless Router Mode
AiMesh Node Mode
Access Point Mode

I/O Ports

RJ45 for 2.5G BaseT for WAN x 1 RJ45 for Gigabits BaseT for LAN x 3 USB 3.2 Gen 1 x 1

Buttons

WPS Button Reset Button Power Switch

LED Indicator

Power x 1

Power Supply

AC Input : 110V~240V(50~60Hz) DC Output : 12 V with max. 3 A current

Mounting

Wall Mount

Product Weight (g)

808g

Product Dimentions

167x77x186 mm

Remark

Content and color may vary in different regions and packages.

AiMesh

AiMesh
• Primary AiMesh Router
• AiMesh Node

Device Access Control

"Allow you to block access to unwanted websites and apps."
------------------------------------------------------
Web & Apps Filters
Time Scheduling
Reward
Safe Browsing
Customized Internet Schedule
• Maximum Device Access Control Profile :12
• Maximum Device Access Control Content Filter Rule :12

Dashboard

Dashboard

Self-Defined Network

"You can create additional networks for different purposes, these networks are separate from the main network domain, to provide enhanced security, and create comprehensive network environment with customized settings."
------------------------------------------------------------------------
Self-Defined Network Type
• Employee
• Guest Portal
• Guest Network
• Scheduled Network
• IoT Network
• VPN Network
• Maximum Self-Defined Network Rule :16
VLAN
Captive Portal for Free WiFi
VPN WiFi
WiFi Scheduling: One Time Access
WiFi Scheduling: Weekly Schedule
WiFi share: QR code, PDF file
Bandwidth Limiter
AP isolate
DNS Server Connection

Security

AiProtection
VPN
WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
WPS
Let's Encrypt
DNS-over-TLS
SSH
Firewall
• Maximum Firewall Keyword Filter :64
• Maximum Firewall Network Service Filter :32
• Maximum Firewall URL Filter : 64

AiProtection

AiProtection Pro
• Router Security Assessment
• Malicious Site Blocking
• Two-Way IPS
• Infected Device Prevention and Blocking

VPN

VPN Client L2PT
VPN Client Open VPN
VPN Client PPTP
VPN Client WireGuard
VPN Server IPSec
VPN Server Open VPN
VPN Server PPTP
VPN Server WireGuard
VPN Fusion
Support Surfshark

Traffic Control

Adaptive QoS
• Bandwidth Monitor
• Bandwidth Limiter
Traffic Monitor
• Real-time Traffic Monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor
Traffic Analyzer
• Website History

WAN

Internet Connection Type
• PPPoE
• PPTP
• L2TP
• Automatic IP
• Static IP
• IPSec
Dual WAN
3G / 4G LTE Dongle
4G / 5G Auto Mobile Tethering
Port Forwarding
Port Triggering
DMZ
DDNS
NAT Passthrough
• PPTP Pass-Through
• L2TP Pass-Through
• IPSec Pass-Through

LAN

DHCP Server
IGMP Snooping
IPTV
LAN Link Aggregation
VLAN

Wireless

UTF-8 SSID
WiFi MAC Address Filter
• Maximum MAC Filters : 64
Wireless Scheduler

USB application

4G / 5G Auto Mobile Tethering
Media Server
Samba Server
FTP Server
Shared Folder Privileges

User Interface

WEB: ASUSWRT
APP: ASUS ExpertWiFi APP

Management

Multiple Site Management

Administration

Configuration Backup and Restore
Diagnosis Tools
Feedback System
System Log
New Device Connect Notification
Login Captcha
Connection Diagnosis
Auto Firmware Update
