Dual Radeon™ RX 6600 XT OC Edition
.png)

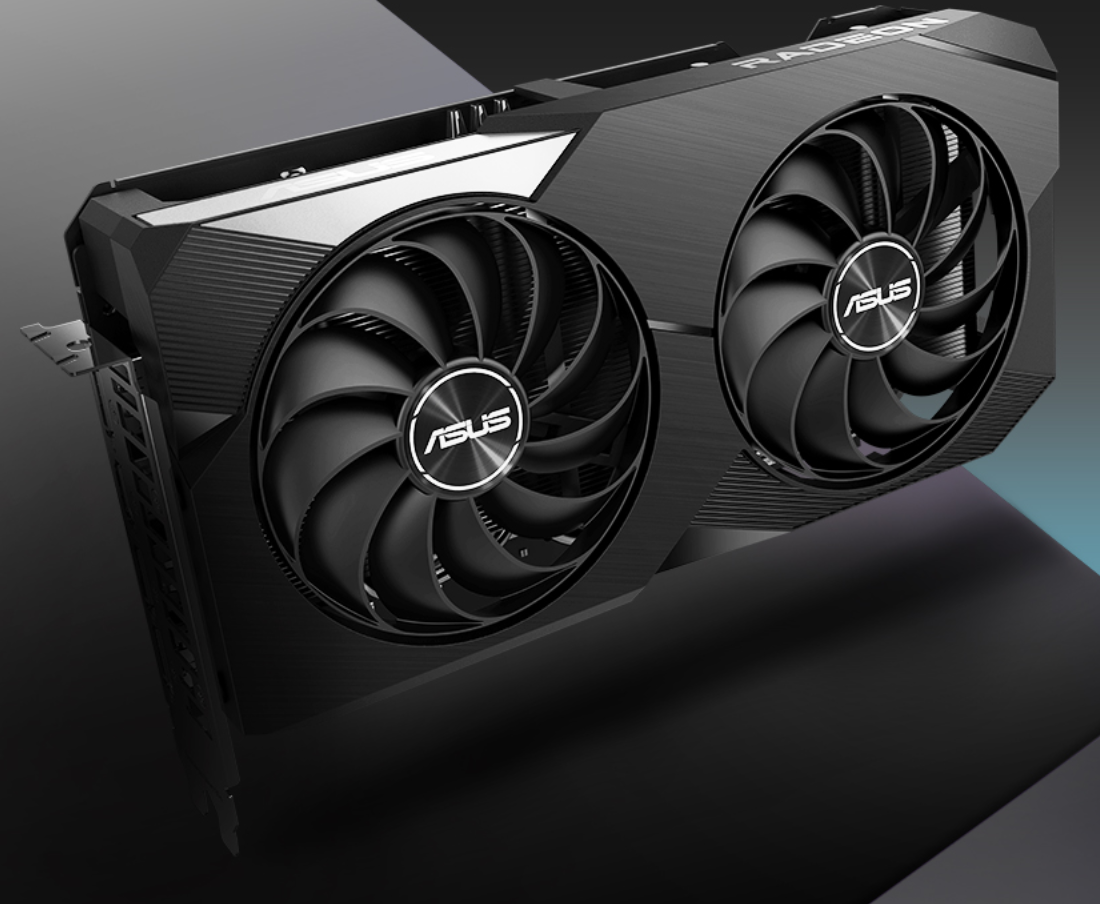

ASUS Dual Radeon™ RX 6600 XT OC Edition 8GB GDDR6 is armed to dish out frames and keep vitals in check.
- Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.

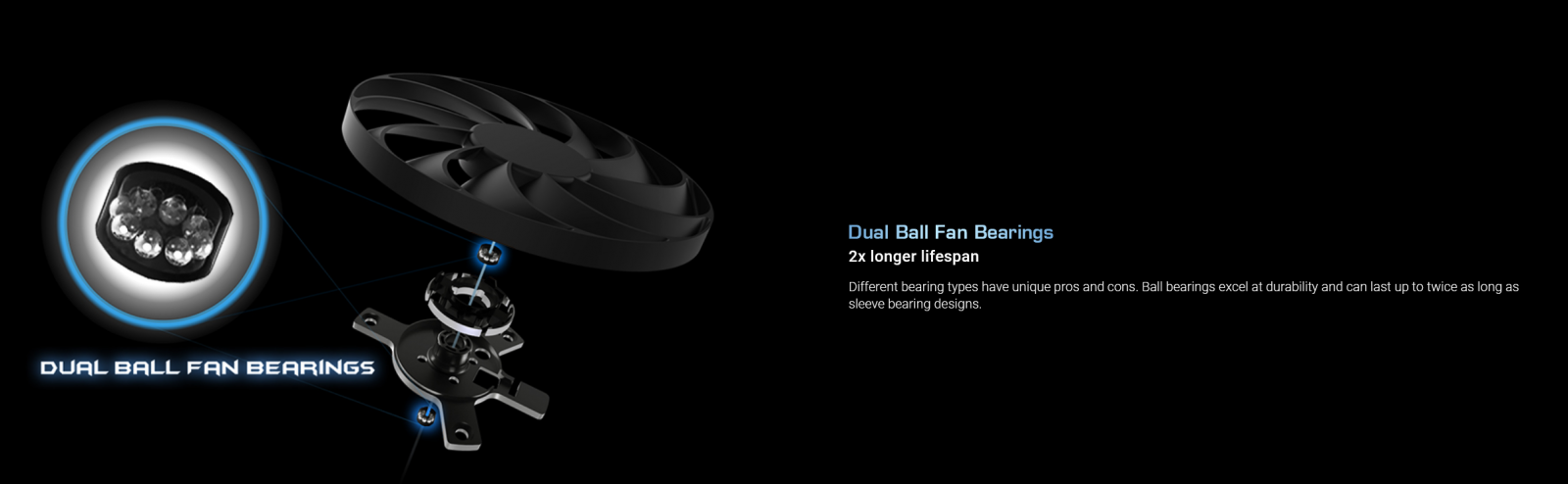

- Dual ball fan bearings can last up to twice as long as sleeve bearing designs.
- A protective backplate prevents PCB flex and trace damage.
- Auto-Extreme Technology uses automation to enhance reliability.

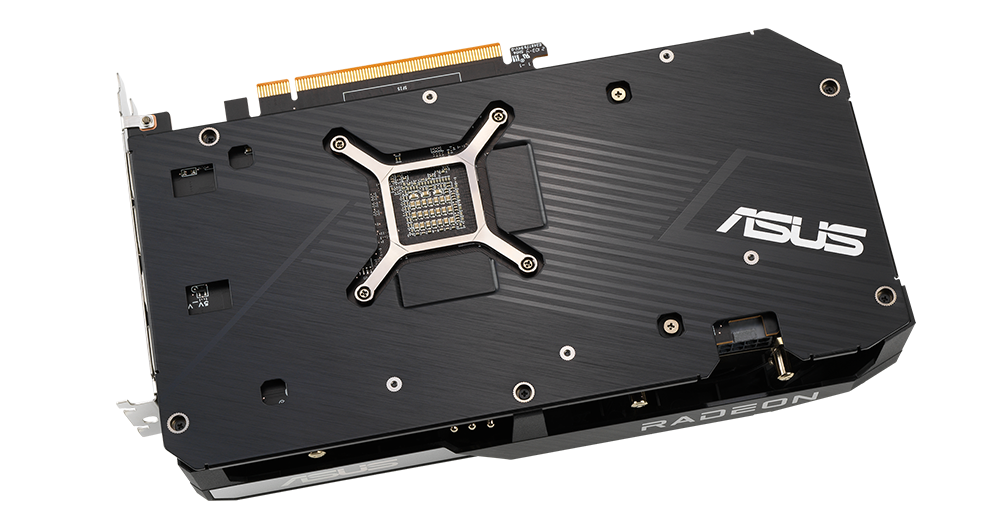

Protective Backplate
That's so metal!
The PCB is reinforced by an aluminum backplate that adds structural rigidity, helping to prevent flex and protect components and trace pathways from damage.
.png)

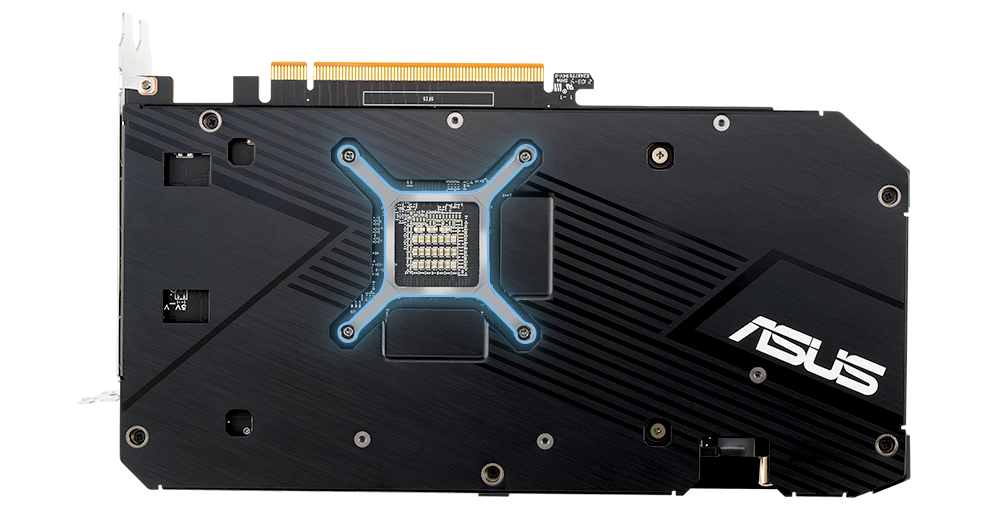

GPU Bracket
Locked and loaded
A GPU bracket provides uniform mounting pressure and extra stability to the critical connection between die and heat spreader.
.png)
Auto-Extreme Technology
Precision automated manufacturing
Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.
Graphic Engine
Radeon RX 6600 XT
Bus Standard
PCI Express 4.0
OpenGL
OpenGL® 4.6
Video Memory
8GB GDDR6
Stream Processors
2048
Memory Speed
16 Gbps
Memory Interface
128-bit
Resolution
Digital Max Resolution 7680 x 4320
Interface
Yes x 1 (Native HDMI 2.1)
Yes x 3 (Native DisplayPort 1.4a)
HDCP Support Yes (2.3)
Yes x 3 (Native DisplayPort 1.4a)
HDCP Support Yes (2.3)
Maximum Display Support
4
NVlink/ Crossfire Support
Yes
Dimensions
243 x 134 x 49 mm
9.6 x 5.3 x 1.9 inch
9.6 x 5.3 x 1.9 inch
Recommended PSU
500W
Power Connectors
1 x 8-pin
Slot
2.5 Slot
JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
Виж още Видео карти Asus
Виж всички Видео карти в категорията
Документация
ASUS - graphics card - 8 GB User manualТехнически характеристики
| GPU производител: | AMD Radeon |
|---|---|
| Капацитет: | 8 GB |
| Тип памет на видеокарта: | GDDR6 |
| Битове (BUS памет): | 128 Bit |
| Интерфейс: | DP HDMI |
