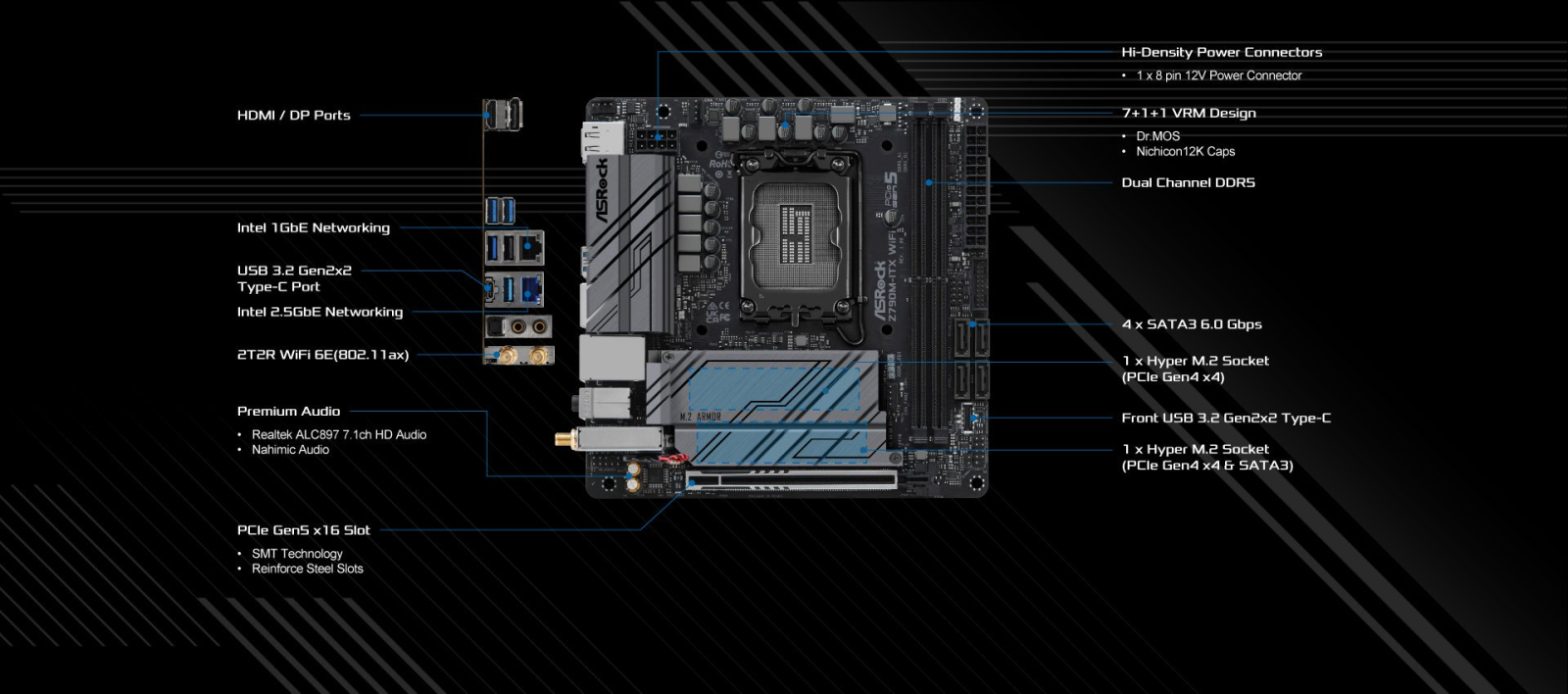

Дънна платка ASRock Z790M-ITX WIFI, Z790, LGA1700, DDR5, PCI-E 5.0 (DP&HDMI), 2x M.2, 4x SATA 6Gb/s, 4x USB 3.2 Gen 2 Type-A, 1x USB 3.2 Gen 2x2 Type-C, 2.5GbE LAN, Wi-Fi 6E, Bluetooth 5.3, Mini-ITX



ASRock Z790M-ITX WiFi





DDR5 XMP & EXPO Support

Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboards is built with low-loss materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel XMP/AMD EXPO capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.

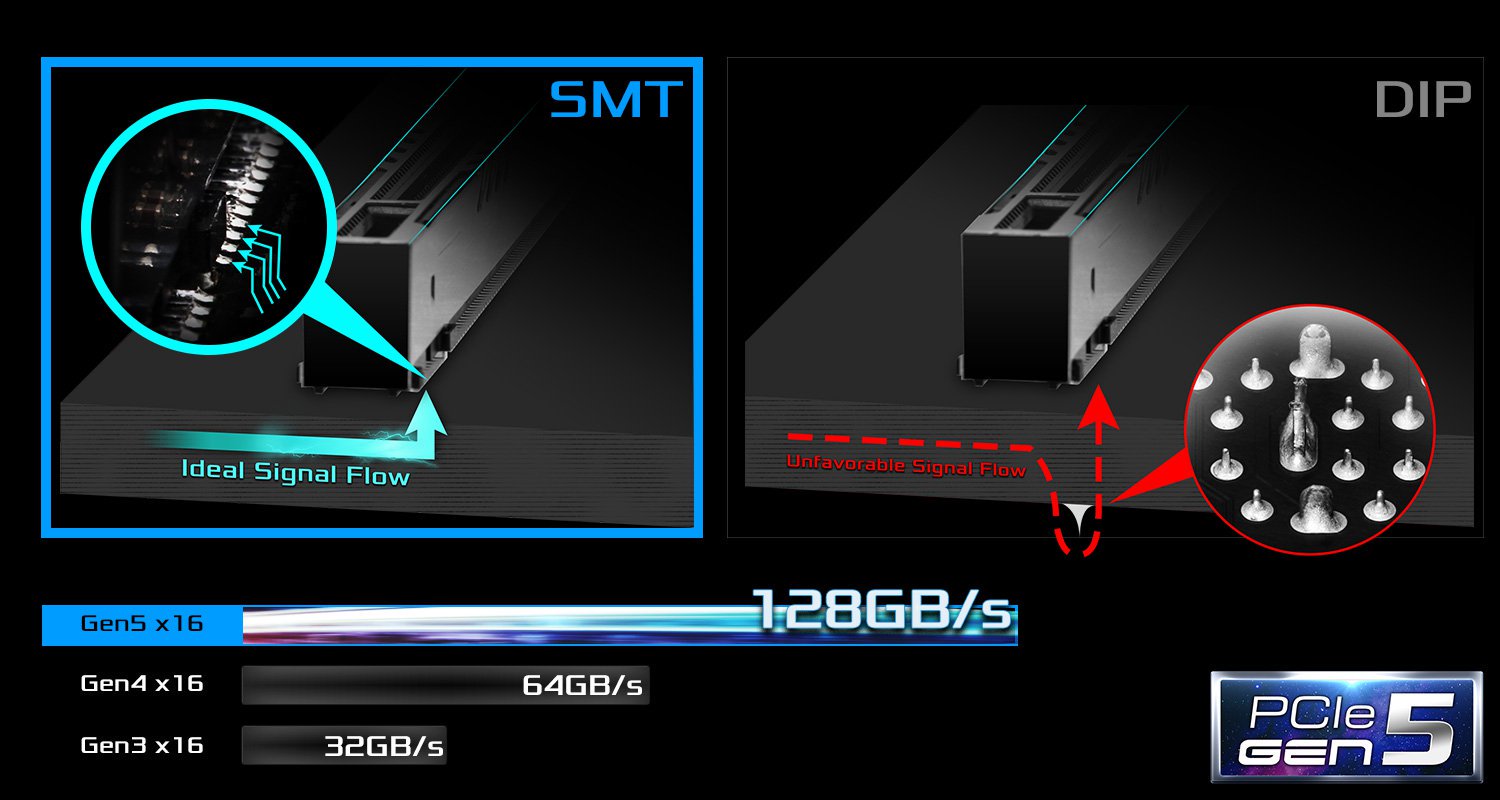

PCIe 5.0 + Surface-Mount Tech

Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard.
The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.







Wi-Fi 6E 802.11ax

WiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic. In addition to deliver higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks.

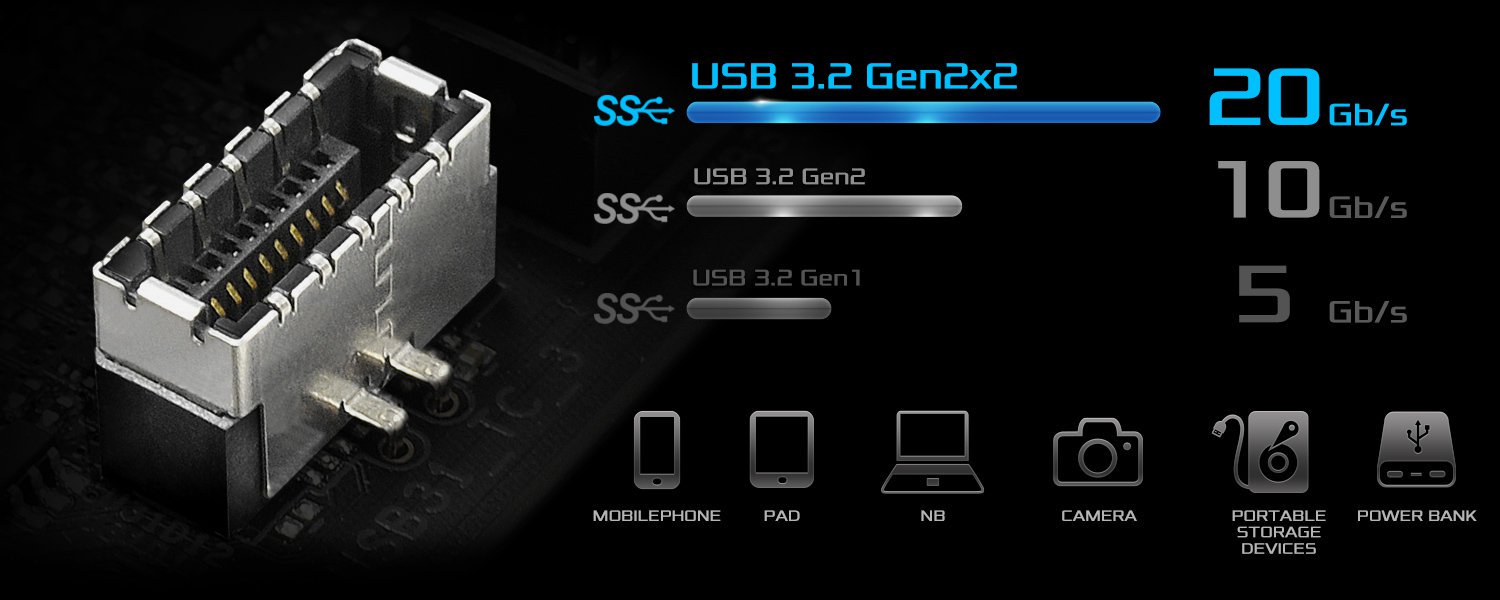

Front USB 3.2 Gen2 Type-C header delivers up to 10 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.





Specs:

• CPU

  - Supports 14th, 13th & 12th Gen Intel Core Processors (LGA1700)
  - Supports Intel Hybrid Technology
  - Supports Intel Turbo Boost Max 3.0 Technology
  - Supports Intel Thermal Velocity Boost (TVB)
  - Supports Intel Adaptive Boost Technology (ABT)

• Chipset

  - Intel Z790

• Memory

  - Dual Channel DDR5 Memory Technology
  - 2 x DDR5 DIMM Slots
  - Supports DDR5 non-ECC, un-buffered memory up to 7000+(OC)*
  - Max. capacity of system memory: 96GB
  - Supports Intel Extreme Memory Profile (XMP) 3.0



  *1DPC 1R Up to 7000+ MHz (OC), 5600 MHz Natively.
  1DPC 2R Up to 5200+ MHz (OC), 5200 MHz Natively.


• BIOS

  - 128Mb AMI UEFI Legal BIOS with GUI support

• Graphics

  - Intel® Xe Graphics Architecture (Gen 12)
  - 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz
  - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
  - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz



  *Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

• Audio

  - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  - Nahimic Audio

• LAN

  - 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Intel® I226V)
  - 1 x Gigabit LAN 10/100/1000 Mb/s (Intel® I219V)

• Wireless LAN

  - 802.11ax Wi-Fi 6E Module
  - Supports IEEE 802.11a/b/g/n/ac/ax
  - Supports Dual-Band 2x2 with extended 6GHz band support*
  - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
  - Supports Bluetooth 5.3 + High speed class II
  - Supports MU-MIMO



  *Wi-Fi 6E (6GHz band) will be supported by Microsoft Windows 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows Update and software updates once available.
  A 6GHz compatible router is required for 6E functionality.

• Slots

  CPU:
  - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
  Chipset:
  - 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)



  *Supports PCIe riser cards to extend one x16 slot to two x8 slots
  Supports NVMe SSD as boot disks

• Storage

  CPU:
  - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
  Chipset:
  - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
  - 4 x SATA3 6.0 Gb/s Connectors



  *Supports Intel Volume Management Device (VMD)
  Supports NVMe SSD as boot disks

• RAID

  - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  - Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices*

  * Requires additional M.2 NVMe expansion cards to support RAID 5

  • USB

    - 1 x USB 3.2 Gen2x2 Type-C (Rear)
    - 1 x USB 3.2 Gen2x2 Type-C (Front)
    - 4 x USB 3.2 Gen2 Type-A (Rear)
    - 2 x USB 3.2 Gen1 (Front)
    - 3 x USB 2.0 (1 Rear, 2 Front)


    *All USB ports support ESD Protection

  • Connector

    - 1 x eDP Signal Connector
    - 1 x RGB LED Header*
    - 1 x Addressable LED Header**
    - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
    - 2 x Chassis Fan Connectors (4-pin)****
    - 1 x 24 pin ATX Power Connector
    - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
    - 1 x Front Panel Audio Connector
    - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
    - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
    - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)*****



    *Supports in total up to 12V/3A, 36W LED Strip

    **Supports in total up to 5V/3A, 15W LED Strip

    ***CPU_FAN1/WP supports the fan power up to 2A (24W).
    CPU_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.

    ****CHA_FAN1~2 support the fan power up to 1A (12W).

    *****Actual speed depends on USB devices and extension cable in the chassis.

  • Rear Panel I/O

    - 2 x Antenna Ports
    - 1 x HDMI Port
    - 1 x DisplayPort 1.4
    - 1 x Optical SPDIF Out Port
    - 4 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)
    - 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
    - 1 x USB 2.0 Port
    - 2 x RJ-45 LAN Ports
    - 1 x Line Out Jack (Gold Audio Jack)
    - 1 x Microphone Input Jack (Gold Audio Jack)

  • Software and UEFI

    Software
    - ASRock Motherboard Utility (A-Tuning)
    - ASRock Polychrome SYNC
    - ASRock XFast LAN
    UEFI
    - ASRock EZ Mode
    - ASRock Full HD UEFI
    - ASRock My Favorites in UEFI
    - ASRock Auto Driver Installer
    - ASRock Instant Flash
    - ASRock Easy RAID Installer



  • Form Factor

    - Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
    - 8 Layer PCB

  • OS

    - Microsoft Windows® 10 64-bit / 11 64-bit


    *Windows 10 only supports version 21H2 or later

  • Certifications

    - FCC, CE
    - ErP/EuP ready (ErP/EuP ready power supply is required)
