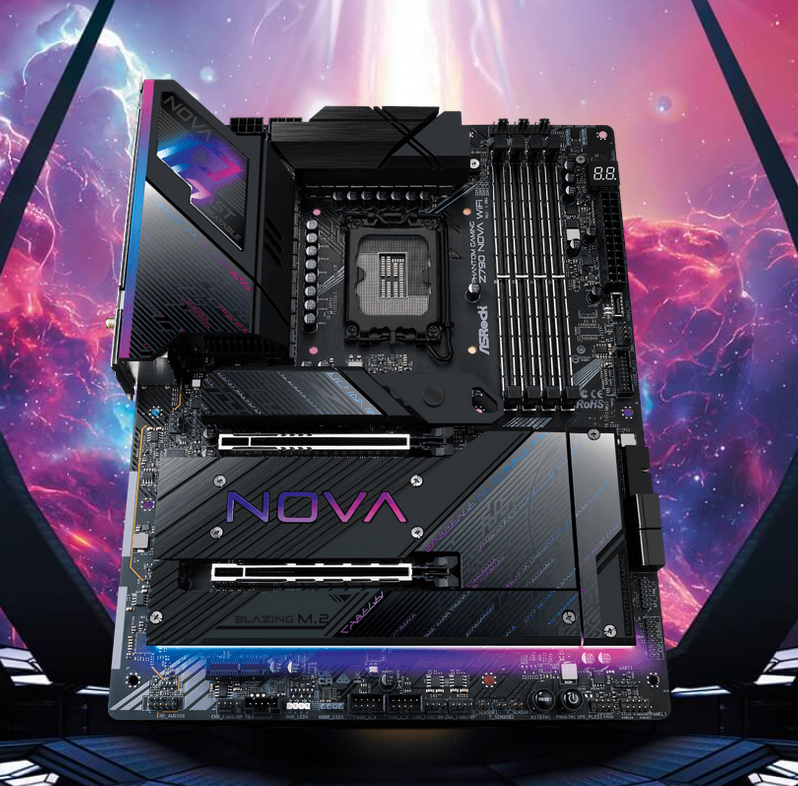

Дънна платка ASRock Z790 NOVA WIFI, Z790, LGA1700, DDR5, PCIe 5.0 (DP&HDMI)(CF), 6x M.2, 4x SATA 6Gb/s, 4x USB 3.2 Gen2 Type-A, 2x USB 3.2 Gen2x2 Type-C, Wi-Fi 7, Bluetooth, ATX

PHANTOM GAMING

Z790 Nova WiFi

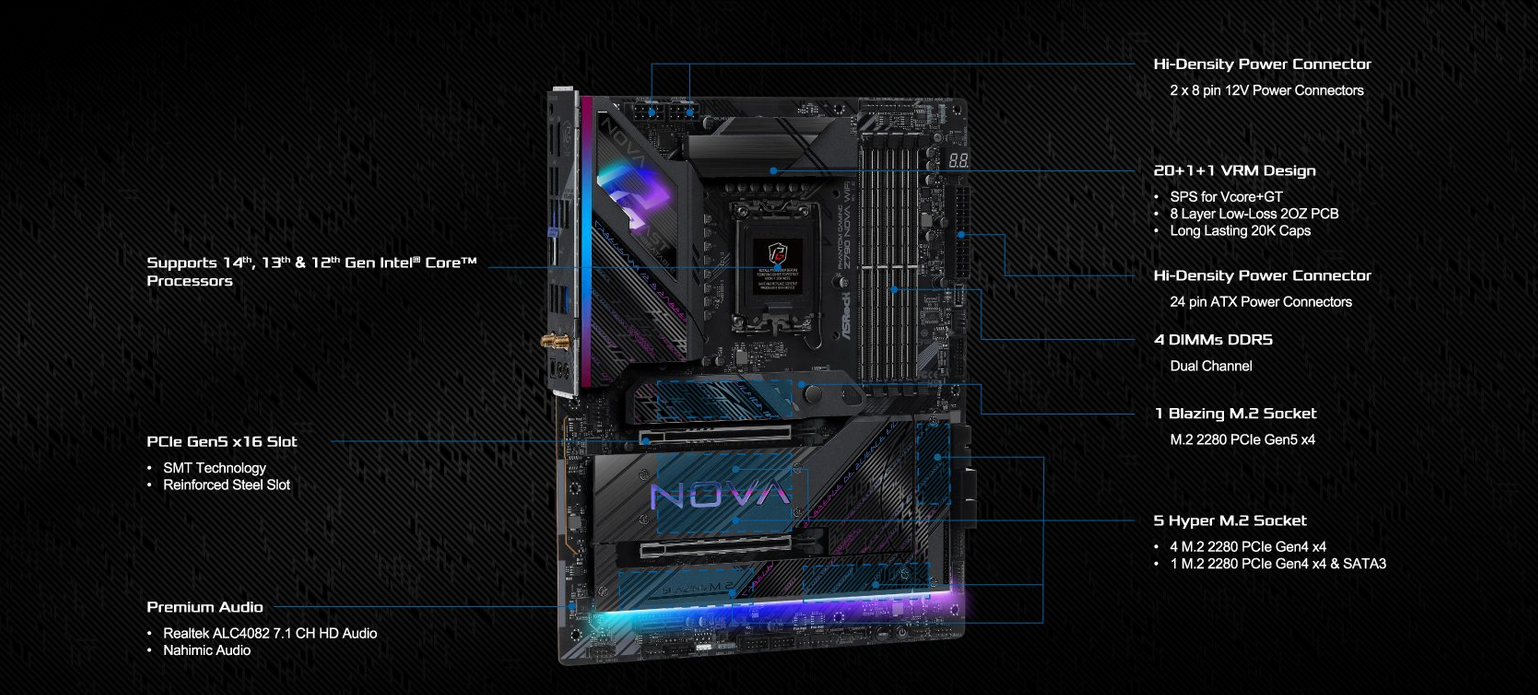

• Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
• 20+1+1 Power Phase, SPS for VCore+GT,
  8-Layer 2OZ PCB
• 4 x DDR5 DIMMs, supports up to 8000+(OC)
• 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 3.0 x1
• Graphics Output Options: 1 HDMI, 1 DisplayPort
• Realtek ALC4082 7.1 CH HD Audio Codec,
  Nahimic Audio
• 4 SATA3, 1 Blazing M.2 (PCIe Gen5 x4),
  4 Hyper M.2 (PCIe Gen4 x4),
  1 Hyper M.2 (PCIe Gen4 x4 & SATA3)
• 2 USB 3.2 Gen2x2 Type-C (1 Rear, 1 Front)
  4 USB 3.2 Gen2 Type-A (Rear)
  7 USB 3.2 Gen1 Type-A (3 Rear, 4 Front)
• Intel® Killer 2.5G LAN
• 802.11be WiFi 7 + Bluetooth
• Supports Graphics Card Holder,
  Toolless Multi-Layer M.2 Heatsink

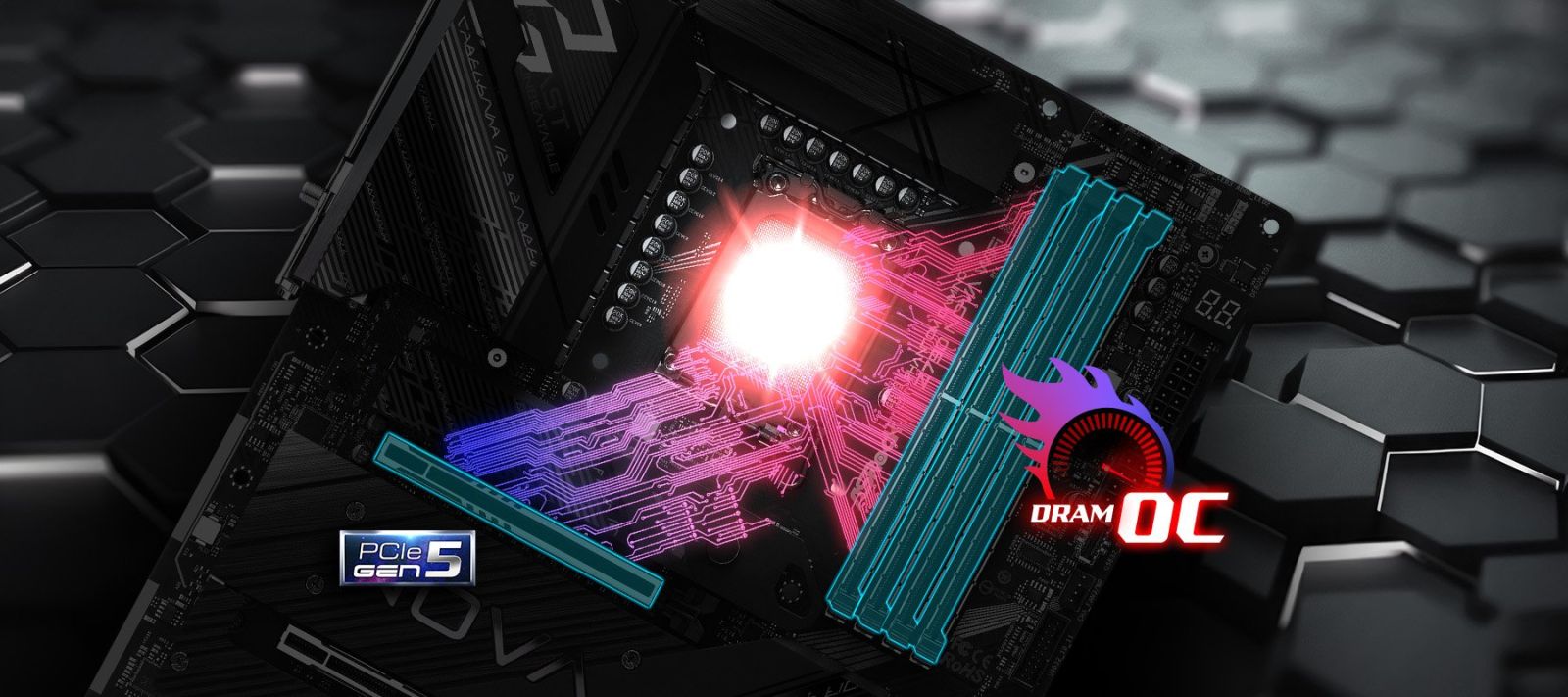

The server grade low loss PCB improves signal integrity, allowing motherboard to support PCIe 5.0 for both graphics card and M.2 SSD, it also improves memory OC potential to deliver the most extreme memory performance.

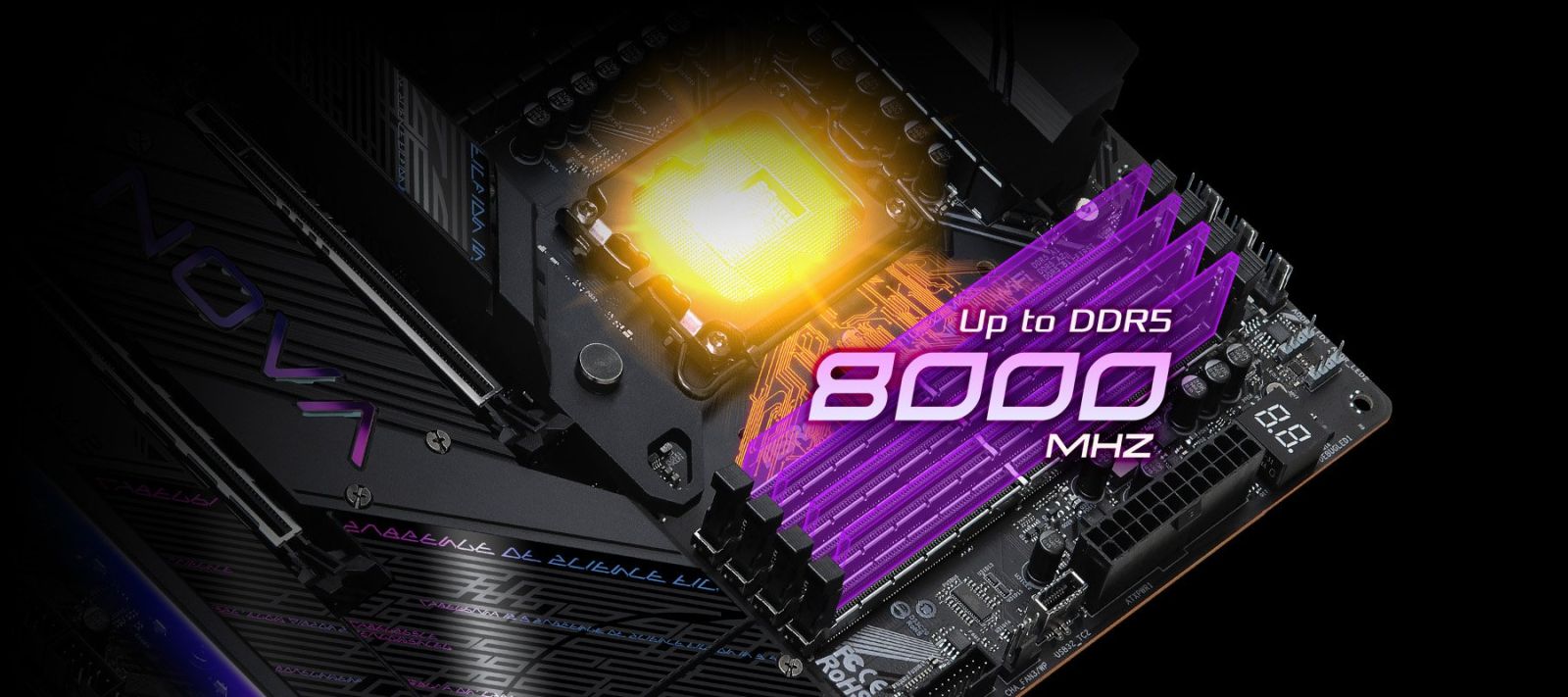

Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboards is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.

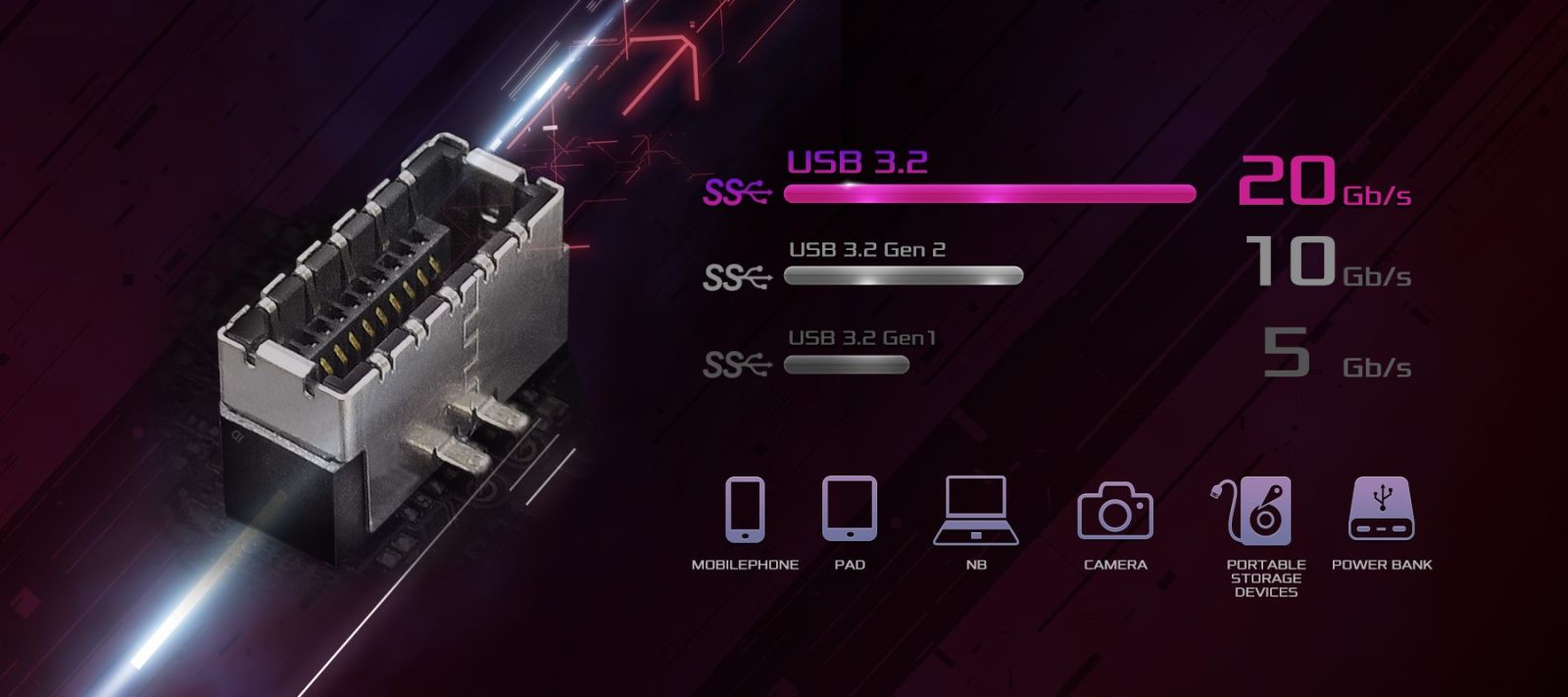

The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.

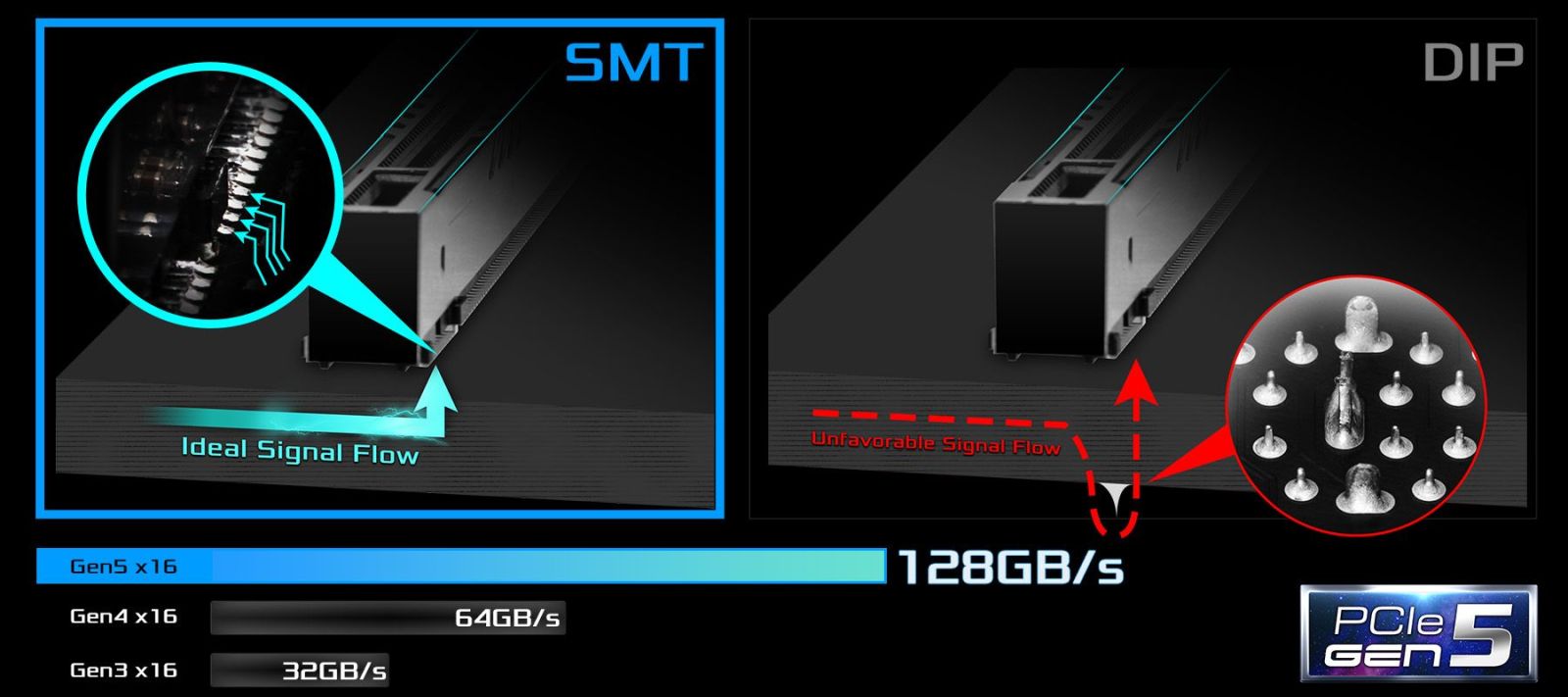

Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard.
The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.

Specifications:

• Unique Feature

  Superb Productivity
  - PCIe Gen5 (Graphics, M.2)
  - Dual Channel DDR5
  Rock-Solid Durability
  - Server-Grade Low-Loss PCB
  - 20+1+1 Power Phase, 90A SPS for VCore+GT with Enlarged Heatsink Armor
  - Flexible Integrated I/O Shield
  - 20K Long-lasting Black Caps (high quality and conductive polymer capacitors)
  Ultrafast Connectivity
  - Killer 2.5G LAN, 802.11be Wi-Fi 7 Module
  - ASRock Lightning Gaming Ports
  EZ Update
  - ASRock Auto Driver Installer

• CPU

  - Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
  - Supports Intel® Hybrid Technology
  - Supports Intel® Turbo Boost Max 3.0 Technology
  - Supports Intel® Thermal Velocity Boost (TVB)
  - Supports Intel® Adaptive Boost Technology (ABT)
  - Supports ASRock Hyper BCLK Engine

• Chipset

  - Intel® Z790

• Memory

  - Dual Channel DDR5 Memory Technology
  - 4 x DDR5 DIMM Slots
  - Supports DDR5 non-ECC, un-buffered memory up to 8000+(OC)*
  - Max. capacity of system memory: 192GB
  - Supports Intel® Extreme Memory Profile (XMP) 3.0*



  * 1DPC 1R Up to 8000+ MHz (OC), 4800 MHz Natively. 1DPC 2R Up to 6800+ MHz (OC), 4400 MHz Natively. 2DPC 1R Up to 6000+ MHz (OC), 4000 MHz Natively. 2DPC 2R Up to 5600+ MHz (OC), 3600 MHz Natively.

• BIOS

  - 256Mb AMI UEFI Legal BIOS with GUI support

• Graphics

  - Intel® Xe Graphics Architecture (Gen 12)
  - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
  - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz



  * Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

• Audio

  - 7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec)
  - Individual PCB Layers for R/L Audio Channel
  - Impedance Sensing on Rear Out port
  - Nahimic Audio

• LAN

  - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
  - Killer E3100G
  - Supports Killer LAN Software

• Wireless LAN

  - 802.11be 2x2 Wi-Fi 7 Module
  - Supports IEEE 802.11a/b/g/n/ac/ax/be
  - Supports 2.4GHz/5GHz/6GHz* frequency band
  - Supports 320MHz channel bandwidth with 6GHz frequency band*
  - 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology
  - Supports Bluetooth 5.4**
  - Supports MU-MIMO



  * Wi-Fi 7 (6GHz band) will be supported by Microsoft Windows® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available.
  A 6GHz compatible router is required for 7 functionality.

  **Bluetooth Audio Offload (HFP, A2DP, and LE Audio) is not supported.

• Slots

  CPU:
  - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
  Chipset:
  - 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode*
  - 1 x PCIe 3.0 x1 Slot (PCIE3)*
  - 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)
  - Supports AMD CrossFire™
  - 15μ Gold Contact in VGA PCIe Slot (PCIE1)



  * Supports NVMe SSD as boot disks
  If M2_1 is occupied, PCIE1 will downgrade to x8 mode.

• Storage

  CPU:
  - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode*
  - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
  Chipset:
  - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
  - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
  - 1 x Hyper M.2 Socket (M2_5, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
  - 1 x Hyper M.2 Socket (M2_6, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
  - 4 x SATA3 6.0 Gb/s Connectors



  * Supports Intel® Volume Management Device (VMD)
  Supports NVMe SSD as boot disks
  If M2_1 is occupied, PCIE1 will downgrade to x8 mode.

• RAID

  - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

• USB

  - 2 x USB 3.2 Gen2x2 Type-C (1 Rear, 1 Front)
  - 4 x USB 3.2 Gen2 Type-A (Rear)
  - 7 x USB 3.2 Gen1 Type-A (3 Rear, 4 Front)
  - 6 x USB 2.0 (2 Rear, 4 Front)


  * All USB ports support ESD Protection

• Connector

  - 3 x Thermistor Cable Headers
  - 1 x SPI TPM Header
  - 1 x Power LED and Speaker Header
  - 1 x RGB LED Header*
  - 3 x Addressable LED Headers**
  - 1 x CPU Fan Connector (4-pin)***
  - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
  - 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
  - 1 x VRM Fan Connector (4-pin) (Smart Fan Speed Control)******
  - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
  - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
  - 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
  - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
  - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
  - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
  - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
  - 1 x Dr. Debug with LED
  - 1 x Power Button with LED
  - 1 x Reset Button with LED



  * Supports in total up to 12V/3A, 36W LED Strip
  ** Support in total up to 5V/3A, 15W LED Strip
  *** CPU_FAN1 supports the fan power up to 1A (12W).
  **** CPU_FAN2/WP supports the fan power up to 2A (24W).
  ***** CHA_FAN1~5/WP support the fan power up to 2A (24W).
  ***** CPU_FAN2/WP and CHA_FAN1~5/WP can auto detect if 3-pin or 4-pin fan is in use.
  ****** VRM_FAN supports the VRM fan power up to 2A (24W).

• Rear Panel I/O

  - 2 x Antenna Ports
  - 1 x HDMI Port
  - 1 x DisplayPort 1.4
  - 1 x Optical SPDIF Out Port
  - 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
  - 4 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) *
  - 3 x USB 3.2 Gen1 Ports *
  - 2 x USB 2.0 Ports
  - 1 x RJ-45 LAN Port
  - 1 x Clear CMOS Button
  - 1 x Line Out Jack (Gold Audio Jack)
  - 1 x Microphone Input Jack (Gold Audio Jack)



  * USB32_12 support Ultra USB Power. USB32_34 are Lightning Gaming Ports.

• Software and UEFI

  Software
  - ASRock Motherboard Utility (Phantom Gaming Tuning)
  - Killer Control Center
  - ASRock Polychrome SYNC*
  UEFI
  - ASRock EZ Mode
  - ASRock Full HD UEFI
  - ASRock My Favorites in UEFI
  - ASRock Auto Driver Installer
  - ASRock Instant Flash
  - ASRock Easy RAID Installer



  *These utilities can be downloaded from ASRock Live Update & APP Shop.

• Accessories

  - 1 x User Manual
  - 4 x SATA Data Cables
  - 1 x Graphics Card Holder
  - 1 x ASRock WiFi 2.4/5/6 GHz Antenna
  - 1 x ARGB Splitter Cable
  - 3 x Thermistor Cables
  - 5 x Screws for M.2 Sockets
  - 5 x Standoffs for M.2 Sockets

• Form Factor

  - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
  - 8 Layer PCB
  - 2oz Copper PCB

• OS

  - Microsoft Windows® 10 64-bit / 11 64-bit
