Захранване ASRock TC-1300T, 1300W, Active PFC, 80 Plus Titanium, 135mm вентилатор

ASRock TC-1300T

+5V BOOST Mode

Voltage Compensation Mechanism

When this switch is enabled, it boosts the +5V voltage to maintain optimal performance.
If no voltage drop occurs, the PSU will regulate the +5V rail to approximately +5.15V, ensuring consistent power delivery.

Specifications

80 Plus Efficiency

TITANIUM

Cybenetics (ETA/LAMBDA)

TITANIUM / A+

ATX 12V Version

ATX 3.1

ATX

ATX 3.1

Continuous 12V output

108.3 A

Dimensions(L x W x H)

180mm x 150mm x 86mm

Fan

135mm Striped Axial FDB Fan

iCOOL MODE

Yes (Switch)

Protections

OCP, SCP, OVP, UVP, OTP, OPP

Capacitors

All Japanese

5V BOOST

Yes (Switch)

PCIe 5.1 Cable TempGuard

Yes

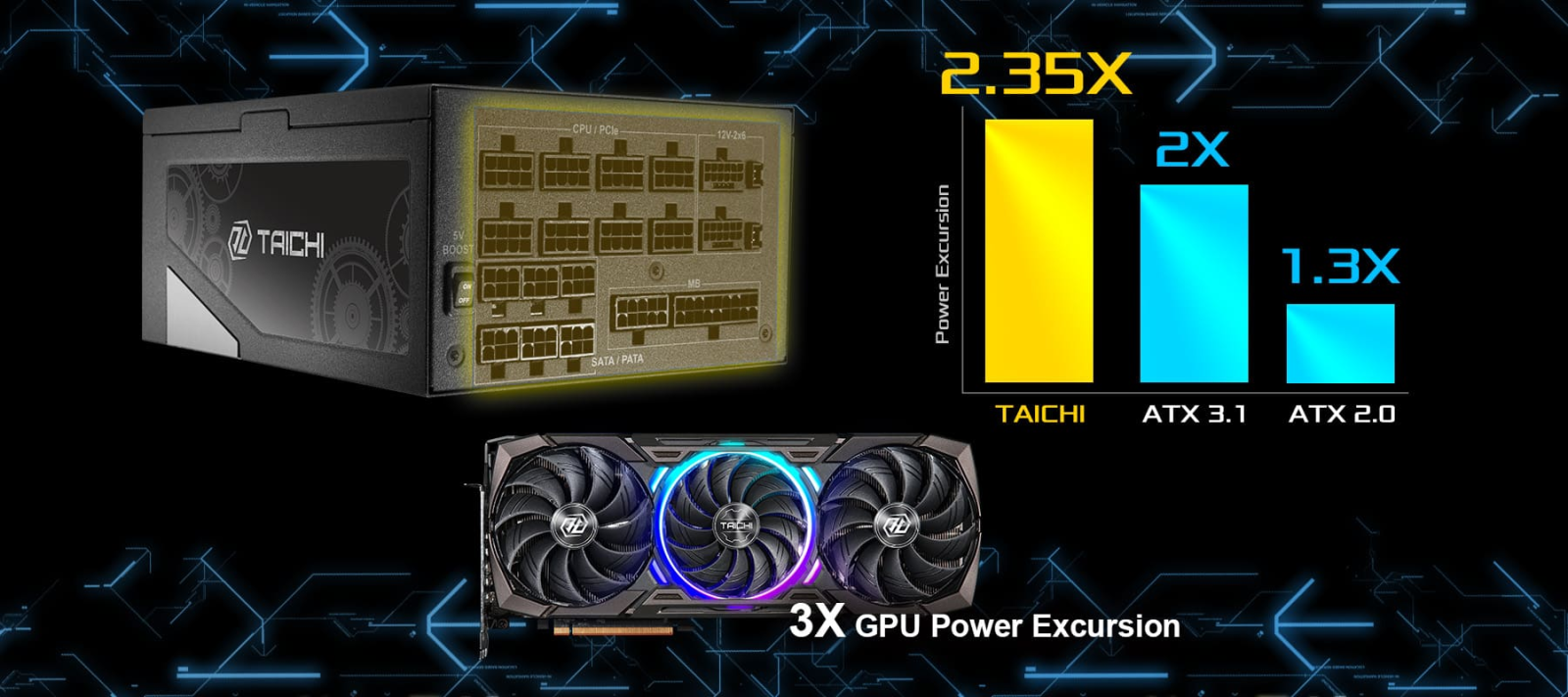

Total Power Excursion

235%

MTBF (Hours)@25°C

100,000

Cable Type

24pin & 12+4pin: Sleeved
Others: Individual Braided Pattern

Motherboard cable (24pin)

1

EPS 12V CPU connectors (4+4pin)

2

PCIe5.1 connectors(12+4pin) Dual Color

2

PCIe connectors (6+2pin)

8

4-pin Peripheral connectors

3

SATA 5-pin connectors

9
