Захранване ASRock PG-1600G, 1600W, Active PFC, 80 Plus Gold, 135mm вентилатор

ASRock PG-1600G

+5V BOOST Mode

Voltage Compensation Mechanism

When this switch is enabled, it boosts the +5V voltage to maintain optimal performance.
If no voltage drop occurs, the PSU will regulate the +5V rail to approximately +5.15V, ensuring consistent power delivery.

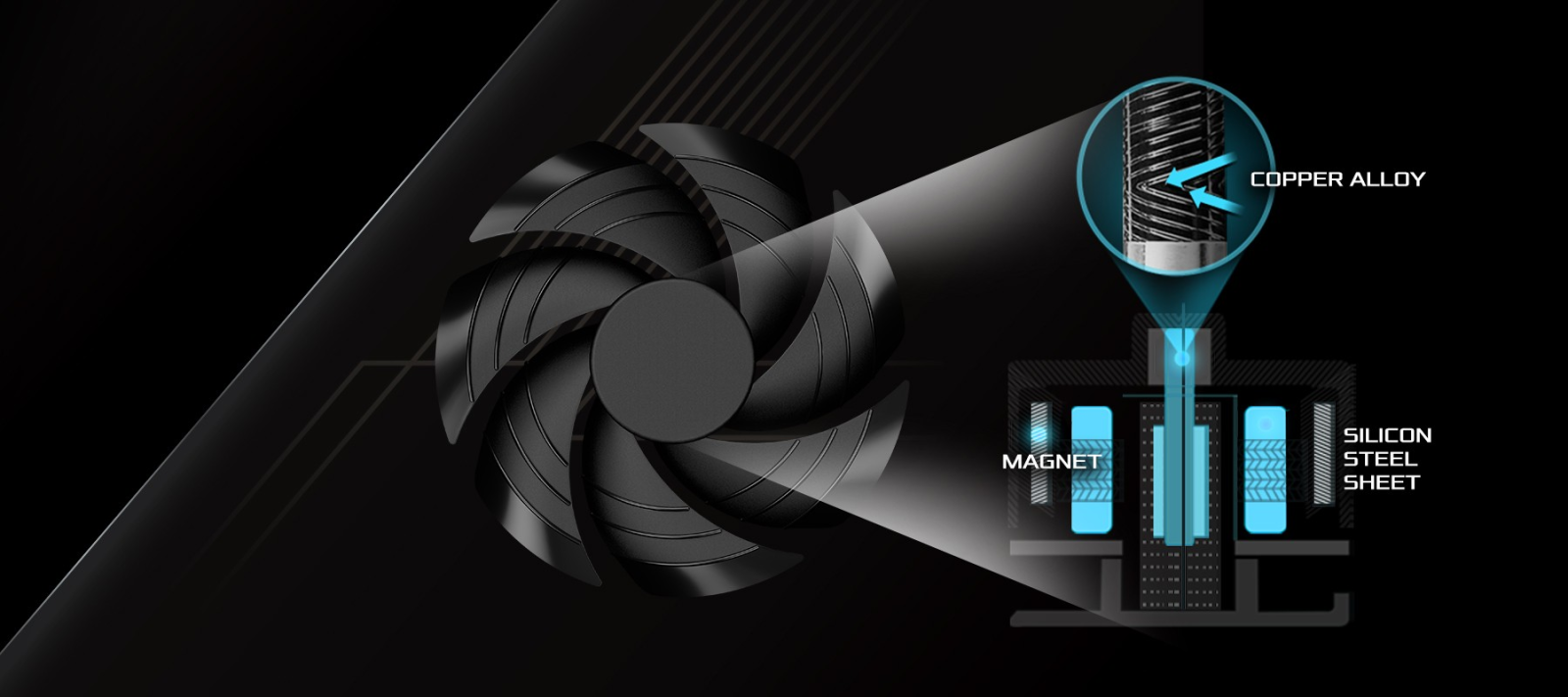

135mm Fluid Dynamic Bearing Fan

The fluid seal design and the herringbone structure provides an extremely long lifespan and noise minimization.

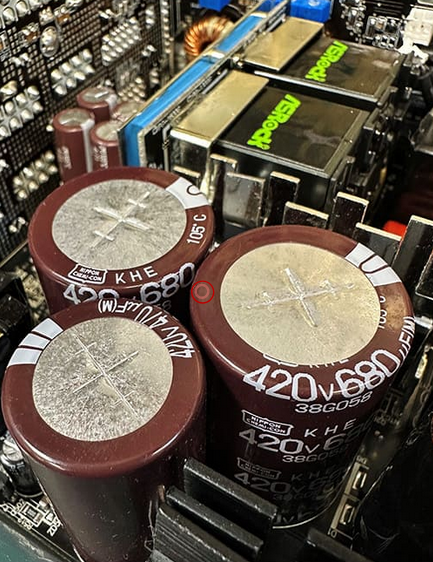

Japanese Capacitors 105 °C Japanese-made Capacitor and Solid Capacitor, makes prolonged life span possible.

Specifications

80 Plus Efficiency

GOLD

Cybenetics (ETA/LAMBDA)

PLATINUM / A

ATX 12V Version

ATX 3.1

ATX

ATX 3.1

Continuous 12V output

133.3 A

Dimensions(L x W x H)

180mm x 150mm x 86mm

Fan

135mm Striped Axial FDB Fan

iCOOL MODE

Yes (Switch)

Protections

OCP, SCP, OVP, UVP, OTP, OPP

Capacitors

All Japanese

5V BOOST

Yes (Switch)

PCIe 5.1 Cable TempGuard

Yes

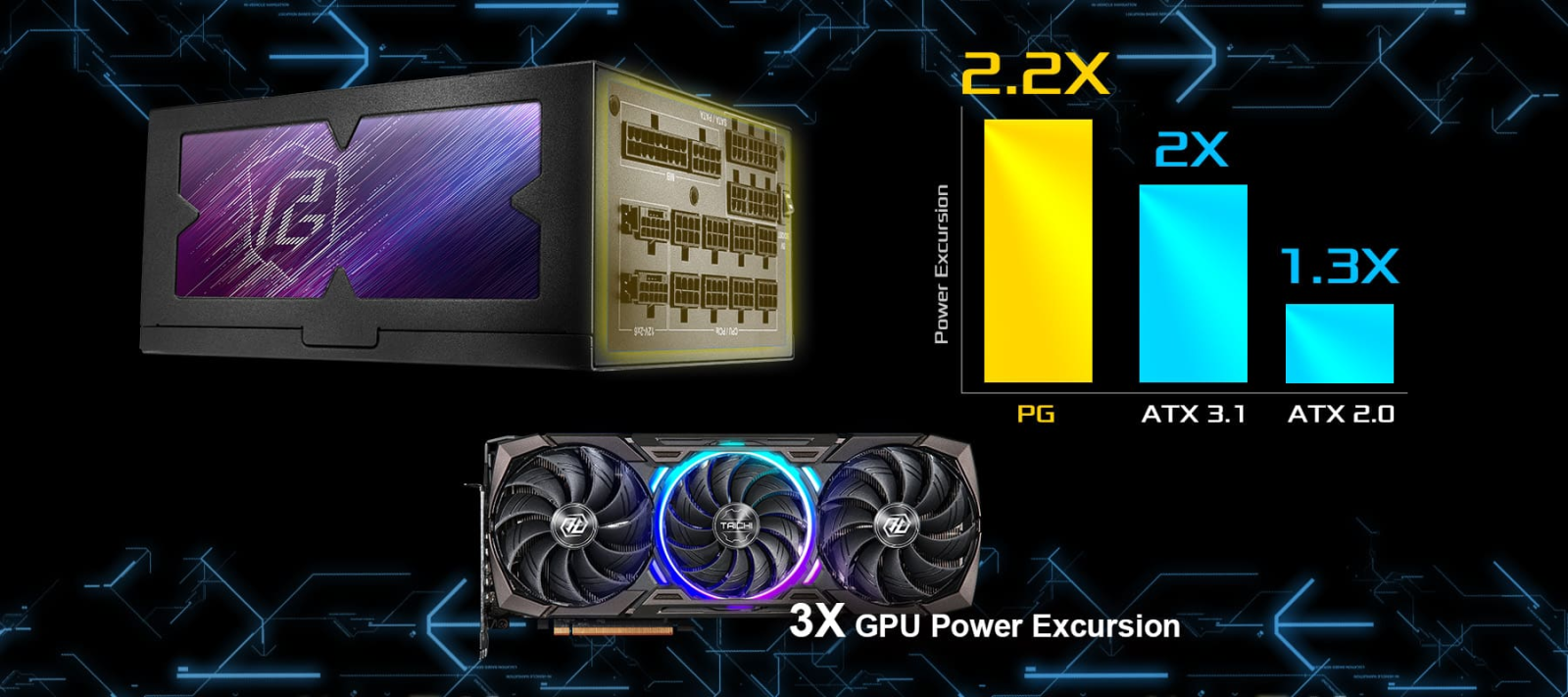

Total Power Excursion

220%

MTBF (Hours)@25°C

100,000

Cable Type

24pin & 12+4pin: Sleeved
Others: Individual Braided Pattern

Motherboard cable (24pin)

1

EPS 12V CPU connectors (4+4pin)

2

PCIe5.1 connectors(12+4pin) Dual Color

2

PCIe connectors (6+2pin)

8

4-pin Peripheral connectors

6

SATA 5-pin connectors

12
