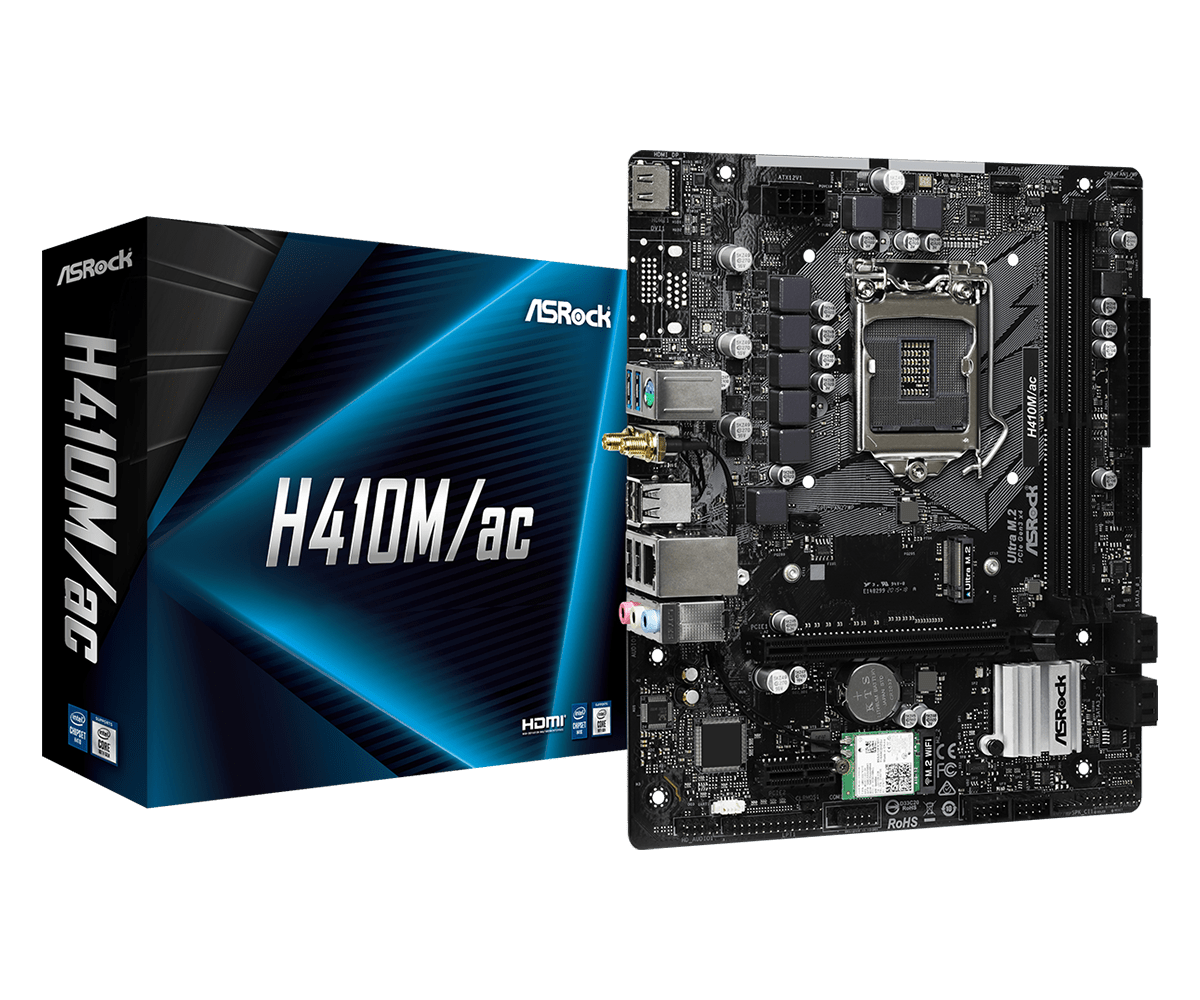

H410M/ac
- Supports 10th Gen Intel® Core™ Processors (Socket 1200)
- 7 Power Phase Design
- Supports DDR4 2933 MHz
- 1 PCIe 3.0 x16, 1 PCIe 3.0 x1
- Graphics Output Options: HDMI
- 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
- 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
- 4 USB 3.2 Gen1 (2 Front, 2 Rear)
- Intel® Gigabit LAN
- Intel® 802.11ac WiFi + BT 4.2
Specifications:
-
Unique FeatureASRock Super Alloy
- Premium 50A Power Choke
- Sapphire Black PCB
- High Density Glass Fabric PCB Intel® 802.11ac WiFi
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop -
CPU- Supports 10th Gen Intel® Core™ Processors (Socket 1200)
- Digi Power design
- 7 Power Phase design
- Supports Intel® Turbo Boost Max 3.0 Technology -
Chipset- Intel® H410
-
Memory- Dual Channel DDR4 Memory Technology
- 2 x DDR4 DIMM Slots
- Supports DDR4 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory*
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 64GB**
- Supports Intel® Extreme Memory Profile (XMP) 2.0
- 15μ Gold Contact in DIMM Slots
*Please refer to Memory Support List on ASRock's website for more information.
Core™ (i9/i7) support DDR4 up to 2933; Core™ (i5/i3), Pentium® and Celeron® support DDR4 up to 2666.
**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation. -
BIOS- 128Mb AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
- CPU Core/Cache, GT, DRAM, VPPM, PCH 1.05V, VCCST, VCCSA Voltage Multi-adjustment -
Graphics- Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1**
- Graphics, Media & Compute: Microsoft® DirectX 12, OpenGL 4.5, Intel® Built In Visuals, Intel® Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1
- Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft® PlayReady 3.0, Intel® SGX Content Protection, UHD Blu-ray Disc
- Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
- Supports HDCP 2.3 with HDMI 1.4 Port
- Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port
*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
**VP9 10bit and VC-1 are for decode only.
VP8 and VP9 encode are not supported by Windows® OS. -
Audio- 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
- Supports Surge Protection -
LAN- Gigabit LAN 10/100/1000 Mb/s
- Giga PHY Intel® I219V
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE -
Wireless LAN- Intel® 802.11ac WiFi Module
- Supports IEEE 802.11a/b/g/n/ac
- Supports Dual-Band (2.4/5 GHz)
- Supports high speed wireless connections up to 433Mbps
- Supports Bluetooth 4.2 / 3.0 + High speed class II -
Slots- 1 x PCI Express 3.0 x16 Slot*
- 1 x PCI Express 3.0 x1 Slot
- 1 x M.2 Socket (Key E) with the bundled WiFi-802.11ac PCIe WiFi module
*Supports NVMe SSD as boot disks -
Storage- 4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug*
- 1 x Ultra M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**
*If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.
**Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit -
Connector- 1 x Print Port Header
- 1 x COM Port Header
- 1 x SPI TPM Header
- 1 x Chassis Intrusion and Speaker Header
- 1 x CPU Fan Connector (4-pin)*
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
- 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
*The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
**The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
***The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
CPU_FAN2/WP, CHA_FAN1/WP and CHA_FAN2/WP can auto detect if 3-pin or 4-pin fan is in use. -
Rear Panel I/O- 2 x Antenna Ports
- 1 x PS/2 Mouse/Keyboard Port
- 1 x HDMI Port
- 4 x USB 2.0 Ports (Supports ESD Protection)
- 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone -
Software and UEFISoftware
- ASRock Motherboard Utility (A-Tuning)
- ASRock XFast LAN
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Instant Flash
- ASRock Internet Flash
*These utilities can be downloaded from ASRock Live Update & APP Shop. -
Support CD- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
-
Accessories- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
- 2 x ASRock WiFi 2.4/5 GHz Antennas
- 1 x Screw for M.2 Socket -
Hardware Monitor- Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
- CASE OPEN detection
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, VPPM, PCH, VCCSA, VCCST -
Form Factor- Micro ATX Form Factor: 8.9-in x 7.4-in, 22.6 cm x 18.8 cm
- Solid Capacitor design -
OS- Microsoft® Windows® 10 64-bit
-
Certifications- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
Виж още Дънни платки за Intel процесори ASRock
Виж всички Дънни платки за Intel процесори в категорията
Технически характеристики
Процесор сокет: | LGA 1200 |
---|---|
Чипсет: | H410 |
Поддържана памет: | DDR4 |
Брой слотове за RAM памет: | 2 |
Storage интерфейси: | SATA 6Gbit/s, M.2 |
RAID: | Не |
Безжични мрежи: | 802.11ac |
Bluetooth: | Да |
Видео слот: | PCI-E |
Multi-Graphics технология: | Няма |
Видео изход: | HDMI |
Форм фактор: | Micro ATX |
