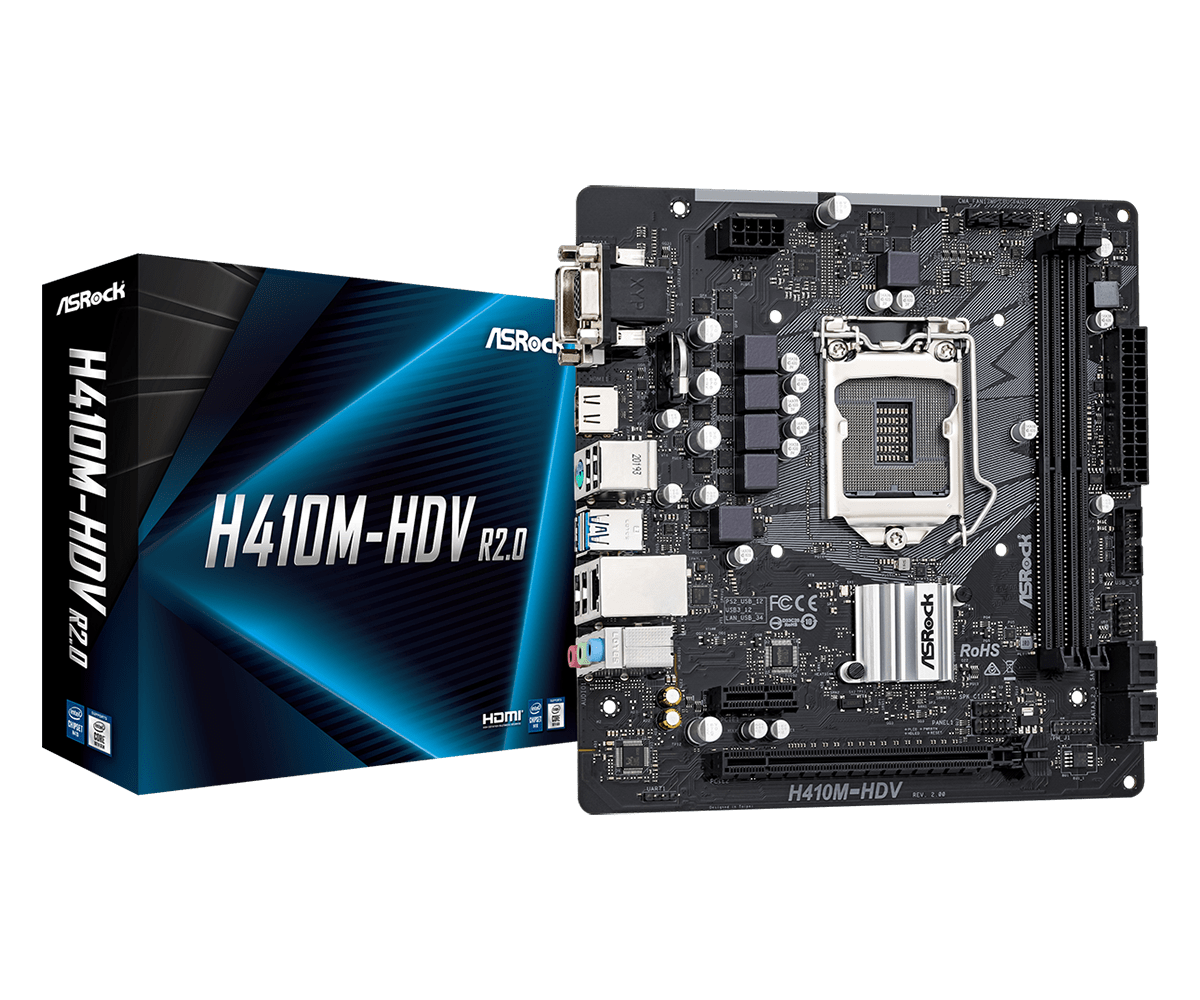

Дънна платка ASRock H410M-HDV R2.0, H410, LGA1200, DDR4, PCI-E 3.0 (HDMI/DVI/VGA), 4x SATA 6Gb/s, 2x USB 3.2 Gen 1, Micro ATX

H410M-HDV R2.0

• Supports 10th Gen Intel^® Core™ Processors (Socket 1200)
• Supports DDR4 2933MHz
• 1 PCIe 3.0 x16, 1 PCIe 3.0 x1
• Graphics Output Options : HDMI, D-Sub, DVI
• 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
• 4 SATA3
• 4 USB 3.2 Gen1 (2 Front, 2 Rear)
• 6 USB 2.0 (2 Front, 4 Rear)
• Intel^® Gigabit LAN

Specifications:

• Unique Feature
  ASRock Super Alloy
  - Premium 50A Power Choke
  - Sapphire Black PCB
  - High Density Glass Fabric PCB
  ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
  ASRock Live Update & APP Shop
• CPU
  - Supports 10th Gen Intel^® Core™ Processors (Socket 1200)
  - Digi Power design
  - 5 Power Phase design
  - Supports Intel^® Turbo Boost Max 3.0 Technology
• Chipset
  - Intel^® H410
• Memory
  - Dual Channel DDR4 Memory Technology
  - 2 x DDR4 DIMM Slots
  - Supports DDR4 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory*
  - Supports ECC UDIMM memory modules (operate in non-ECC mode)
  - Max. capacity of system memory: 64GB**
  - Supports Intel^® Extreme Memory Profile (XMP) 2.0
  - 15μ Gold Contact in DIMM Slots


  *Core™ (i9/i7) support DDR4 up to 2933; Core™ (i5/i3), Pentium^® and Celeron^® support DDR4 up to 2666.

  **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows^® 32-bit OS. For Windows^® 64-bit OS with 64-bit CPU, there is no such limitation.
• BIOS
  - 128Mb AMI UEFI Legal BIOS with multilingual GUI support
  - ACPI 6.0 Compliant wake up events
  - SMBIOS 2.7 Support
  - CPU Core/Cache, GT, DRAM, PCH +1.0V, VCCST Voltage Multi-adjustment
• Graphics
  - Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1**
  - Graphics, Media & Compute: Microsoft^® DirectX 12, OpenGL 4.5, Intel^® Built In Visuals, Intel^® Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1
  - Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft^® PlayReady 3.0, Intel^® SGX Content Protection, UHD Blu-ray Disc
  - Three graphics output options: D-Sub, DVI-D and HDMI* Supports up to 2 displays simultaneously
  - Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz
  - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
  - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
  - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
  - Supports HDCP 2.3 with DVI-D and HDMI 1.4 Ports
  - Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port


  *Intel^® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

  **VP9 10bit and VC-1 are for decode only.
  VP8 and VP9 encode are not supported by Windows^® OS.
• Audio
  - 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
  - Supports Surge Protection
• LAN
  - Gigabit LAN 10/100/1000 Mb/s
  - Giga PHY Intel^® I219V
  - Supports Wake-On-LAN
  - Supports Lightning/ESD Protection
  - Supports Energy Efficient Ethernet 802.3az
  - Supports PXE
• Slots
  - 1 x PCI Express 3.0 x16 Slot*
  - 1 x PCI Express 3.0 x1 Slot


  *Supports NVMe SSD as boot disks
• Storage
  - 4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
• Connector
  - 1 x SPI TPM Header
  - 1 x Chassis Intrusion and Speaker Header
  - 1 x CPU Fan Connector (4-pin)*
  - 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
  - 1 x 24 pin ATX Power Connector
  - 1 x 8 pin 12V Power Connector
  - 1 x Front Panel Audio Connector
  - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
  - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)


  *The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

  **The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
  CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.
• Rear Panel I/O
  - 1 x PS/2 Mouse/Keyboard Port
  - 1 x D-Sub Port
  - 1 x DVI-D Port
  - 1 x HDMI Port
  - 4 x USB 2.0 Ports (Supports ESD Protection)
  - 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
  - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
  - HD Audio Jacks: Line in / Front Speaker / Microphone
• Software and UEFI
  Software
  - ASRock Motherboard Utility (A-Tuning)
  - ASRock XFast LAN
  UEFI
  - ASRock EZ Mode
  - ASRock Full HD UEFI
  - ASRock My Favorites in UEFI
  - ASRock Instant Flash
  - ASRock Internet Flash


  *These utilities can be downloaded from ASRock Live Update & APP Shop.
• Support CD
  - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
• Accessories
  - Quick Installation Guide, Support CD, I/O Shield
  - 2 x SATA Data Cables
• Hardware Monitor
  - Temperature Sensing: CPU, Chassis/Water Pump Fans
  - Fan Tachometer: CPU, Chassis/Water Pump Fans
  - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis/Water Pump Fans
  - Fan Multi-Speed Control: CPU, Chassis/Water Pump Fans
  - CASE OPEN detection
  - CPU Core/Cache, GT, DRAM, PCH +1.0V, VCCST Voltage Multi-adjustment
• Form Factor
  - Micro ATX Form Factor: 7.76-in x 7.4-in, 19.7 cm x 18.8 cm
  - Solid Capacitor design
• OS
  - Microsoft^® Windows^® 10 64-bit
• Certifications
  - FCC, CE
  - ErP/EuP ready (ErP/EuP ready power supply is required)
