Дънна платка ASRock B650M PG Lightning, B650, AM5, DDR5, PCI-E 4.0 (HDMI&DP)(CF), 3x M.2, 4x SATA 6Gb/s, 1x USB 3.2 Gen 2 Type-C, 1x USB 3.2 Gen 2 Type-A, 2.5GbE LAN, Micro ATX

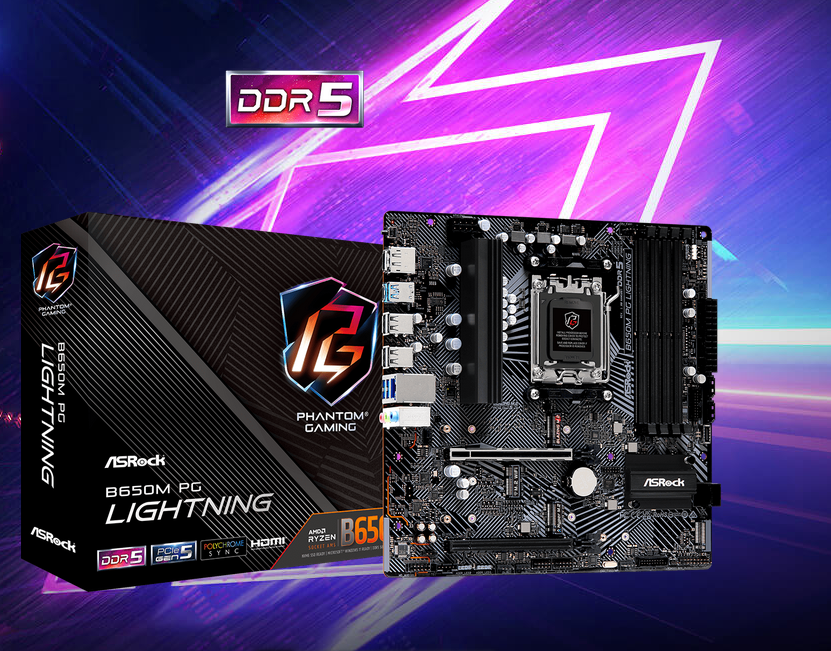

ASRock B650M PG Lightning

• Supports AMD Socket AM5 Ryzen™ 8000 and 7000 Series Processors
• 6+2+1 Power Phase, Dr.MOS

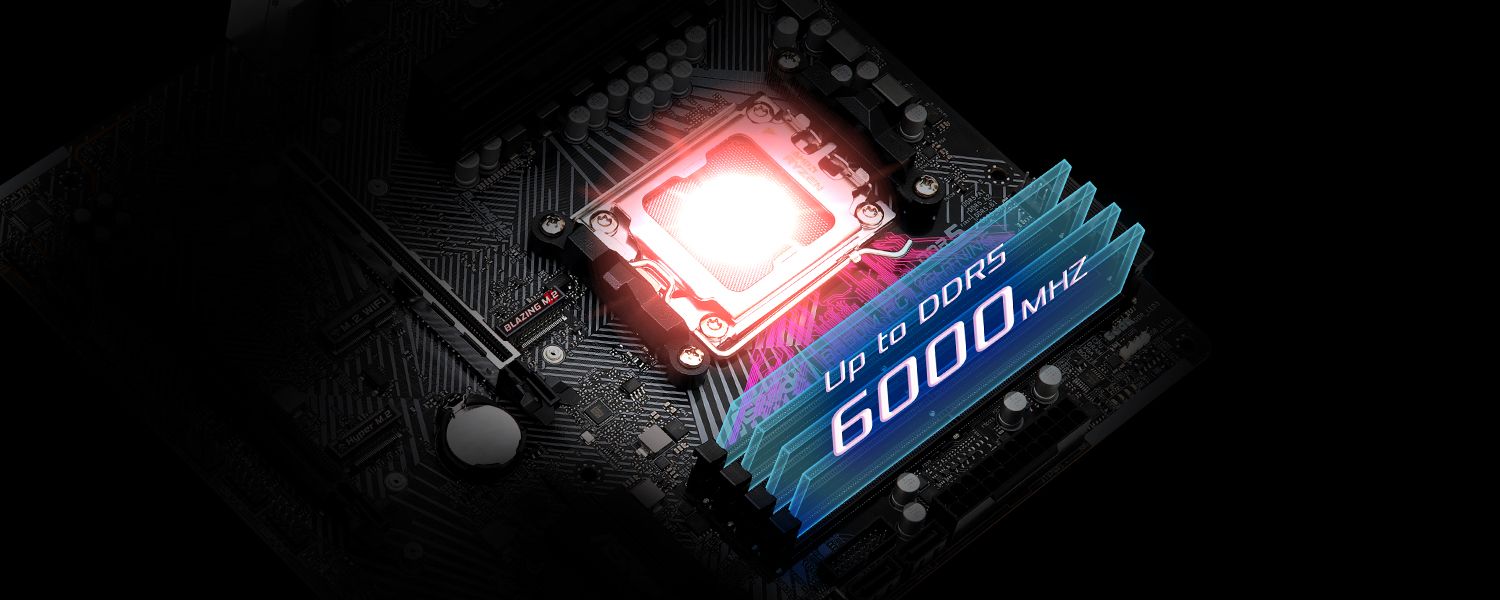

• Supports DDR5 7200+ MHz (OC)
• 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 M.2 Key-E for WiFi
• Graphics Output: HDMI, DisplayPort
• Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
• 4 SATA3, 1 Blazing M.2 (PCIe Gen5 x4),
  1 Hyper M.2 (PCIe Gen4 x4), 1 M.2 (PCIe Gen4 x2)
• 1 USB 3.2 Gen2 Type A+C (Rear),
  1 USB 3.2 Gen1 Type-C (Front),
  6 USB 3.2 Gen1 Type-A (2 Rear, 4 Front),
• Phantom Gaming 2.5G LAN
• Supports ASRock Auto Driver Installer, BIOS Flashback

Extreme Overclocking Performance

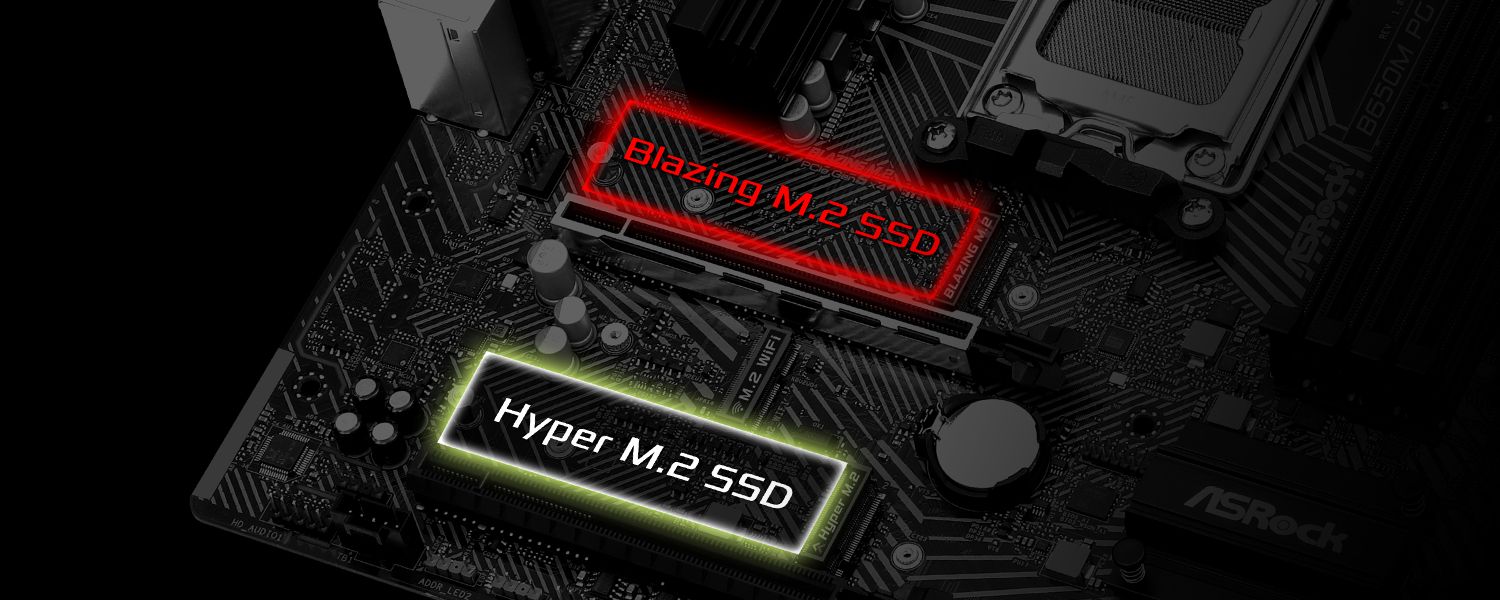

PCIe Gen5 Blazing M.2

The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128Gb/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.

Phantom Gaming 2.5 Gb/s LAN

The intelligent Phantom Gaming 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.
Automatically detects and accelerates game traffic ahead of other network traffic for smoother, stutter-free in-game performance and the competitive edge.

Tech specs:

• Unique Feature

  Superb Productivity
  - PCIe Gen5 (M.2)
  - Dual Channel DDR5
  Rock-Solid Durability
  - 6+2+1 Power Phase, 50A Dr.MOS
  Ultrafast Connectivity
  - 2.5G LAN
  EZ Update
  - BIOS Flashback Button
  - ASRock Auto Driver Installer


• CPU

  - Supports AMD Socket AM5 Ryzen™ 8000 and 7000 Series Processors

• Chipset

  - AMD B650

• Memory

  - Dual Channel DDR5 Memory Technology
  - 4 x DDR5 DIMM Slots
  - Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)*
  - Max. capacity of system memory: 192GB
  - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules


• BIOS

  - 256Mb AMI UEFI Legal BIOS with GUI support



• Graphics

  Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
  - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
  - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz



• Audio

  - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  - Nahimic Audio



• LAN

  - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
  - Dragon RTL8125BG
  - Supports Phantom Gaming LAN Software
  - Smart Auto Adjust Bandwidth Control
  - Visual User Friendly UI
  - Visual Network Usage Statistics
  - Optimized Default Setting for Game, Browser, and Streaming Modes
  - User Customized Priority Control

  • Slots

    CPU:
    - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
    - 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode*
    Chipset:
    - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
    - Supports AMD CrossFire™
    - 15μ Gold Contact in VGA PCIe Slot (PCIE1)



    * Supports NVMe SSD as boot disks

  • Storage

    CPU:
    - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode*
    Chipset:
    - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
    - 1 x M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode*
    - 4 x SATA3 6.0 Gb/s Connectors



    * Supports NVMe SSD as boot disks

  • RAID

    - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
    - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*



    * Requires additional M.2 NVMe expansion cards to support RAID 10

  • USB

    - 1 x USB 3.2 Gen2 Type-C (Rear)
    - 1 x USB 3.2 Gen2 Type-A (Rear)
    - 1 x USB 3.2 Gen1 Type-C (Front)
    - 6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front)
    - 8 x USB 2.0 (4 Rear, 4 Front)



    * All USB ports support ESD Protection

  • Connector

    - 1 x SPI TPM Header
    - 1 x Power LED and Speaker Header
    - 1 x RGB LED Header*
    - 3 x Addressable LED Headers**
    - 1 x CPU Fan Connector (4-pin)***
    - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
    - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
    - 1 x 24 pin ATX Power Connector
    - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
    - 1 x Front Panel Audio Connector
    - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
    - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
    - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
    - 1 x Front Panel Type C USB 3.2 Gen1 Header



    * Supports in total up to 12V/3A, 36W LED Strip
    ** Support in total up to 5V/3A, 15W LED Strip
    *** CPU_FAN1 supports the fan power up to 1A (12W).
    **** CPU_FAN2/WP supports the fan power up to 2A (24W).
    ***** CHA_FAN1~3/WP support the fan power up to 2A (24W).
    CPU_FAN2/WP and CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use.

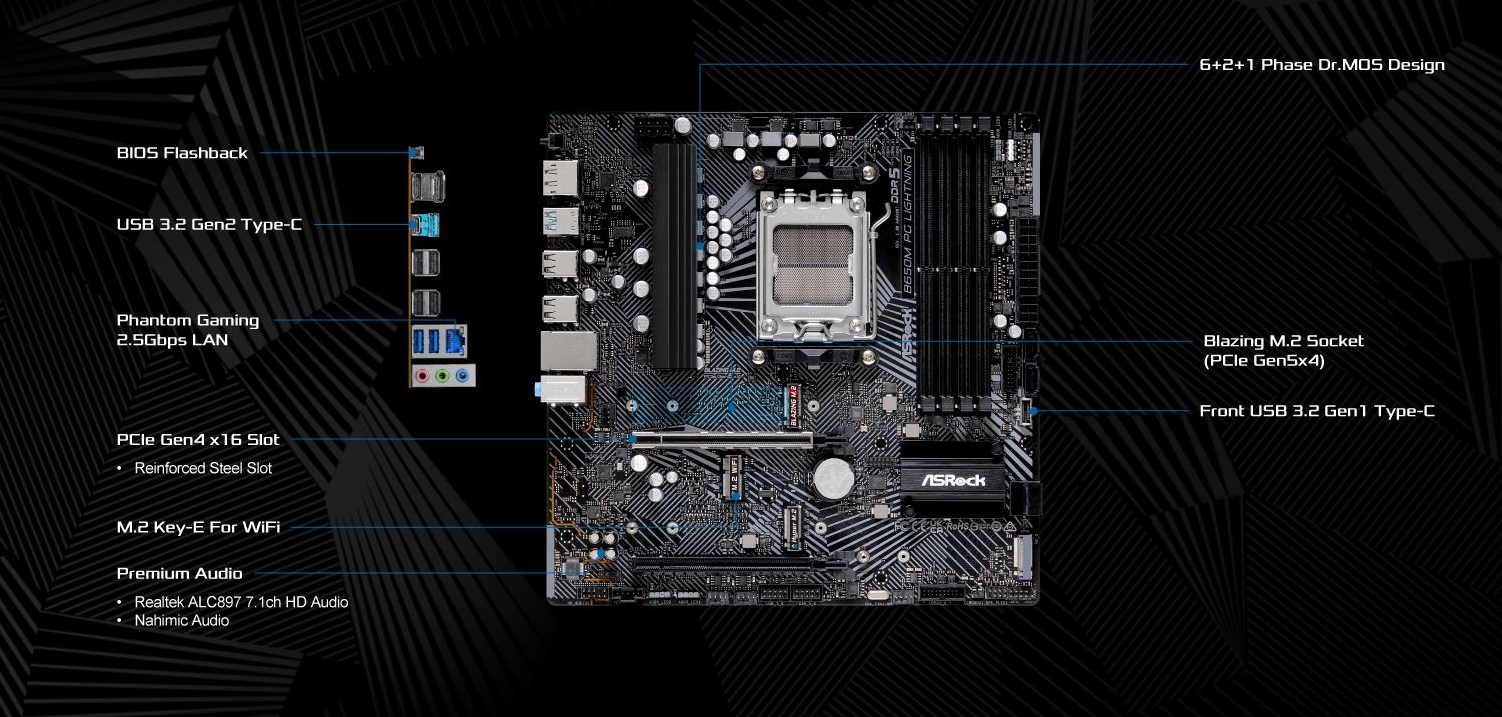

  • Rear Panel I/O

    - 2 x Antenna Mounting Points
    - 1 x HDMI Port
    - 1 x DisplayPort 1.4
    - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
    - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
    - 2 x USB 3.2 Gen1 Type-A Ports
    - 4 x USB 2.0 Ports
    - 1 x RJ-45 LAN Port
    - 1 x BIOS Flashback Button
    - HD Audio Jacks: Line in / Front Speaker / Microphone

  • Software and UEFI



    Software
    - ASRock Motherboard Utility (Phantom Gaming Tuning)
    - ASRock Phantom Gaming LAN Software
    - ASRock Polychrome SYNC*


    UEFI
    - ASRock Full HD UEFI
    - ASRock Auto Driver Installer
    - ASRock Instant Flash
    Form Factor

  • - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm

  • OS

    - Microsoft Windows® 10 64-bit / 11 64-bit
