Дънна платка ASRock B650 Pro RS (Refurbished), B650, AM5, DDR5, PCI-E 5.0, (DP&HDMI)(CF), 3x M.2, 4x SATA 6Gb/s, 1x USB C, ATX

ASRock B650 Pro RS

Modern and futuristic, with the attractive specifications and perfect balance, the Race Sport (RS) Edition is the evolution of the most popular PRO series motherboard.

Its unique path takes aim at mainstream DIYers that drives an undeniable performance and trustable computing experience without a pricey upgrade.

RaceSport edition, your all-rounder motherboard that fulfills every task and light-loading gaming – with style and speed!

POLYCHROME RGB
In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

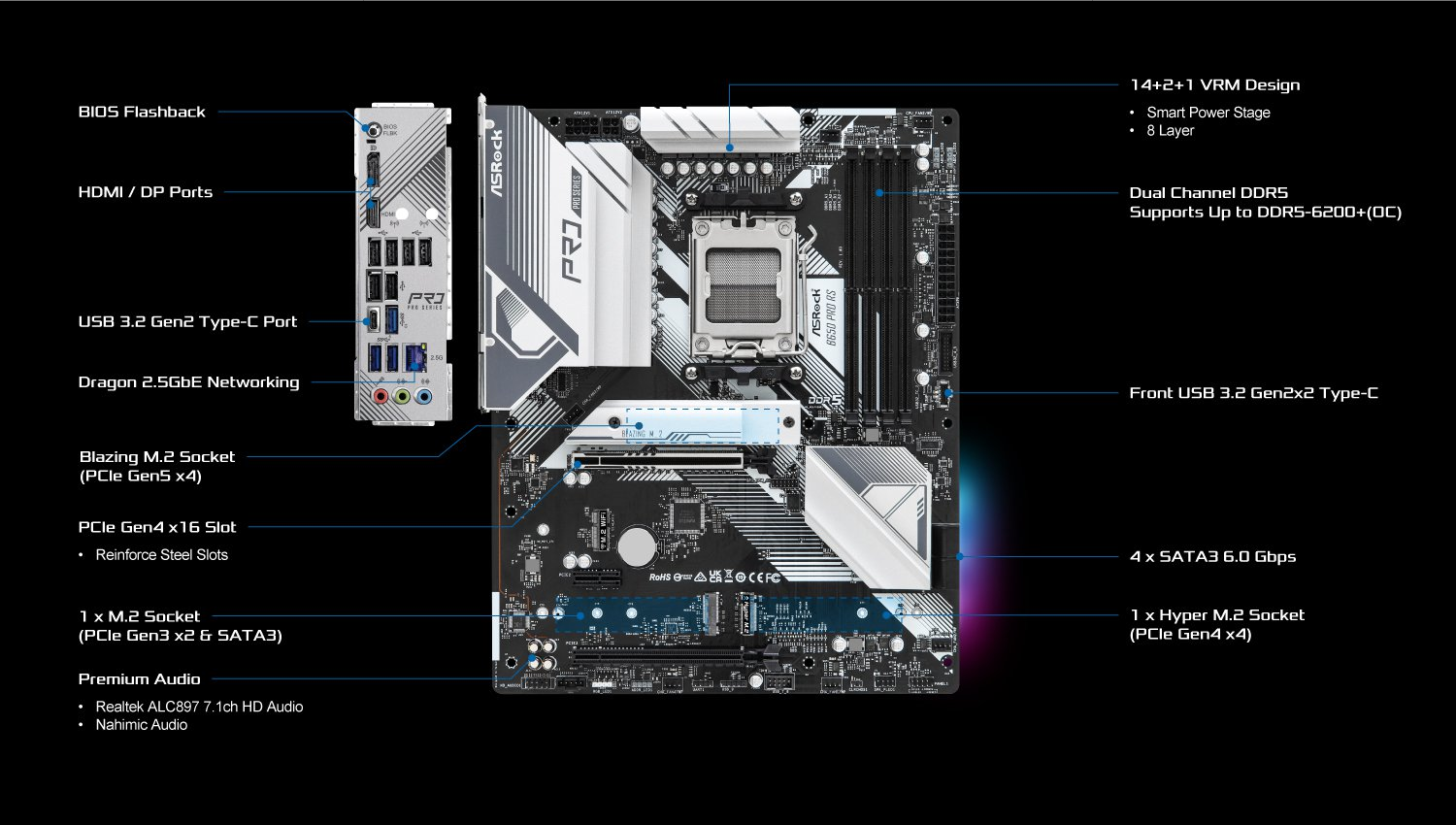

Specifications:

• Unique Feature

  Superb Productivity
  - PCIe Gen5 (M.2)
  - Dual Channel DDR5
  Rock-Solid Durability
  - 14+2+1 Power Phase, 60A SPS with Enlarged Heatsink Armor
  - Flexible Integrated I/O Shield
  Ultrafast Connectivity
  - 2.5G LAN EZ Update
  - BIOS Flashback Button
  - ASRock Auto Driver Installer

• CPU

  - Supports AMD Socket AM5 Ryzen™ 7000 Series Processors

• Chipset

  - AMD B650

• Memory

  - Dual Channel DDR5 Memory Technology
  - 4 x DDR5 DIMM Slots
  - Supports DDR5 non-ECC, un-buffered memory up to 6200+(OC)
  - Max. capacity of system memory: 128GB
  - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

• BIOS

  - 256Mb AMI UEFI Legal BIOS with GUI support

• Graphics

  Integrated AMD RDNA™ 2 graphics (Actual support may vary by CPU)
  - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
  - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz

• Audio

  - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  - Nahimic Audio

• LAN

  - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
  - Dragon RTL8125BG
  - Supports Dragon 2.5G LAN Software
  - Smart Auto Adjust Bandwidth Control
  - Visual User Friendly UI
  - Visual Network Usage Statistics
  - Optimized Default Setting for Game, Browser, and Streaming Modes
  - User Customized Priority Control

• Slots

  CPU:
  - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
  - 1 x PCIe 3.0 x16 Slot (PCIE3), supports x4 mode*
  Chipset:
  - 1 x PCIe 4.0 x1 Slot (PCIE2)*
  - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module*

  - Supports AMD CrossFire™
  - 15μ Gold Contact in VGA PCIe Slot (PCIE1)


  *Supports NVMe SSD as boot disks

• Storage

  CPU:
  - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
  Chipset:
  - 1 x M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s) modes*
  - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
  - 2 x SATA3 6.0 Gb/s Connectors
  ASMedia ASM1061:
  - 2 x SATA3 6.0 Gb/s Connectors


  *Supports NVMe SSD as boot disks
  Supports ASRock U.2 Kit

• RAID

  - Supports RAID 0 and RAID 1 for SATA storage devices
  - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*


  *Requires additional M.2 NVMe expansion cards to support RAID 10

• USB

  - 1 x USB 3.2 Gen2x2 Type-C (Front)
  - 1 x USB 3.2 Gen2 Type-C (Rear)
  - 1 x USB 3.2 Gen2 Type-A (Rear)
  - 4 x USB 3.2 Gen1 (2 Rear, 2 Front)
  - 9 x USB 2.0 (6 Rear, 3 Front)


  *All USB ports support ESD Protection

• Connector

  - 1 x SPI TPM Header
  - 1 x Power LED and Speaker Header
  - 1 x RGB LED Header*
  - 3 x Addressable LED Headers**
  - 1 x CPU Fan Connector (4-pin)***
  - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
  - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
  - 1 x 24 pin ATX Power Connector
  - 1 x 8 pin 12V Power Connector
  - 1 x 4 pin 12V Power Connector
  - 1 x Front Panel Audio Connector
  - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
  - 2 x USB 2.0 Headers (Support 3 USB 2.0 ports)
  - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
  - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (ReDriver)


  *Supports in total up to 12V/3A, 36W LED Strip

  **Support in total up to 5V/3A, 15W LED Strip

  ***CPU_FAN1 supports the fan power up to 1A (12W).

  **** CPU_FAN2/WP supports the fan power up to 2A (24W).

  *****CHA_FAN1~4/WP support the fan power up to 2A (24W).
  CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use.

• Rear Panel I/O

  - 2 x Antenna Mounting Points
  - 1 x HDMI Port
  - 1 x DisplayPort 1.4
  - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver)
  - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver)
  - 2 x USB 3.2 Gen1 Ports
  - 6 x USB 2.0 Ports
  - 1 x RJ-45 LAN Port
  - 1 x BIOS Flashback Button
  - HD Audio Jacks: Line in / Front Speaker / Microphone
