Дънна платка ASRock B650 LiveMixer, B650, AM5, DDR5, PCIe 5.0 (DP&HDMI)(CF), 3x M.2, 2x SATA 6Gb/s, 1x USB 3.2 Gen2 Type-C, 8x USB 3.2 Gen2, Wi-Fi, Bluetooth, E-ATX

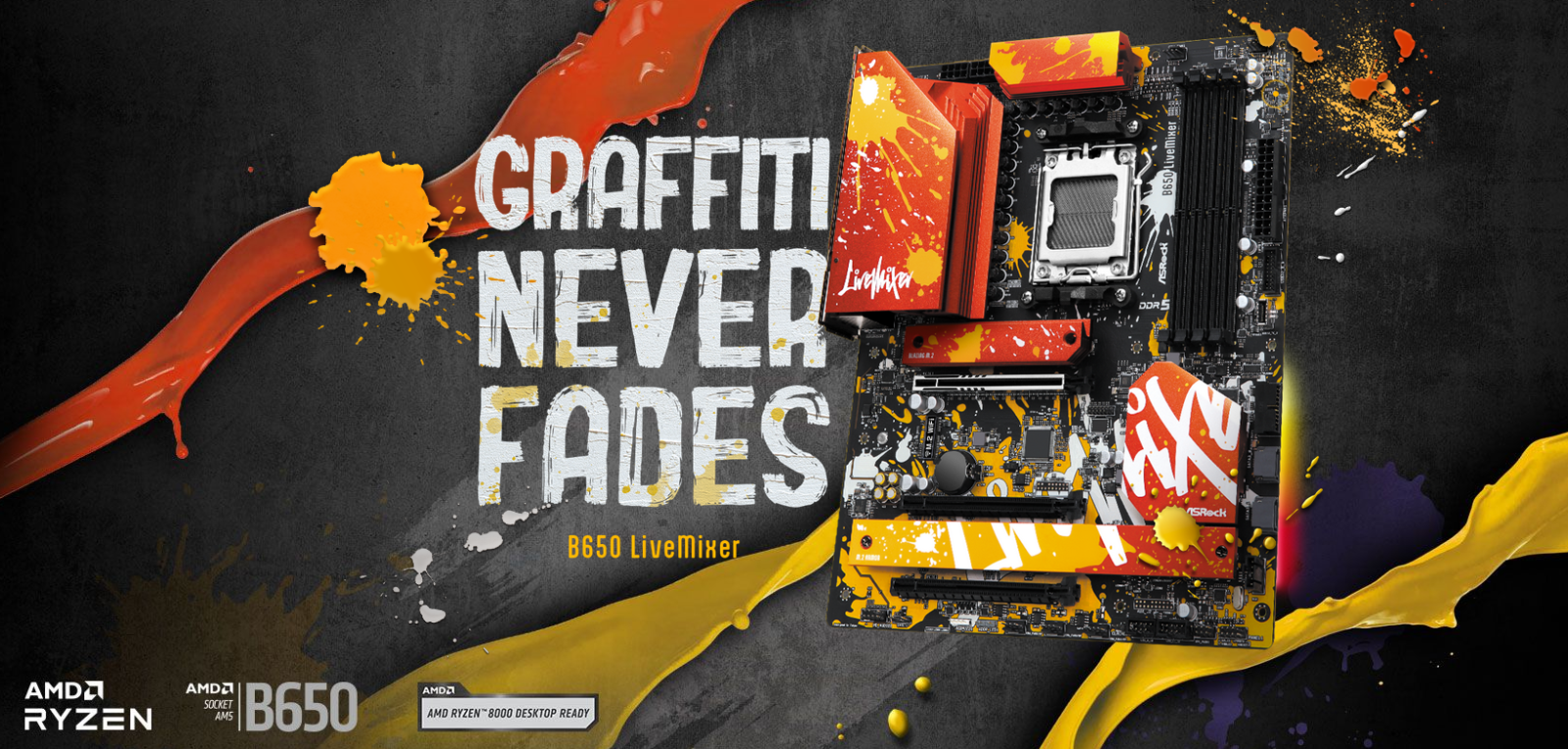

ASRock B650 LiveMixer

• Supports AMD Ryzen™ 8000 and 7000 Series Processors
• 14+2+1 Phase Power Design, SPS
• 4 x DDR5 DIMMs, supports up to 7200+(OC)
• 3 PCIe 4.0 x16, 1 M.2 Key-E for WiFi
• Graphics Output Options: 1 HDMI, 1 DisplayPort
• 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
• 1 Blazing M.2 (PCIe Gen5x4),
  2 Hyper M.2 (PCIe Gen4x4),
  2 SATA3
• 1 USB 3.2 Gen2x2 Type-C (Front),
  1 USB 3.2 Gen2 Type-C (Rear),
  1 USB 3.2 Gen2 Type-A (Rear),
  8 USB 3.2 Gen1 (4 Rear, 4 Front),
  12 USB 2.0 (8 Rear, 4 Front)
• Realtek 2.5G LAN

LIVE MIX LIFE MAX

LiveMixer is designed through current-gen content creators, who need motherboards with great connectivity for streaming and other auxiliary devices. Also, its reliable performance allows us to provide wonderful contents and budget our time.

Broadcasting

Users will never run short. Hook up every peripheral, whether it’s mice, keyboards, microphones, headsets, multiple cameras, fill-lights, macropads, and much more.

Content Creation

Various content creator needs motherboards with superb reliability, cutting-edge performance and an extended connectivity mix for the many auxiliary devices.

- Content Creator
- Video Editing
- Photo Editor
- Game Development

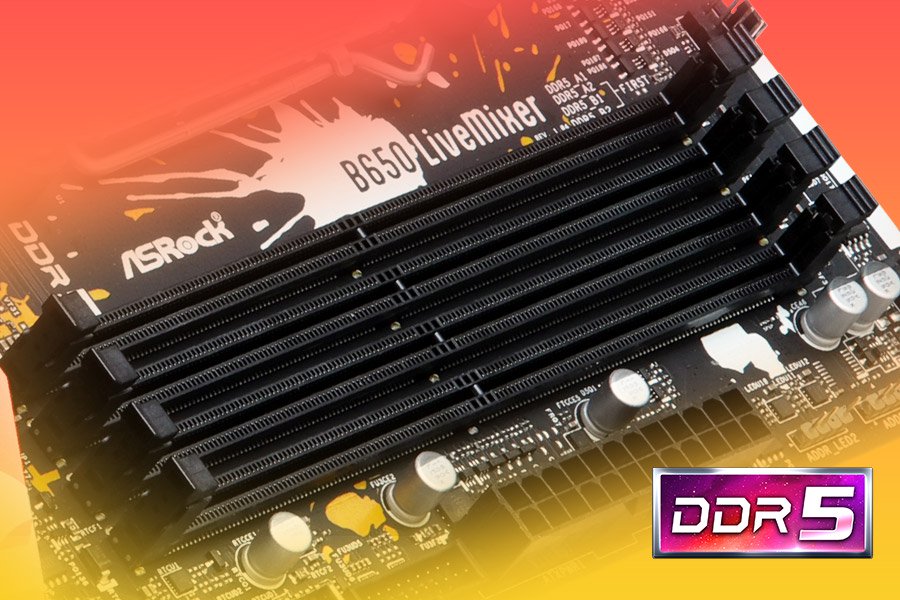

DDR5 Memory Supports DDR5 memory with max. 128GB capacity.
23 USB Ports Provides great connectivity to multiple USB devices.
Polychrome Sync Allows users to synchronize RGB LED devices and create their own unique lighting effects.
Nahimic Audio Offers you the most engaging listening experience, vibrant and rich with details.
Auto Driver Installer Allow users to download and install all necessary drivers automatically.

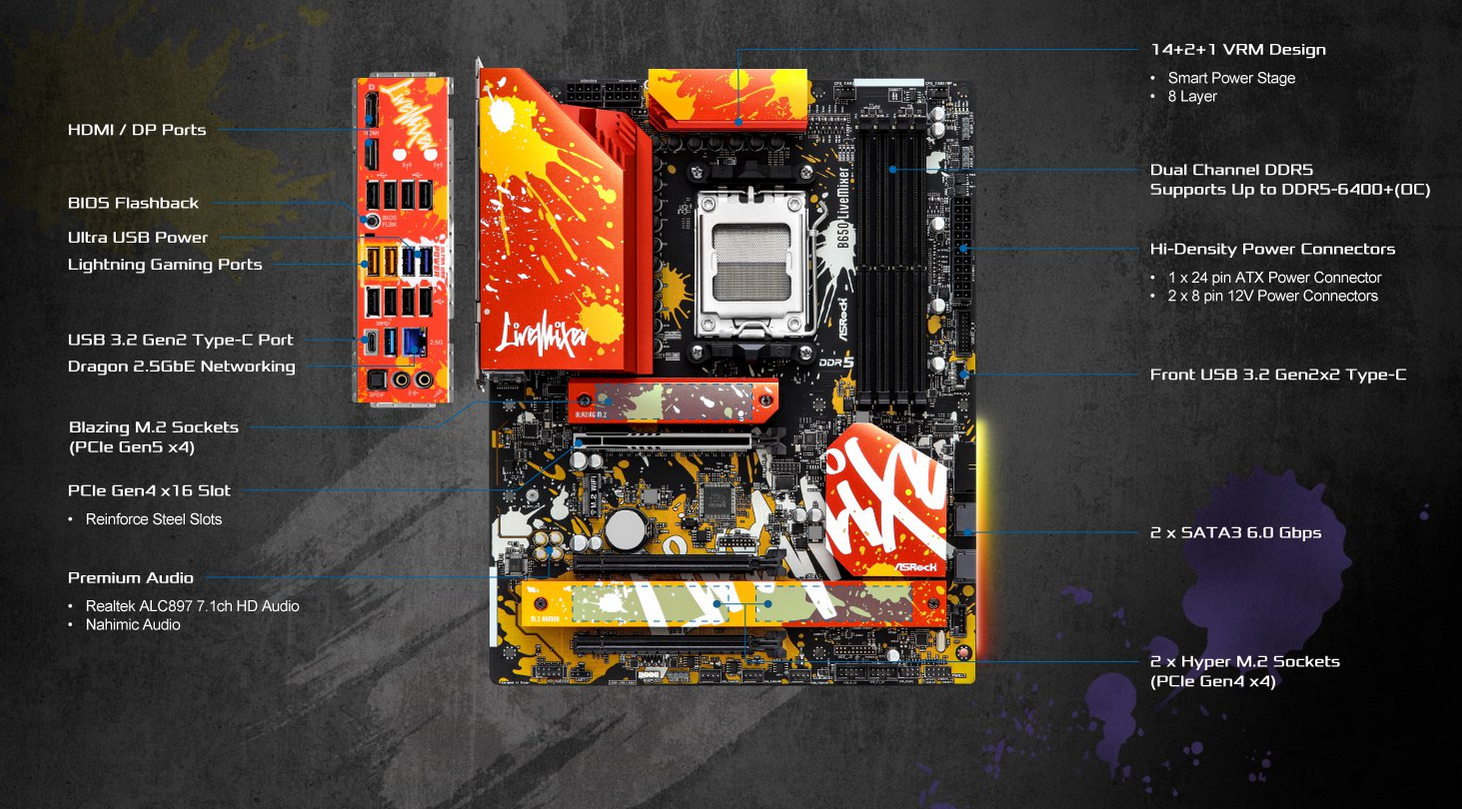

Specifications:

• Unique Feature

  Superb Productivity
  - PCIe Gen5 (M.2)
  - Dual Channel DDR5
  Rock-Solid Durability
  - 14+2+1 Power Phase, 60A SPS with Enlarged Heatsink Armor
  - Flexible Integrated I/O Shield
  - Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) for VCore
  Ultrafast Connectivity
  - 2.5G LAN
  - ASRock Lightning Gaming Ports
  EZ Update
  - BIOS Flashback Button
  - ASRock Auto Driver Installer

• CPU

  - Supports AMD Socket AM5 Ryzen™ 8000 and 7000 Series Processors


• Chipset

  - AMD B650

• Memory

  - Dual Channel DDR5 Memory Technology
  - 4 x DDR5 DIMM Slots
  - Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)
  - Max. capacity of system memory: 192GB
  - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules



• BIOS

  - 256Mb AMI UEFI Legal BIOS with GUI support

• Graphics

  Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
  - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
  - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz

• Audio

  - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  - Nahimic Audio

• LAN

  - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
  - Dragon RTL8125BG
  - Supports Dragon 2.5G LAN Software
  - Smart Auto Adjust Bandwidth Control
  - Visual User Friendly UI
  - Visual Network Usage Statistics
  - Optimized Default Setting for Game, Browser, and Streaming Modes
  - User Customized Priority Control

  • Slots

    CPU:
    - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode
    - 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode
    Chipset:
    - 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode
    - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

    - Supports AMD CrossFire™
    - 15μ Gold Contact in VGA PCIe Slot (PCIE1)



    *If M2_3 is occupied, PCIE3 will be disabled.
    Supports NVMe SSD as boot disks

  • Storage

    CPU:
    - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode*
    Chipset:
    - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
    - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
    - 2 x SATA3 6.0 Gb/s Connectors



    *Supports NVMe SSD as boot disks
    Supports ASRock U.2 Kit
    If M2_3 is occupied, PCIE3 will be disabled.

  • RAID

    - Supports RAID 0 and RAID 1 for SATA storage devices
    - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*



    *Requires additional M.2 NVMe expansion cards to support RAID 10

  • Connector

    - 1 x SPI TPM Header
    - 1 x Power LED and Speaker Header
    - 1 x RGB LED Header*
    - 3 x Addressable LED Headers**
    - 1 x CPU Fan Connector (4-pin)***
    - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
    - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
    - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
    - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
    - 1 x Front Panel Audio Connector
    - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
    - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
    - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
    - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (ReDriver)



    *Supports in total up to 12V/3A, 36W LED Strip

    **Support in total up to 5V/3A, 15W LED Strip

    ***CPU_FAN1 supports the fan power up to 1A (12W).

    ****CPU_FAN2/WP supports the fan power up to 2A (24W).

    *****CHA_FAN1~4/WP support the fan power up to 2A (24W).


    CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use.

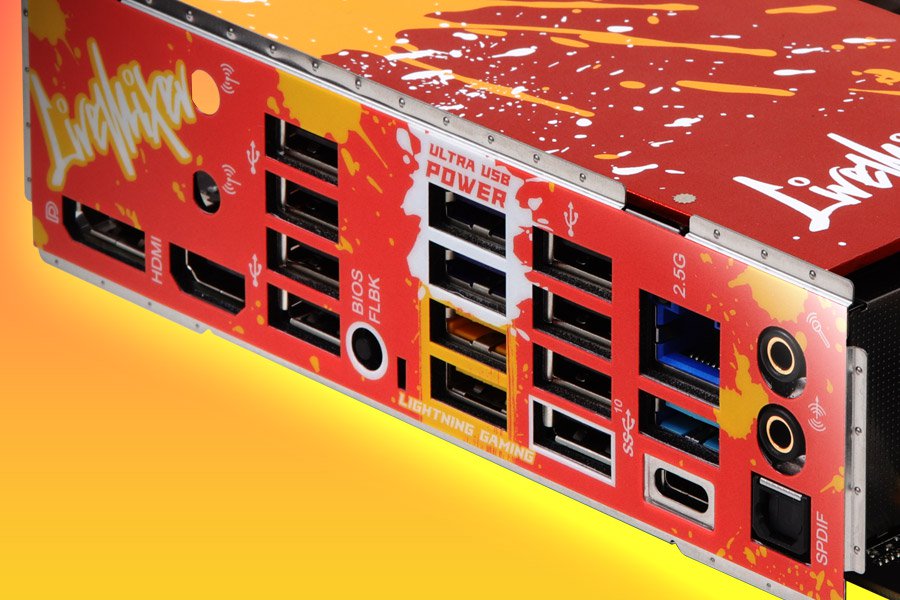

  • Rear Panel I/O

    - 2 x Antenna Mounting Points
    - 1 x HDMI Port
    - 1 x DisplayPort 1.4
    - 1 x Optical SPDIF Out Port
    - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver)
    - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver)
    - 4 x USB 3.2 Gen1 Ports (USB32_12 are Lightning Gaming Ports. USB32_34 support Ultra USB Power.)
    - 8 x USB 2.0 Ports
    - 1 x RJ-45 LAN Port
    - 1 x BIOS Flashback Button
    - 1 x Line Out Jack (Gold Audio Jack)
    - 1 x Microphone Input Jack (Gold Audio Jack)

  • Software and UEFI

    Software
    - ASRock Motherboard Utility (A-Tuning)
    - ASRock Dragon 2.5G LAN Software
    - ASRock Polychrome SYNC
    UEFI
    - ASRock Full HD UEFI
    - ASRock Auto Driver Installer
    - ASRock Instant Flash


  • Form Factor

    - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
    - 8 Layer PCB

  • OS

    - Microsoft Windows® 10 64-bit / 11 64-bit
