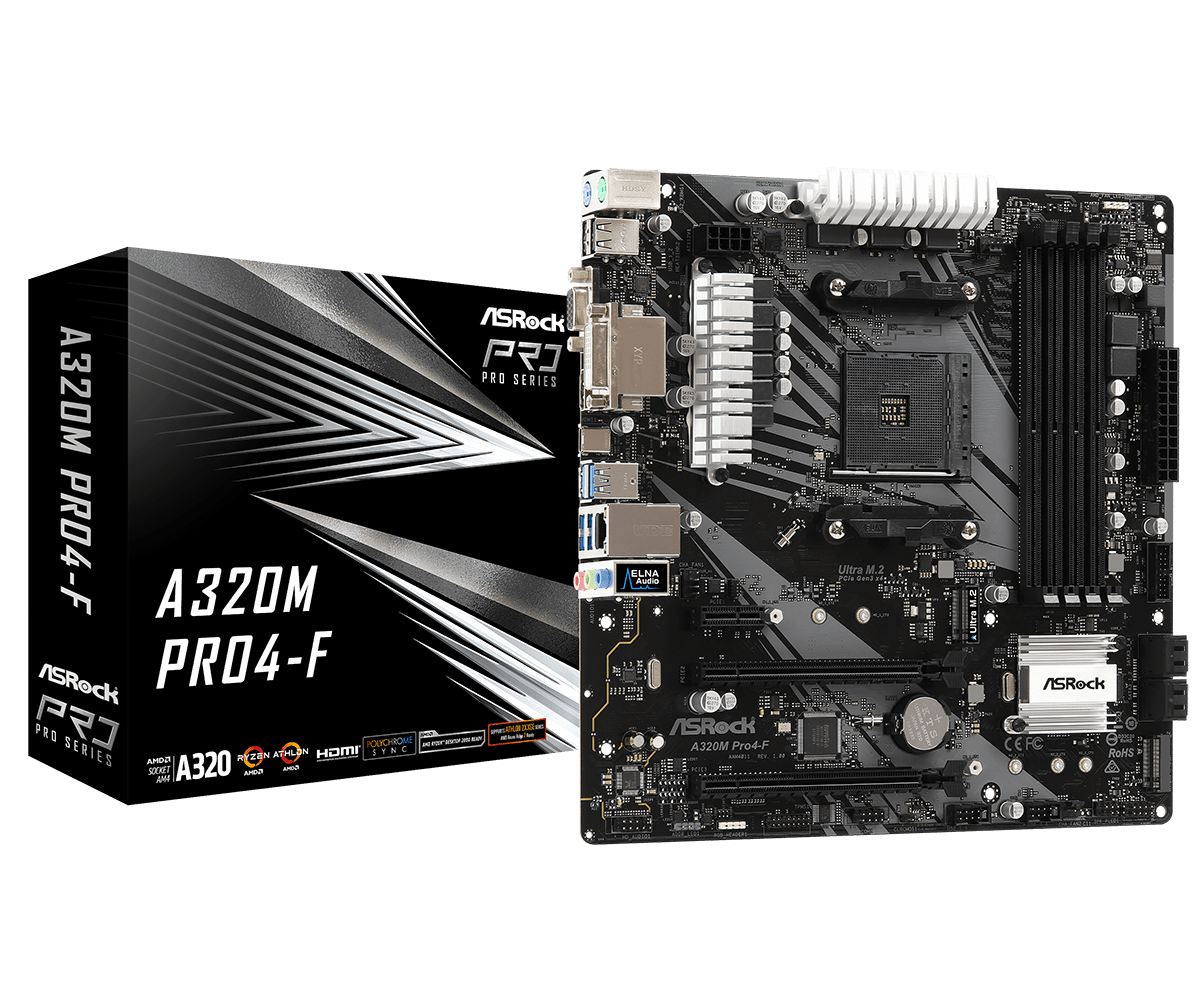

Дънна платка ASRock A320M Pro4-F, AM4, A320, DDR4, PCI-E 3.0, (HDMI&DVI&VGA),(CFX), 4x SATA 6Gb/s, 1x M.2, 1x Ultra M.2, 1x USB 3.1 Gen1 Type-C, mATX

A320M Pro4-F

• AMD AM4 Socket
• Supports DDR4 3200+ (OC)
• 1 PCIe 3.0 x16, 1 PCIe 2.0 x16, 1 PCIe 2.0 x1
• AMD Quad CrossFireX™
• Graphics Output: HDMI, DVI-D, D-Sub
• 7.1 CH HD Audio (Realtek ALC892 Audio Codec), ELNA Audio Caps
• 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4)*, 1 M.2 (SATA3)
• 7 x USB 3.1 Gen1 (1 x Type-C, 2 Front, 4 Rear)
• Realtek Gigabit LAN
• ASRock Polychrome SYNC

SPECIFICATIONS

• Unique Feature
  ASRock Super Alloy
  - Premium 42A Power Choke
  - Sapphire Black PCB
  - High Density Glass Fabric PCB
  - 2oz Copper PCB
  ASRock Ultra M.2 (PCIe Gen3 x4)
  ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
  ASRock Live Update & APP Shop
• CPU
  - Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) and Ryzen Series CPUs (Matisse, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge)
  - Digi Power design
  - 9 Power Phase design
• Chipset
  - AMD Promontory A320
• Memory
  - Dual Channel DDR4 Memory Technology
  - 4 x DDR4 DIMM Slots
  - AMD Ryzen series CPUs (Matisse) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
  - AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
  - AMD Ryzen series CPUs (Picasso) support DDR4 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory*
  - AMD Ryzen series CPUs (Summit Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
  - AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200+(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory*
  - AMD 7^th Gen A-Series APUs support DDR4 2400 / 2133 non-ECC, un-buffered memory
  - Max. capacity of system memory: 64GB**
  - 15μ Gold Contact in DIMM Slots
• BIOS
  - 128Mb AMI UEFI Legal BIOS with multilingual GUI support
  - Supports "Plug and Play"
  - ACPI 5.1 compliance wake up events
  - Supports jumperfree
  - SMBIOS 2.3 support
  - DRAM Voltage multi-adjustment
• Graphics
  - Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*
  - Integrated AMD Radeon™ R-Series Graphics in A-series APU*
  - DirectX 12, Pixel Shader 5.0
  - Shared memory default 2GB. Max Shared memory supports up to 16GB.**
  - Three graphics output options: D-Sub, DVI-D and HDMI
  - Supports Triple Monitor
  - Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz
  - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
  - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
  - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
  - Supports HDCP 1.4 with DVI-D and HDMI 1.4 Ports
  - Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI 1.4 Ports


  *Actual support may vary by CPU

  **The Max shared memory 16GB requires 32GB system memory installed.
• Audio
  - 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
  - Premium Blu-ray Audio support
  - Supports Surge Protection
  - ELNA Audio Caps
• LAN
  - PCIE x1 Gigabit LAN 10/100/1000 Mb/s
  - Realtek RTL8111GR
  - Supports Wake-On-LAN
  - Supports Lightning/ESD Protection
  - Supports LAN Cable Detection
  - Supports Energy Efficient Ethernet 802.3az
  - Supports PXE
• Slots
  AMD Ryzen series CPUs (Matisse, Summit Ridge and Pinnacle Ridge)
  - 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*
  - 1 x PCI Express 2.0 x16 Slot (PCIE3: x2 mode)
  AMD 7^th A-Series APUs
  - 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode)*
  - 1 x PCI Express 2.0 x16 Slot (PCIE3: x2 mode)
  AMD Ryzen series CPUs (Picasso, Raven Ridge)
  - 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode)*
  - 1 x PCI Express 2.0 x16 Slot (PCIE3: x2 mode)
  AMD Athlon series CPUs
  - 1 x PCI Express 3.0 x16 Slot (PCIE2: x4 mode)*
  - 1 x PCI Express 2.0 x16 Slot (PCIE3: x2 mode)

  - 1 x PCI Express 2.0 x1 Slot
  - Supports AMD Quad CrossFireX™ and CrossFireX™


  *Supports NVMe SSD as boot disks
• Storage
  - 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug*
  - 1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Matisse, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with A-Series APU and Athlon 2xxGE series APU)**
  - 1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module


  *M2_2 and SATA3_3 share lanes. If either one of them is in use, the other one will be disabled.

  **Supports NVMe SSD as boot disks (M2_1 only)
  Supports ASRock U.2 Kit
• Connector
  - 1 x COM Port Header
  - 1 x TPM Header
  - 1 x Power LED and Speaker Header
  - 1 x RGB LED Header*
  - 1 x Addressable LED Header**
  - 1 x AMD Fan LED Header***
  - 1 x CPU Fan Connector (4-pin)****
  - 2 x Chassis Fan Connectors (1 x 4-pin, 1 x 3-pin) (Smart Fan Speed Control)*****
  - 1 x 24 pin ATX Power Connector
  - 1 x 8 pin 12V Power Connector
  - 1 x Front Panel Audio Connector
  - 1 x AMD LED Fan USB Header
  - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
  - 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)


  *Supports in total up to 12V/3A, 36W LED Strip

  **Supports in total up to 5V/3A, 15W LED Strip

  ***The AMD Fan LED Header supports LED strips of maximum load of 3A (36W) and length up to 2.5M.

  ****The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

  *****CHA_FAN1 can auto detect if 3-pin or 4-pin fan is in use.
• Rear Panel I/O
  - 1 x PS/2 Mouse Port
  - 1 x PS/2 Keyboard Port
  - 1 x D-Sub Port
  - 1 x DVI-D Port
  - 1 x HDMI Port
  - 2 x USB 2.0 Ports (Supports ESD Protection)
  - 1 x USB 3.1 Gen1 Type-C Port (Supports ESD Protection)
  - 4 x USB 3.1 Gen1 Ports (Supports ESD Protection)
  - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
  - HD Audio Jacks: Line in / Front Speaker / Microphone
• Software and UEFI
  Software
  - ASRock Motherboard Utility (A-Tuning)
  - ASRock RGB LED
  - ASRock XFast LAN
  UEFI
  - ASRock Full HD UEFI
  - ASRock Instant Flash
  - ASRock Easy RAID Installer


  *These utilities can be downloaded from ASRock Live Update & APP Shop.
• Support CD
  - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
• Accessories
  - Quick Installation Guide, Support CD, I/O Shield
  - 2 x SATA Data Cables
  - 2 x Screws for M.2 Sockets
• Hardware Monitor
  - CPU/Chassis temperature sensing
  - CPU/Chassis Fan Tachometer
  - CPU/Chassis Quiet Fan
  - CPU/Chassis Fan multi-speed control
  - Voltage monitoring: +12V, +5V, +3.3V, Vcore
• Form Factor
  - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
  - Solid Capacitor design
• OS
  - Microsoft^® Windows^® 10 64-bit
• Certifications
  - FCC, CE
  - ErP/EuP ready (ErP/EuP ready power supply is required)
