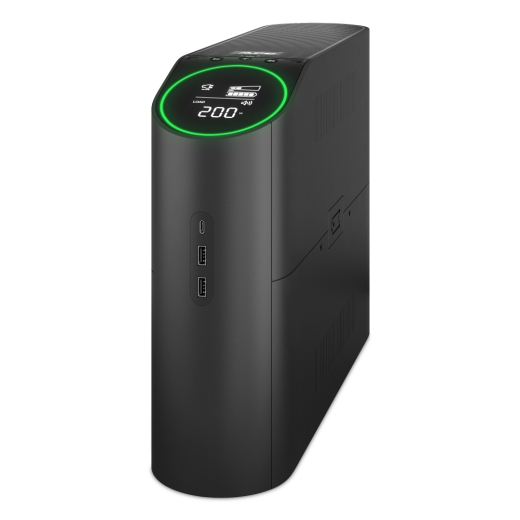

UPS APC BGM2200B-GR, 2200VA/1320W, Line interactive, Tower

APC BGM2200B-GR

High Performance Computer and Electronics UPS for Premium Power Protection



Specifications:

Max Configurable Power (Watts)

1.32kWatts / 2.2kVA

Output Frequency (sync to mains)

50/60 Hz +/- 3 Hz Sync to mains

Topology

Line interactive

Waveform type

Sine wave

Transfer Time

8 ms typical : 10 ms maximum



Input frequency

50/60 Hz +/- 3 Hz

Input voltage range for main operations

168 - 302V

Number of Power Cords

1

Input Total Harmonic Distortion

Less than 3 % for full load

Type of Input Protection Required

Circuit breaker

Other Input Voltages

230 V



Battery type

Lead-acid battery

Included Battery Modules

1

Typical recharge time

16hour(s)

Nominal Battery Voltage

24 V

Expected Battery Life (years)

3 - 5

RBC Quantity

1

Battery Charge Power (Watts)

12 Watts

DC Overcurrent Protection

15A

Battery Volt-Amp-Hour Capacity

180



Control panel

Multifunction LCD status and control console



Surge energy rating

1080Joules

Filtering

Full time multi-pole noise filtering : 5% of IEEE surge let-through : zero clamping response time: instantaneous



Maximum Height

292MM, 29.21CM

Maximum Width

104MM, 10.41CM

Maximum Depth

409MM, 40.89CM

Net Weight

12.34KG

Shipping weight

14.52KG

Shipping Height

155MM, 15.5CM

Shipping Width

355MM, 35.5CM

Shipping Depth

480MM, 48.0CM

Color

Black

Master Carton Dimensions (Length x Width x Height)

1200 x 1000 x 906MM

Master Carton Units

30.0

Master Carton Weight

450.5



Operating Temperature

0 - 40 °C

Operating Relative Humidity

0 - 95 %

Operating Elevation

0 - 3048meters

Storage Temperature

-15 - 40 °C

Storage Relative Humidity

0 - 95 %

Storage Elevation

0 - 3048meters

Audible noise at 1 meter from surface of unit

45.0dBA

Protection Class

IP20
