Монитор AOC Q27U3CV, 27" (68.58 cm) IPS панел, 75Hz, WQHD, 4ms, 50 000 000:1, 350 cd/m2, DisplayPort, HDMI, USB, USB-C, LAN

AOC Q27U3CV

Create, elevate, imagine

Precision-engineered for graphics excellence with hardware-calibrated precision (Delta E<2), calman ready calibration, and stunning IPS QD panel

The AOC Graphic Pro Q27U3CV ensures incredibly accurate colors right out of the box, thanks to its hardware calibration achieving Delta E<2 (sRGB). With the Calman Ready feature, you can easily fine-tune the settings for optimal performance. Covering 98% of the DCI P3 color space, it's perfect for graphic and photo editing, offering superior quality compared to standard monitors. Its Delta E < 2 accuracy guarantees precise color rendering, even beyond what the human eye can perceive. Combined with its IPS QD panel, Vesa DisplayHDR 400, USB-C docking station, and sleek design, it's the top choice for professionals.

Delta E<2

Delta E <2 color accuracy means superior, accurate color reproduction, achieving better than the eye can see color difference.

Calman Ready

Calman Ready displays and devices are equipped with the ability to communicate directly with Portrait Displays’ Calman® color calibration software. Devices that are Calman Ready can quickly connect with the software and leverage its precise and automated calibration capabilities (AutoCal™).  Calman Ready allows for easy, precise and quick calibrations with your brand-new AOC display.

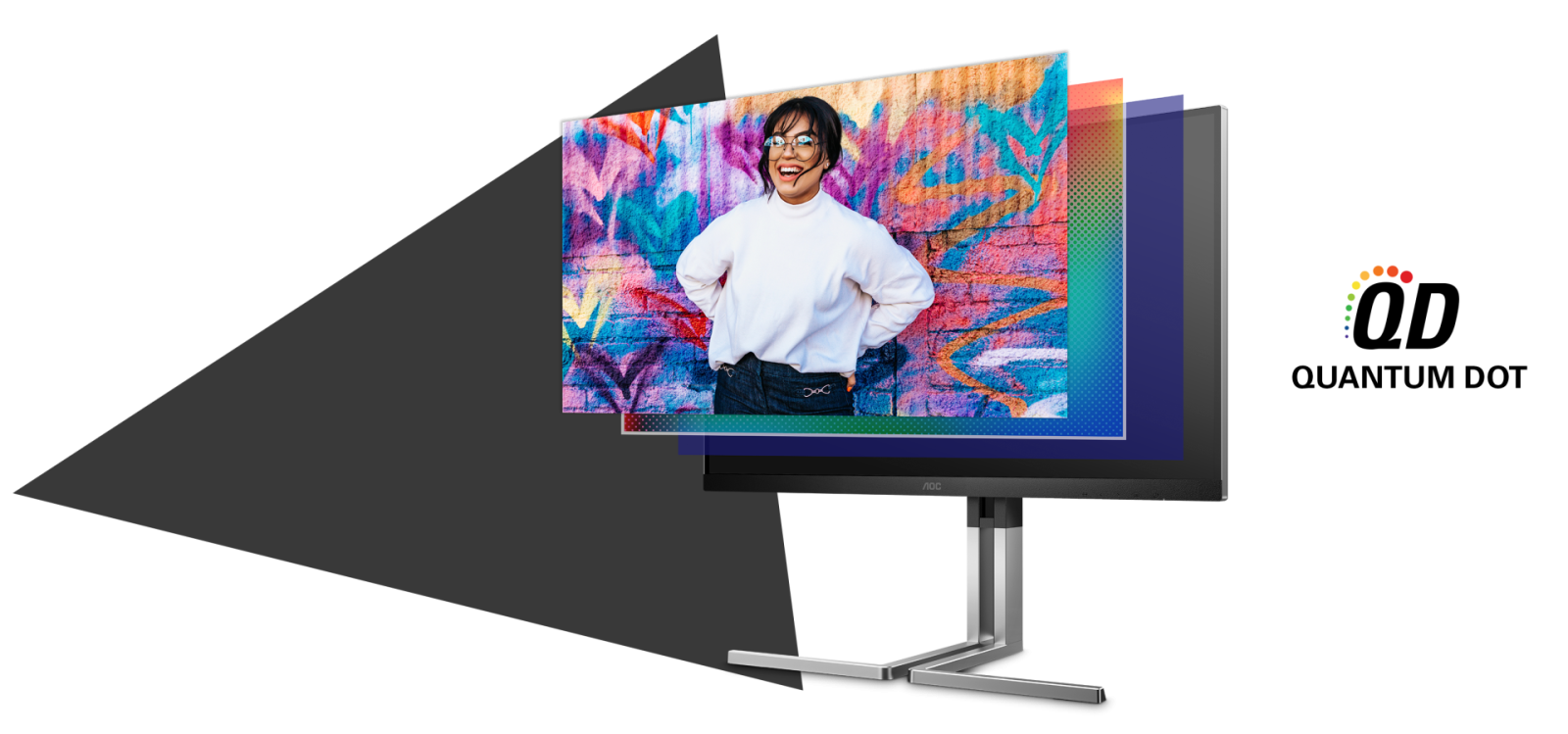

Quantum Dot

Utilising semiconductor nanocrystals, this technology converts light emissions so efficiently that it can create almost any colour within the visible spectrum. Bring your games and movies to life with extremely vivid, ultra-realistic colours.

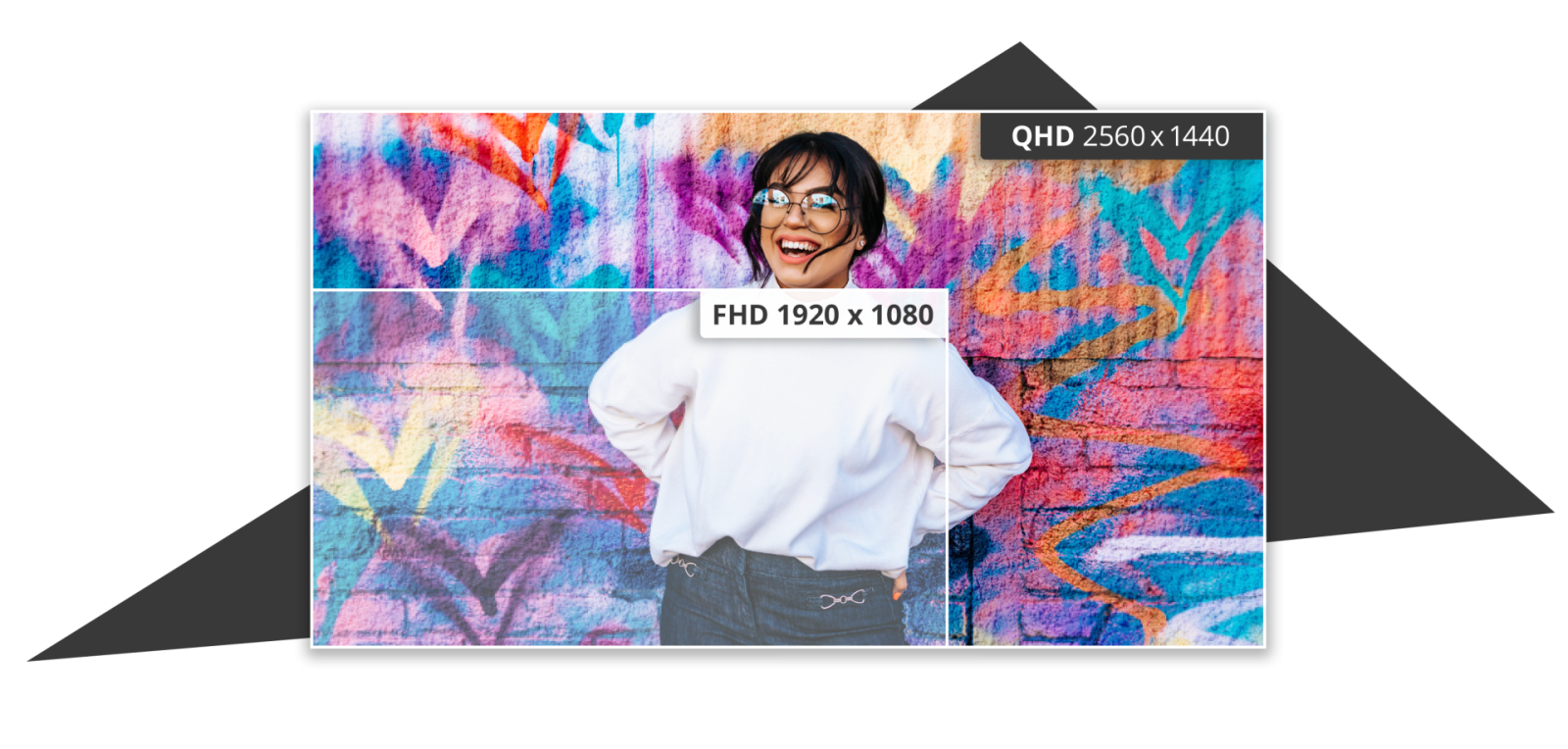

QHD Resolution

With 2560 x 1440 resolution, Quad HD (QHD) offers superior picture quality and sharp imagery that reveals the finest details. The widescreen 16:9 aspect ratio provides plenty of space to spread out and work, plus allows you to enjoy games or movies in their original size.

98% DCI-P3

The AOC U3 Graphic Pro Monitor covers 98% of the DCI P3 color space, making it ideal for graphic and photo editing as it can reproduce more shades of red and green than a standard sRGB monitor.

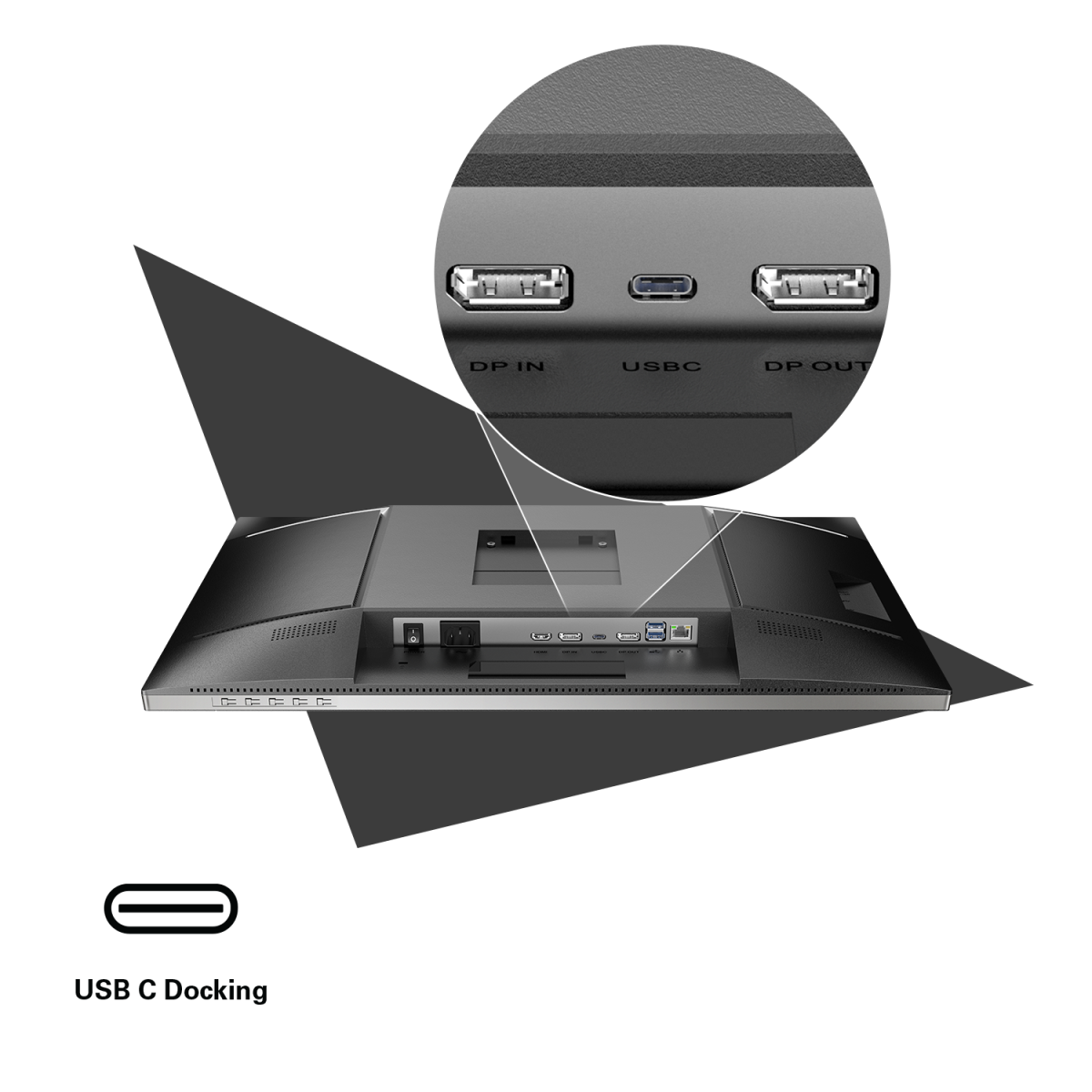

USB-C

Simplify the connections with one cable only. The USB-C connection provides DisplayPort Alternate Mode for transferring high-resolution video signals from a notebook to the monitor while simultaneously charging the notebook’s battery from the monitor with USB power delivery. Additionally, the USB 3.1 ensures lightning-fast data transmission, so even transferring a 4K movie can be done in less than one minute.

Specifications:

Display information

Screen size (inch)

27

Screen size (cm)

68.6

Flat / Curved

Flat

Display hardness

3H

Panel treatment

Antiglare (AG)

Pixel Pitch (mm)

0.2331

Pixels per Inch

109

Panel resolution

2560x1440

Aspect ratio

16:9

Panel type

IPS QD

Backlight type

WLED

Max Refresh rate

75 Hz

Response time GtG

4 ms

Static contrast ratio

1000:1

Dynamic contrast ratio

50M:1

Viewing angle (CR10)

178/178

Display colours

16.7M (8bits)

Brightness in nits

HDR 420 nits

OD Response (typical)

4 ms GtG

Panel Haze Value

25%

Picture enhancement

✓

Support 1:1 function

✓

Local Dimming Zones

Local Dimming

Gamma Adjustment

Yes (supports Gamma 1.8/2.0/2.2/2.4/2.6)

Video Features

Sync technology (VRR)

Adaptive Sync

Digital Signal Frequency Vertical

48-75Hz

Digital Signal Frequency Horizontal

HDMI 1.4: 30K-140KHz, DP1.4/USB C: 30K-114KHz

HDR (High Dynamic Range)

VESA Certified DisplayHDR™ 400

Colour space (sRGB) CIE 1931 %

144.5

Colour space (sRGB) CIE 1976 %

136.9

Colour space (DCI-P3) CIE 1931 %

106.5

Colour space (DCI-P3) CIE 1976 %

109

Colour space (Adobe RGB) CIE 1931 %

107.1

Colour space (Adobe RGB) CIE 1976 %

117.3

Colour space (NTSC) CIE 1931 %

102.3

Colour space (NTSC) CIE 1976 %

119.3

Colour space (BT 709) CIE 1931 %

144.5

Colour space (BT 709) CIE 1976 %

136.9

Colour space (BT 2020) CIE 1931 %

76.4

Colour space (BT 2020) CIE 1976 %

79.4

Flicker-Free

Flicker Free

KVM

Yes

Delta E<2 (sRGB)

Delta E<2 (sRGB)

Color space mode

sRGB, Display P3, DCI-P3, Adobe RGB, Rec. 2020, Rec 709

3D LUT 17x17x17 and 14-bit LUT

3D LUT 17x17x17 and 14-bit LUT

Calman Ready

Yes

Color Accuracy

E<2

Cabinet information

Bezel type (front)

3-sided frameless

Bezel Colour (front)

Black

Bezel finishing (front)

Painted

Cabinet colour (backside)

Black

Cabinet finishing (backside)

Texture

Speakers

✓

Speaker power

3 W x 2

Kensington Lock

✓

Vesa wallmount

100x100

I/O define: Connectors on rear cabinet

Vertical insert

Quick release function

✓

Sound enhancement

No

Stand screw spec

M4 x 10, w/ screw drive accessory

VESA Mount screw Spec

M4 x 10

MonitorWebcam

No

Ergonomic information

Tilt

­6.5° ~ 23°

Height adjust (mm)

150mm

Swivel

-30° ~30°

Pivot

­90° ~ 90°

Auto Pivot (G sensor)

G sensor + Imenu to change windows setting

Sustainability

TCO Certified

Yes

EPEAT

Yes (any level)

Post-consumer recycled plastic

85%

EPA (latest version)

✓

Halogen free

✓

Carton material

Paper

Carton material print

Water Print (Brown Carton)

Power Consumption

Power supply

Internal

Power source

100 - 240V 50/60Hz

Power consumption on (maximum) in watts

185

Power consumption on (typical) in watts

27

Power consumption standby in watts

0.5

Power consumption off in watts

0.3

Power LED indicator (Operation)

White

Power LED indicator (Standby)

Orange

Power Switch

✓

Smart Power

✓

Connectivity information

HDMI

HDMI 1.4 x 1

Digital HDCP (HDMI version)

HDCP 2.2

DisplayPort

DisplayPort x 1

USB-C connectivity

1 x USB-C (DP1.2 Alt Mode, USB3.2 Gen 1 - upstream, 5Gbps, w/ HDR, PD 96W Smart Power, HDR, Adaptive Sync) 1 x USB-C (USB3.2 Gen 1 - downstream, 5Gbps, PD 15W)

USB Hub

✓

USB Hub speed

USB 3.2 (Gen 1)

USB downstream ports

USB-A x4, USB-C x1 (Power supply up to 15W)

USB fast charge port

✓

Audio Output

1x Audio out

DisplayPort output

1x DP-Out 1.2

DP HDCP version

HDCP 2.2

mini USB (for external keypad)

No

MST / Daisy chain (DP out or TBT out)

✓

Thunderbolt in

0x

Thunderbolt out

0x

PD for USB C/TBT

USB C1 : USB PD version 3.0, typical 96W (5V/3A, 7V/3A, 9V/3A, 10V/3A, 12V/3A, 15V/3A, 20V/4.8A), USB C2 : PD=15W, 5V/1.5A 5V/3A

USB Hub up stream

1 x USB3.2 type C Gen 1, 5 Gbit/s

D-SUB (VGA)

0x

DVI

0x

RJ45

1x 10M/100M/1G

USB Hub Down Stream

4 x USB3.2 type A Gen1, 5Gbps (BC1.2x1 yellow), 1 USB 3.2 type C Gen1, 5Gbps

Product Dimensions

Product dimensions incl. base (WxHxD) mm

613.8 x (401.3~547.7) x 238.4

Product dimensions excl. base (WxHxD) mm

613.8 x 365.0 x 52.5

Packaging dimensions (WxHxD) mm

825 x 480 x 162

Packaging dimensions (WxHxD) mm (CN)

825 x 480 x 162

Gross weight incl. package (in kg)

9.99

Net weight excl. package (in kg)

4.8

Gross weight incl. package (in kg) (CN)

9.99

Product without stand (kg)

6.5

HDMI cable

1.8

Displayport cable

1.8

USB-C to C/A cable

1.2

Power Cable

✓

Color and brightness uniformity report in box

✓

Luminance uniformity

93~105%
