Name: Тъч Монитор AG Neovo TX-1502, 15" (38.10 cm) TN панел, XGA, 5ms, 800:1, 350 cd/m2, DisplayPort, HDMI, VGA
Brand: AG Neovo
SKU: MNLCAGNEOVOTX1502
Price: 1337.28 BGN
Availability: InStock

Описание Характеристики Ревюта / Въпроси Документация

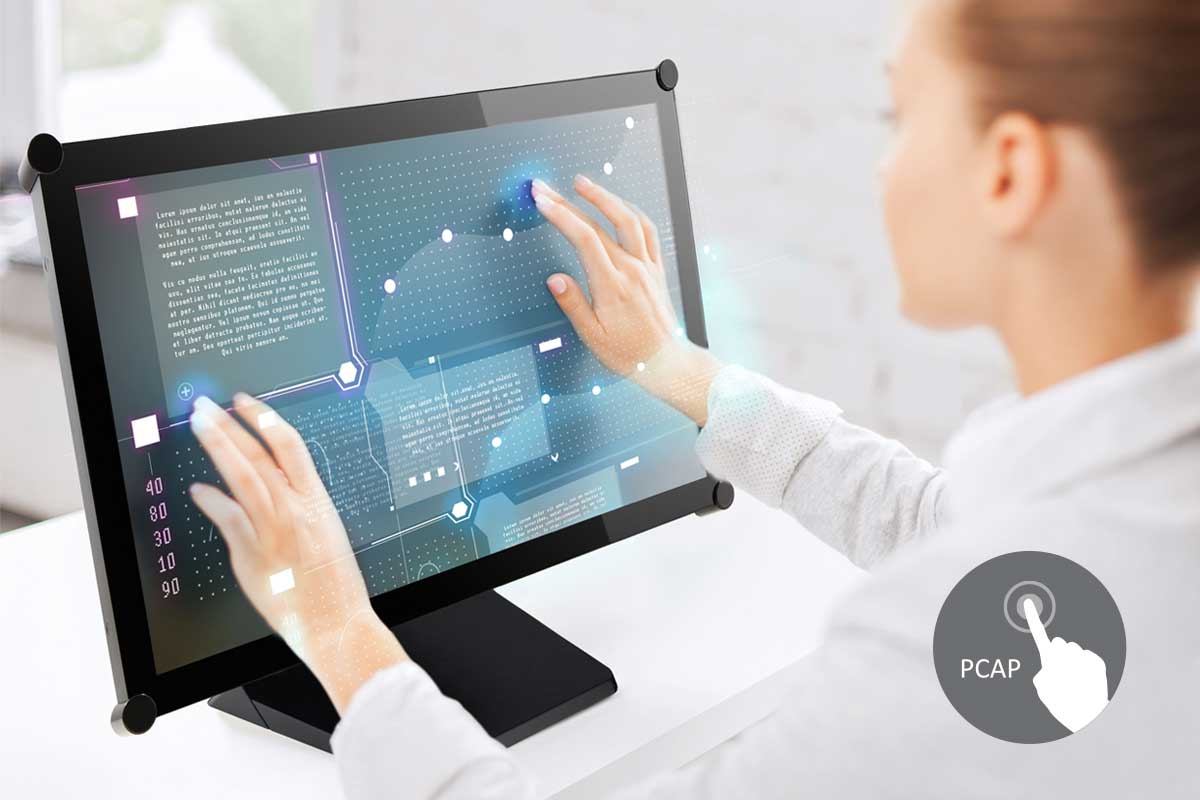

Premium PCAP Multi Touch Screen

Based on projected capacitive (PCAP) touch screen technology, AG Neovo touch screen monitors can register up to 10 simultaneous touch points with fast, accurate, and extremely sensitive touch response. These seamless touch senses are identical to those used in smartphones and tablets.

Cross-Platform Touch Capability

Multi-Touch capability is optimized to work with various operating systems, providing compatibility with Windows, Linux, macOS, and certain Android versions. This enables more choice to the operating system you use.

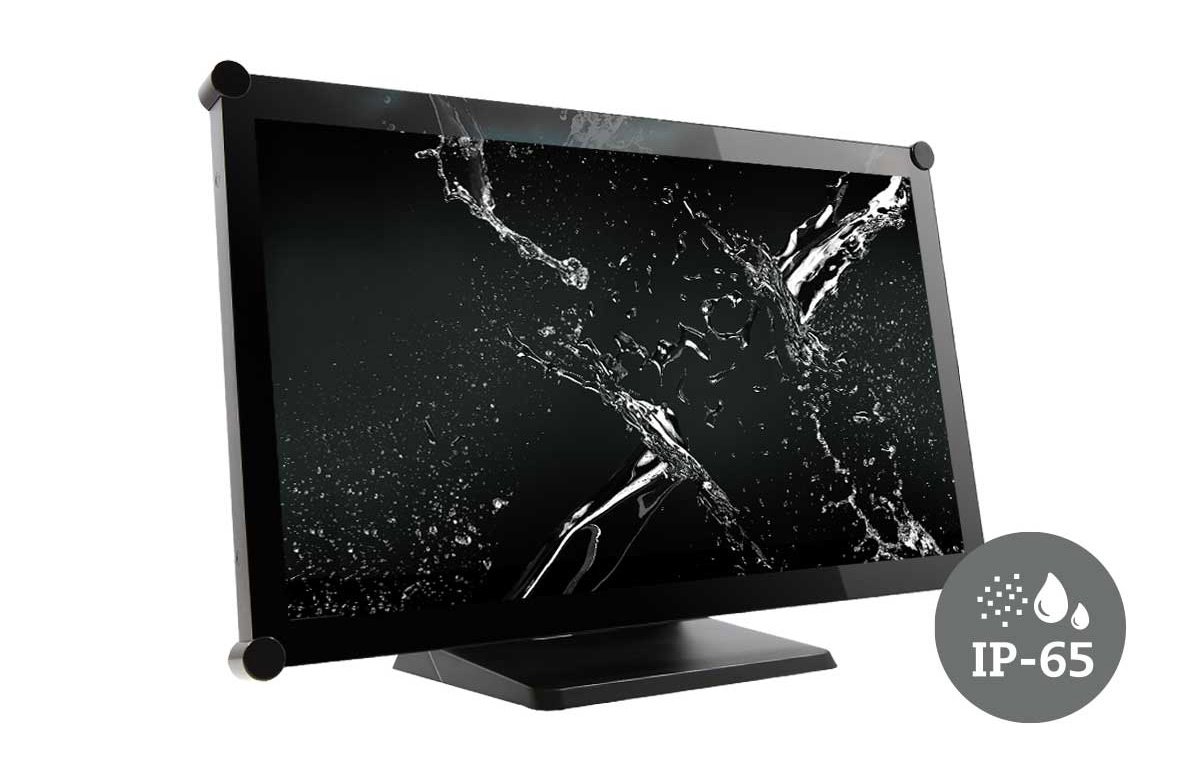

IP65 Dust and Water Protection

The TX-Series front IP65 touch screen monitors are designed to protect against dust and liquid spills. This makes these durable touch monitors ideal for the industrial workplace or the demanding, high-use, and high-traffic public locations.

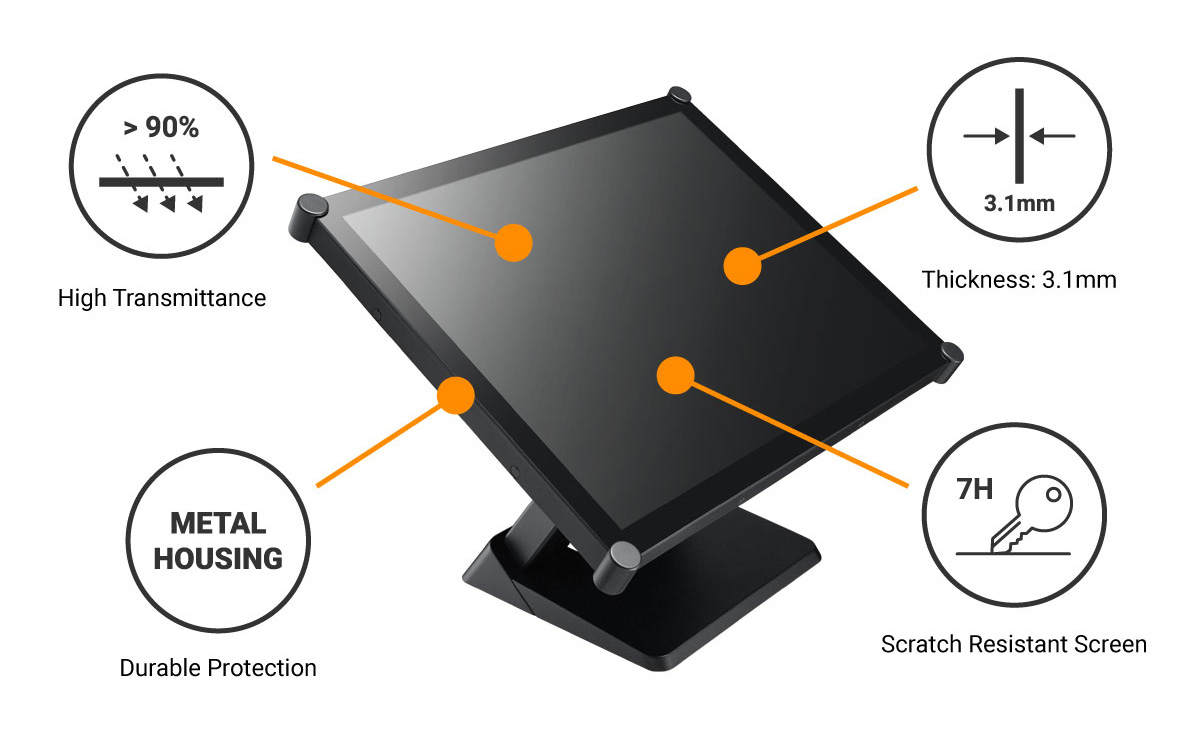

Durable and Scratch Resistant Touch Screen

For 24/7 operations in public settings, AG Neovo uses metal housing and 7H tempered glass displays to offer high durability and scratch resistance levels, all without compromising touch sensitivity.

Specifications:

Panel	Panel Type:	LED-Backlit TFT LCD (TN Technology)
	Panel Size:	15.0"
	Max. Resolution:	XGA 1024 x 768
	Pixel Pitch:	0.297 mm
	Brightness:	350 cd/m²
	Contrast Ratio:	800:1
	Viewing Angle (H/V):	160°/150°
	Display Colour:	16.7M
	Response Time:	5 ms
	Surface Treatment:	Anti-Glare Treatment (Haze 25%),3H Hard Coating
Frequency	Frequency (H):	31 kHz-61 kHz
	Frequency (V):	55 Hz-75 Hz
Signal Input	DisplayPort:	x 1
	HDMI:	1.4 X 1
	VGA:	15-Pin D-Sub x 1
External Control	RJ11:	Yes
Touch Screen	Technology:	Projective Capacitive
	Positional Accuracy:	± 2.0 mm
	Panel Interface:	USB (Type-B)
	Multi-touch Plug & Play:	10-point touch Windows® 7、8、10
	Single Touch Support by Driver:	Windows VISTA/XP/2000/CE/XP Embedded、Mac OS 10.10-10.14
	Multi-touch Support by Driver:	10-point touch for Linux、Android 2.3-4.x
Power	Power Requirements:	DC 12V, 2.5A
	On Mode:	8W (On)
	Standby Mode:	< 0.6W
	Off Mode:	< 0.3W
Glass	Thickness:	3.1 mm (0.12")
	Transmission Rate:	> 90%
	Hardness:	> 7H
Operating Conditions	Temperature:	0°C-40°C (32°F-104°F)
	Humidity:	20%-80% (non-condensing)
Mounting	VESA FPMPMI:	Yes (100 x 100 mm)
Stand	Tilt:	-5° to 90°
Security	Kensington Security Slot:	Yes
Dimensions	Product with Base (W x H x D):	348.4 x 312.7 x 214.2 mm (13.7" x 12.3" x 8.4")
	Product w/o Base (W x H x D):	348.4 x 276.4 x 46.6 mm (13.7" x 10.9" x 1.9")
	Packaging (W x H x D):	415.0 x 370.0 x 290.0 mm (16.3" x 14.6" x 11.4")
Weight	Product w/o Base:	2.7 kg (5.9 lb)
	Product with Base:	4.6 kg (10.1 lb)
	Packaging:	7.0 kg (15.4 lb)
Regulation Approval	Certifications & Compliance:	CE, LVD, WEEE, RoHS, REACH,EAC
Accessories	Supplied:	Power Adaptor, Power Cord, VGA Cable, HDMI Cable, USB Cable, Warranty Card
Power	Power Supply:	External
Storage Conditions	Temperature:	-20°C-60°C (-4°F-140°F)
	Humidity:	10%-90% (non-condensing)

Виж още Монитори AG Neovo
Виж всички Монитори в категорията

Документация

Технически характеристики

Портове
DisplayPort:	Да
HDMI:	Да
VGA (D-Sub):	Да

Гама:	Професионален
Екран размер:	15" (38.10 cm)
Разделителна способност (max):	1024 x 768
Аспект изображение:	4:3
Тип матрица:	TN
Честота на опресняване:	60 Hz
Време за реакция:	5 ms
Яркост:	350 cd/m²
TV Тунер:	Не
Тъчскрийн:	Да
Вградени колони:	Не
3D:	Не
Технология:	LED
Цвят:	Черен
Формат екран:	Classic
Извит:	Не
Преносим:	Не
