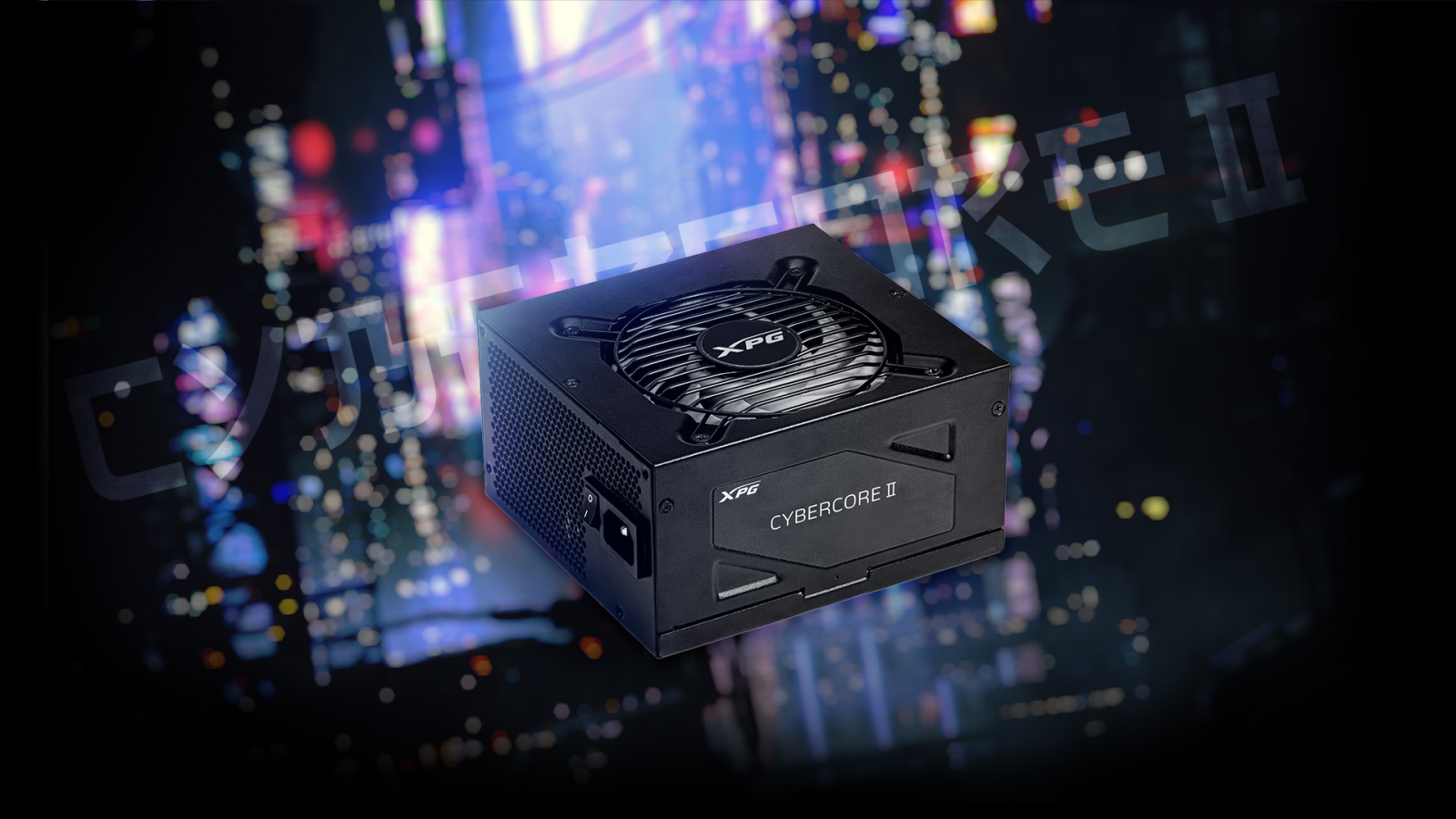

Захранване A-data XPG Cybercore II, 1300W, Active PFC, 80 Plus Platinum, 120mm вентилатор

CYBERCORE II

BETTER THAN ULTIMATE

In light of the new Intel ATX 3.0 design guide specifications, the XPG CYBERCORE 80 PLUS Platinum series is getting an upgrade. With stricter voltage and current regulation guidelines changes needed to be implemented in order to safely and efficiently accommodate next-generation hardware. XPG has even upgraded the CYBERCORE cooling solution with a top-of-the-line XPG VENTO PRO 120 PWM Fan by Nidec to deliver optimum performance. As always, XPG is determined to provide gamers with products that meet the latest hardware demands.

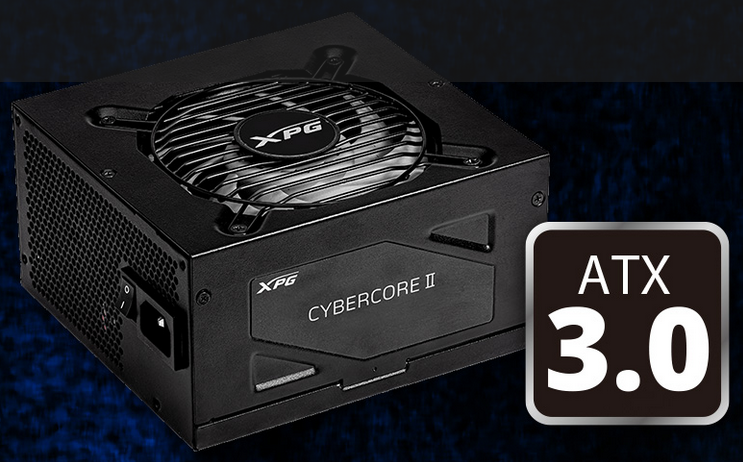

Next-Gen Ready XPG CYBERCORE II series power supply units are compatible with Intel ATX 3.0 design guide specifications. All units come with a 12VHPWR connector as well. Upgrade your system to an ATX 3.0 ready power supply and be fully prepared for the next generation of high-performance components! Whether you're a gamer, creator, or AI developer, an ATX 3.0 PSU is the new standard for future hardware. Don’t get left behind.

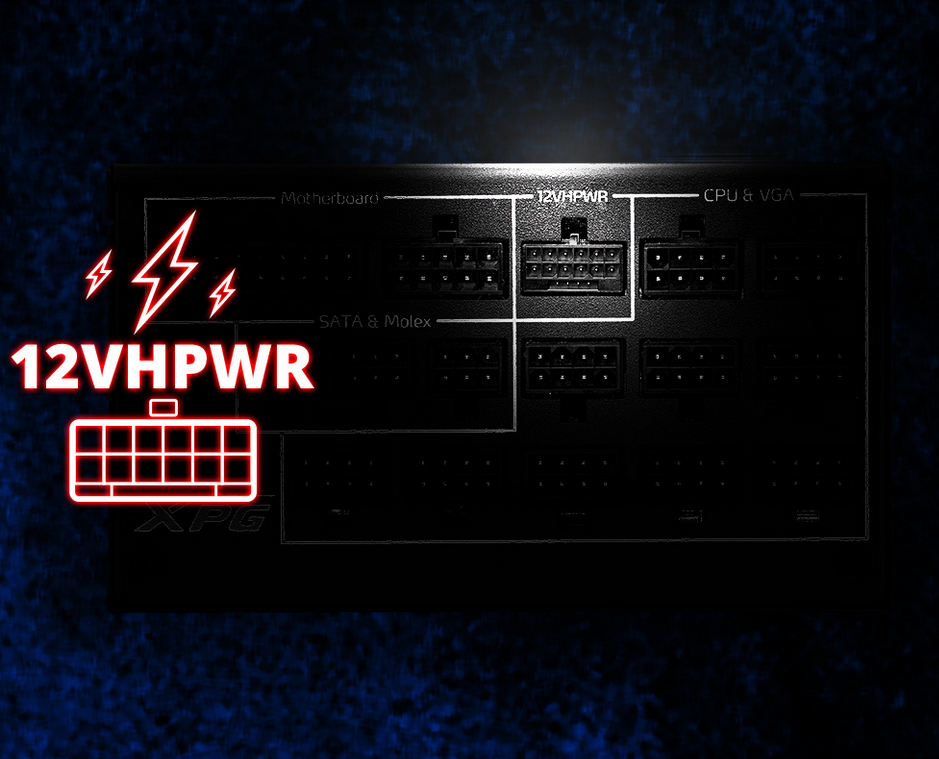

Supports Next-Gen Graphics Cards XPG CYBERCORE II is compatible with the latest high-end graphics cards, with a 12VHPWR (12+4 pin) connector out of the box with every unit.

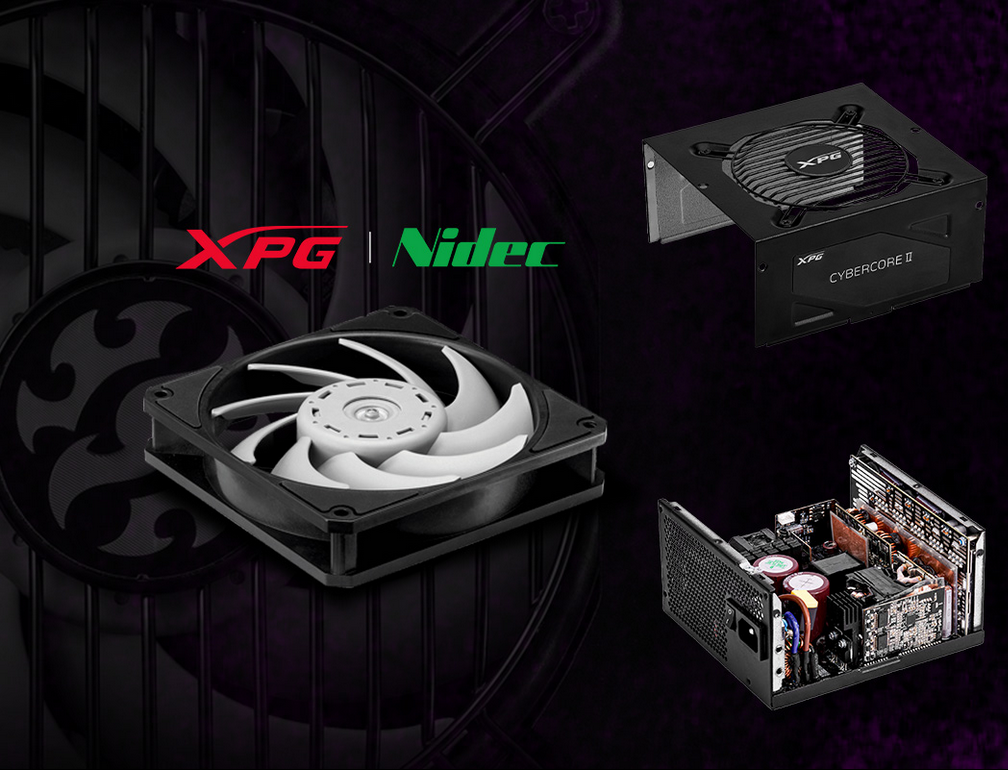

XPG VENTO PRO 120 PWM FAN by Nidec XPG CYBERCORE II is the latest XPG and Nidec collaboration, utilizing our highest tier XPG VENTO PRO 120 PWM Fan for its high cooling efficiency, featuring Dual Bearing and patented technology to maintain an excellent balance between noise and life expectancy (60,000 hours at 60℃).

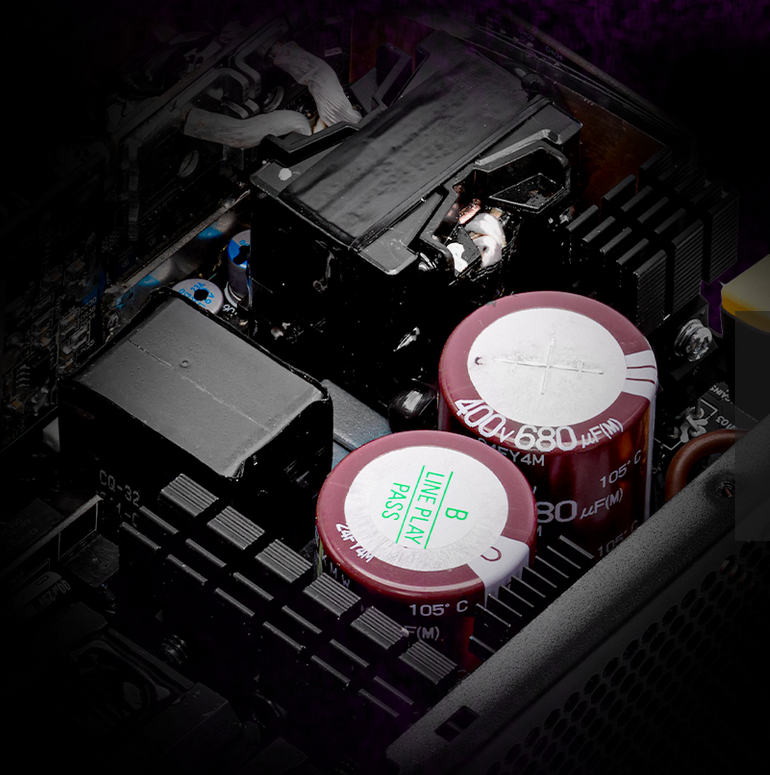

All Japanese 105℃ Capacitors XPG CYBERCORE II PLATINUM Series utilizes all-Japanese high quality 105℃ capacitors to ensure power delivery is stable, consistent and efficient.

Specifications



Dimensions (L x W x H)

160 x 150 x 86mm



Cybenetics Rating

PLATINUM



80 Plus Rating

PLATINUM



ATX Version

ATX 3.0



Protections

OCP | OVP | OPP | OTP | UVP | SCP | NLO | SIP



Certification

CE | CB| FCC(IC) | TUV | cTUVus | TUV S-Mark | NOM | BSMI | UKCA | EAC | CCC | RCM



PFC

> 0.99



Input Voltage

100-240V



Input Current

(1300W：15A



Input Frequency

1300W：50-60Hz


DC Output Voltage

+5V | +3.3V | +12V | -12V | +5Vsb

Total Output

1300W



Power Excursion
1300W: 2600W (*up to 200% of the PSU's rated power for 100μs)



Operating Temperature

50°C



Fan Size

120mm



Fan Bearing

Double Ball Bearing



Fan Speed

2,150 RPM



MTBF

125,000 hours @ 25°C



ATX 24 Pin Connector

1



EPS 8 Pin Connector

2



PCI-E 6+2 Pin Connector

10



Molex 4 Pin Connector

8



12VHPWR (12 + 4) Connector (600W)

1



SATA Connector

12



Floppy 4 Pin Connector

2
