CORE REACTOR II
IMPROVE YOUR CORE, ENHANCE YOUR PERFORMANCE
CORE REACTOR II is a top-performing power supply unit designed for ATX 3.0 compliance with a modular cable design and an 80 PLUS GOLD certification. These power supplies thrive in high-performance scenarios like servers or workstation setups, where a lot of power is needed.
![](/images/custom/site/xpg_core_reactor_ii_01.jpg)

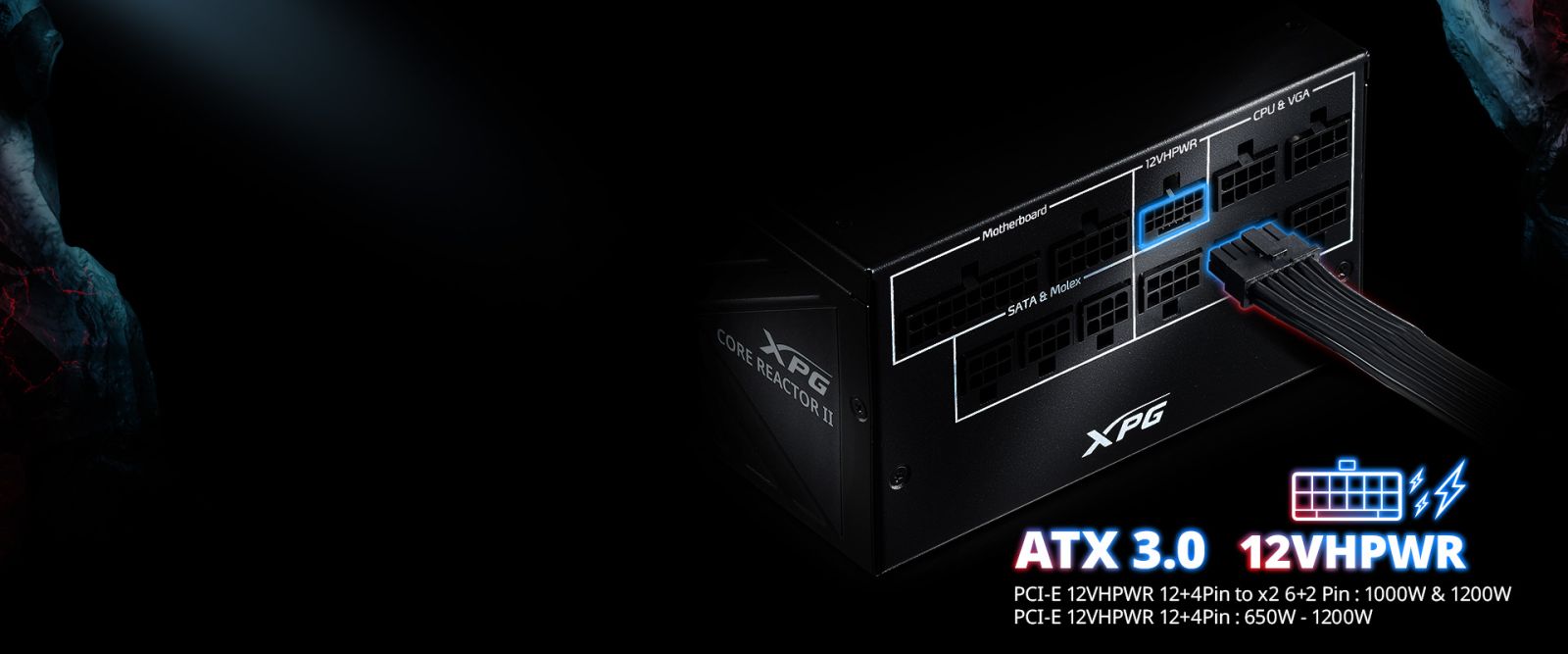

Next-Gen Ready - ATX 3.0 COMPLIANT
CORE REACTOR II series power supply units meet Intel ATX 3.0 design guide specifications and feature a 12VHPWR connector. By upgrading to an ATX 3.0-compliant power supply, you'll be fully equipped for the upcoming wave of high-performance components. A must for the modern gamer, creator, or AI developer. Stay ahead of the curve by upgrading to an ATX 3.0 PSU, the new standard in PC hardware.
Tech specs:
Dimensions (L x W x H)
650W-850W: 140 x 150 x 86mm
Cybenetics Rating 750W: PLATINUM
80 Plus Rating GOLD
ATX Version ATX 12V v3.0 and EPS v2.92
Protections OCP | OVP | OPP | OTP | UVP | SCP | NLO | SIP
Certification CE | CB| FCC(IC) | TUV | cTUVus | TUV S-Mark | NOM | BSMI | UKCA | EAC | CCC | RCM
PFC > 0.99
Input Voltage 100-240V
Input Current 750W: 10A
Input Frequency 750W:47Hz-63Hz
DC Output Voltage +5V | +3.3V | +12V | -12V | +5Vsb
Total Output 750W: +5V/+3.3V :22A, +12V:62.5A, -12V:0.3A, +5Vsb:3A
Power Excursion 750W: 1762W (*up to 235% of the PSU's rated power for 100μs)
Operating Temperature 50°C
Fan Size 650W-850W: 120mm FDB Fan
Fan Bearing FDB (Fluid Dynamic Bearing)
Fan Speed 2400 RPM
MTBF 100K hours at full load
ATX 24 Pin Connector 1
EPS 8 Pin Connector 2
PCI-E 6+2 Pin Connector 6
Molex 4 Pin Connector 4
12VHPWR (12 + 4) Connector (600W) 1
SATA Connector 8
Weight 850W/750W: Product+cables:1596g+1254g with Package:3.1kg
JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
Виж още Захранвания Настолни компютри A-Data
Виж всички Захранвания Настолни компютри в категорията
Технически характеристики
Изходна мощност: | 750 W |
---|---|
Модулен блок: | Да |
Форм фактор: | ATX |
