AC1200 Whole Home Mesh WiFi System

HC220-G5

Faster Connections: Speeds up to 1200 Mbps—867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz.*
Boosted Seamless Coverage: Achieve seamless whole home coverage with a clearer and stronger WiFi signal.
One Unified Network: Multiple units form a whole-home network that auto-selects the best connection as you move around your home.
Enhanced Security: WPA3 encryption, Multi-SSID, and Parental Controls provide personalized and safer online experience.
EasyMesh Compatible: Provides whole home WiFi coverage with standard mesh technology.
Easy Setup: Set up your mesh WiFi in minutes with the powerful Aginet app.
Remote Management: TAUC cloud management, TR-098, TR-181, TR-111, and TR-143 are supported.

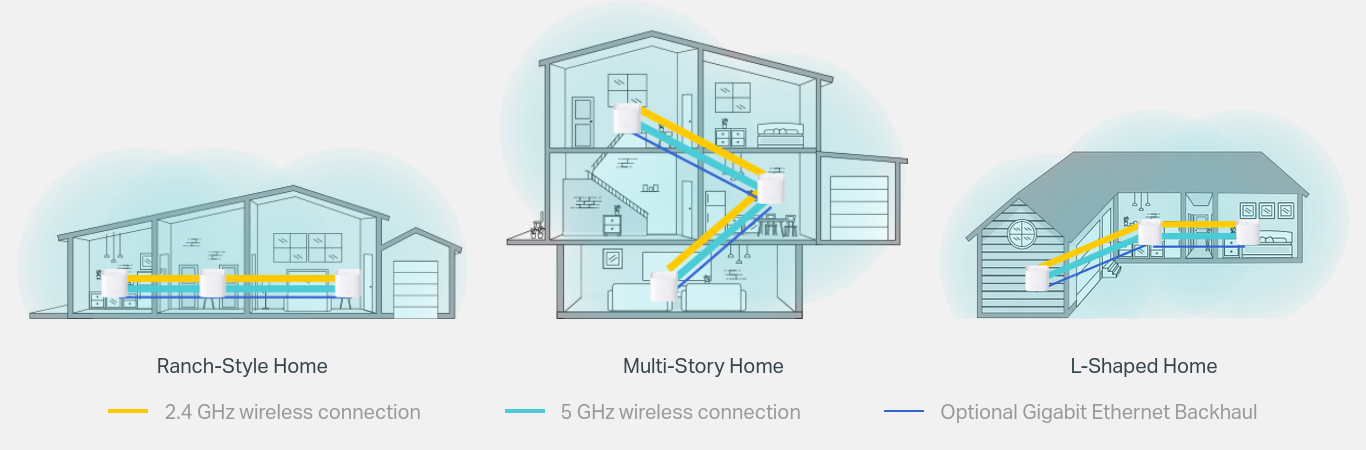

Whole Home Coverage

Empowered by EasyMesh technology, HC220-G5 provides a strong WiFi signal in every corner of your home. Wireless connections and optional Ethernet backhaul work together to link each unit, providing even faster network speeds and truly seamless coverage. Want more coverage? Simply add another HC220-G5 whenever you want.

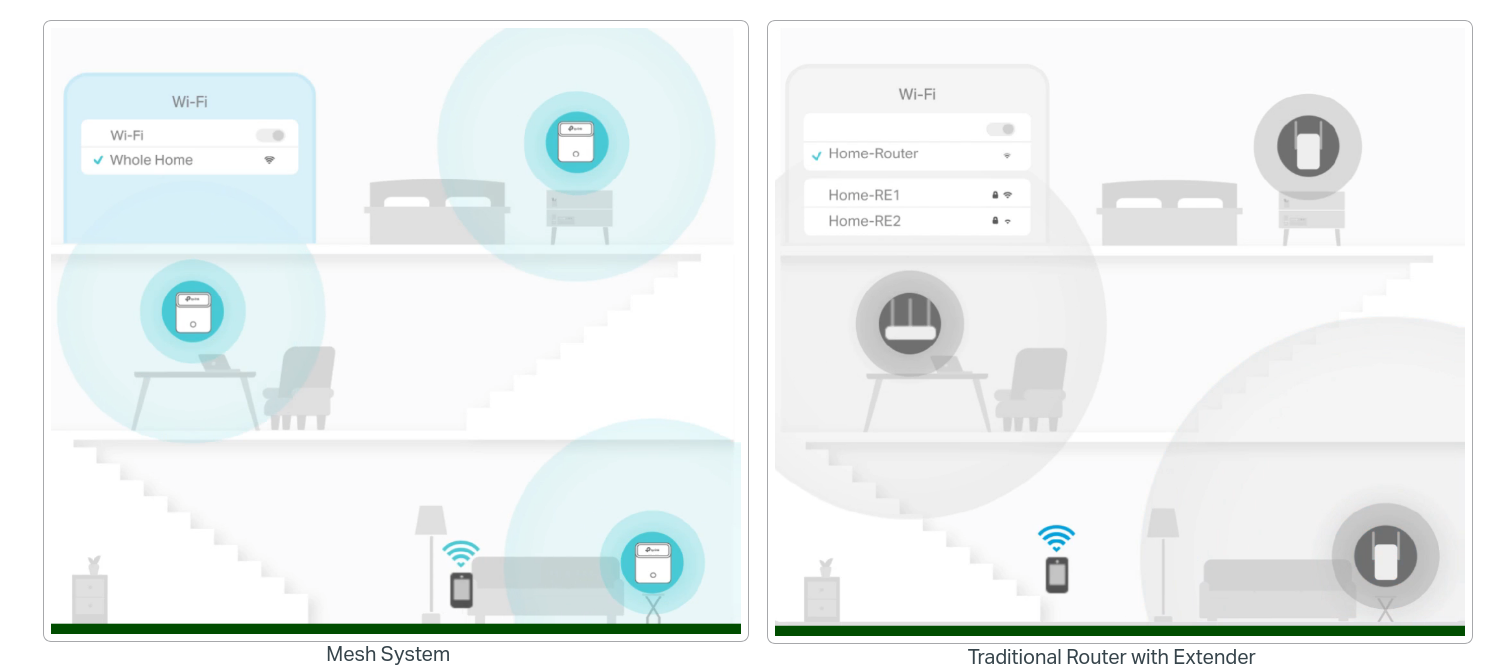

Seamless Roaming with One Wi-Fi Name

All units work together to form one unified network. Your mobile device will automatically connect to the fastest unit when you move through your home, creating a truly seamless WiFi experience.

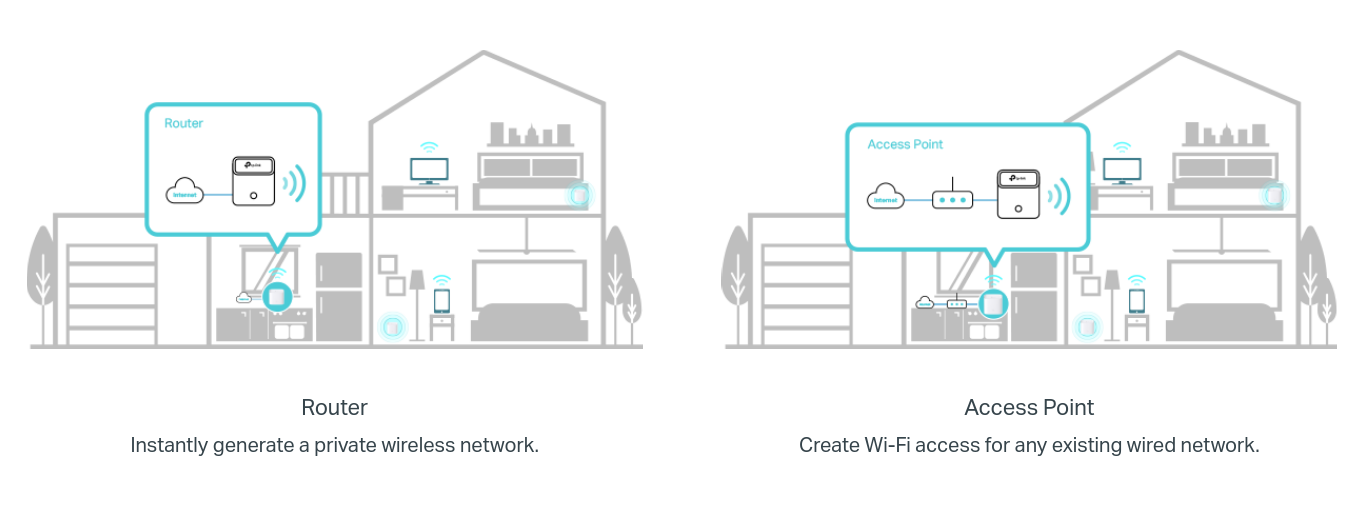

2-in-1 Router and Access Point Modes

Flexible and multifunctional, HC220-G5 includes a variety of features to serve as a router or access point. Choose the mode for actual network demands and experience maximum wireless flexibility.

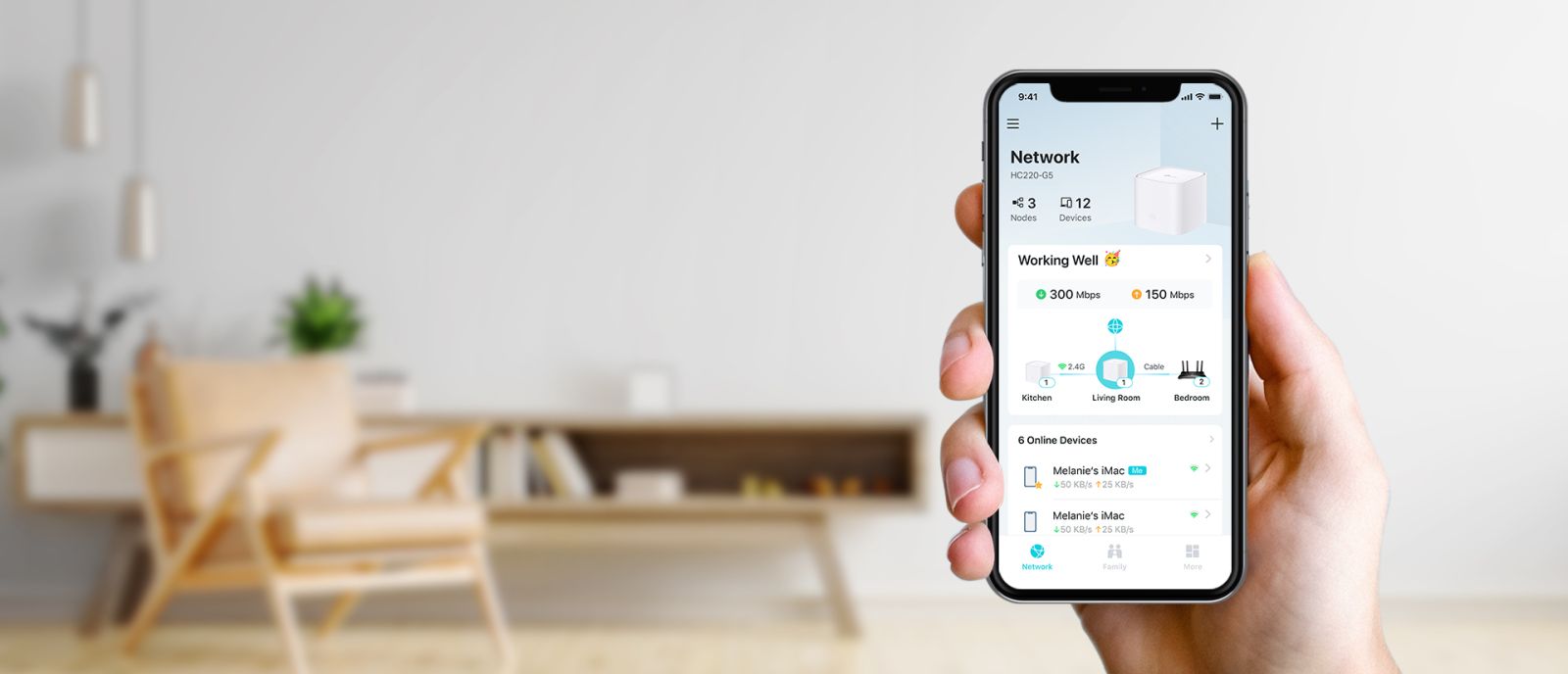

Easy to Set Up and Use

You can set up your device in minutes, whether you prefer
the intuitive Aginet app or the powerful web interface. The
Aginet app allows you to manage network settings from
your smart phone or tablet.

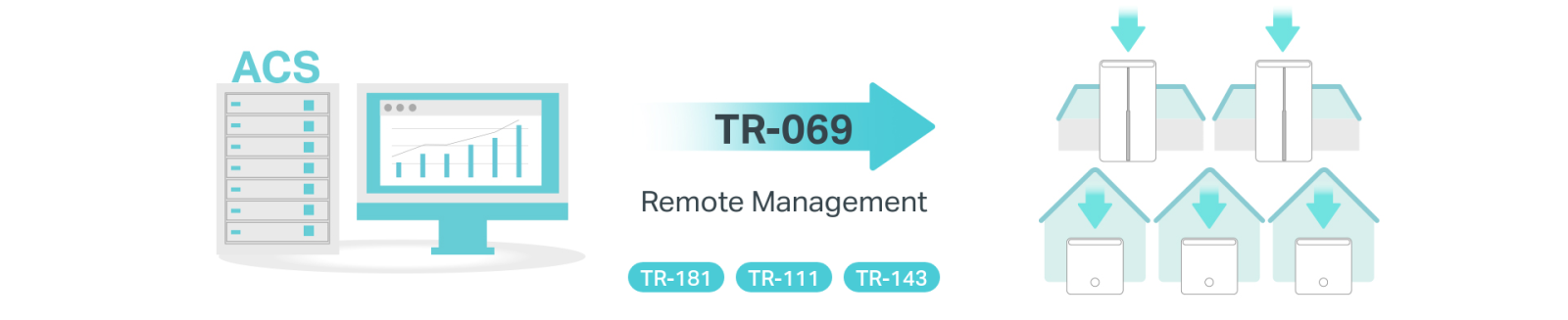

Support TR-069 Remote Management

ISPs can remotely configure and manage the devices via ACS (Auto-Configuration Server). High-level operations are also supported thanks to compatibility with TR-181, TR-111, and TR-143 protocols.

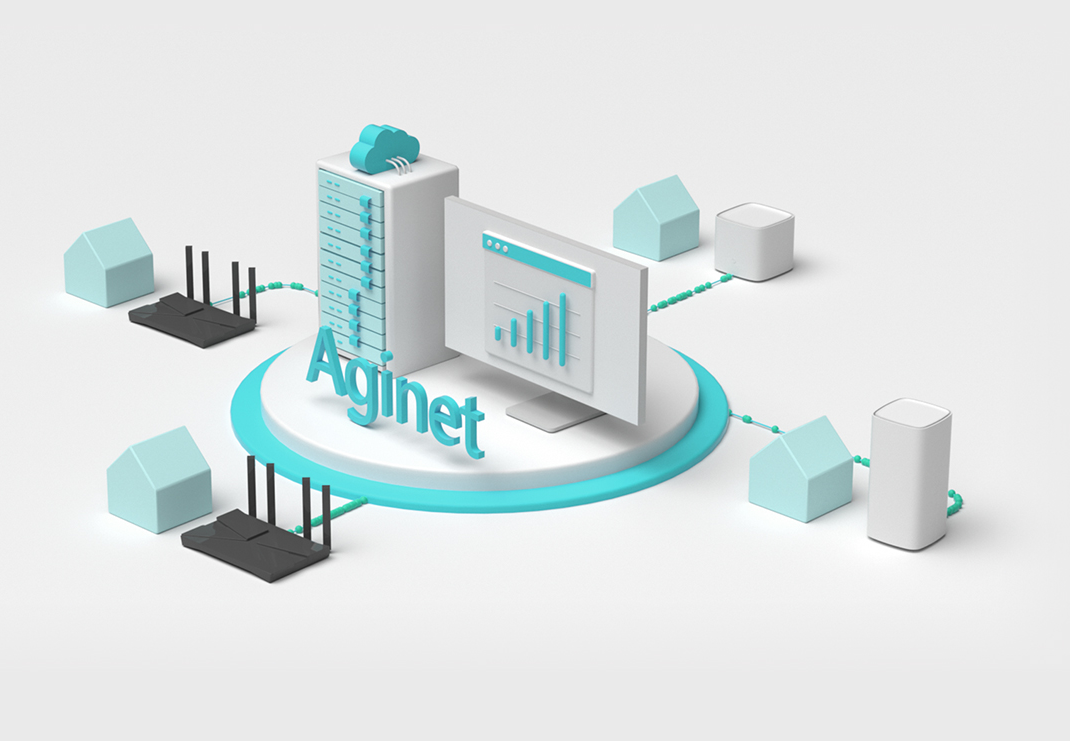

Aginet Solution:
End-to-End Management System for ISPs

Aginet Solutions offer ISPs powerful and flexible platforms to manage multiple devices for connected home, such as dynamic service provisioning, zero-touch firmware upgrading and remote troubleshooting and mesh WiFi diagnostics.

Specifications:

WIRELESS FEATURES
Frequency	2.4 GHz and 5 GHz
Signal Rate	AC1200 5 GHz: 867 Mbps (802.11ac) 2.4 GHz: 300 Mbps (802.11n)
Transmit Power	FCC: <30 dBm (2.4 GHz), <30 dBm (5 GHz) CE: <20 dBm (2.4 GHz), <23 dBm (5 GHz)
Wireless Security	WPA-PSK/WPA2-PSK/WPA3 Personal encryptions
Wireless Standards	Wi-Fi 5 IEEE 802.11 a/n/ac 5 GHz IEEE 802.11 b/g/n 2.4 GHz
Multi-SSID	2× 5 GHz Multi-SSID 2× 2.4 GHz Multi-SSID

SOFTWARE FEATURES
WAN Type	Dynamic IP/Static IP/PPPoE
Quality of Service	WMM
Firewall Security	SPI Firewall
Management	Local Management, TAUC Cloud Management, TR-069(TR-098/TR-181), TR-111, TR-143
Advanced Features	Parental Controls, QoS (Quality of Service), Address Reservation, Port Forwarding, WiFi Schedule
Protocols	IPv4 IPv6
Working Modes	Router Mode Access Point Mode

OTHERS
Certifications	CE, FCC, Wi-Fi CERTIFIED™, Wi-Fi CERTIFIED EasyMesh™
Environment	Operating Temperature: 0℃–40℃ (32℉ –104℉) Storage Temperature: -40℃–60℃ (-40℉ –140℉) Operating Humidity: 10%–90% non-condensing Storage Humidity: 5%–90% non-condensing
Smartphone/Tablet Requirements	Android 4.4 or later iOS 9.0 or later

HARDWARE FEATURES
External Power Supply	12 V ⎓ 1.0 A
Interface	3× Gigabit Ports *Per Unit 1 Port supports WAN/LAN auto-sensing
Button	Reset Button WPS Button
Dimensions ( W x D x H )	3.9 x 3.9 x 3.5 in (100 x 100 x 89.5 mm)

Виж още Рутери Безжични TP-Link
Виж всички Рутери Безжични в категорията

Технически характеристики

Безжична скорост:	1200 Mbps
Wi-Fi Стандарт:	Wi-Fi 5 (802.11ac)
Честота:	2.4 + 5 GHz
LAN портове:	2 x 1000 Mbps
WAN портове:	1 x 1000 Mbps
Антени:	4 Вътрешни
USB портове:	Няма
3G/4G:	Не
Преносим:	Не
Други:	Няма
Жична скорост:	10/100/1000 Mbps
