Захранване Seasonic Focus GX-850 (White), 850W, Active PFC, 80+ Gold, 120mm вентилатор

CABLE-FREE CONNECTION DESIGN

Seasonic’s engineers have implemented a new design feature, where instead of cables; the back panel and the PCB (Printed Circuit Board) are connected by a copper plate. This breakthrough solution not only lowers the chance of production errors during manual insertion but it also improves output power quality.

BENEFITS

• Reduced noise without increase in temperature;
• Extended fan life due to the reduced number of fan rotations;
• Optimized heat dissipation at all times;
• Unsurpassed silent performance in Fanless Mode.

Additionally, there is a switch at the back of the power supply which allows users to customize their cooling needs by selecting between the Seasonic S2FC (fan control without Fanless Mode) and the S3FC (fan control including Fanless Mode).

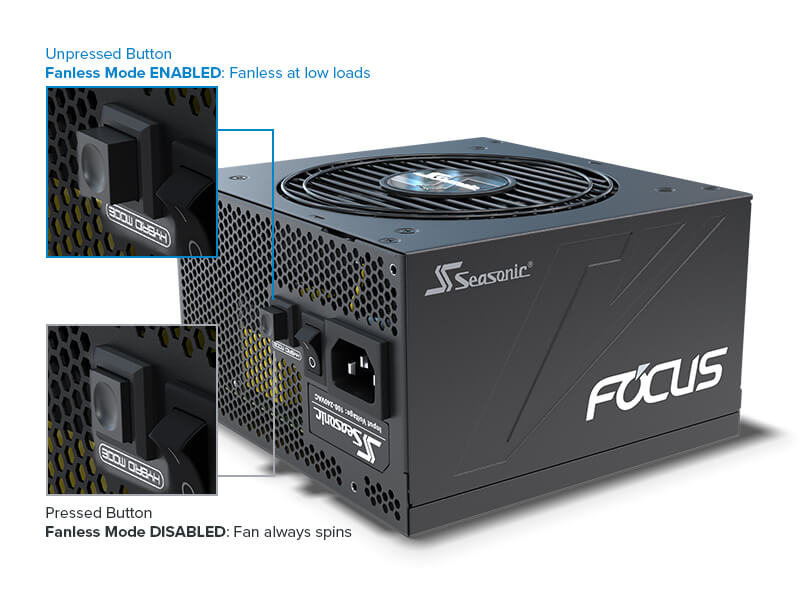

THE FAN CONTROL BUTTON   The fan control button can be found on the back of the FOCUS PLUS power supply, next to the power switch. The image here illustrates how to select different fan control modes to suit your need. DO NOT press the button if you wish to include the Fanless Mode, which means the fan in the power supply will not spin when the power supply is under light loads. Press the button if you wish to have the fan spin at all times, even at lower loads.

SPECIFICATIONS

MFG CODE:  SSR-850FX3
POWER:  850 W
FORMAT:  ATX 3.0
TYPE:  Active PFC
CERTIFICATES:  80PLUS GOLD, CE
EFFICIENCY:  90%
MODULAR:  YES


CONNECTORS

• PCI-E Gen5 12VHPWR x 1
• PCI-Express 6+2 pin x 3
• Molex x 3
• SATA x 8
• SATA 3.3 V x 2
• 4+4 Pin ATX/EPS x 2
• 20+4 Pin ATX x 1


COOLING:  135 mm fan
COLOR:  Black
DIMENTIONS:  140 x 150 x 86 mm ( L x W x H)


OTHER

• 80 PLUS® Gold certified
• S3FC - Fanless until 30 % load
• Digital Hybrid Fan Control
• Tight Voltage Regulation
• Gold plated connectors

JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
