Seasonic Focus GX-850 1FX85GFRT3A31X
НазадSeasonic Focus GX-850 1FX85GFRT3A31XSeasonic Focus GX-850 1FX85GFRT3A31XSeasonic Focus GX-850 1FX85GFRT3A31XSeasonic Focus GX-850 1FX85GFRT3A31XНапред

Захранване Seasonic Focus GX-850, 850W, 80 PLUS Gold, Active PFC, 120mm вентилатор

id 262167 Код: PWRPCSEASONIC1FX85GFRT3A31X
  • Модел: Focus GX-850
  • Марка: Seasonic
  • Гаранция: 60 месеца
  • Изходна мощност: 850 W
  • Модулен блок: Да
  • Форм фактор: ATX
  • Наличност: Стар продукт
    Продукта вече не се предлага Виж подобни предложения Абонирай се за бюлетина

    Печат

    Изпрати на приятел

    ОписаниеХарактеристикиРевюта / Въпроси

    Seasonic FOCUS GX-850



    The newly upgraded FOCUS PX and GX series are the successors to the FOCUS PLUS Series, which became an instant top seller in the power supply market after its launch in 2017. In 2019, Seasonic engineers have made improvements to the popular series such as removing the inline capacitors on the supplied cables.



    80 PLUS Gold

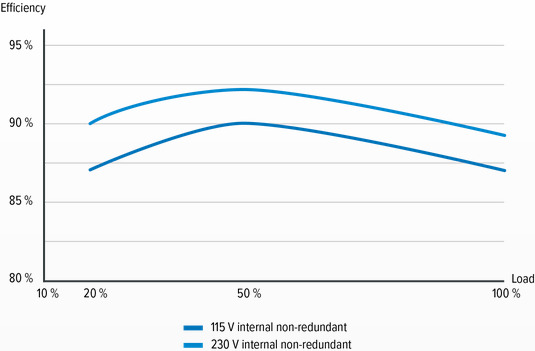

    The FOCUS GX achieves 80 PLUS Gold certification with its 90 % efficiency at 50 % system load.





    Cable-free Connection Design

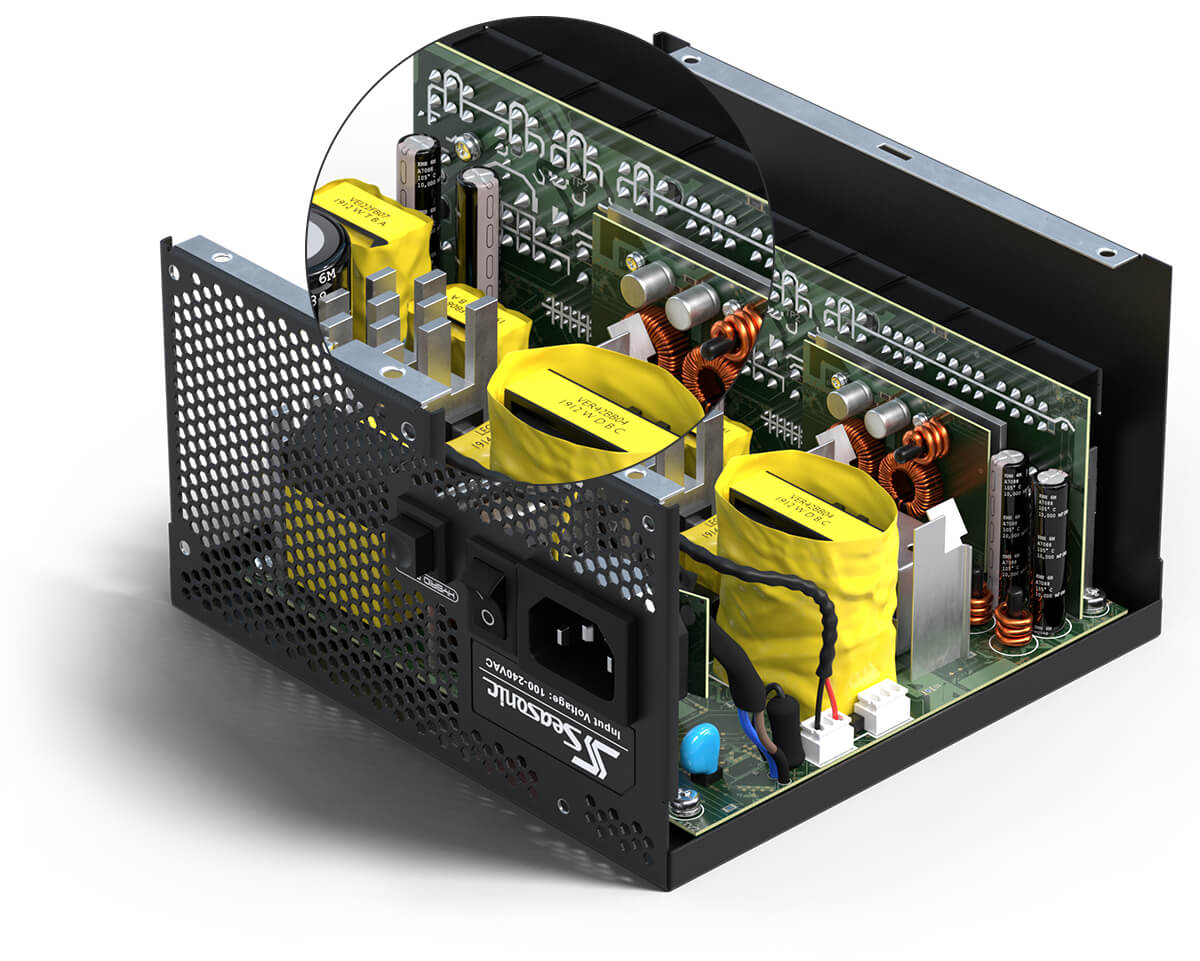

    Seasonic’s engineers have implemented a new design feature, where instead of cables; the back panel and the PCB (Printed Circuit Board) are connected by a copper plate. This breakthrough solution not only lowers the chance of production errors during manual insertion but it also improves output power quality.

    Hybrid Silent fan Control

    The industry’s first, Seasonic patented, advanced three-phased thermal control achieves optimal between silence and cooling. This Hybrid Silent Fan Control functions in three operational stages: Fanless Mode, Silent Mode, and Cooling Mode.

    Technical Specifications
    80PLUSGold
    Form FactorIntel ATX 12 V
    Dimensions140 mm (L) x 150 mm (W) x 86 mm (H)
    Fan InformationFan Size120 mm
    Fan ControlS3FC - Fanless until 30 % load
    Fan BearingFluid Dynamic Bearing
    Life Expectancy50,000 hours at 40 °C, 15 % - 65 % RH
    Cable InformationModularityFully Modular
    Cable typeFlat black cables
    Electrical FeaturesOperating Temperature0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)
    MTBF @ 25 °C, excl. fan100,000 hours
    AC InputFull Range
    ProtectionOPP, OVP, UVP, OCP, OTP, SCP
    Safety and EnvironmentalSafety and EMCcTUVus, TUV, CB, CCC, BSMI, EAC, CE
    Environmental ComplianceEnergy Star, RoHS, WEEE, ErP Lot 6, REACH
    Power Output
    AC InputVoltage: 100 V - 240 V
    Current: 12 - 6 A
    Frequency: 50 Hz - 60 Hz
    DC OutputRail+3.3 V+5 V+12 V-12 V+5 VSB
    Maximum Power20 A20 A70 A0.3 A3 A
    100 W840 W3.6 W15 W
    Total continuous power850 W


    JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.



    Виж още Захранвания Настолни компютри Seasonic
    Виж всички Захранвания Настолни компютри в категорията
    Технически характеристики
    Изходна мощност:  850 W
    Модулен блок:  Да
    Форм фактор:  ATX
