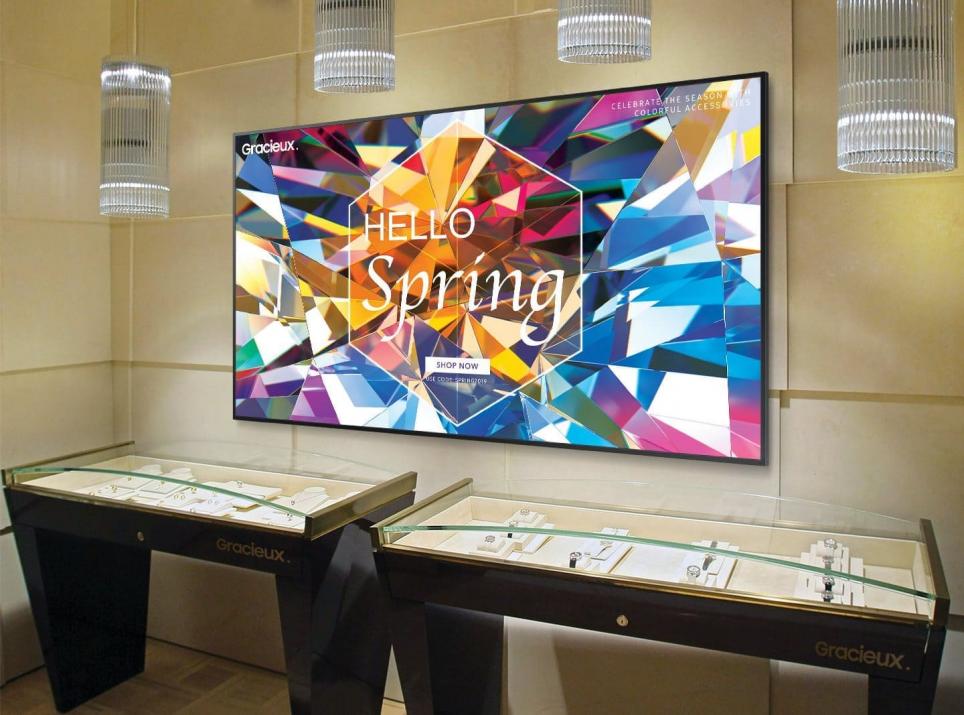

Time to upscale your display Samsung’s new QBR series displays cut through the clutter to deliver best-in-class UHD resolution as well as intelligent UHD upscaling and rich flawless colors with Dynamic Crystal Color all in a slim design. |
|
Incredible 4K picture quality Samsung’s new QBR series provides ultra high-definition 4K resolution, creating lifelike images with sharper picture quality than ever before. |
|
Crystal Processor 4K Intelligent UHD upscaling technology, made possibly by Samsung’s Crystal Processor 4K, allows content developed at a lower resolution to be elevated to UHD-level quality. It also performs edge restoration and noise reduction to optimize on-screen text and imagery. |
|
Dynamic Crystal Display The QBR series features Dynamic Crystal Display, using 10 bit processing for flawless color expression, allowing viewers to enjoy a wider spectrum of colors up to one billion shades. HDR+ compatibility converts standard definition content to HDR quality for sharper contrast and more vivid colors. |
|

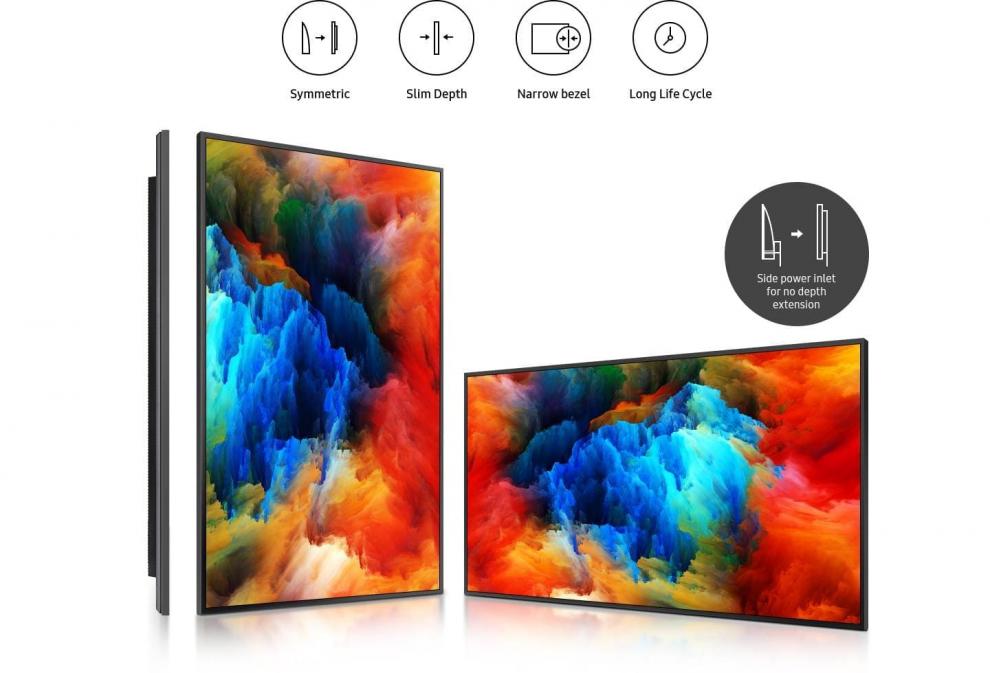

Slim and symmetrical design The QBR series features an all-new symmetric design simplifying wall mounting and ensuring installation is seamless. The flat back and slim depth will ensure a display that will stand the test of time. |
|

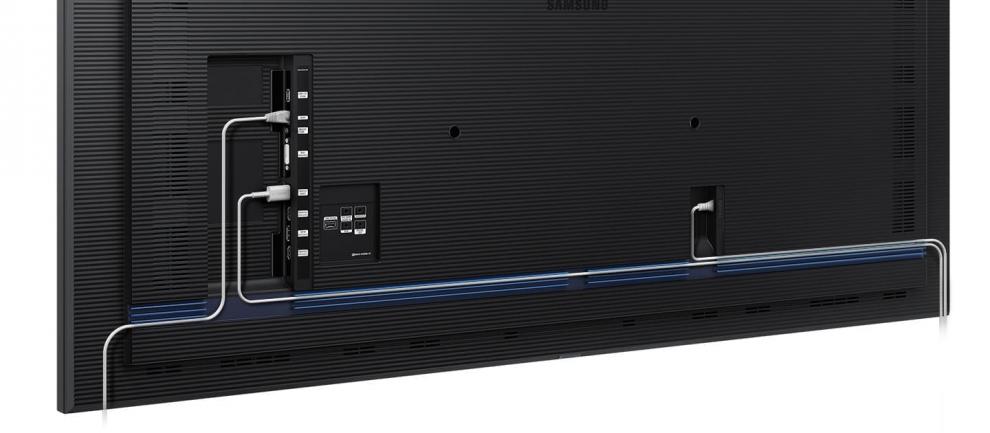

Clean cable management With QBR's new cable guide feature, retailers are able to tuck away messy cables from view. This allows for a clean and visually-appealing shopping expeience for customers, even when the back of the display is visible. |
|
Powerful, all-in-one solution SSSP is an all-in-one solution that simplifies installation and maintenance. With Tizen 4.0, businesses can enjoy easy development, reinforced capability with multiple web formats and standards and secured protection. |
|

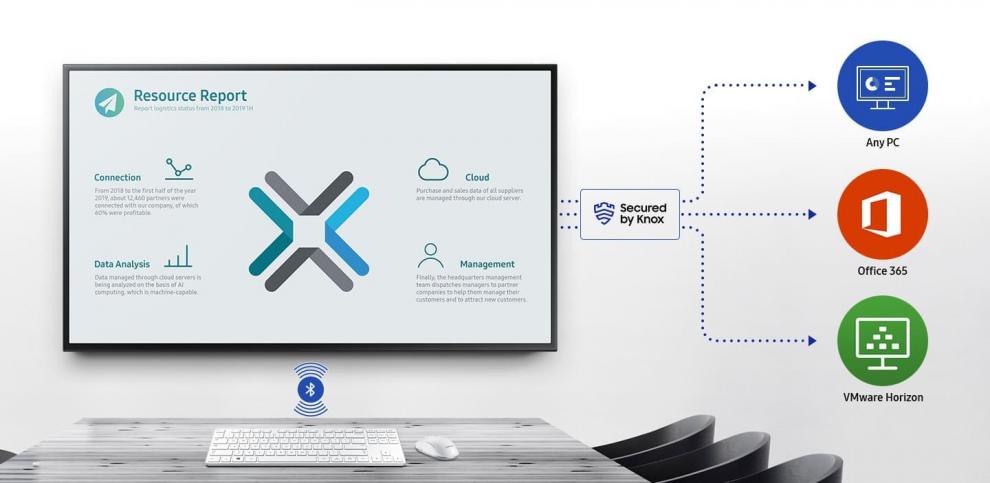

Samsung Workspace secured by Knox With security provided by Knox, the displays feature Samsung Workspace which supports wireless cloud service access and control of a PC without needing a physical connection. Samsung Workspace simplifies meeting spaces while also improving security. |
|

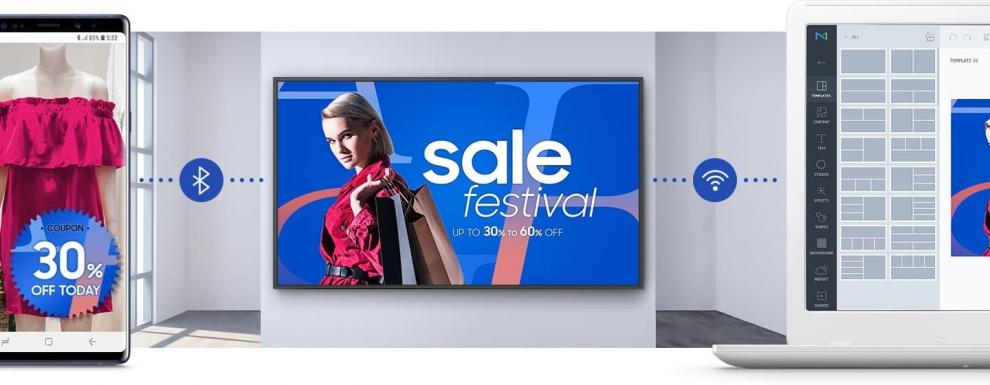

WiFi and Bluetooth built-in Built-in WiFi and Bluetooth allow for more personalized and interactive services as well as simplifying how businesses showcase content. Whether it’s to make networking simpler or enabling interactive beacon technology in-store, QBR series displays help businesses move into the future of retail. |
Specs
Panel
Diagonal Size: 50"
Type
Edge LED BLU
Resolution: 3840*2160 (4K UHD)
Pixel Pitch(mm): 0.285 x 0.285
Active Display Area(mm): 1095.84(H) x 616.41(V)
Brightness(Typ.): 350 nit
Contrast Ratio: 4000:1
Viewing Angle(H/V): 178/178
Response Time(G-to-G): 8ms(Typ.)
Display Colors: 16.7M(True Display) 1.07B(Ditherd 10bit)
Color Gamut: 92% (DCI-P3, CIE 1976)
Operation Hour: 16/7
Haze: 2%
Display
Dynamic C/R: MEGA
H-Scanning Frequency: 30 ~ 81kHZ
V-Scanning Frequency: 48 ~ 75HZ
Maximum Pixel Frequency: 594MHz
Sound
Speaker Type: Built in Speaker(10W + 10W)
Connectivity
DVI-D
HDMI 2.0 (2)
HDCP 2.2
Stereo Mini Jack, DVI/HDMI/Audio(Common)
USB 2.0 x 2
Stereo Mini Jack
RS232C(in/out) thru stereo jack, RJ45
Power
Type: Internal
Power Supply: AC 100 - 240 V~ (+/- 10 %), 50/60 Hz
Power Consumption: Max[W/h]: 143, Typical[W/h]: 86, Rating[W/h]: 130
BTU(Max): 487.63
Sleep mode: 0.5
Mechanical Specification
Dimension (mm)
Set: 1121.4 x 643.9 x 46.3
Package: 1269 x 784 x 152
Weight (kg)
Set: 13.4
Package: 17.6
VESA Mount (mm): 200 X 200
Stand Type: Foot Stand (Optional)
Bezel Width (mm): 9.2mm(U/L/R), 11.2mm(B)
Operation
Operating Temperature: 0 ℃ ~ 40 ℃
Humidity: 10 % ~ 80 %
Feature
Key Features: UHD Signage Display Slim & Light Signage with Built-in MagicInfo S6, SSSP 6.0
Special Features
H/W: Temperature Sensor,Pivot Display, Clock Battery(168hrs Clock Keeping), Built in Speaker(10W 2ch), IP5x Rating, Wi-Fi/BT S/W: Auto Source Switching & Recovery, LFD Home UI, Button Lock, Hot key option, Plug&Play (Initial Setting)
Internal Player
Processor: Cortex A72 1.7GHz Quad-Core CPU
On-Chip Cache Memory: L1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB
Clock Speed: 1.7GHz
Main Memory Interface: 2.5GB LPDDR4 1.5GHz 64bit
Graphics: Graphic resolution : 1920x1080 Output resolution : 3840x2160 (Scale up from graphic processing result.)
Storage (FDM): 8GB (3.88GB Occupied by O/S, 4.12GB Available)
