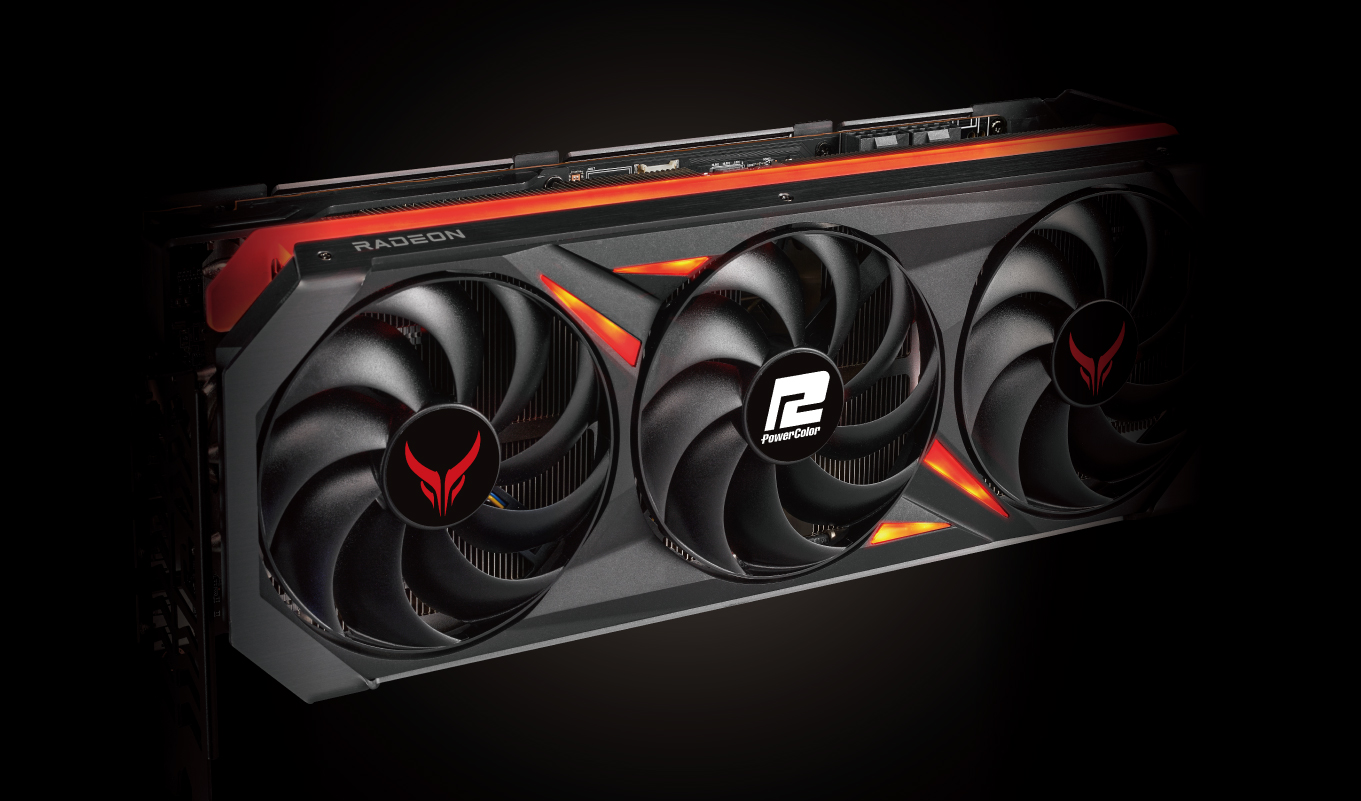

Red Devil AMD Radeon RX 7900 XT 20GB GDDR6

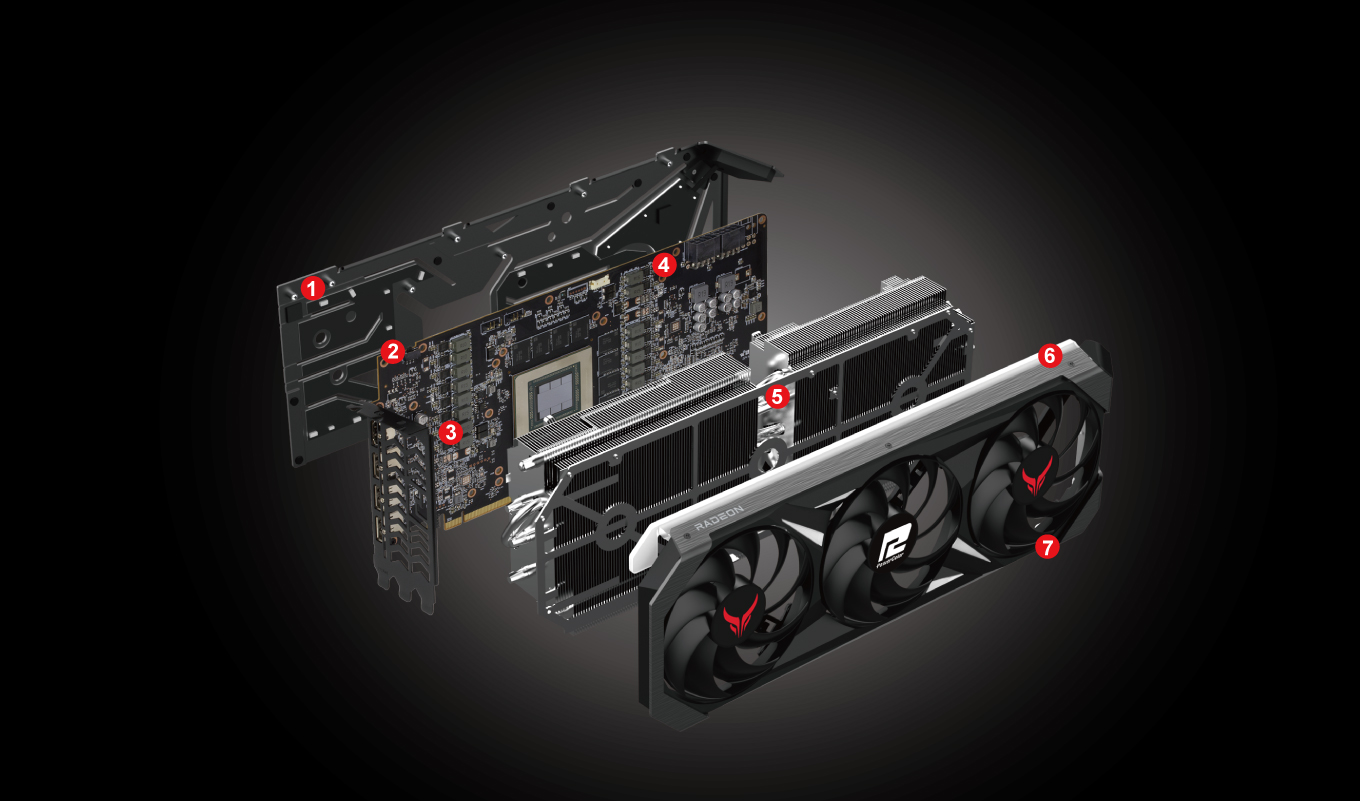

1. Metal Reinforced Backplate
2. Dual BIOS
3. High Quality 14-Layer PCB Design
4. DrMOS with IMON Digital Monitoring
5. Optimum Heatpipe Arrangement
6. Personalized ARGB Lighting Effect
7. Ring-fan Blade Design

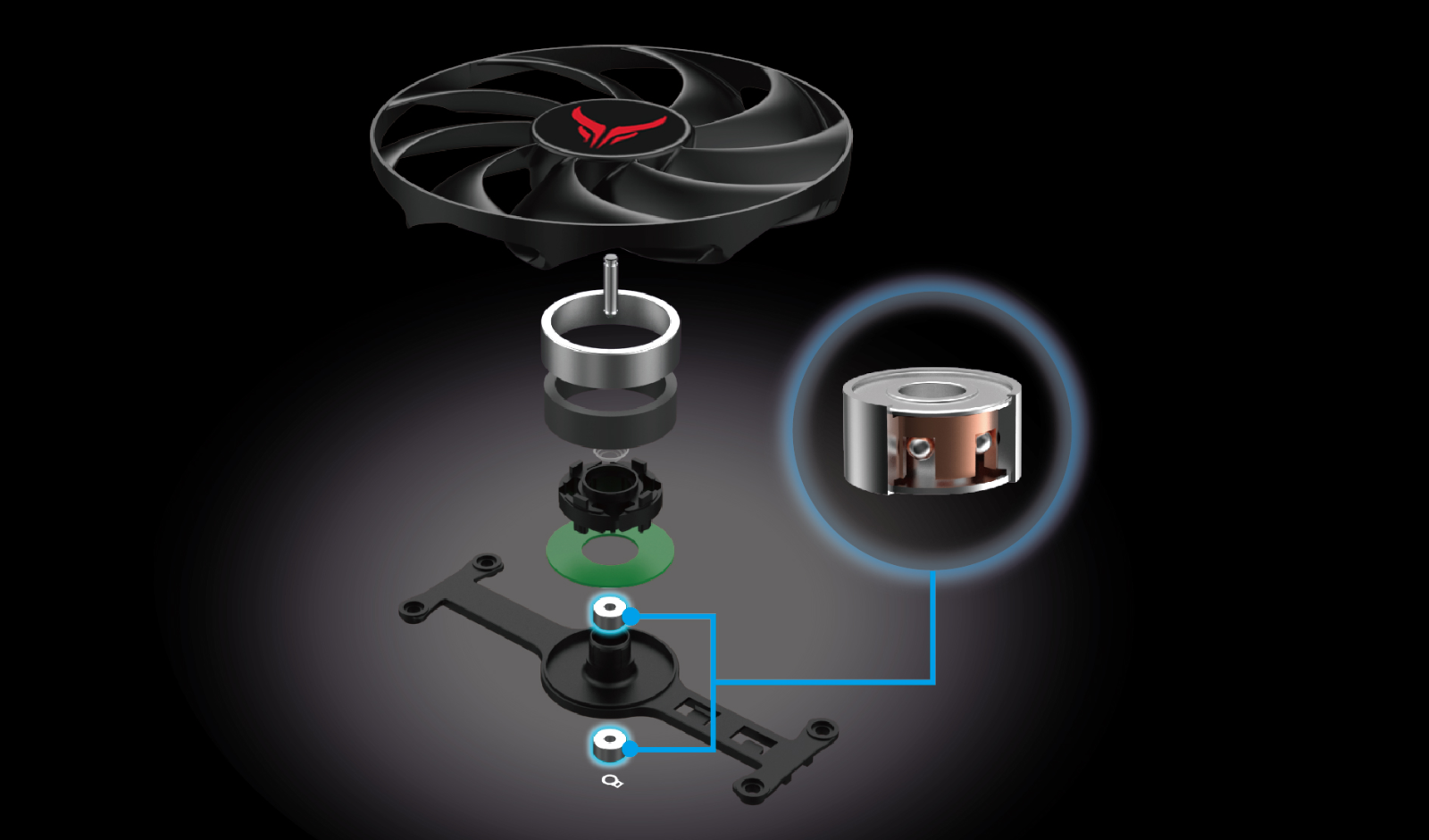

High Quality Japanese Dual Ball Bearings
Dual ball bearings reduce rotational friction, providing excellent heat dissipation and effectively doubling the expected lifetime of the fans.
Intelligent Fan Controller
Utilizing temperature detection from a smart chip, fans will start running when the GPU reaches 60℃ and shut down below 50℃. Efficient cooling, fan-noise reduction, and extended product lifetime are all benefits of a more accurate temperature monitoring.

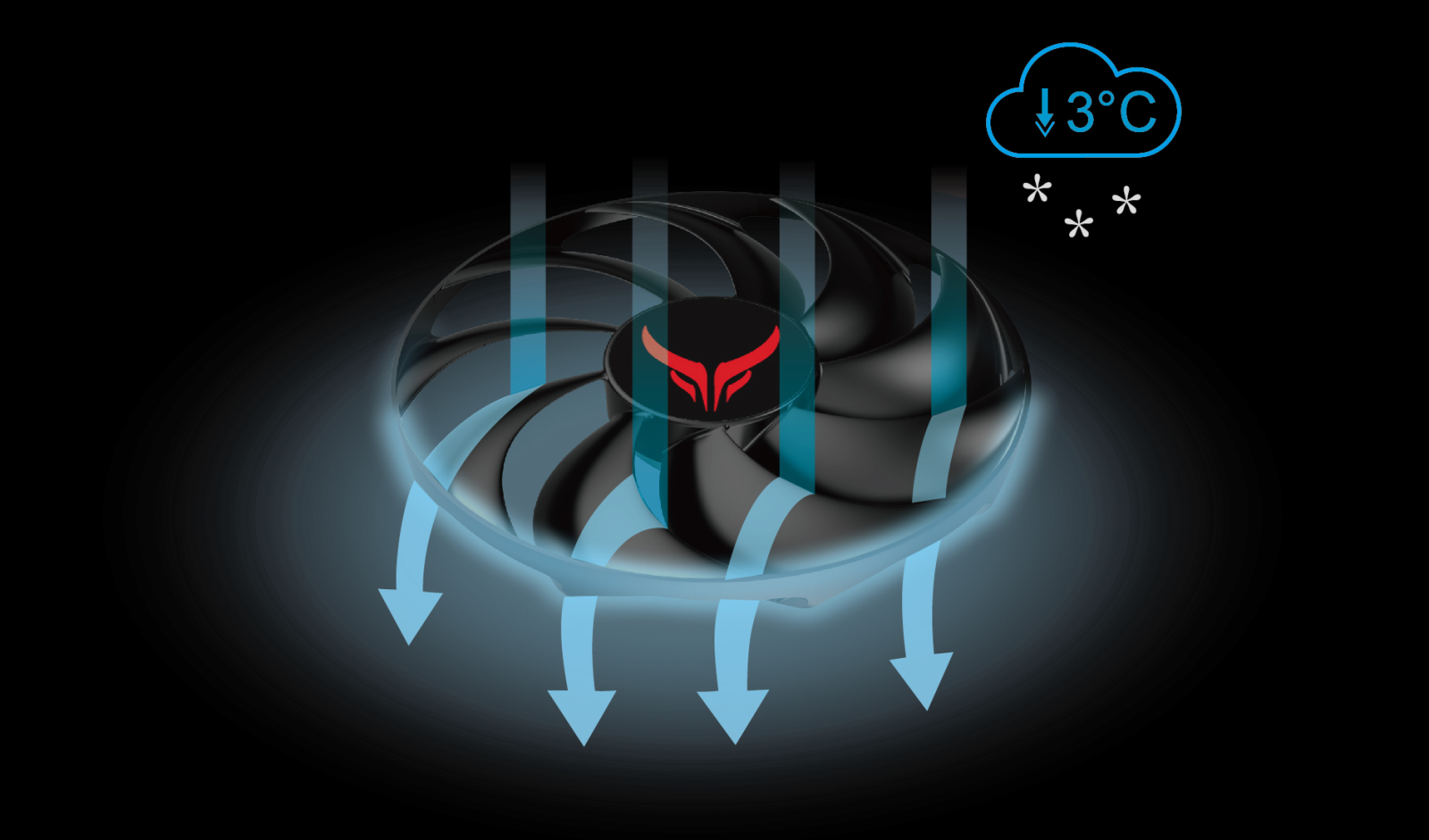

Unprecedented Ring-fan Blade Design
The newest 9-blade design of our fans generate better airflow and air pressure under the same noise level, improving cooling performance to reduce GPU temperatures by more than 3℃ compared to previous generations.

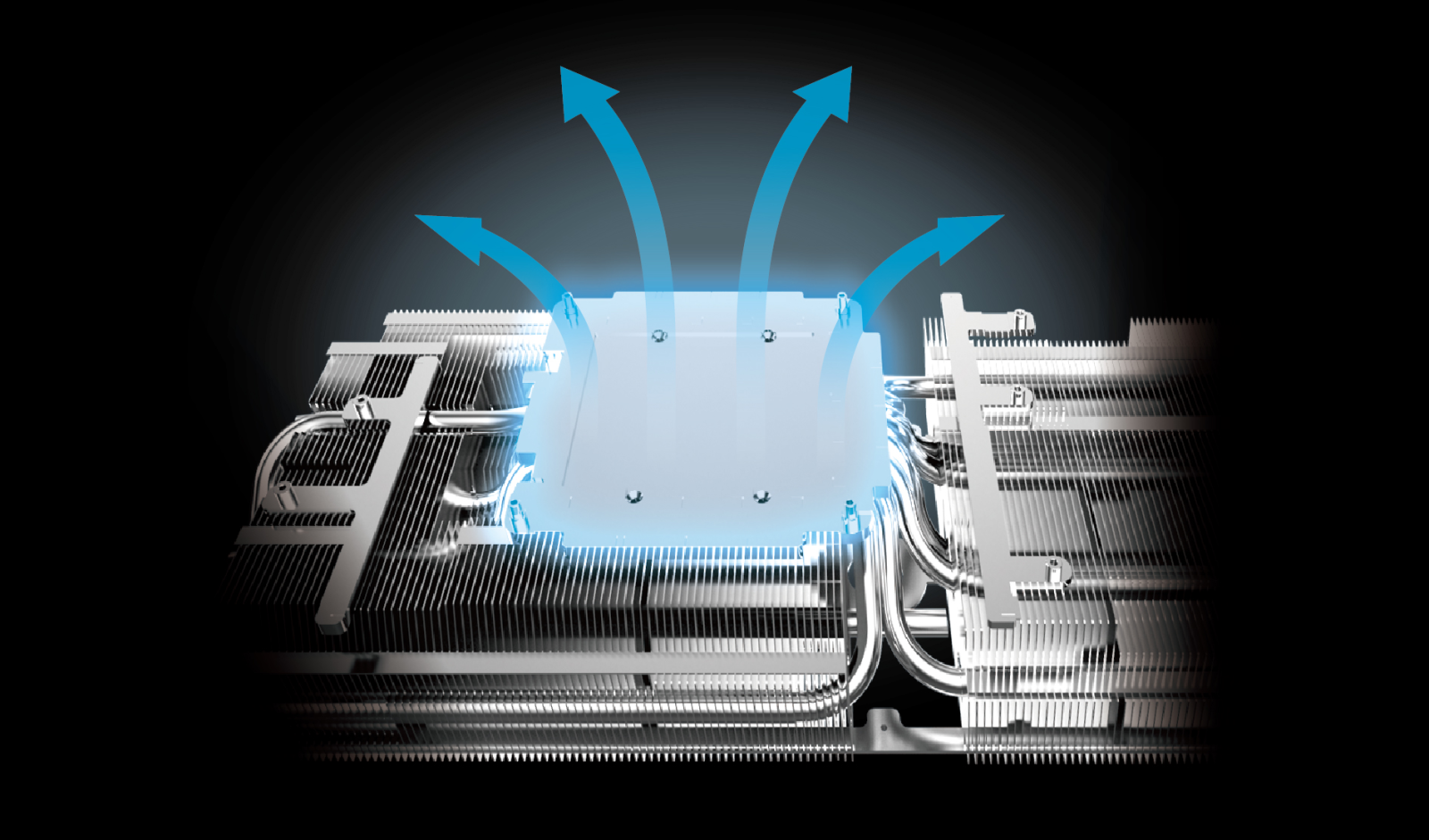

GPU Direct-Contact Copper Plate
We have increased the copper plate area to provide direct contact with the GPU while covering VRAM to increase the heat transfer threshold to the max.

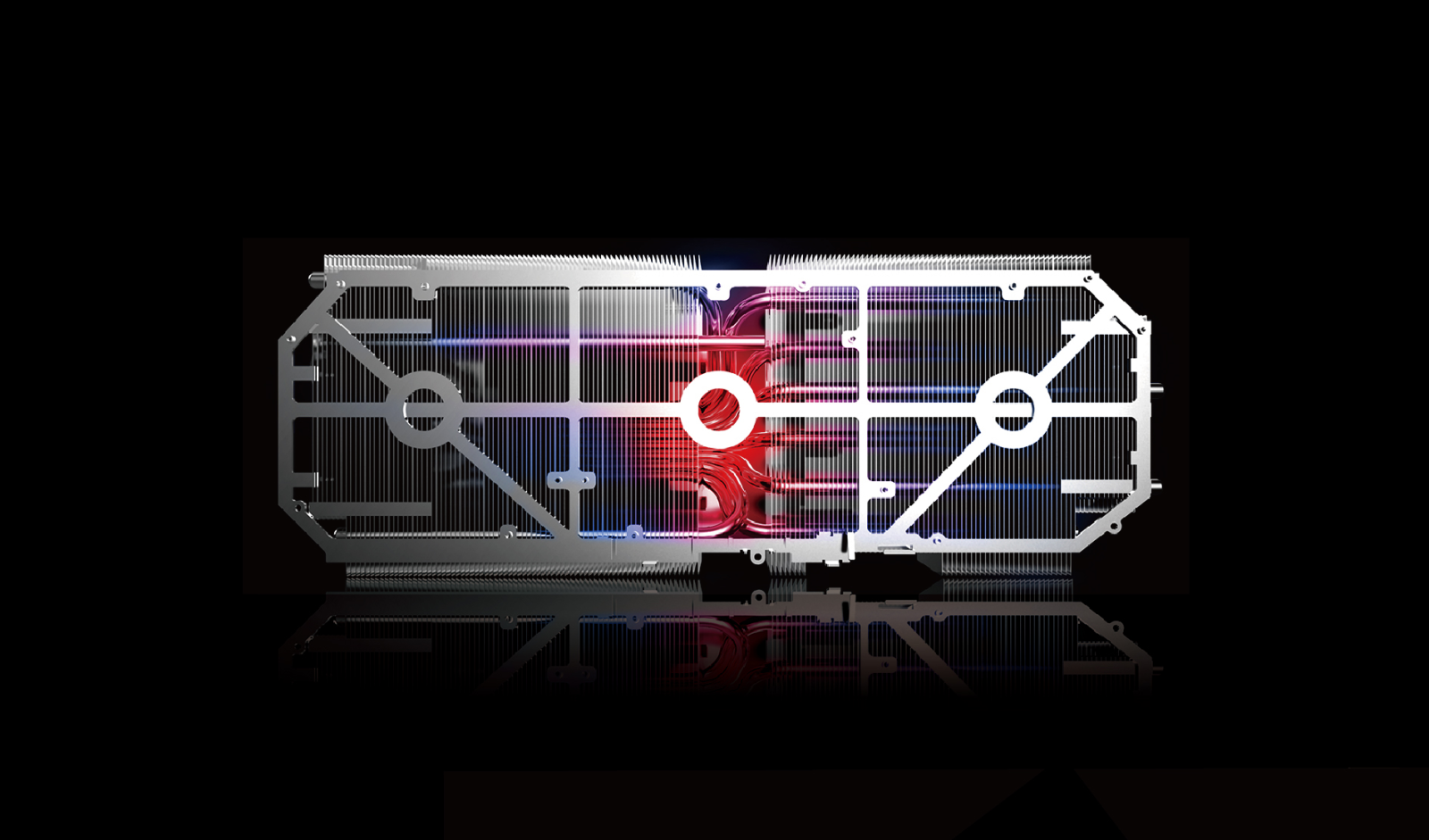

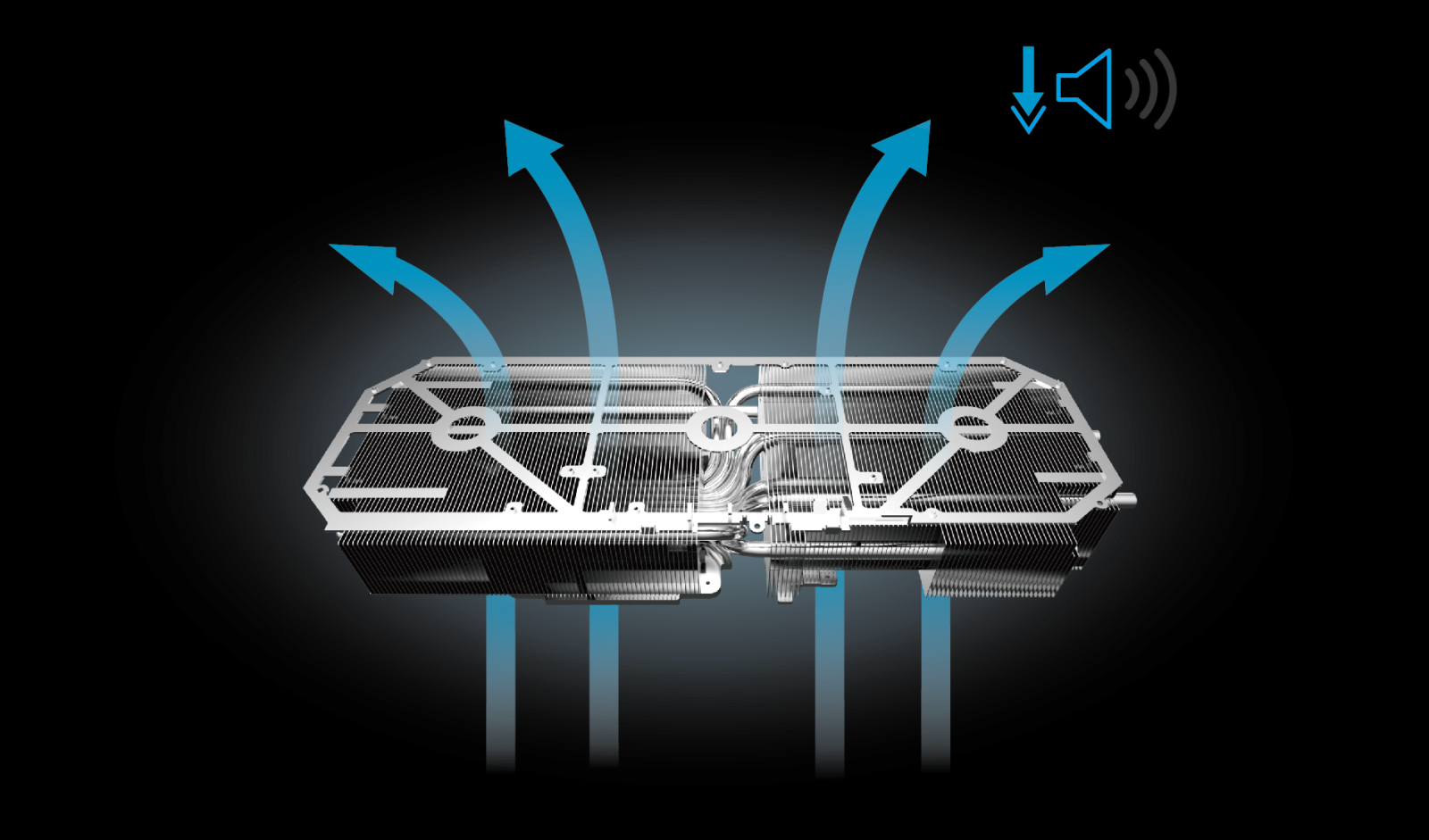

Vertical Fin Heatsink
A large heatsink with vertical fins spaced closely is mounted on PCB and offers better heat-spread area and radiation, allowing airflow to disperse heat efficiently.
Optimum Heatpipe Arrangement
A set of 8 x 6φ nickel-plated copper heatpipes align closely above the PCB to more quickly and effectively transfer heat from the GPU and VRAM to the cooling array.

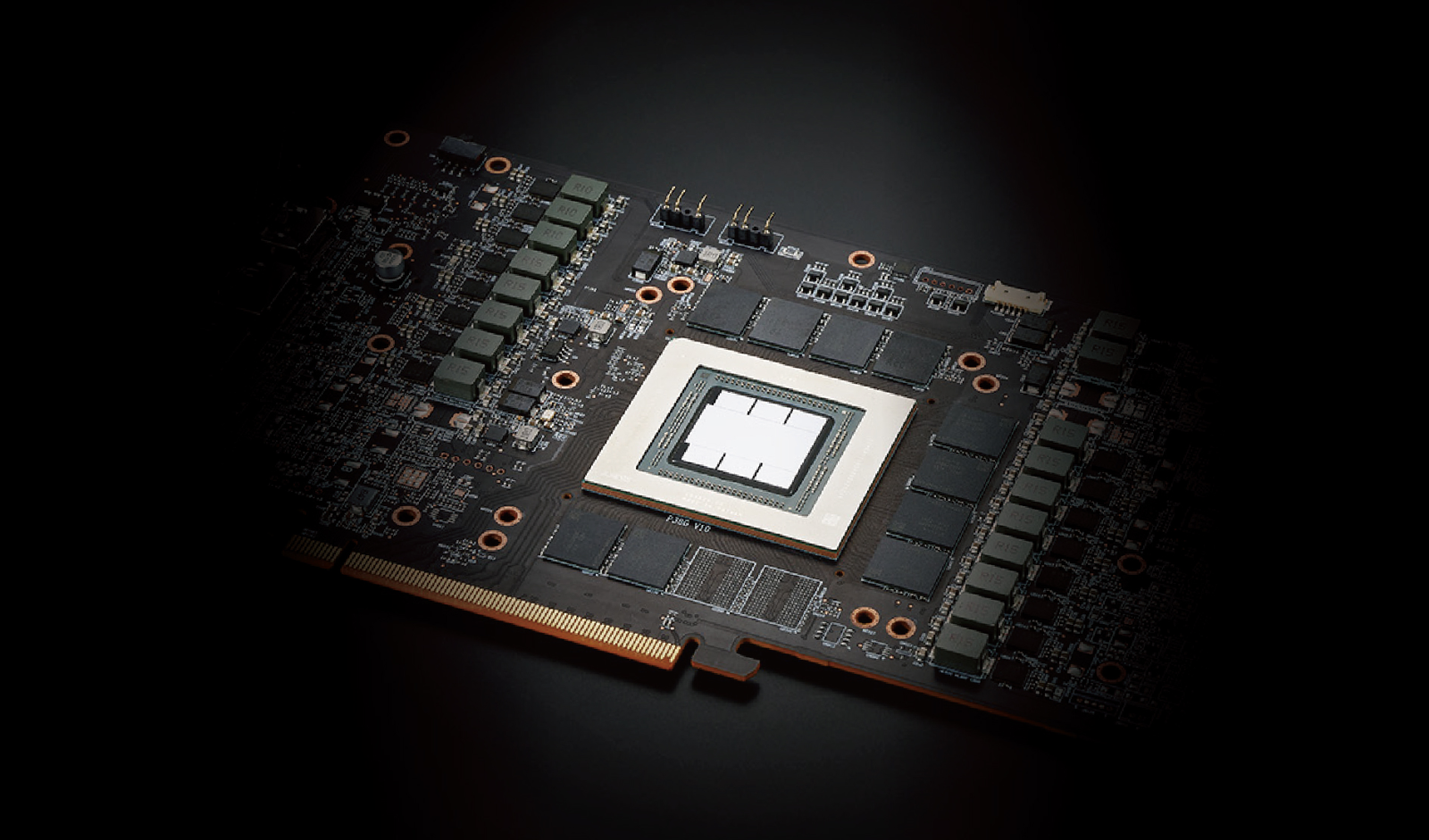

Red Devil adopts an 11+3+1 phase VRM design with DrMOS to power the GPU as well as an additional 2+1 phase specifically designated for the VRAM. New IMON technology monitors and reports the electric current and power consumption on each individual phase. By balancing the workload, the Red Devil ensures unparalleled stability and thermal protection during overclocking.
In addition, high quality car-grade polymer capacitors features long-lasting durability and high conductivity lowers power loss during transmission.

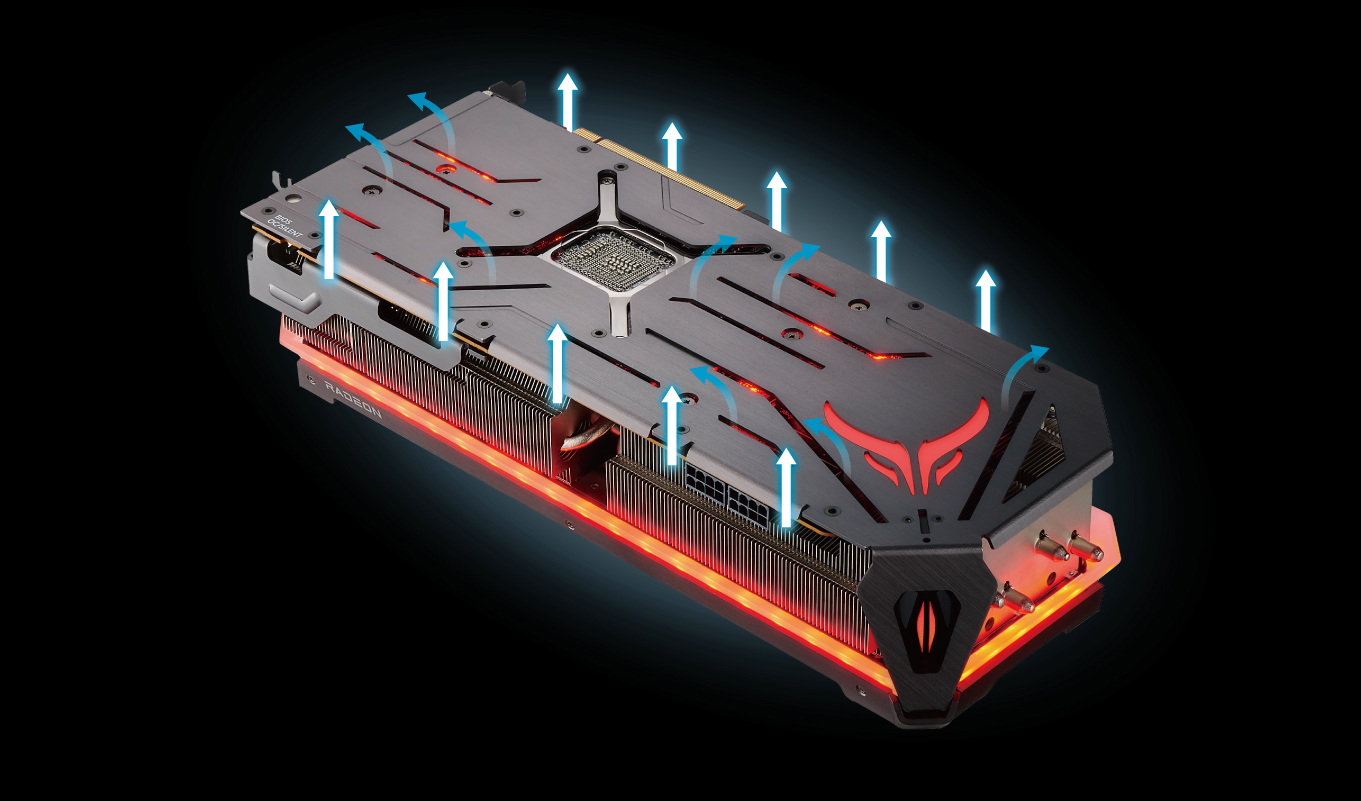

Metal Reinforced Backplate
The metal backplate strengthens and protects the internal components from PCB bend, and a cut-out design on the back plate allows exhaust heat to properly flow through for heat-dissipation efficiency.

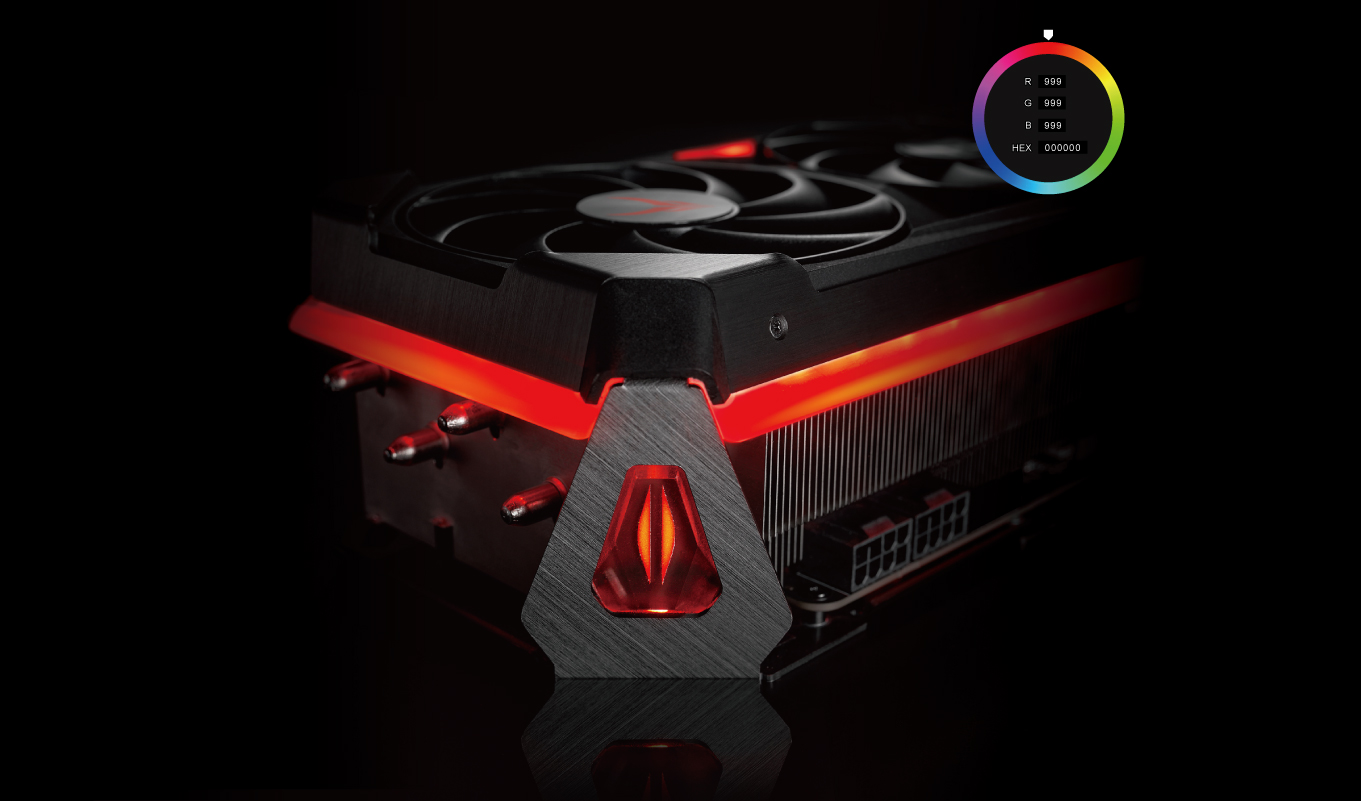

Flaming Devil Eye, Personalized ARGB Lighting Effect
The PowerColor Red Devil comes with adjustable front, side, and backplate ARGB through the PowerColor Devilzone RGB control software. Lighting effects can be customized to your personal preference to match your system aesthetic or whatever the mood calls for. In addition, the Red Devil RGB can be synchronized with the motherboard using the ARGB cable included in the product, providing gamers an immersive and coordinated environment while gaming.

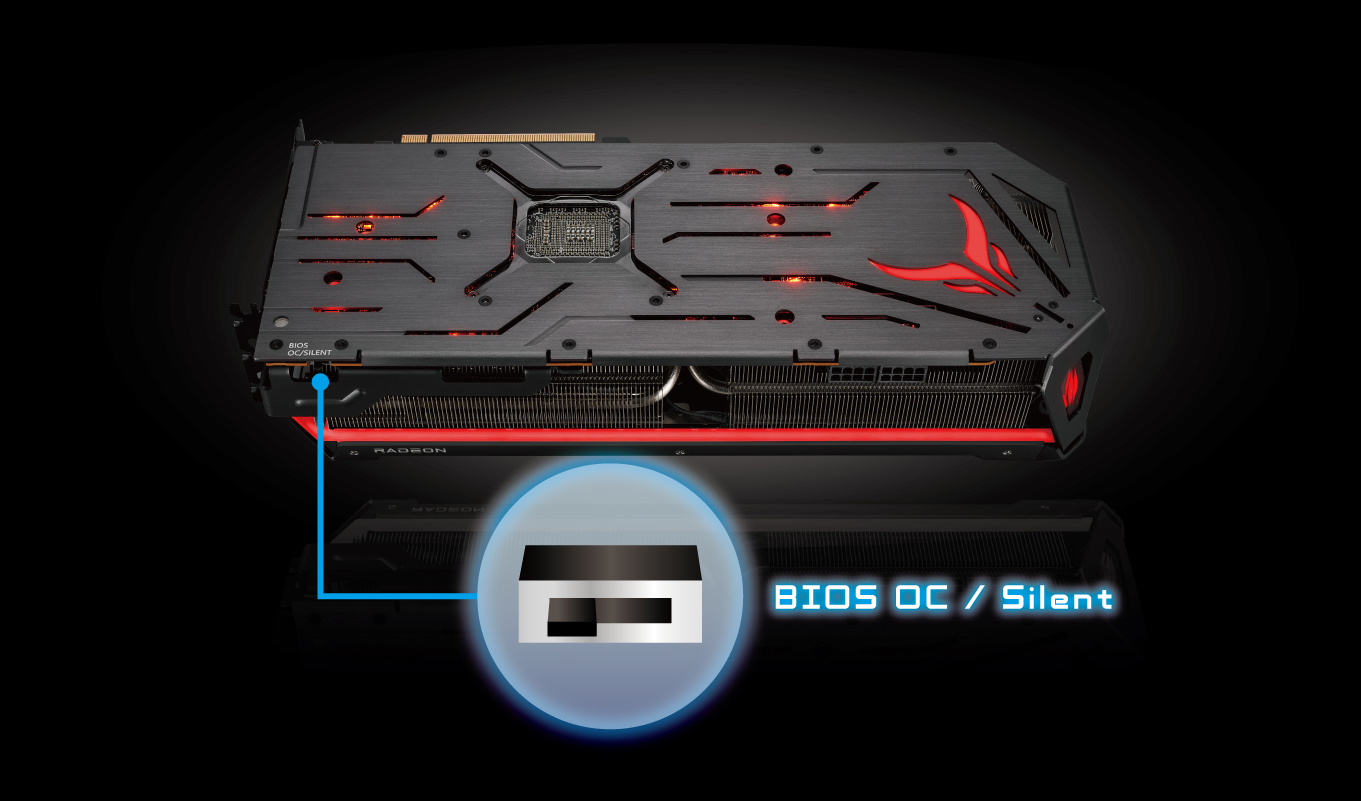

Dual BIOS Mode
Red Devil graphics cards feature Dual BIOS built-in and a switch for easy swapping.
-OC BIOS: A boosted mode that increases fan RPM to keep your card operating at a lower temperature to drive higher performance.
-Silent BIOS: Focused on lower noise and fan longevity, a milder fan speed, trading fan speed and noise for moderate, but still controlled, temperatures while maintaining performance.
THE MOST ADVANCED GRAPHICS FOR GAMERS
Experience unprecedented performance, visuals, and efficiency at 4K and beyond with AMD Radeon™ RX 7000 Series graphics cards, the world's first gaming GPUs powered by AMD RDNA™ 3 chiplet technology. Immerse yourself in breathtaking visuals with the pinpoint color accuracy of AMD Radiance Display™ Engine and boost frame rates with AMD FidelityFX™ Super Resolution and Radeon™ Super Resolution upscaling technologies. To unlock even more performance, combine AMD Radeon™ RX 7000 Series graphics and compatible AMD Ryzen™ processors to activate AMD smart technologies.
BREAKTHROUGH PERFORMANCE
AMD Radeon™ RX 7000 Series graphics cards set a new standard for ultra-enthusiast class gaming performance. Featuring advanced AMD RDNA™ 3 compute units, blazing fast clock speeds, and chiplet technology to enable fluid, high-refresh rate gaming experiences. Breakthrough new levels of performance with up to 20GB of GDDR6 memory and 2nd generation AMD Infinity Cache™ to deliver an incredible experience at 4K and beyond.
SPECIFICATION
| Graphics Engine | RX 7900 XT 20G-E/OC |
| Video Memory | 20GB GDDR6 |
| Stream Processor | 5376 Units |
| Engine Clock(OC) | up to 2175MHz(Game) up to 2535MHz(Boost) |
| Engine Clock(STD/Silent) | up to 2075MHz(Game) up to 2450MHz(Boost) |
| Memory Clock | 20.0 Gbps |
| Memory Interface | 320-bit |
| DirectX® Support | 12 |
| Bus Standard | PCIE 4.0 |
| Standard Display Connectors | 1 x HDMI 2.1，3 x DisplayPort 2.1 (only 2x simultaneous DP2.1 connections can be supported) |
| Product Remark | 'Game Clock' is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. 'Boost Clock' is the maximum frequency achievable on the GPU running a burstyworkload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to:thermal conditions and variation in applications and workloads. |
Feature Support
| OpenGL | Support |
| CrossFireX™ Technology | N/A |
| AMD Stream Technology | Support |
| AMD Eyefinity Technology | Support |
| AMD Hypermemory | N/A |
Maximum Resolution
| DisplayPort | 7680×4320 |
| HDMI | 7680×4320 |
Power Specs + Board Dimensions
| Board Dimensions | 338mm*135mm*73mm 348mm*147mm*73mm(with bracket) |
| Minimum System Power requirement (W) | 850W |
| Extension Power Connector | Two 8-pin PCI Express Power connectors |
