Захранване CoolerMaster MWE 750 WHITE 230V - V2, 750W, Active PFC, 80 Plus, 120mm вентилатор

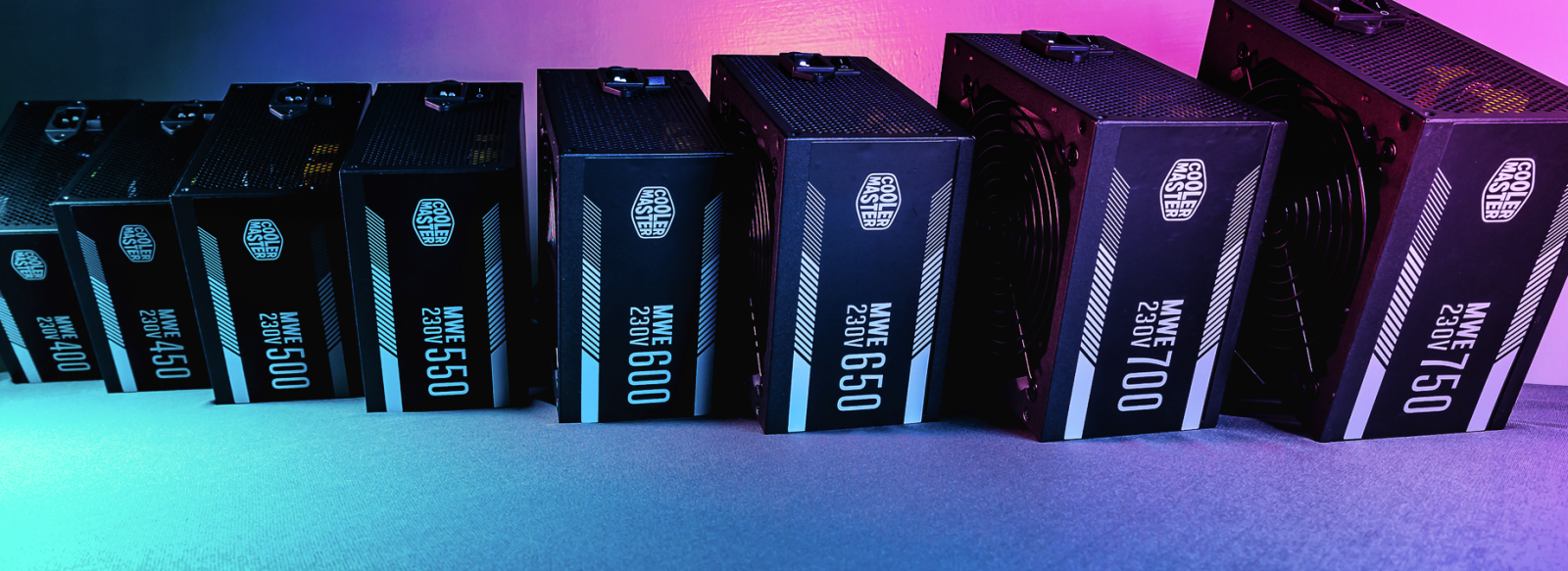

MWE 750 WHITE 230V - V2

80 PLUS STANDARD 230V EU CERTIFIED POWER SUPPLY

• 80 PLUS Standard 230V EU Certified

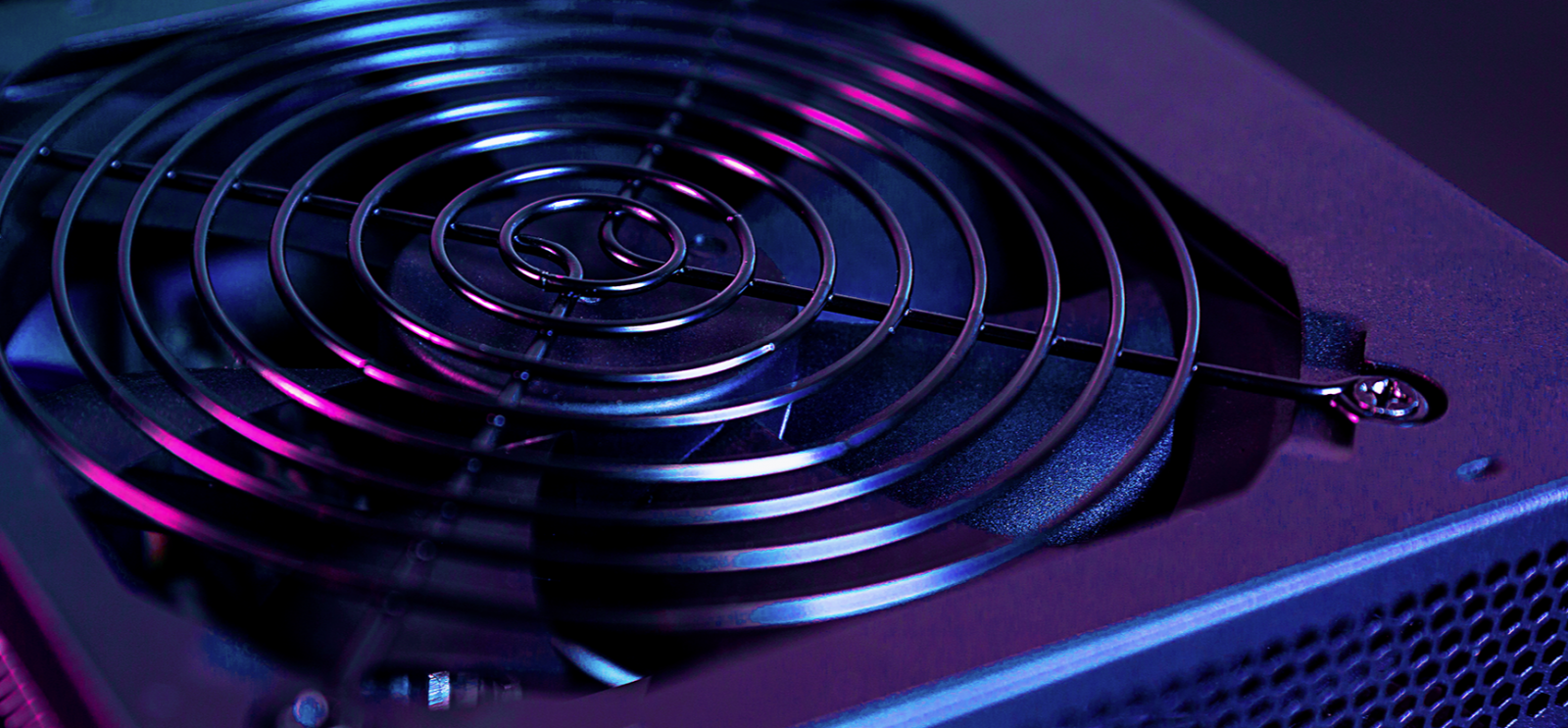

• 120mm HDB Fan

• DC-to-DC Technology

• Single +12V Rail

• Flat Black Cables













POWER UP

The MWE White offers a simple, reliable way to power your system safely and efficiently at a low cost. The 80 PLUS White efficiency rating, DC-to-DC + LLC circuit design, single +12V rail, active PFC, and temperature sensitive HDB fan offer a power supply unit that stays true to its original purpose. This PSU will handle all your core computing needs with none of the hassles or challenges of additional specialty features, software synchronization, or other bells and whistles. Just plug it into your system and get to work. For a great core computing experience, you can’t go wrong with the MWE White.













SPECIFICATIONS

MODEL:  MPE-7501-ACABW

ATX VERSION:  ATX 12V V2.52

PFC:  Active PFC

INPUT VOLTAGE:  200-240Vac

INPUT CURRENT:  6A

INPUT FREQUENCY:  50-60Hz

DIMENSIONS (L X W X H):  140 x 150 x 86 mm

FAN SIZE:  120mm

FAN BEARING:  HDB

FAN SPEED:  2400 RPM

NOISE LEVEL @20%:  11.12 dBA

NOISE LEVEL @50%:  20.3 dBA

NOISE LEVEL @100%:  39.5 dBA

EFFICIENCY:  85% Typically

80 PLUS RATING:  80 PLUS Standard 230V EU

ERP 2014 LOT 3: Yes

OPERATING TEMPERATURE:  40°C

POWER GOOD SIGNAL:  100 - 500 ms

HOLD UP TIME:  >14ms at 100% Full Load@230Vac

MTBF:  >100,000 Hours

PROTECTIONS:  OVP, OPP, SCP, UVP, OTP

REGULATORY:  CCC, CE, TUV-RH, EAC, RCM, cTUVus, FCC, BSMI, KC, CB

ATX 24-PIN CONNECTORS:  1

EPS 4+4 PIN CONNECTORS:  1

EPS 8 PIN CONNECTOR:  1

SATA CONNECTORS:  6

PERIPHERAL 4-PIN CONNECTORS:  3

PCI-E 6+2 PIN CONNECTORS:  4

80 PLUS:  Standard

MODULAR:  Non Modular

WATTAGE:  750W

SERIES:  MWE White Series
