PowerEye
A revolution in productivity
29.5 minute flight time
Class-leading flight time of up to 29.5 minutes
3.1 miles image transmission distance Up to 3.1 miles control range and real-time HD video transmission |

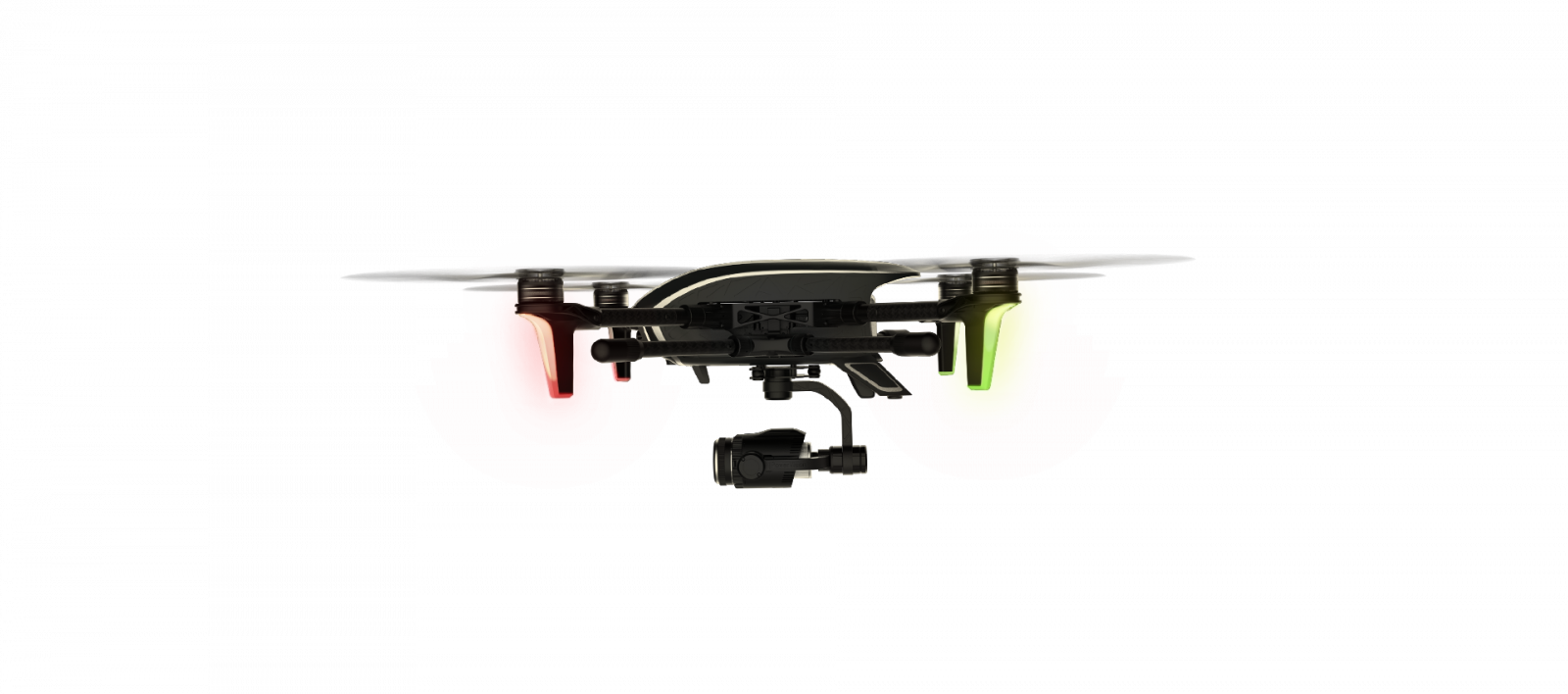

33 ft. obstacle detection If an obstacle is within 33 ft., the sensor will trigger the alarm |

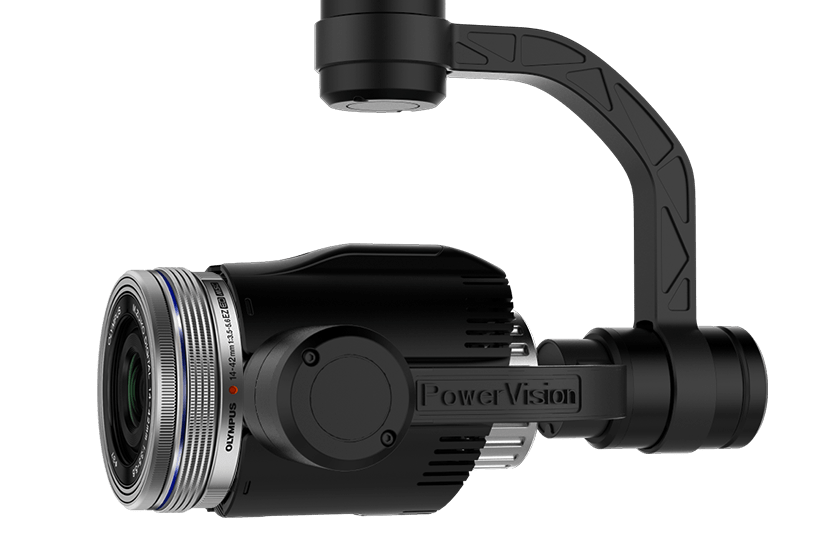

Mounted 4K aerial camera with replaceable lens Unique replaceable lens design, compatible with a variety of micro 4/3 standard lenses |
Mount 3x zoom lens
Supports 3x zoom lens mode, compatible with 14-42mm lenses
AIRCRAFT
Weight: 3950 g(Battery and propellers included)
Diagonal Size: 650 mm
(Excluding Propellers)
Physical Dimension: 340 mm x 285 mm x 296mm(Close)
513mm x 513 mm x 310mm (Flight)
Max Ascent Speed: 5 m/s (Professional mode)
Max Descent Speed: 2 m/s (Professional mode)
Hover Accuracy: 2 m/s (Professional mode)Vertical: +/- 0.1 m (When Vision Positioning is active, 0.2 – 4 m); +/- 1 m Horizontal: +/- 0.2 m (Surface with clear pattern and adequate lighting); +/- 1.5 m
Max Flight Speed: 18 m/s (Professional mode)
Operating Frequency: 2.4 GHz
Propellers Size: 15.5 inch
Power: 400 W (Hover) 800W (Max)
Max Flight Time: Approx. 29.5 min
Max Attitude: 35 degrees
Max Service Ceiling: 4,000 m
Above Sea Level
Operating: -10 – 40°C
Temperature: -10 – 40°C
GPS Mode: GPS and BeiDou
Wind Resistance: < =5 level

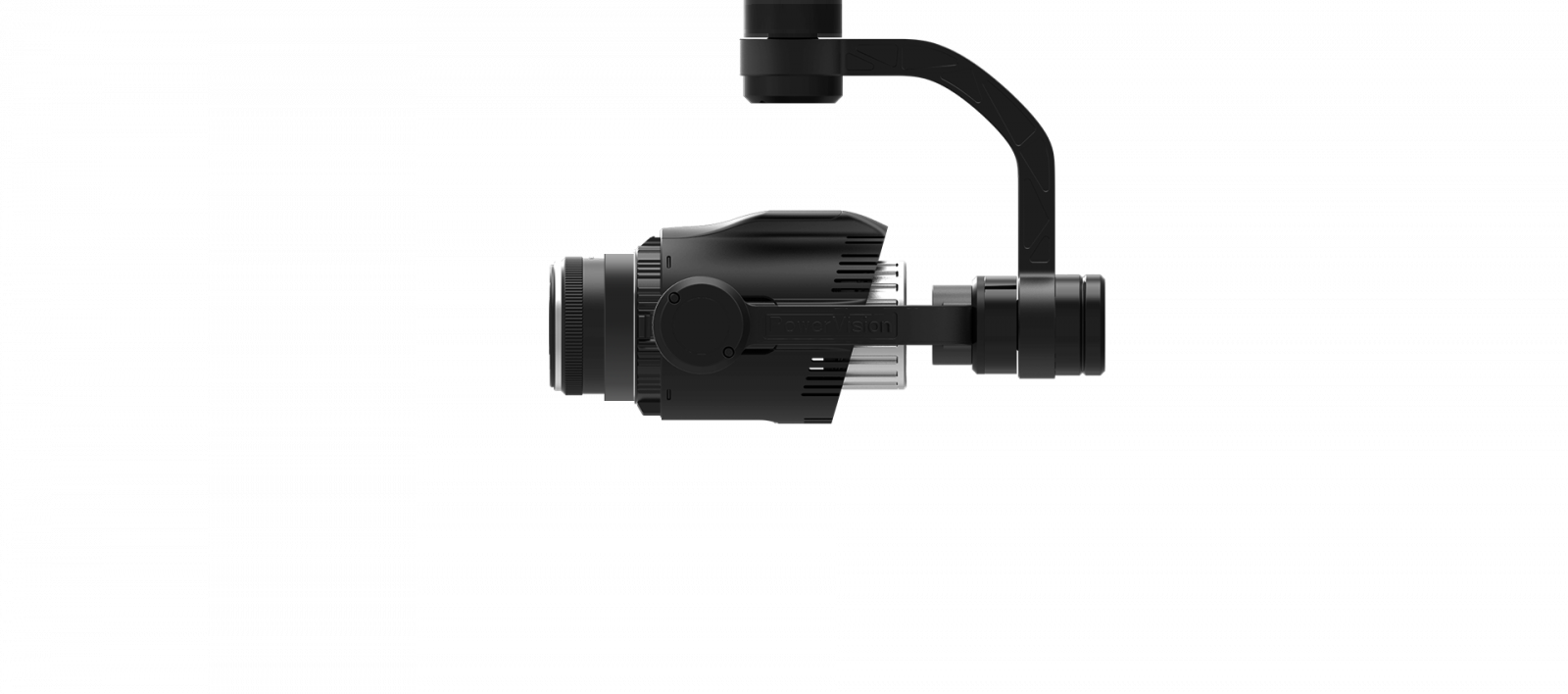

GIMBAL
Controllable Pitch: 0 – 90°
Controllable Yaw: -180° – +180°
Stabilization: 3-axis (Pitch, roll, yaw)
Controllable: 0.05°

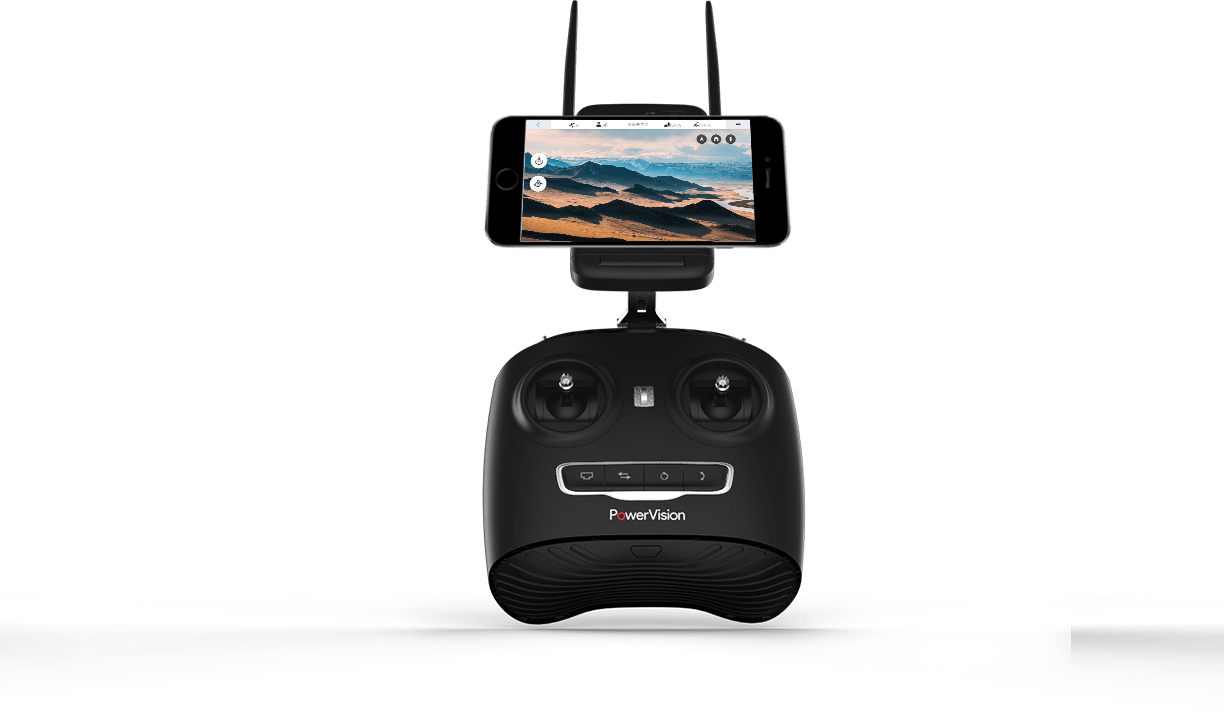

STANDARD REMOTE CONTROLLER
Operating: 0° – 40°C
Battery: 5000 mAh LiPo 1S
Operating Voltage: 120 mA / 3.7 V
Operating Life: 35 hours
Charging Time: 5 hours
OPTICAL POSITIONING
Velocity Range: ≤ 4 m/s (2 m above ground)
Altitude Range: 0.2 – 3.5 m (0.66 – 13.12 ft)
Operating: Surface with clear pattern and adequate
Environmentlighting (Lux > 15)
CHARGER
Input: AC 90 – 264 V
Frequency: 47-63 Hz
Output Port: 125.5V ± 0.1 V
Output Port: 25 V ± 0.1 V
Operating: -10° – 45°C (14° – 113°F)
Rated Power: 138.5 W
outline size: 105*120*90mm
weight: 537g
power Supply12V/5V/3.3V
control signalUART/SPI/I2C/CAN
endurance time0.5kg 21.5m
bearing weight0-2kg
one click throwsupport
downward FPVsupport
forward FPVsupport
packaging methodIndependent packaging or containerizing
CAMERA
Sensor: 4/3" CMOS
Lens: Panasonic Lumix G 14mm F2.5 ASPH (Standard)
Olympus M.Zuiko 17mm f/1.8
Olympus M.Zuiko ED 14-42mm f/3.5-5.6 EZ(zoom)
Olympus M.Zuiko 25mm f1.8
Olympus M.Zuiko 45mm f1.8
ISO Range: 100 – 6,400 (Photo); 100 – 1,600 (Video)
Shutter Speed: 1/360s
Image Max Size: 4000X3000
Still Photography Modes: Single shot
Video Recording Modes: 4K 4096×2160
UHD 3840×2160
Supported SD Card: Micro-SD card
Types: Max capacity: 64 GB. Class 10 or UHS-1
rating required
Max Video Bitrate: 60 Mbps
Supported File Formats: FAT32/exFAT
JPEG
MP4, MOV
Operating Temperature: -10° – 40°C
BASE STATION
Operating: Aircraft to Base Station: 2.400 – 2.483 GHz
Frequency: Base Station to other devices: 5.745 GHz – 5.825 GHz
Max Transmission: 5 km (3.1 miles) (Subject to regulation and local
Distanceoperating conditions).Distance will be shorter for CE.
Operating: 0° – 40°C (32° – 104°F)
Battery: 2,300 mAh LiPo 1S
Transmitter Power: 20 dbm @ CE, 28 dbm @ FCC
Operating Voltage: 800 mA / 3.7 V
Operating Life: 1.5 hours
Charging Time: 3 hours
Latency: 300 ms
POWEREYE SMART BATTERY
Capacity: 9000mAH
Voltage: 22.2V
Battery Type: LiPo
Energy: 99.9WH X 2
Net Weight: 1230 g
Operating Temperature: -10° – 40°C
Charging Current: ≤2C
Виж още Дронове, Коптери, RC PowerVision
Виж всички Дронове, Коптери, RC в категорията
Технически характеристики
Тип: | Дрон |
---|---|
Вид: | Летящ дрон |
Време на работа: | До 30 мин. |
Обхват: | До 5000 м. |
Камера: | 4К(3840×2160p) |
Тегло: | 3.905 Kg |
