Видео карта AMD Radeon RX 7900 XTX, 24GB, PowerColor Red Devil, PCI-E 4.0, GDDR6, 384-bit, DisplayPort, HDMI

Red Devil AMD Radeon RX 7900 XTX 24GB GDDR6

The Dominant Ruler in Gaming

The Red Devil conquers by relentlessly pushing its power to the limit. Built on AMD’s latest RDNA™ 3 architecture, PowerColor Red Devil RX 7900 XTX is armed with a silent but efficient cooling solution to deliver uncompromising performance and gaming experience. The Red Devil of this generation is designed based on the concept of Devil’s Eye, its most frightening weapon that absorbs all lights in the underworld. The Red Devil came, the Red Devil saw, the Red Devil conquered.

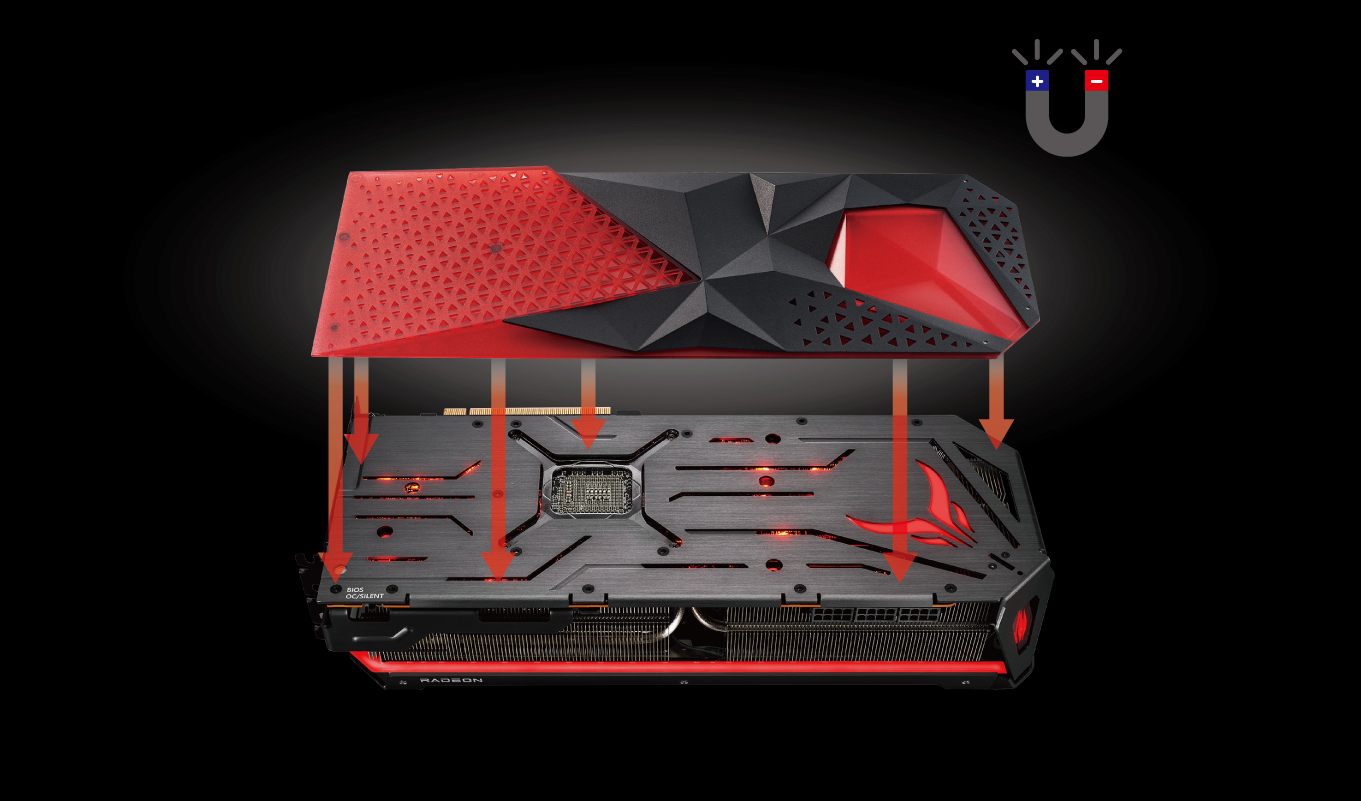

The Limited Edition comes with a swappable backplate and a Red Devil design luminous magnet. Put the backplate on and get a new look for your Red Devil!

Designed for Victory

PowerColor Red Devil RX 7900 XTX embraces an upgraded triple ringed-fan cooling solution (100 x 100 x 100mm), a set of 8 x 6φ heatpipes running through the heatsink, and a sleek copper plate directly touching the GPU while covering VRAM to rapidly transfer the heat; it also utilizes high quality PCB that comes with the 12+3+2+2+2 phase VRM design, and DrMOS with IMON real-time digital monitoring built in, all together to guarantee the optimum cooling efficiency and stability when pushing to the limits. Red Devil is designed to seize every victory in the game.

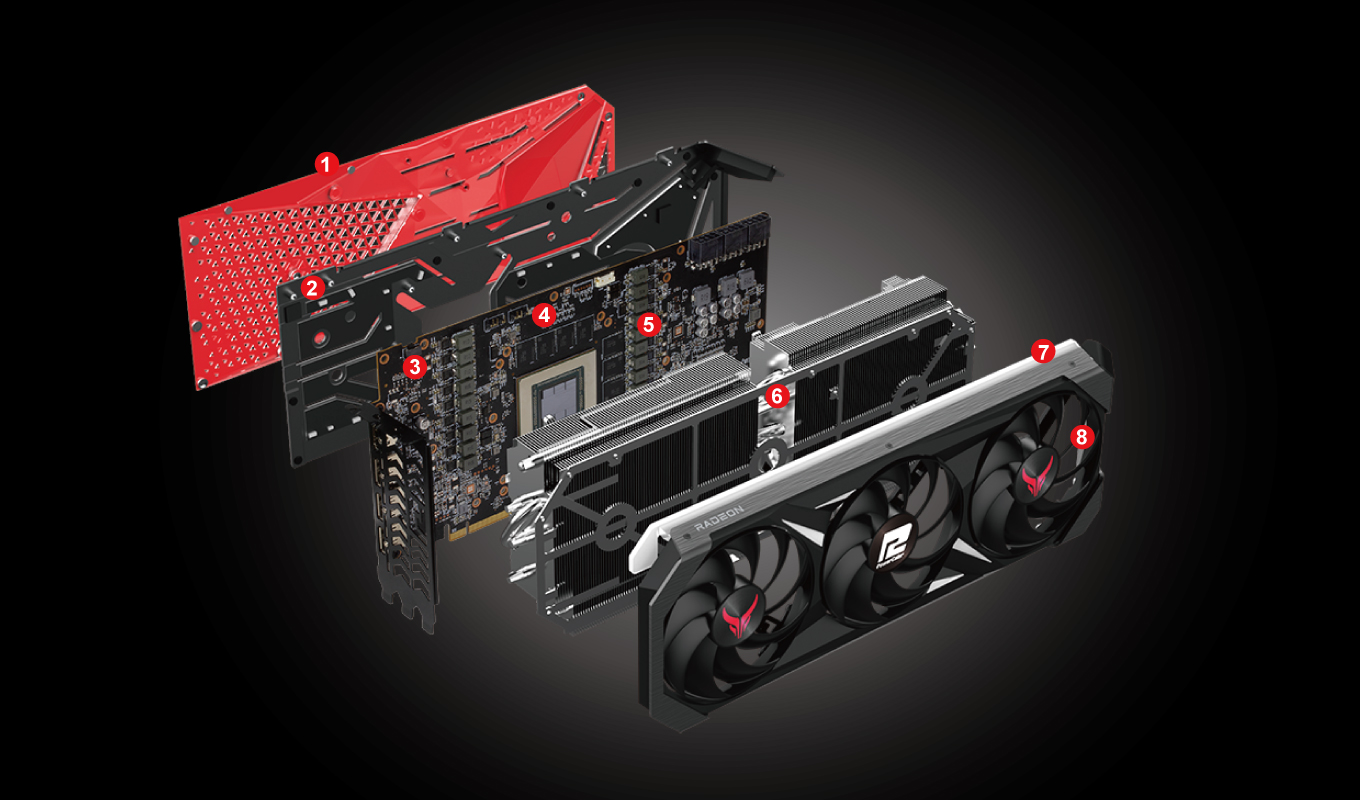

    1. Swappable Backplate

    2. Metal Reinforced Backplate

    3. Dual BIOS

    4. High Quality 14-Layer PCB Design

    5. DrMOS with IMON Digital Monitoring

    6. Optimum Heatpipe Arrangement

    7. Personalized ARGB Lighting Effect

    8. Ring-fan Blade Design

High Quality Japanese Dual Ball Bearings

Dual ball bearings reduce rotational friction, providing excellent heat dissipation and effectively doubling the expected lifetime of the fans.

Intelligent Fan Controller

Utilizing temperature detection from a smart chip, fans will start running when the GPU reaches 60℃ and shut down below 50℃. Efficient cooling, fan-noise reduction, and extended product lifetime are all benefits of a more accurate temperature monitoring.

Unprecedented Ring-fan Blade Design

The newest 9-blade design of our fans generate better airflow and air pressure under the same noise level, improving cooling performance to reduce GPU temperatures by more than 3℃ compared to previous generations.

GPU Direct-Contact Copper Plate

We have increased the copper plate area to provide direct contact with the GPU while covering VRAM to increase the heat transfer threshold to the max.

Vertical Fin Heatsink

A large heatsink with vertical fins spaced closely is mounted on PCB and offers better heat-spread area and radiation, allowing airflow to disperse heat efficiently.

Optimum Heatpipe Arrangement

A set of 8 x 6φ nickel-plated copper heatpipes align closely above the PCB to more quickly and effectively transfer heat from the GPU and VRAM to the cooling array.

Car-Grade Power Module DrMOS with IMON Real Time Digital Monitoring

Red Devil adopts a 12+3+2 phase VRM design with DrMOS to power the GPU as well as an additional 2+2 phase specifically designated for the VRAM. New IMON technology monitors and reports the electric current and power consumption on each individual phase. By balancing the workload, the Red Devil ensures unparalleled stability and thermal protection during overclocking.

In addition, high quality car-grade polymer capacitors features long-lasting durability and high conductivity lowers power loss during transmission.

Metal Reinforced Backplate

The metal backplate strengthens and protects the internal components from PCB bend, and a cut-out design on the back plate allows exhaust heat to properly flow through for heat-dissipation efficiency.

Flaming Devil Eye, Personalized ARGB Lighting Effect

The PowerColor Red Devil comes with adjustable front, side, and backplate ARGB through the PowerColor Devilzone RGB control software. Lighting effects can be customized to your personal preference to match your system aesthetic or whatever the mood calls for. In addition, the Red Devil RGB can be synchronized with the motherboard using the ARGB cable included in the product, providing gamers an immersive and coordinated environment while gaming.

Dual BIOS Mode

Red Devil graphics cards feature Dual BIOS built-in and a switch for easy swapping.

-OC BIOS: A boosted mode that increases fan RPM to keep your card operating at a lower temperature to drive higher performance.

-Silent BIOS: Focused on lower noise and fan longevity, a milder fan speed, trading fan speed and noise for moderate, but still controlled, temperatures while maintaining performance.

Limited Swappable Backplate

The backplate bundled with our Red Devil RX 7900 XTX Limited Edition is designed based on the concept of Red Devil’s residence—a hellish terrain surrounded by rough and uneven rocks which also perform as the natural barrier of Devil’s empire. Red Devil’s RGB shines through the translucent part on the plate to deliver another different lighting effect and atmosphere.

THE MOST ADVANCED GRAPHICS FOR GAMERS

Experience unprecedented performance, visuals, and efficiency at 4K and beyond with AMD Radeon™ RX 7000 Series graphics cards, the world's first gaming GPUs powered by AMD RDNA™ 3 chiplet technology. Immerse yourself in breathtaking visuals with the pinpoint color accuracy of AMD Radiance Display™ Engine and boost frame rates with AMD FidelityFX™ Super Resolution and Radeon™ Super Resolution upscaling technologies. To unlock even more performance, combine AMD Radeon™ RX 7000 Series graphics and compatible AMD Ryzen™ processors to activate AMD smart technologies.

BREAKTHROUGH PERFORMANCE

AMD Radeon™ RX 7000 Series graphics cards set a new standard for ultra-enthusiast class gaming performance. Featuring advanced AMD RDNA™ 3 compute units, blazing fast clock speeds, and chiplet technology to enable fluid, high-refresh rate gaming experiences. Breakthrough new levels of performance with up to 20GB of GDDR6 memory and 2nd generation AMD Infinity Cache™ to deliver an incredible experience at 4K and beyond.

SPECIFICATION

Graphics Engine:  RX 7900 XTX 24G-E/OC
Video Memory:  24GB GDDR6
Stream Processor:  6144 Units
Engine Clock(OC):  up to 2395MHz(Game), up to 2565MHz(Boost)
Engine Clock(STD/Silent):  up to 2330MHz(Game), up to 2525MHz(Boost)
Memory Speed :  20.0 Gbps
Memory Interface:  384-bit
DirectX® Support:  12
Bus Standard:  PCIE 4.0
Standard Display Connectors:  1 x HDMI 2.1，3 x DisplayPort 2.1 (only 2x simultaneous DP2.1 connections can be supported)

Feature Support
OpenGL:  Support
AMD Stream Technology:  Support
AMD Eyefinity Technology:  Support
For more infromation, please refer AMD Website.


Maximum Resolution
DisplayPort:  7680×4320
HDMI:  7680×4320


Power Specs + Board Dimensions
Board Dimensions:  338mm*135mm*73mm
348mm*147mm*73mm(with bracket)
Minimum System Power requirement (W):  900W
Extension Power Connector:  Three 8-pin PCI Express Power connectors
