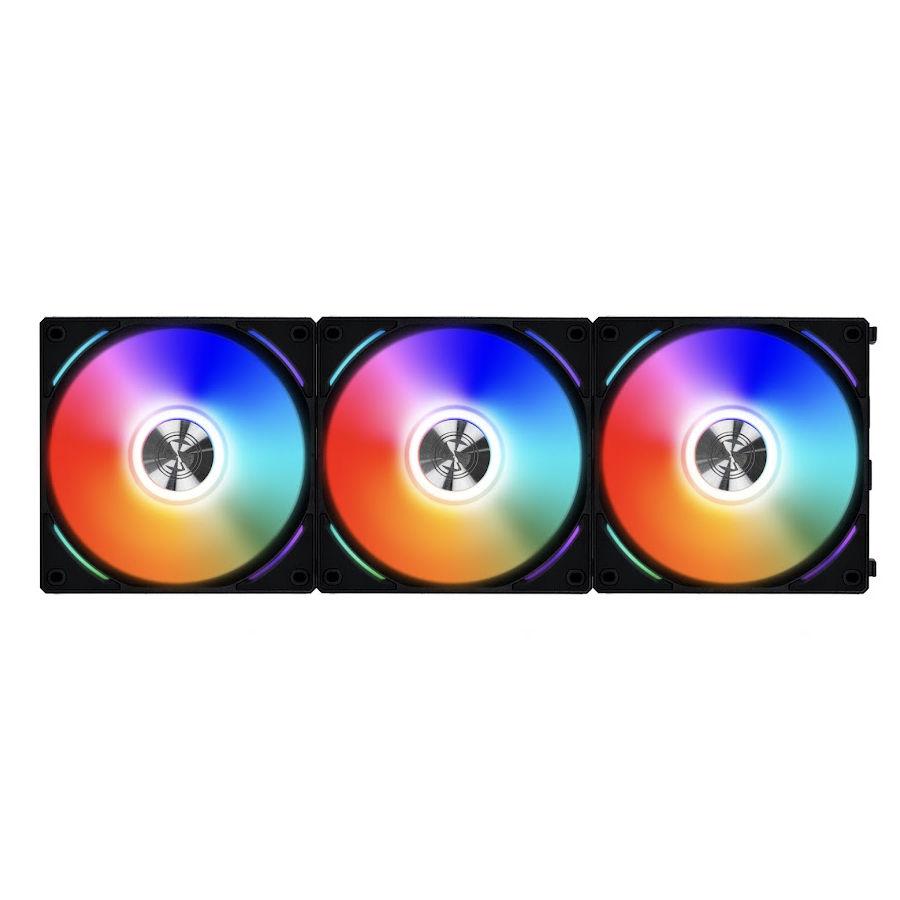

Lian Li AL120
MODULARITY FAN

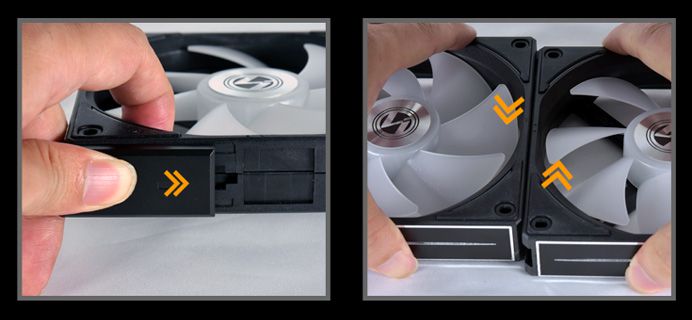

Simply daisy chain the fans together with the slide-in interlocking system to pass the signals through the pin-to-pad contact. Users can choose to go with a single fan or link up to 4 fans in a group, and operate each group with just 2 cables. |
|
BETTER PERFORMANCE Compared to UNI FAN SL120, AL120 has better performance in air flow(64.5 CFM), noise levels(17 ~ 28.3 dB) and static pressure(2.62 mmH2O). |
|

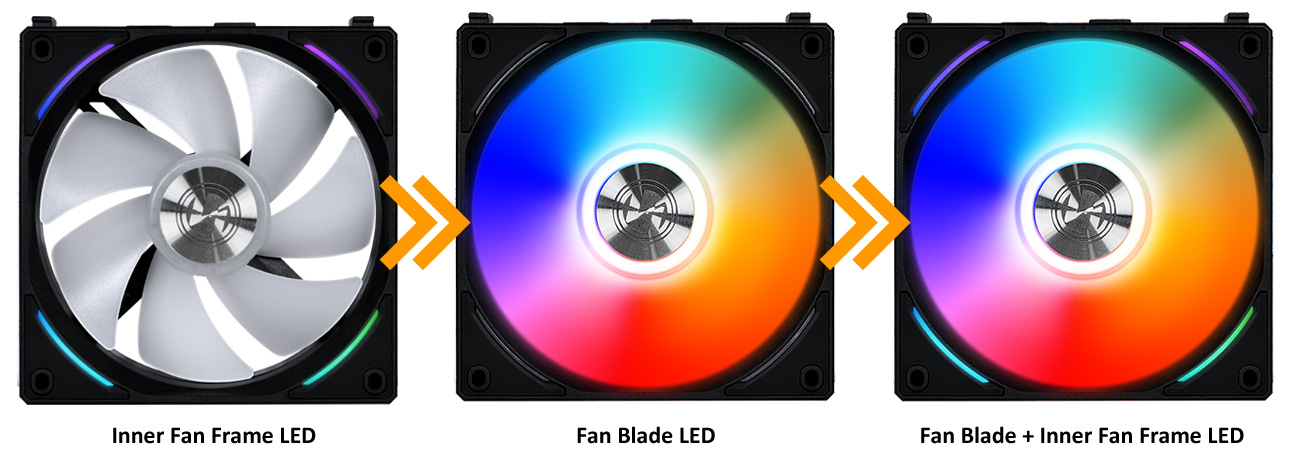

ENDLESS LIGHTING EFFECT COMBINATIONS The ARGB LEDs are located at the inner fan blade and the four corner edges of the fan frame. Users can set both the fan blade lighting effects and the fan frame inner edge lighting effects separately, or go with the built-in combined lighting effects. |
L-CONNECT 2 SOFTWARE TO CONTROL AL120

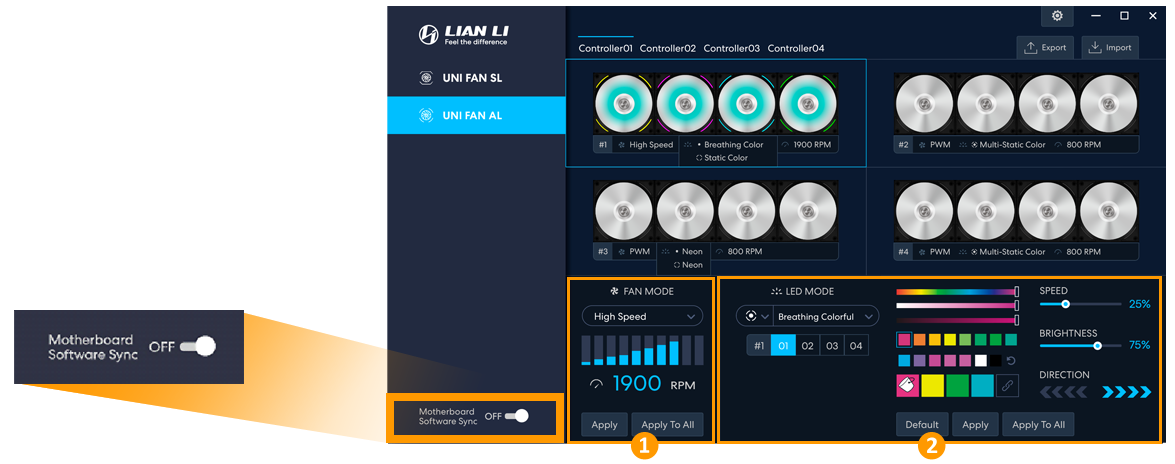

Perfectly control and preview the lighting effect of the AL series with L-Connect 2 interface. Note: For SL users, please install L-Connect & L-Connect 2 Guidebook and follow steps. |
|
ADJUST THE SPEED OF EACH FAN GROUP Perfectly control and preview the lighting effect of the AL series with L-Connect 2 interface Fan Speed: 800 RPM – 1900 RPM Users can set the fan speed of each group of UNI FANs manually or set it at PWM to let the motherboard control the speed. |
|
SET PERSONALIZED LED MODE AND COLOR Designed for AL120, users can choose to set their personalized lighting effect through L-Connect 2. Thousands of combinations can be accomplished. |
|

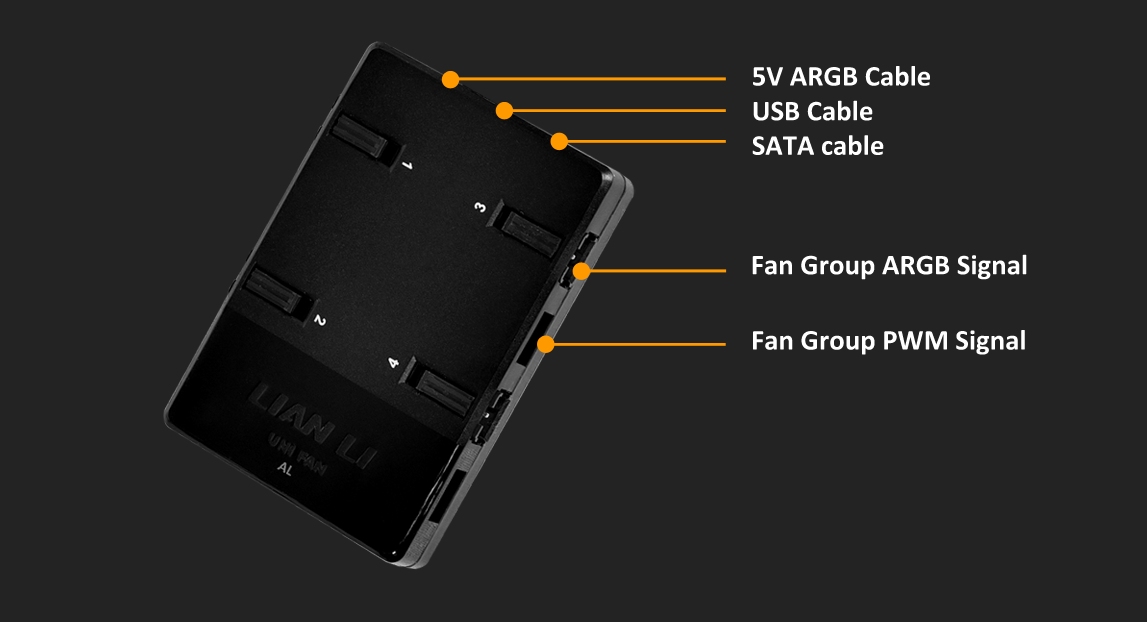

CONTROL UP TO 16 FANS IN ONE GO The exclusive controller (UNI HUB) for the AL series that can connect up to 16 fans is included in the 3 pack. |
SPECIFICATIONS
PRODUCT NAME | UNI FAN AL120 |
MODEL | AL120-3B |
NUMBER OF FANS | 3 |
CONTROLLER | Yes |
MATERIAL | PBT/PC/Aluminum |
FAN DIMENSION | 120 X 120 X 25mm |
RATED VOLTAGE | DC 12V (FAN) & 5V (LED) |
FAN SPEED | 800~1900 RPM |
AIR PRESSURE | 2.62 mmH2O (Maximum) |
AIRFLOW | 64.5 CFM (Maximum) |
ACOUSTIC NOISE | 17 ~ 28.3 dB |
LOCKED CURRENT | >= 50mA |
BEARING TYPE | Fluid Dynamic Bearing (FDB) |
OPERATION VOLTAGE | DC 12V & 5V |
START-UP VOLTAGE | DC 6.0V |
INPUT CURRENT | 0.22A(FAN) / 0.66A (LED) |
INPUT POWER | 5.94Watt |
