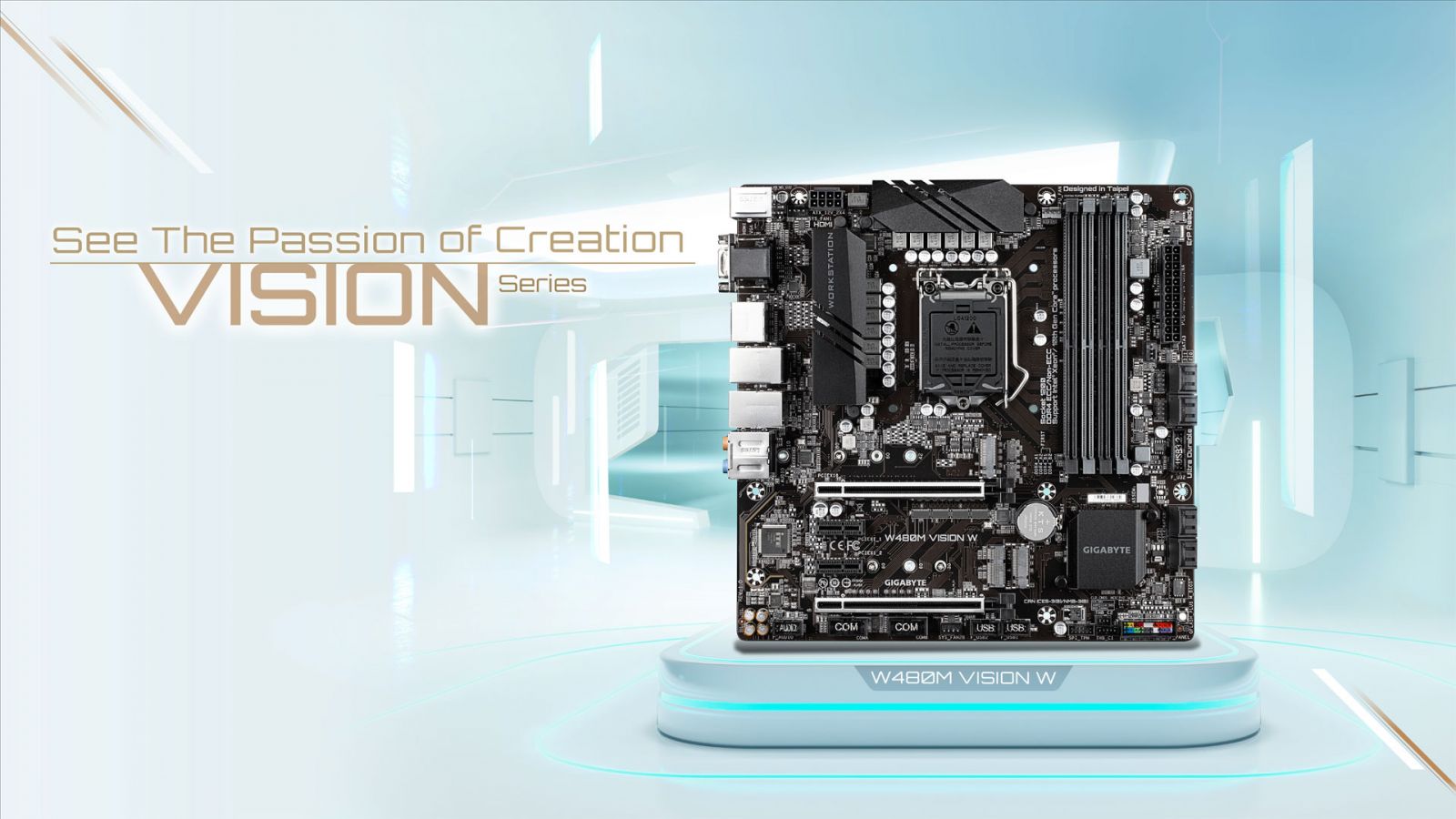

Дънна платка Gigabyte W480M VISION W, W480, LGA1200, DDR4, PCI-E 3.0 (DP/HDMI/VGA)(CF), 8x SATA 6Gb/s, 2x M.2, 2x USB 3.2 Gen 2, Micro ATX

Intel® W480 Creators Motherboard with enhanced power design, DDR4 ECC & Non-ECC memory, Dual Intel® LAN with cFosSpeed, 2 PCIe 3.0 x16 slots, Dual NVMe PCIe x4 M.2, 8 SATA Connectors, USB 3.2 Gen2 Type-A

• Powerful performance with Intel® Xeon® W processors and supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors*
• Reliability ensuring by DDR4 ECC & Non-ECC memory with 4 physical DIMM slots
• Multi-graphics configurations offer better graphics performance
• Fully Quadro® QVL Tested
• High-bandwidth and low-latency network support by Intel® 2.5GbE + GbE Dual LAN with cFosSpeed
• Intel® vPro technology provides the enterprise-grade security
• Effective cooling solution design for the better thermal dissipation
• Smart Fan 5 features hybrid fan headers and numerous temperature sensors to configure fan mode
• Dual Ultra-Fast M.2 with PCIe Gen3 x4 interface
• 8 SATA3 ports support for large storage capacity
• Comprehensive connectivity with USB 3.2 Gen2 Type-A connection
• Supports up to three monitor displays simultaneously
• Commercial features with dual COM port headers and HDDs monitor by SGPIO
• Q-Flash Plus Updates BIOS without Installing the CPU, Memory and Graphics Card

Specifications:

• CPU
  1. LGA1200 package:
     Intel® Xeon® W series processors
     10th Generation Intel® Core™ processors/Intel® Pentium® processors/ Intel® Celeron® processors
  2. L3 cache varies with CPU

  (Please refer "CPU Support List" for more information.)
• Chipset
  1. Intel® W480 Express Chipset
• Memory
  1. Intel® Xeon® W-1290/W-1270 series processors/Intel® Core™ i9/i7 processors:
     Support for DDR4 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
  2. Intel® Xeon® W-1250 series processors/Intel® Core™ i5/i3/Pentium® / Celeron® processors:
     Support for DDR4 2666/2400/2133 MHz memory modules
  3. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  4. Dual channel memory architecture
  5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
     * To support ECC, you must install an Intel® Xeon® processor.
  6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  7. Support for Extreme Memory Profile (XMP) memory modules

  (Please refer "Memory Support List" for more information.)
• Onboard Graphics
  Integrated Graphics Processor-Intel® HD Graphics support:

  1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
  2. 1 x HDMI ports, supporting a maximum resolution of 4096x2160@30 Hz
     * Support for HDMI 1.4 version and HDCP 2.3.
  3. 2 x DisplayPorts, supporting a maximum resolution of 4096x2304@60 Hz
     * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.

  Support for up to 3 displays at the same time
  Maximum shared memory of 512 MB
• Audio
  1. Realtek® ALC1200 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
  4. Support for S/PDIF Out
• LAN
  1. 1 x Intel® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)(LAN1)
  2. 1 x Intel® GbE LAN chip (1 Gbit/100 Mbit)(LAN2)
• Expansion Slots
  1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
     * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  2. 1 x PCI Express x16 slot, running at x8 (PCIEX8)
     * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
  3. 2 x PCI Express x1 slots
     (All of the PCI Express slots conform to PCI Express 3.0 standard.)
  4. 1 x M.2 Socket 1 connector for an Intel® CNVi wireless module only (CNVI)

  Supports up to ASPM L1.2 power management protocols.
• Multi-Graphics Technology
  1. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
• Storage Interface
  1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2Q_CPU)
  2. 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe x4/x2 SSD support) (M2A_SB)
  3. 8 x SATA 6Gb/s connectors
  4. Support for RAID 0, RAID 1, RAID 5, and RAID 10
     * Refer to "1-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
  5. Intel® Optane™ Memory Ready

  M.2 connectors support up to ASPM L1.2 PCIe power management protocols.
• USB
  Chipset:

  1. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
  2. 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
  3. 4 x USB 2.0/1.1 ports available through the internal USB headers
• Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 3 x system fan headers
  5. 8 x SATA 6Gb/s connectors
  6. 2 x SATA detection headers
  7. 2 x M.2 Socket 3 connectors
  8. 1 x front panel header
  9. 1 x front panel audio header
  10. 1 x USB 3.2 Gen 1 header
  11. 2 x USB 2.0/1.1 headers
  12. 2 x Thunderbolt™ add-in card connectors
  13. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  14. 2 x serial port headers
  15. 1 x Clear CMOS jumper
  16. 1 x Q-Flash Plus button
• Back Panel Connectors
  1. 1 x PS/2 keyboard/mouse port
  2. 1 x D-Sub port
  3. 1 x HDMI port
  4. 2 x DisplayPorts
  5. 2 x USB 3.2 Gen 2 Type-A ports (red)
  6. 4 x USB 3.2 Gen 1 ports
  7. 2 x RJ-45 ports
  8. 1 x optical S/PDIF Out connector
  9. 5 x audio jacks
• I/O Controller
  1. iTE® I/O Controller Chip
• H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Overheating warning
  5. Fan fail warning
  6. Fan speed control
     * Whether the fan speed control function is supported will depend on the cooler you install.
• BIOS
  1. 1 x 256 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features
  1. Support for APP Center
     * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
     @BIOS
     System Information Viewer
  2. Support for Q-Flash Plus
  3. Support for Q-Flash
  4. Support for Xpress Install
• Bundled Software
  1. Norton® Internet Security (OEM version)
  2. cFosSpeed
• Operating System
  1. Support for Windows 10 64-bit
• Form Factor
  1. Micro ATX Form Factor; 24.4cm x 24.4cm
