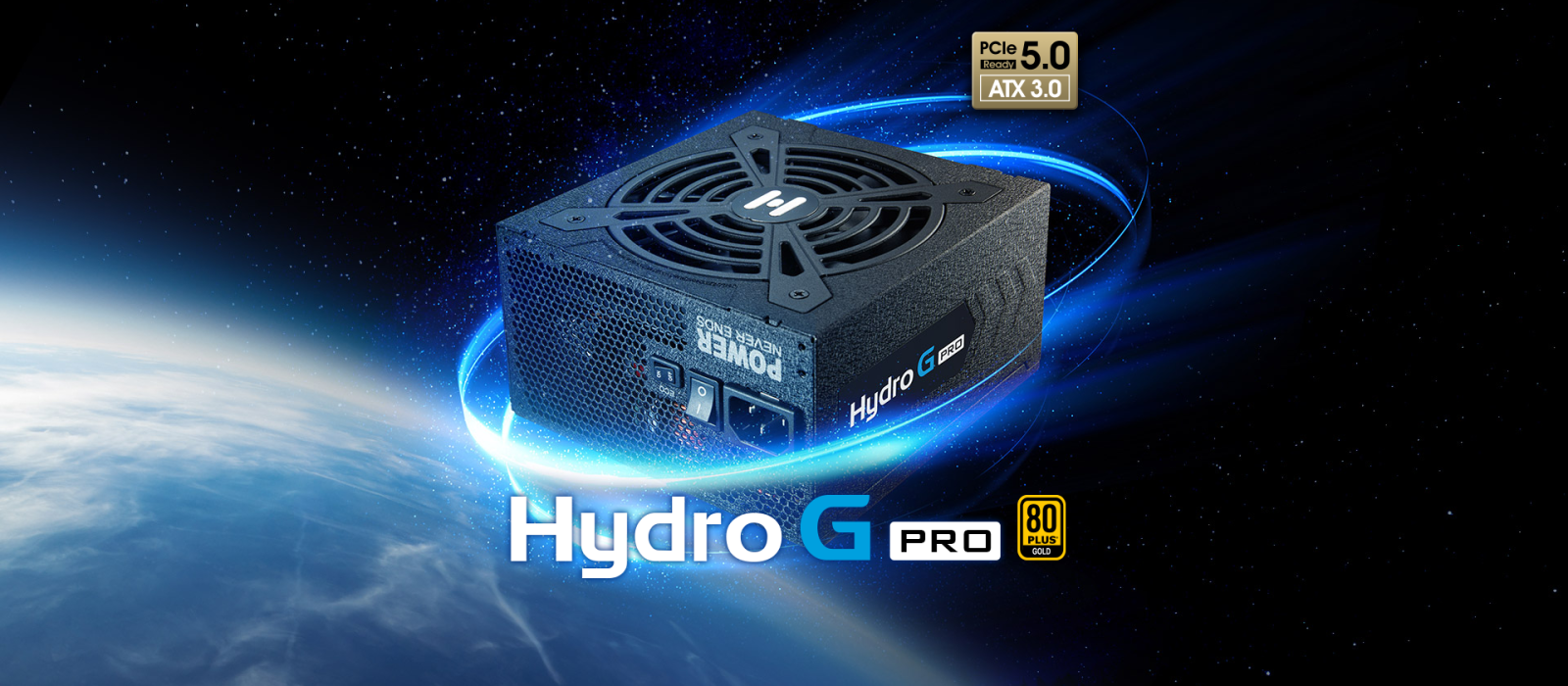

Fortron Hydro G PRO ATX3.0 (PCIe5.0)
![](/images/custom/site/FSP%20Hydro%20G%20PRO%20ATX3_0(PCIe5_0)%20mdesc%201.png)
![](/images/custom/site/FSP%20Hydro%20G%20PRO%20ATX3_0(PCIe5_0)%20mdesc%202.png)
New ATX PSU Specifications
Updated ATX 3.0 specifications for the next-generation hardware power demands and ensure users get the most stable and cost-optimized performance possible with the highest power efficiency.
![](/images/custom/site/FSP%20Hydro%20G%20PRO%20ATX3_0(PCIe5_0)%20mdesc%203.png)

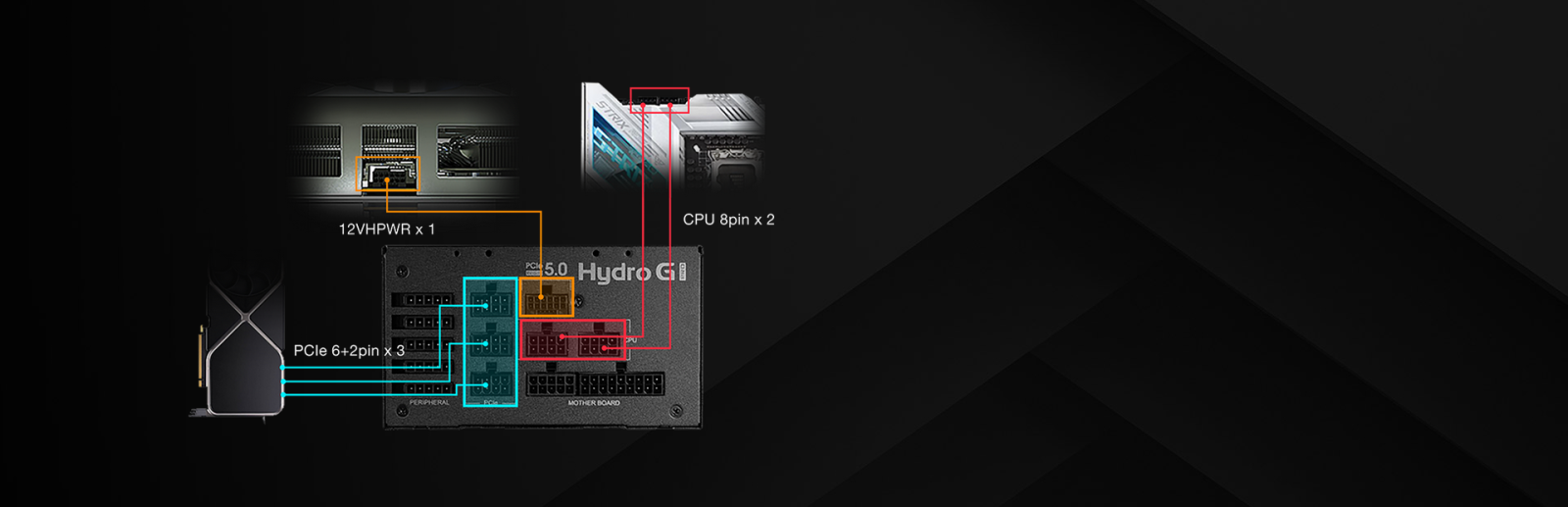

High-Power Compatibility Unleashes Maximum Performance
Enhance system performance with a native PCIe 5.0 connector and support for up to 3 PCIe 6+2Pin slots for graphic cards, as well as 2 CPU connectors. This advanced solution delivers maximum power and speed, elevating your computing experience.
![](/images/custom/site/FSP%20Hydro%20G%20PRO%20ATX3_0(PCIe5_0)%20mdesc%204.png)
80 Plus Gold Certification
Hydro G Pro series is a power supply with 80 PLUS Gold Certification that guarantees to operate at a minimum of 90% efficiency at 50% load of PSU rated power and as a result to reduce lots of electricity cost.
![](/images/custom/site/FSP%20Hydro%20G%20PRO%20ATX3_0(PCIe5_0)%20mdesc%205.png)
Compatible with Latest PC-technology
Corresponds exactly to a variety of the latest CPU platform. Complies with Intel ATX12V V3.0 Power supply design guide and make sure the peak power in 12V supports for the latest Intel and AMD platform and delivers full power to your PC system.
Tech specs:
Rated Output Power | 1200W | ||||
Form Factor | ATX | ||||
80 PLUS Certification | Gold | ||||
Input Voltage | 100-240V | ||||
Input Current | 15-8A | ||||
Input Frequency | 50-60Hz | ||||
PFC | Active PFC | ||||
Efficiency | ≥90% at typical load | ||||
Fan Type | FDB Fan, 120mm | ||||
Dimensions(L x W x H) | 150 x 150 x 86mm | ||||
Operation Temp. | 0-50℃ | ||||
AC/DC | |||||
AC Input | 100-240Vac~ 15-8A 50-60Hz (Not for China) | ||||
DC Output | +3.3V | +5V | +12V | -12V | +5Vsb |
Max Output Current | 20A | 20A | 100A | 0.3A | 3A |
Max Combined Power | 120W | 1200W | 3.6W | 15W | |
Total Power | 1200W | ||||
Connectors | |||||
MB 20+4 PIN | CPU 4+4 PIN | PCIe 12VHPWR | PCIe 6+2 PIN | SATA | Molex |
Connectors | 1 | 2 | 1 | 3 | 15 |
JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
Виж още Захранвания Настолни компютри FSP
Виж всички Захранвания Настолни компютри в категорията
Технически характеристики
Изходна мощност: | 1200 W |
---|---|
Модулен блок: | Да |
Форм фактор: | ATX |
