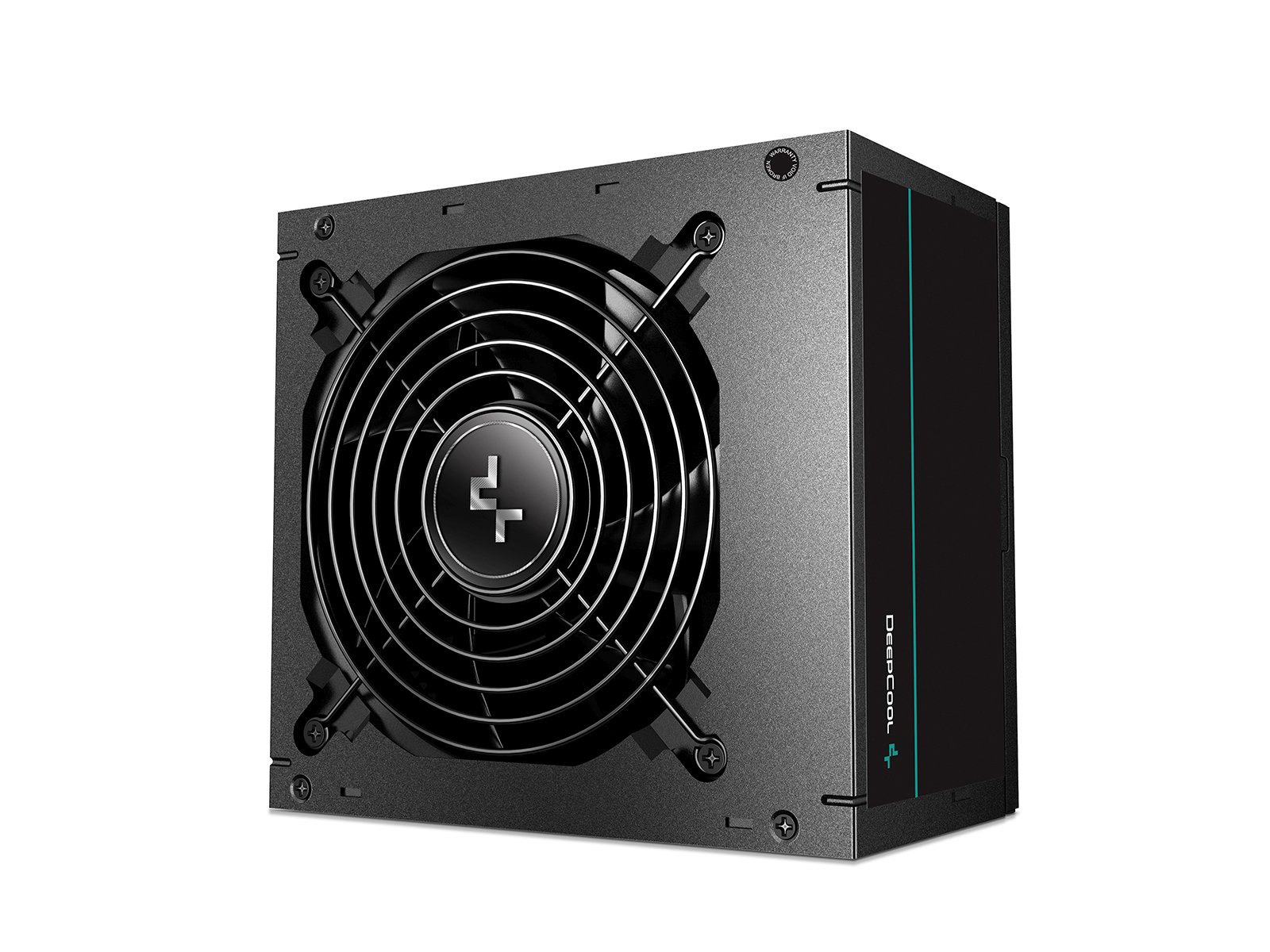

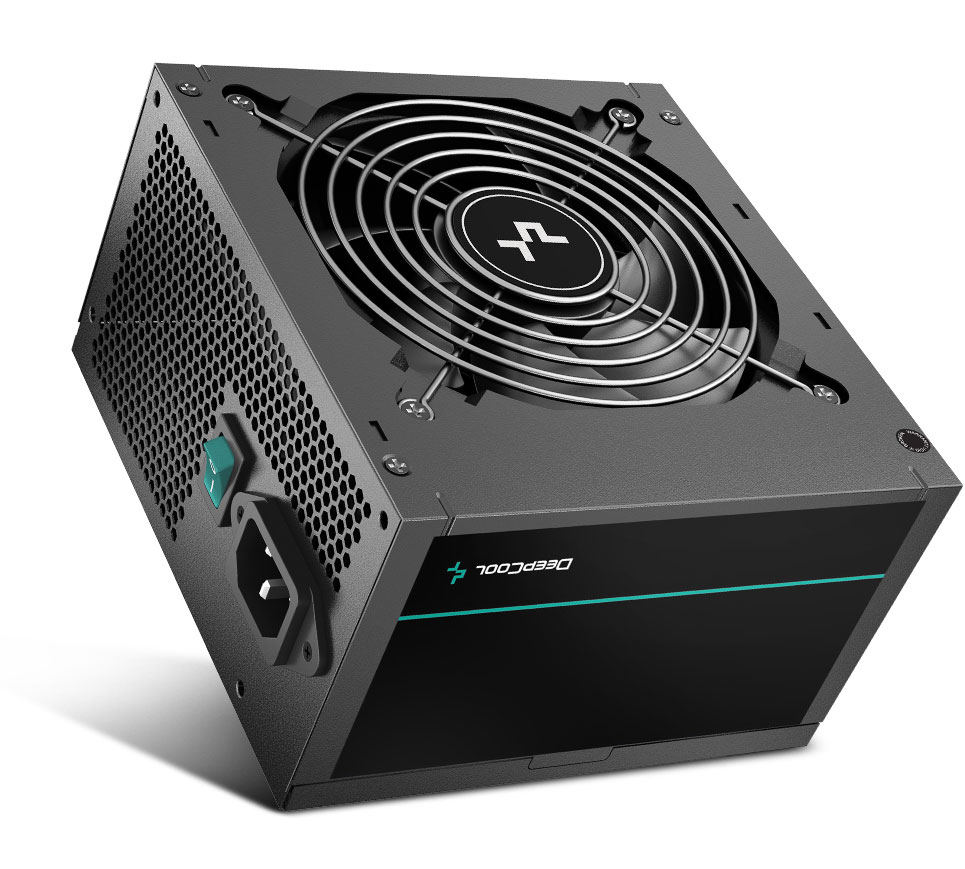

DeepCool PM750D
DeepCool PM750D Series non-modular power supplies are certified 80 PLUS Gold for efficient power delivery with great performance at a great value.
80 PLUS GOLD CERTIFIED Guarantees a minimum efficiency of 90% or higher under typical loads for reliable power delivery with little waste. | .jpg "Захранване DeepCool (PM750D), 750W, Active PFC, Gold 80+, 120mm вентилатор - характеристика 2 | Захранвания Настолни компютри") |
.jpg "Захранване DeepCool (PM750D), 750W, Active PFC, Gold 80+, 120mm вентилатор - характеристика 3 | Захранвания Настолни компютри") | QUALITY TOPOLOGY For solid power performance and minimal signal noise, the PM-D series PSU features a full-bridge LLC topology with DC-DC conversion and Japanese bulk capacitors that delivers terrific reliability. |
BUILT TO SPEC Made to meet modern power supply design standards for consistent voltage stability, each PM-D power supply is also compliant with Intel PSU guidelines that support instant-on power from sleep or standby modes. | .jpg "Захранване DeepCool (PM750D), 750W, Active PFC, Gold 80+, 120mm вентилатор - характеристика 4 | Захранвания Настолни компютри") |

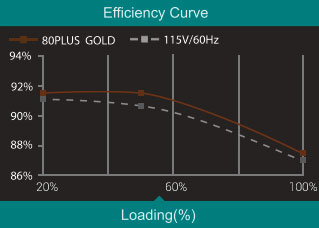

 | 80 PLUS® Gold 80 PLUS® Gold certified - Up to 87~90% efficient (20~100% Loading) |

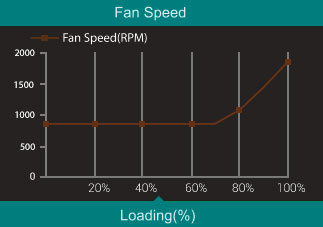

Silent and High Performance Fan 120mm silent fan has temperature control function to keep low noise |  |
Technical Specification
| Type | ATX12V V2.4 |

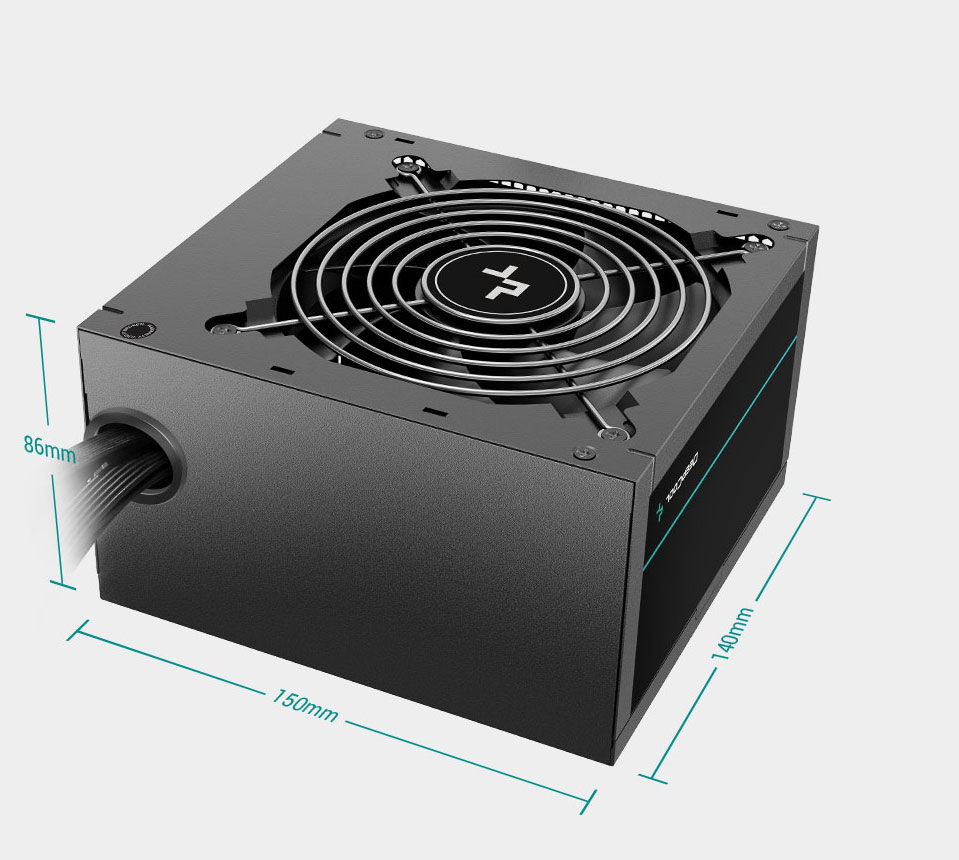

| Product Dimensions | 150×140×86mm (W x L x H) |
| 80PLUS Certifications | GOLD |
| Fan Size | 120mm |
| Fan Bearing | Hypro Bearing |
| Topology | Active PFC + Full Bridge SRC LLC + DC to DC |
| Capacitors | Japanese Bulk Capacitor |
| Power Good Signal | 100-150ms |
| Hold Up Time | ≥16ms(75% Load) |
| Efficiency | ≥90% Under Typical Load(50% Loading) |
| Protection | OPP/OVP/SCP/OTP/OCP |
| Operation Temperature | 0-40°C |
| Regulatory | TUV/cTUVus/CCC/CE/FCC/UKCA/EAC/BIS |
| Erp Regulation | ErP(2014) |
| MTBF | 100,000 Hours |
JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
Виж още Захранвания Настолни компютри DeepCool
Виж всички Захранвания Настолни компютри в категорията
Декларация за съответствие_DeepCool PMxxxD Series.pdf| Изходна мощност: | 750 W |
|---|---|
| Модулен блок: | Не |
| Форм фактор: | ATX |
