MasterBox MB500 ARGB

You Decide The Inside

Mesh Front Panel
ARGB Lighting
Tempered Glass Side Panel
Thermal Performance

Performance with a lightshow.

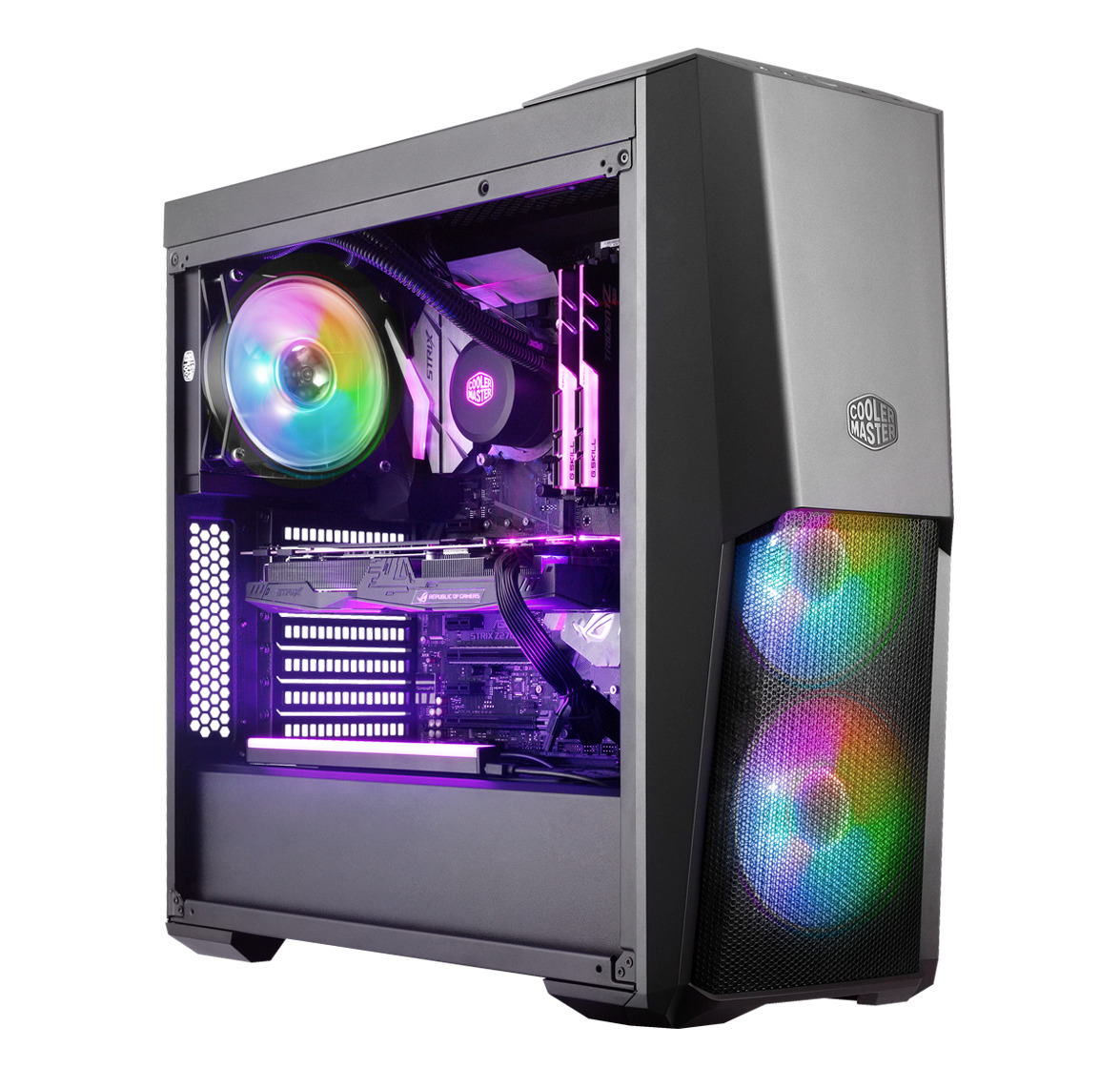

The MasterBox MB500 ARGB applies premium lighting to an airflow-centric chassis, all without breaking the bank. A semi-mesh front panel, top panel ventilation, and a two-chamber interior optimizes airflow to efficiently cool gaming systems under demanding loads. With three ARGB fans and a tempered glass side panel, anything built within the MasterBox MB500 ARGB is guaranteed to be properly shown off.

Mesh Front Panel

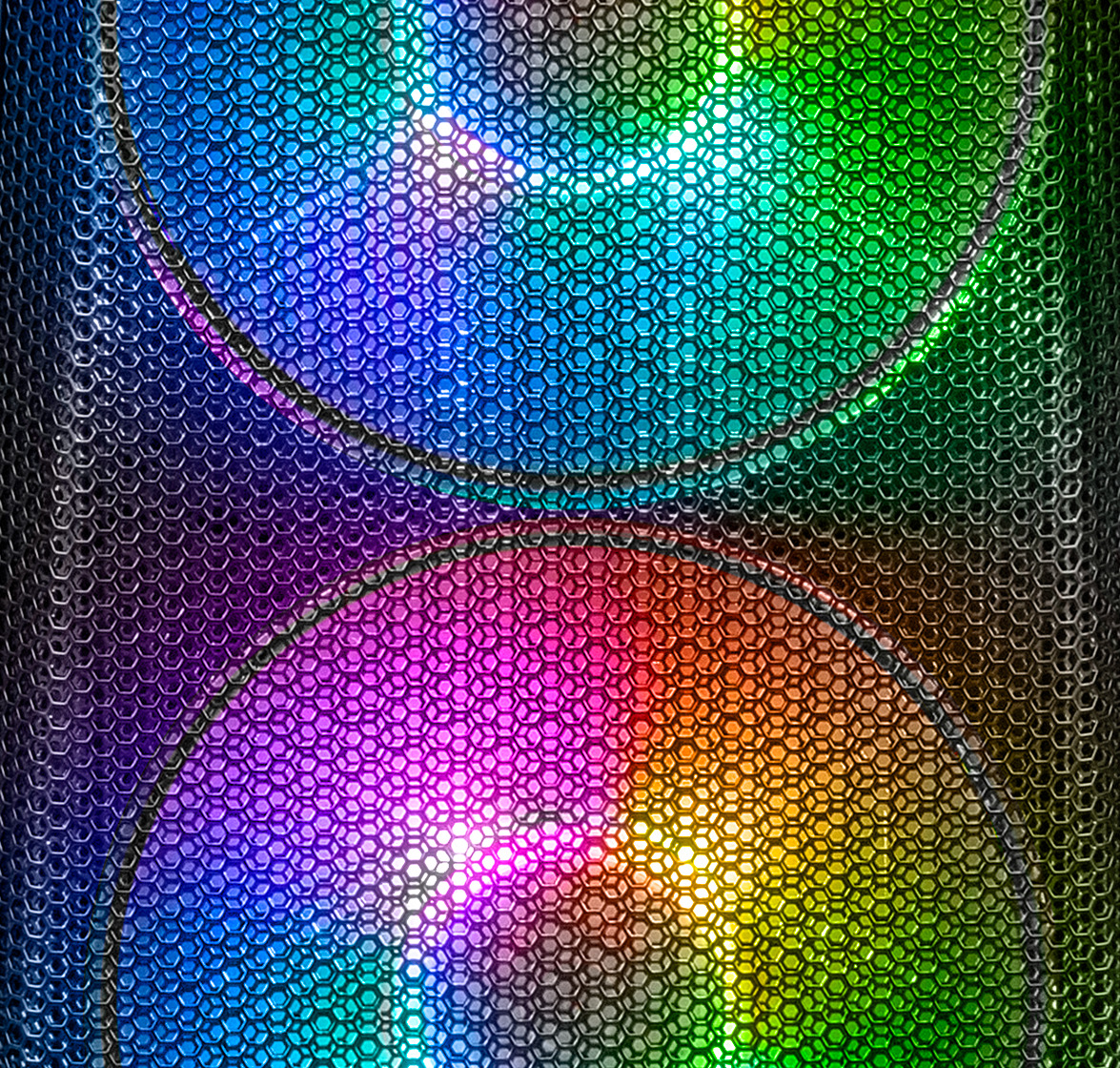

The semi-mesh front panel features two different layers to provide plenty of fresh air to the system while also filtering out dust.

ARGB Lighting

Three pre-installed ARGB fans and an illuminated power button are managed by an included controller to create a comprehensive ARGB lighting system.

Tempered Glass Side Panel

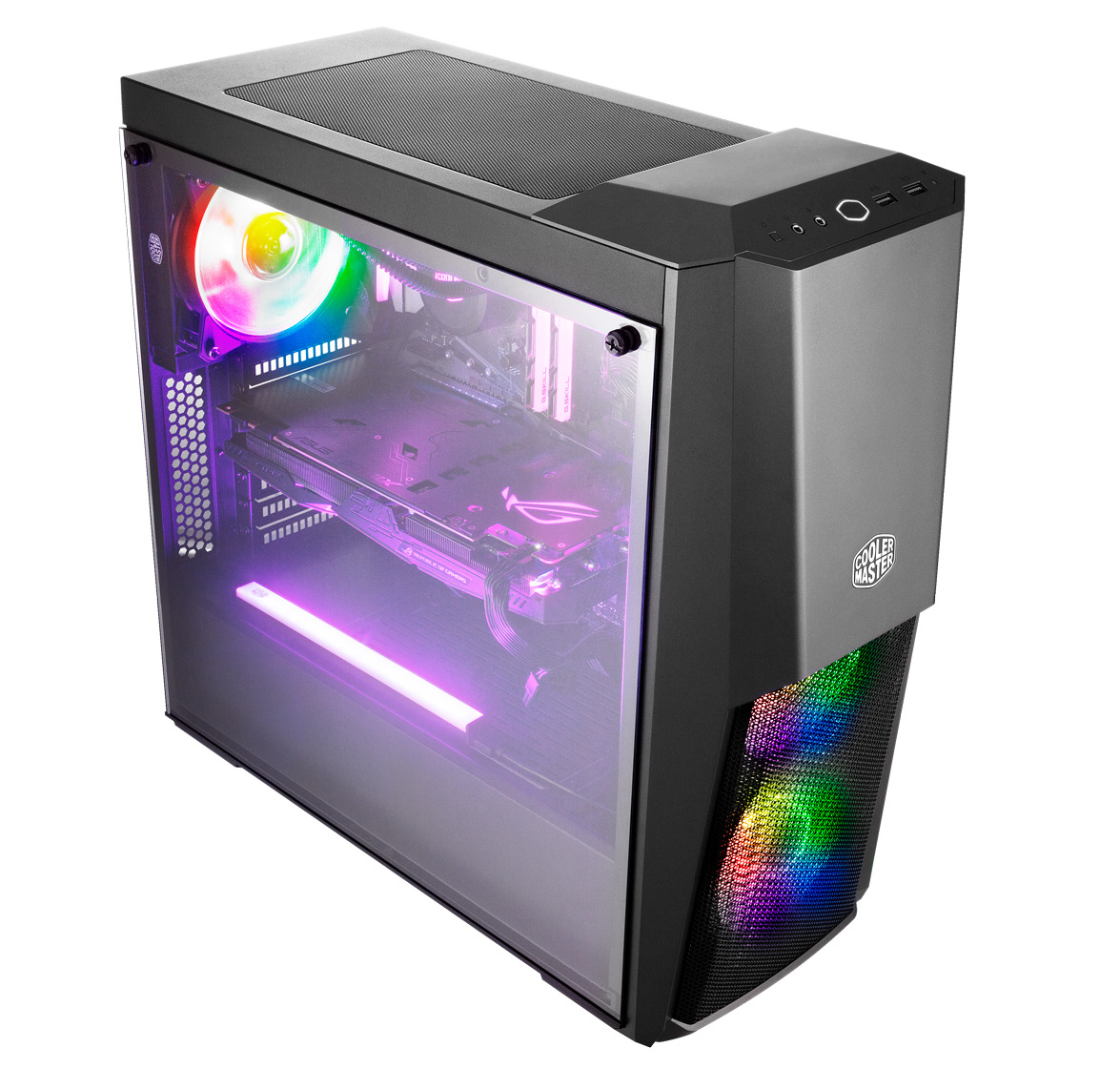

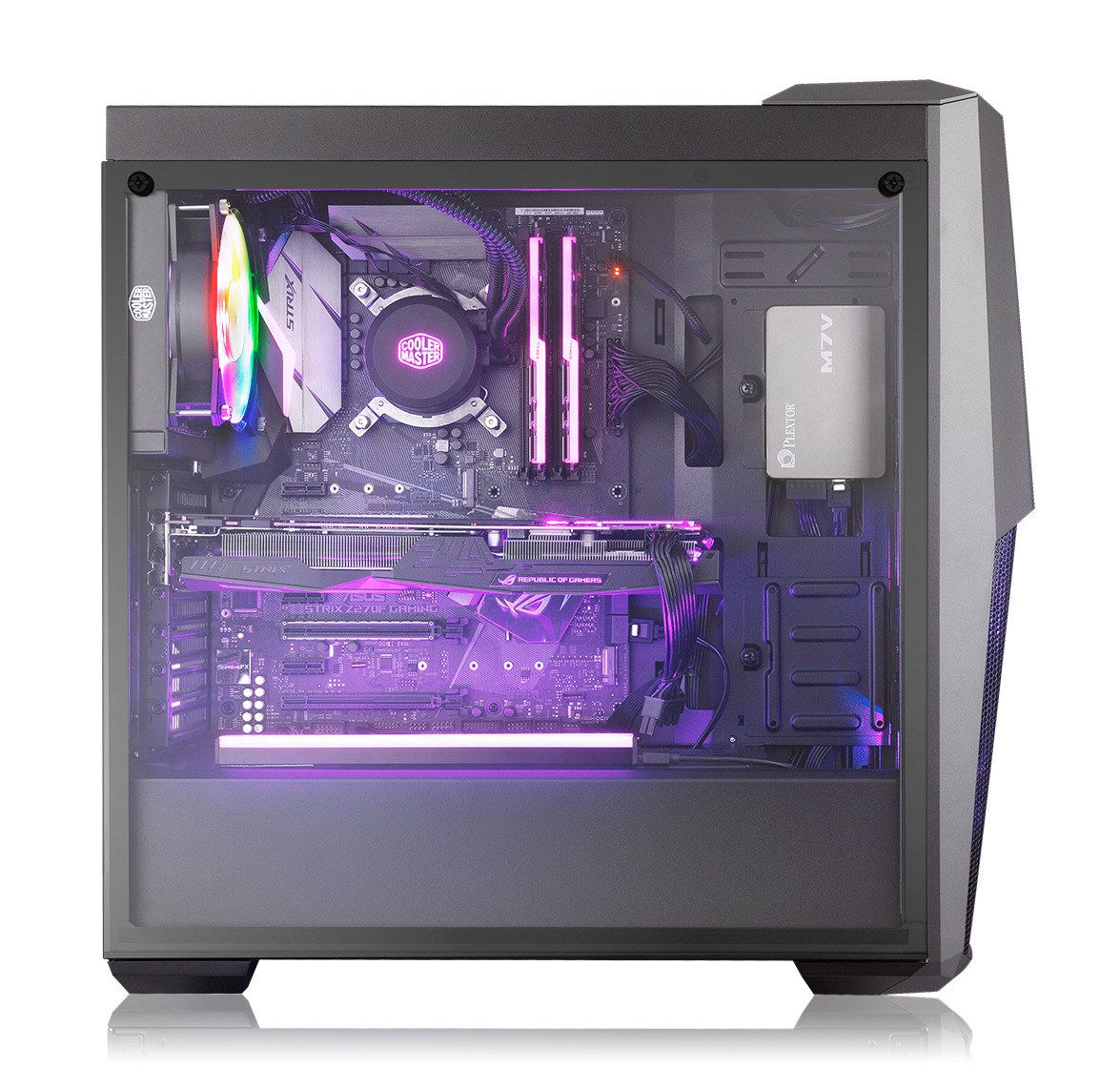

Gaming hardware, custom-loop cooling, and the pure pride of the builder is shown in panoramic view through an edge-to-edge tempered glass side panel.

Thermal Performance

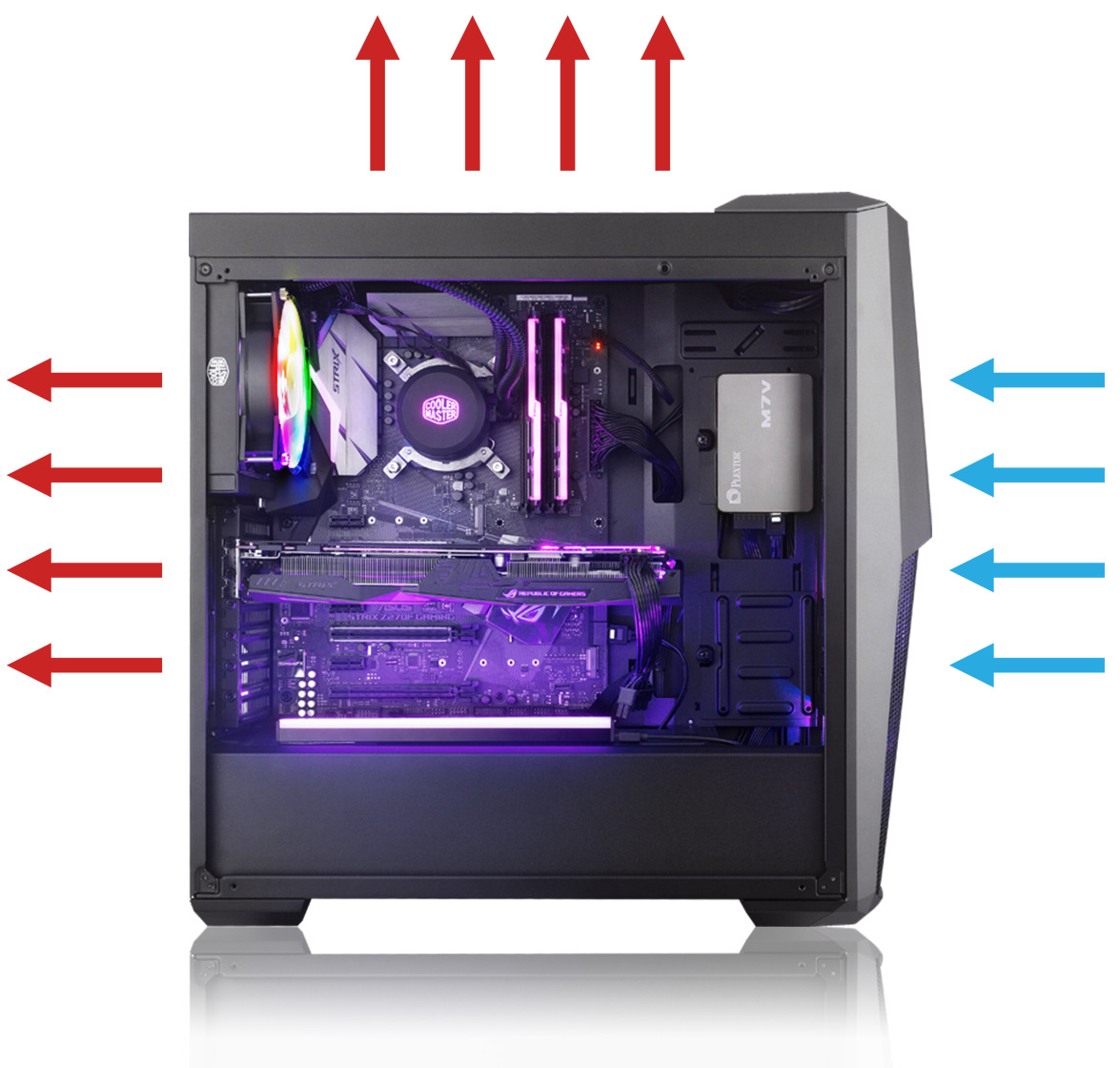

Airflow is optimized by a collaboration between the mesh front panel, top panel ventilation, and rear panel exhaust. A separate chamber for the power supply—the PSU shroud—features filtered ventilation that helps keep the entire system clean and cool.

ARGB Controller

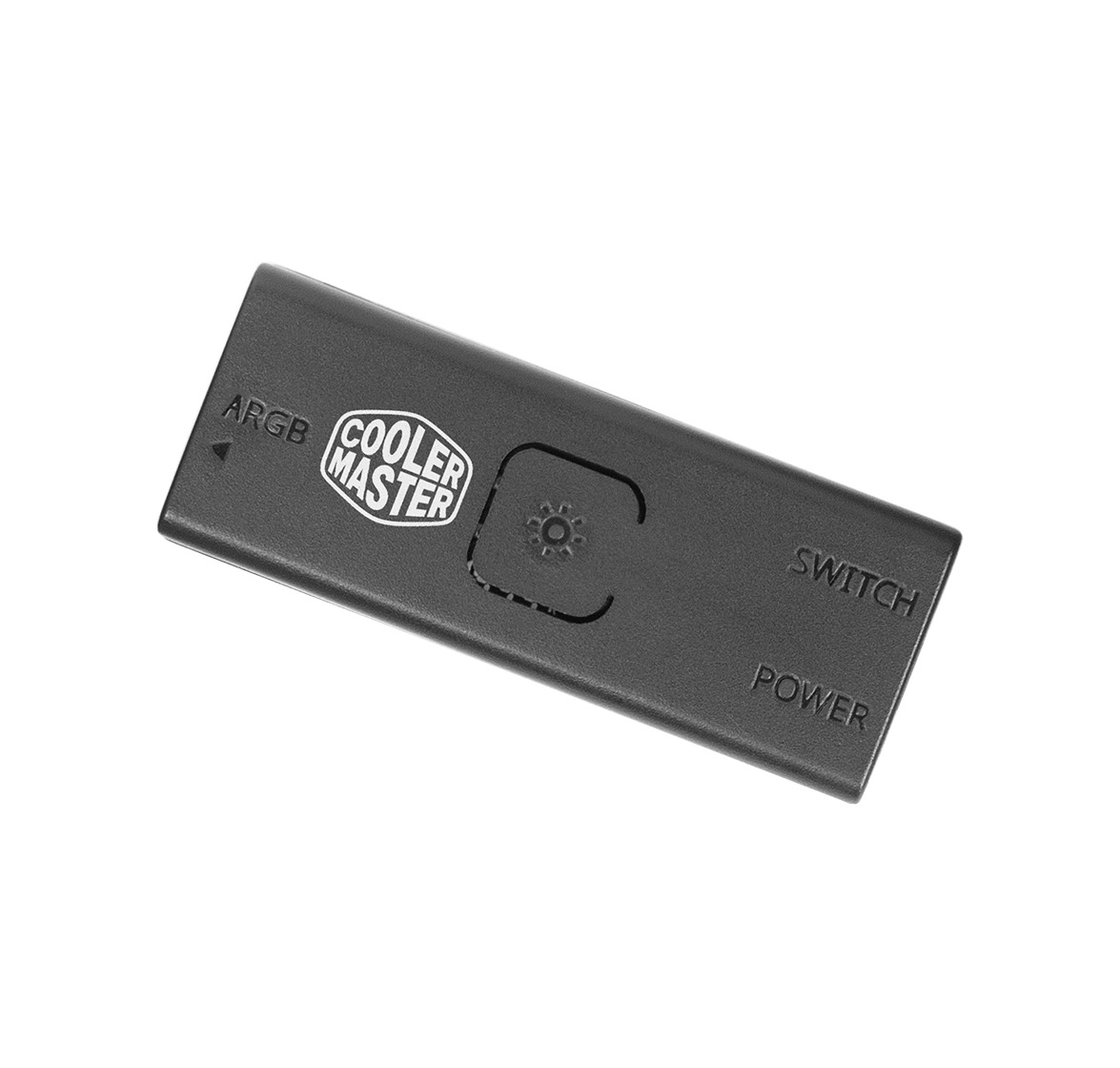

The small ARGB Controller is a mini-sized controller that allows your Addressable RGB such as fans and LED strips to be powered and controlled even in PC systems without an A-RGB capable motherboard.

The controller comes with 14 lighting presets to make full use of the Addressable LEDs in the system and also allows to be completely switched off by long pressing its button.

It is also possible to attach any external 2pin button to it to be able to switch presets without having to open the system. For ease of use, Cooler Master allows the RESET button to be optionally connected to the controller and used as an external ARGB preset switch button.

Specs:

Color(s) Black
Materials Steel, Plastic, Tempered Glass
Dimensions (L x W x H) 494 x 211 x 475mm
Weight 6.35 kg
Motherboard Support Mini ITX, Micro ATX, ATX
Expansion Slots 7
5.25" Drive Bays N/A
2.5" / 3.5" Drive Bays (Combo) 2 (Max.2)
2.5" Drive Bays 2 (Max.4)
I/O Panel 2x USB 3.2 Gen 1 (formerly USB 3.0), 1x 3.5mm Audio Jack, 1x 3.5mm Mic Jack, 1x ARGB Controller, 1x ARGB 2-to-3 splitter
Pre-installed Fans - Front 2x 120mm ARGB Fan
Pre-installed Fans - Rear 1x 120mm ARGB Fan
Fan Support - Top 2x 120mm
Fan Support - Front 3x 120mm, 2x 140mm
Fan Support - Rear 1x 120mm
Radiator Support - Front 120mm, 140mm, 240mm, 280mm, 360mm, (up to 50mm thickness without fan)
Radiator Support - Rear 120mm
Clearance - CPU Cooler 163mm/6.41"
Clearance - PSU 180mm/7.1"
Clearance - GFX 400mm
Dust Filters Front, Top, Bottom
Power Supply Support Bottom Mount, ATX
