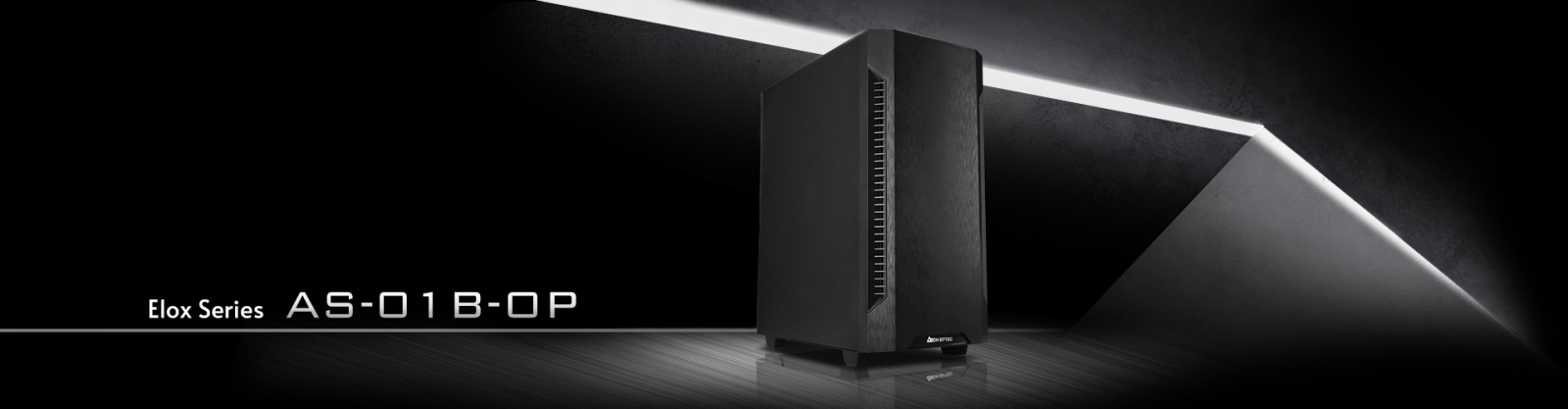

Chieftec Elox
AS-01B-OP
- Elegant & modern design
- Optimal cooling compatibility
- Support 280mm radiator
- 1x 120mm PWM fan pre-installed
The AS-01B-OP comes with an elegant and subtle brushed front panel design, while on the inside it is equipped with a modern layout with optimal cooling compatibility, supporting up to six fans in total.
Specifications:
| Color | Black |
| Material | 0.5mm SPCC |
| Motherboard support | Mini ITX, mATX, ATX |
| Dimension (DxWxH) | 405mm x 212mm x 462mm |
| Weight (without/with package) | 4.29kg / 5.1kg |
| Drive bay external | - |
| Drive bay internal | 2 x 3,5" and 2x 2,5" |
| Power supply | ATX PSU (optional, ~180mm) |
| Front I/O | 2x USB3.2 Gen 1, 1x USB2.0, Audio-out (AZALIA / HD-Audio), Mic-In |
| Scope of delivery | Set of screws Rear: 1x 120mm PWM fan pre-installed |
| Expansion slots | 7 |
| Cooling Compatibility | Front: 3x 120mm or 2x 140mm fans or 280mm radiator Rear: 1x 120mm Top: 2x 120mm or 2x 140mm fans |
| CPU cooler height (max.) | 170mm |
| VGA card length (max.) | 320mm |
JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
Виж още Компютърни кутии Chieftec
Виж всички Компютърни кутии в категорията
Документация
AS-01B-OP-DATASHEET-EN.pdfТехнически характеристики
| Захранване: | Не |
|---|---|
| Прозорец: | Не |
| Цвят: | Черен |
