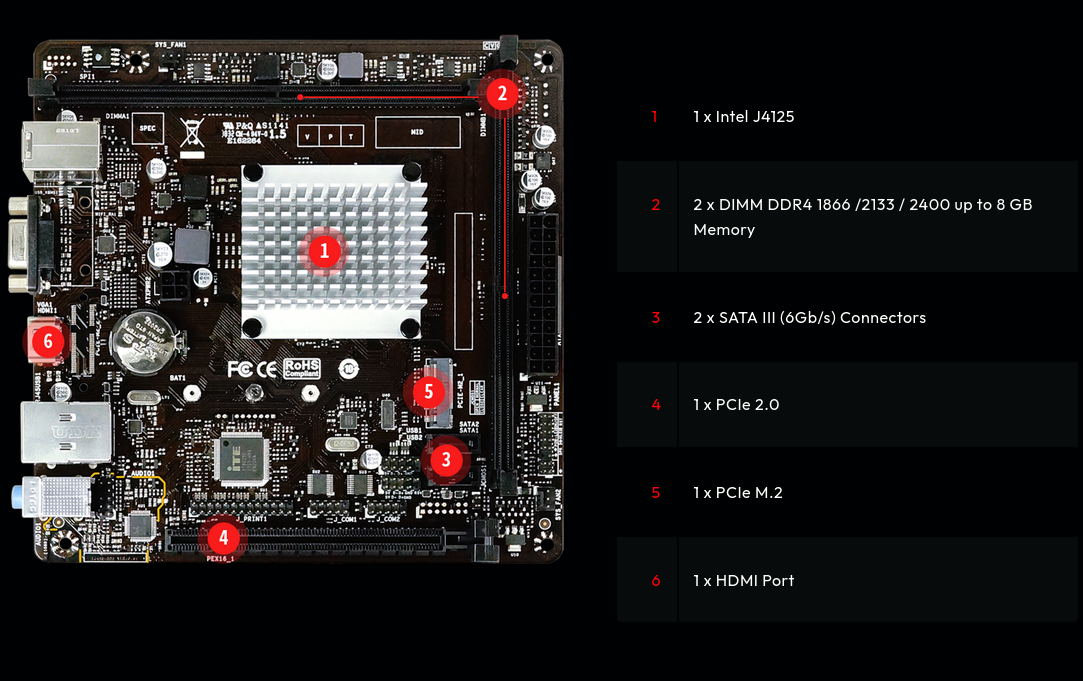

Biostar J4125NHU
CPU onboard
- Supports Intel J4125
- Supports 2-DIMM DDR4-1866 /2133 /2400 up to 8GB maximum capacity
- Supports PCIe 2.0
- Supports PCIe M.2
- Supports USB 3.2 Gen1
- Support HDMI 4K resolution
- Supports GbE LAN
Specifications:
| J4125NHU | |
|---|---|
| Chipset | Intel J4125 |
| CPU SUPPORT | J4125NHU: Intel Celeron J4125 processor |
| MEMORY | Supports Dual Channel DDR4-1866/ 2133/ 2400 2 x DDR4 DIMM Memory Slot, Max. Supports up to 8 GB Memory Each DIMM supports non-ECC 4GB DDR4 module * Please refer to www.biostar.com.tw for Memory support list. |
| INTEGRATED VIDEO | By CPU model Supports DX12 |
| STORAGE | 2 x SATA III (6Gb/s) : Supports AHCI 1 x M.2 (M Key) : Supports PCI-E 2.0 x2 (10Gb/s) & SATA III (6Gb/s) SSD Note : When using SATA SSD module on M.2 slot, the SATA_2 connector will be disabled. * Specifications vary by CPU types |
| LAN | RTL8111H 10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability |
| AUDIO CODEC | ALC887 / ALC897 7.1 Channels, High Definition Audio |
| USB | 2 x USB 3.1(Gen1) port (2 on rear I/Os) 6 x USB 2.0 port (2 on rear I/Os and 4 via internal headers) |
| EXPANSION SLOT | 1 x PCIe 2.0 x16 Slot (x1 mode) 1 x Key E - M.2 Slot (Optional) * Specifications vary by CPU types |
| REAR I/O | 1 x PS/2 Keyboard/ Mouse Port 1 x HDMI Port 1 x VGA Port 2 x USB 3.1(Gen1) Ports 2 x USB 2.0 Ports 1 x LAN port 3 x Audio Jack |
| INTERNAL I/O | 2 x SATA III - 6Gb/s Connectors 2 x USB 2.0 Headers (each header supports 2 USB 2.0 ports) 1 x 4-Pin Power Connector 1 x 24-Pin Power Connector 2 x System Fan Connectors 1 x Front Panel Header 1 x Front Audio Header 2 x COM Port Headers 1 x Printer Port Header 1 x Clear CMOS Header 1 x TPM Header (Optional) |
| H/W MONITORING | CPU / System Temperature Monitoring System Fan Monitoring System Voltage Monitoring |
| DIMENSION | Mini ITX Form Factor Dimension: 17cm x 17cm ( W x L ) |
| OS SUPPORT | Supports Windows 10(64bit) / 11(64bit) ※Biostar reserves the right to add or remove support for any OS with or without notice. |
| BUNDLE SOFTWARE | BullGuard |
Виж още Дънни платки с процесор Biostar
Виж всички Дънни платки с процесор в категорията
Технически характеристики
| Процесор сокет: | 1090 |
|---|
