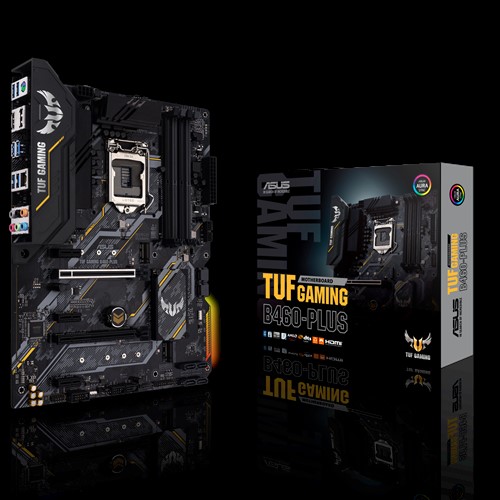

Дънна платка Asus TUF Gaming B460 Plus, B460, LGA1200, DDR4, PCI-E 3.0, (DisplayPort&HDMI),(CFX), 6x SATA 6Gb/s, 2x M.2, 6x USB 3.2 Gen 1, ATX

Intel® B460 (LGA 1200) ATX gaming motherboard with dual M.2, 8 power stages, HDMI, DisplayPort, SATA 6Gbps, USB 3.2 Gen 1 port, and Aura Sync RGB Lighting

• Intel® LGA 1200 socket: Ready for 10th Gen Intel® Core™ processors
• Enhanced power solution: 6+1+1 power stages, military-grade TUF components, and Digi+ VRM for maximum durability
• Comprehensive cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 4
• Made for online gaming: Intel® Ethernet Connection I219-V, TUF LANGuard and TurboLAN technology
• Realtek S1200A codec: Pristine audio quality with unprecedented 108 dB signal-to-noise ratio for stereo line out and 103 dB SNR for line in
• Aura Sync RGB Lighting: Synchronizable LED effects across a vast portfolio of compatible PC gear.

• CPU
  Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors *
  Supports Intel® 14 nm CPU
  Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
  **Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
• Chipset
  Intel® B460
• Memory
  4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
  Dual Channel Memory Architecture
  Supports Intel® Extreme Memory Profile (XMP)
  OptiMem
  * 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
• Graphic
  Integrated Graphics Processor
  1 x DisplayPort 1.4 **
  1 x HDMI 1.4b
  *Graphics specifications may vary between CPU types.
• Multi-GPU Support
  Supports AMD 2-Way CrossFireX Technology
• Expansion Slots
  Intel® 10th Gen Processors
  1 x PCIe 3.0 x16 (x16 mode)
  Intel® B460 Chipset
  1 x PCIe 3.0 x16 (x4 mode)
  3 x PCIe 3.0 x1
• Storage
  Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
  Intel® B460 Chipset :
  1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*1
  1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
  6 x SATA 6Gb/s port(s)
  Support Raid 0, 1, 5, 10
  Intel® Rapid Storage Technology supports
  Intel® Optane™ Memory Ready *2
• LAN
  Intel® I219-V 1Gb Ethernet
• Audio
  Realtek ALC S1200A 8-Channel High Definition Audio CODEC
  - Supports : Jack-detection, Multi-recording, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
  Audio Feature :
  - Exclusive DTS Custom for GAMING Headsets.
  - Audio Shielding
  - Dedicated audio PCB layers
  - Premium Japanese audio capacitors
• USB Ports
  Rear USB Port ( Total 6 )
  6 x USB 3.2 Gen 1 port(s)(6 x Type-A)
  Front USB Port ( Total 6 )
  2 x USB 3.2 Gen 1 port(s)
  4 x USB 2.0 port(s)
• Software Features
  ASUS Exclusive Software
  Armoury Crate
  - Aura Sync
  AI Suite 3
  - Performance And Power Saving Utility
  Digi+ VRM
  EPU
  Fan Xpert 4
  - EZ update
  - PC Cleaner
  - System Information
  AI Charger
  ASUS Turbo LAN
  DTS Custom for GAMING Headsets
  Norton Anti-virus software (Free Trial for 60 days)
  DAEMON Tools
  Google Chrome Browser & Google Toolbar
  TUF GAMING CPU-Z
  WinRAR
  UEFI BIOS
  ASUS EZ DIY
  - ASUS CrashFree BIOS 3
  - ASUS EZ Flash 3
  - ASUS UEFI BIOS EZ Mode
• ASUS Special Features
  ASUS TUF PROTECTION
  - ASUS DIGI+ VRM
  - ASUS Enhanced DRAM Overcurrent Protection
  - ASUS ESD Guards
  - ASUS LANGuard
  - ASUS Overvoltage Protection
  - ASUS SafeSlot Core+
  - ASUS Stainless-Steel Back I/O
  ASUS Q-Design :
  - ASUS Q-DIMM
  - ASUS Q-Slot
  - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
  ASUS Thermal Solution:
  - Aluminum heatsink design
  ASUS EZ DIY
  - Box Headers
  AURA Sync
  - Standard RGB headers
• Back I/O Ports
  1 x PS/2 keyboard/mouse combo port(s)
  1 x DisplayPort
  1 x HDMI
  1 x LAN (RJ45) port(s)
  6 x USB 3.2 Gen 1 Type-A
  6 x Audio jack(s)
• Internal I/O Ports
  1 x CPU Fan connector(s)
  1 x CPU OPT Fan connector(s)
  2 x Chassis Fan connector(s)
  1 x AIO_PUMP connector
  2 x Aura RGB Strip Headers
  1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
  2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
  1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
  6 x SATA 6Gb/s connector(s)
  1 x 24-pin EATX Power connector(s)
  1 x 8-pin EATX 12V Power connectors
  1 x Front panel audio connector(s) (AAFP)
  1 x Clear CMOS jumper(s)
  1 x System panel connector
  1 x COM port header
• Accessories
  User's manual
  I/O Shield
  2 x SATA 6Gb/s cable(s)
  1 x Supporting DVD
  1 x TUF Gaming Sticker
  1 x TUF Certification card(s)
  1 x M.2 SSD screw package(s)
• BIOS
  128 Mb Flash ROM, UEFI AMI BIOS
• Manageability
  WOL by PME, PXE
• Operating System
  Windows® 10 64-bit
• Form Factor
  ATX Form Factor
  12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
• Note
  *1 M.2_1 shares bandwidth with SATA6G_1. When M.2_1 runs SATA mode, SATA6G_1 will be disabled.
  *2 Only the M.2_2 socket can support Intel® Optane™ Memory Ready.
