Дънна платка Asus ROG Strix TRX40-XE Gaming, TRX40, sTRX4, DDR4, PCI-E 4.0, SLI&CFX, 8x SATA 6Gb/s, 3x M.2, 4x USB 3.2 Gen 2, ATX

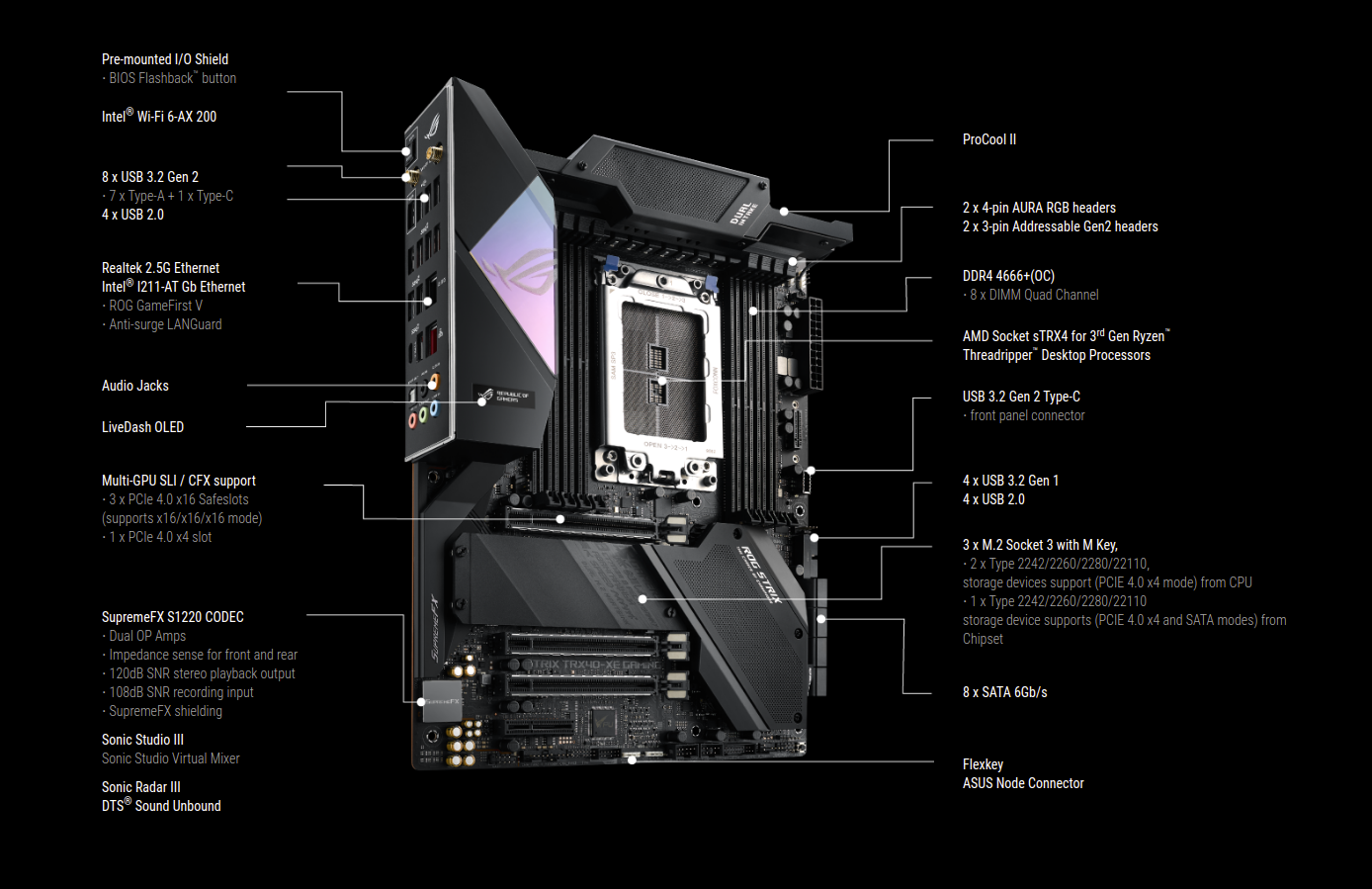

AMD TRX40 ATX motherboard TR4 for 3rd Gen AMD Ryzen Threadripper series processors, with 16 power stages, on-board Wi-Fi 6 (802.11ax), 2.5 Gbps LAN, USB 3.2 Gen 2, SATA, three M.2, OLED and Aura Sync RGB lighting

• Ready for the latest 3rd Gen AMD Ryzen™ Threadripper™ series processors (support up to 64 core) to maximize connectivity and speed with up to three M.2 drives, USB 3.2 Gen 2.

• Unmatched personalization: OLED and Aura Sync RGB lighting, including RGB headers and addressable Gen 2 RGB headers

• Optimal Power Solution: 16 power stages with ProCool II power connector, high-quality chokes and durable capacitors to support multi-core processors

• Comprehensive cooling: Active cooling VRM and Chipset heatsink, stacked-fin heatsink, with on-board dual M.2 heatsinks and a water pump+ header

• Gaming connectivity: Three M.2, USB 3.2 Gen 2 Type-C port and Type-C front panel connector

• Gaming networking: 2.5Gbps LAN and Intel® Gigabit Ethernet with ASUS LANGuard, Wi-Fi 6 (802.11ax) with MU-MIMO, and gateway teaming via GameFirst V

• Gaming audio: High fidelity audio with SupremeFX S1220, DTS® Sound Unbound and Sonic Studio III to draw you deeper into the action

• Easy DIY: ROG-patented pre-mounted I/O shield, Flexkey, ASUS SafeSlot, ASUS Node connector and BIOS FlashBack™ for a friendlier building experience

Specifications

CPU
Build in AMD Socket sTRX4 for 3rd Gen AMD Ryzen™ Threadripper™ Series Desktop Processors
Supports CPU up to 64 cores

Chipset
AMD TRX40

Memory
3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors
8 x DIMM, Max. 256GB, DDR4 4666(O.C.)/4600(O.C)/4400(O.C)/4333(O.C.)/4266(O.C.)/4133(O.C.)/3800(O.C.)/3733(O.C.)/3466(O.C.)/3400(O.C.)/3200/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory
Quad Channel Memory Architecture

Multi-GPU Support
Supports NVIDIA® 2-Way SLI® Technology
Supports AMD 2-Way CrossFireX Technology

Expansion Slots
3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors
3 x PCIe 4.0 x16 (x16/x16/x16)
1 x PCIe 4.0 x4

Storage
3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors :
2 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(PCIe 4.0 x4 mode)
AMD TRX40 chipset :
1 x M.2 Socket 3, with vertical M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
AMD TRX40 chipset :
8 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10

LAN
Realtek® RTL8125-CG 2.5G LAN
Intel® I211-AT, 1 x Gigabit LAN Controller(s)
Anti-surge LANGuard
ROG GameFirst V Technology

Wireless Data Network
Intel® Wi-Fi 6 AX200
Wi-Fi 802.11 ax, Bluetooth® 5.0
Supports dual band frequency 2.4/5 GHz
Supports 2x2 MU-MIMO
Supports channel bandwidth: HT20/HT40/HT80/HT160. Up to 1.73Gbps transfer speed
Bluetooth
Bluetooth® 5.0

Audio
ROG SupremeFX 8-Channel High Definition Audio CODEC S1220
- Dual OP Amplifiers
- Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output 108 dB SNR recording input
- Supports up to 32-Bit/192kHz playback
Audio Feature :
- SupremeFX Shielding™ Technology
- Sonic Studio III + Sonic Studio Virtual Mixer
- DTS® Sound Unbound
- Optical S/PDIF out port(s) at back panel
- Sonic Radar III

USB Ports
3rd Gen AMD Ryzen™ Threadripper™ Processors :
4 x USB 3.2 Gen 2 port(s) (4 at back panel, red)
AMD TRX40 chipset :
1 x USB 3.2 Gen 2 front panel connector port(s)
AMD TRX40 chipset :
4 x USB 3.2 Gen 2 port(s) (4 at back panel, red, 3 x Type-A+1 x Type-C)
AMD TRX40 chipset :
8 x USB 2.0 port(s)
ASMedia® USB 3.2 Gen 1 controller :
4 x USB 3.2 Gen 1 port(s) (4 at mid-board)

ROG Exclusive Features
ROG Exclusive Software
- RAMCache III
- CPU-Z
- GameFirst V
- Sonic Studio III + Sonic Studio Link
- Sonic Radar III
- Overwolf

Special Features
5-Way Optimization by Dual Intelligent Processors 5
- Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.
Gamer's Guardian:
- DRAM Overcurrent Protection
- Highly Durable Components
- DIGI+ VRM
- SafeSlot
- ESD Guards on LAN, Audio,and USB ports
LiveDash OLED 1.3 ”
AURA :
- Aura Lighting Control
- Addressable Gen 2 Header
ASUS Exclusive Features :
- USB BIOS FlashBack™
- AI Suite 3
- Ai Charger
- Pre-mounted I/O Shield
- ASUS NODE: hardware control interface
- BIOS FlashBack™ Button
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
ASUS Q-Design :
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector

Back I/O Ports
1 x LAN (RJ45) port(s)
8 x USB 3.2 Gen 2 (7 x Type-A+1 x Type-C)
4 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)
1 x Anti-surge 2.5G LAN (RJ45) port
1 x USB BIOS FlashBack™ Button(s)

Internal I/O Ports
2 x Aura RGB Strip Header
2 x Addressable Gen 2 header(s)
2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
2 x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support(PCIe 4.0 x4 mode)
1 x M.2 Socket 2 with vertical M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
1 x TPM header
8 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x W_PUMP+ connector
1 x 24-pin EATX Power connector(s)
2 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Thermal sensor connector(s)
1 x Power-on button(s)
1 x Clear CMOS jumper(s)
1 x Node Connector(s)
1 x USB BIOS FlashBack™ button(s)
1 x System panel connector
1 x USB 3.2 Gen 2 front panel connector
1 x Speaker connector
1 x Chipset Fan Header
1 x VRM_HS_FAN Header

Accessories
1 x Vertical M.2 bracket set
4 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x pack of cable tie
1 x Supporting DVD
1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
1 x Strix door hanger
1 x ROG Strix stickers
1 x Q-Connector
1 x Thermal sensor cable pack(s)
1 x Extension Cable for RGB strips (80 cm)
1 x Extension cable for Addressable LED
User manual
1 x ROG Thank you card

BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2

Support Disc
Drivers
ASUS Utilities
EZ Update
Anti-virus software (OEM version)

Operating System
Windows® 10 64-bit

Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
