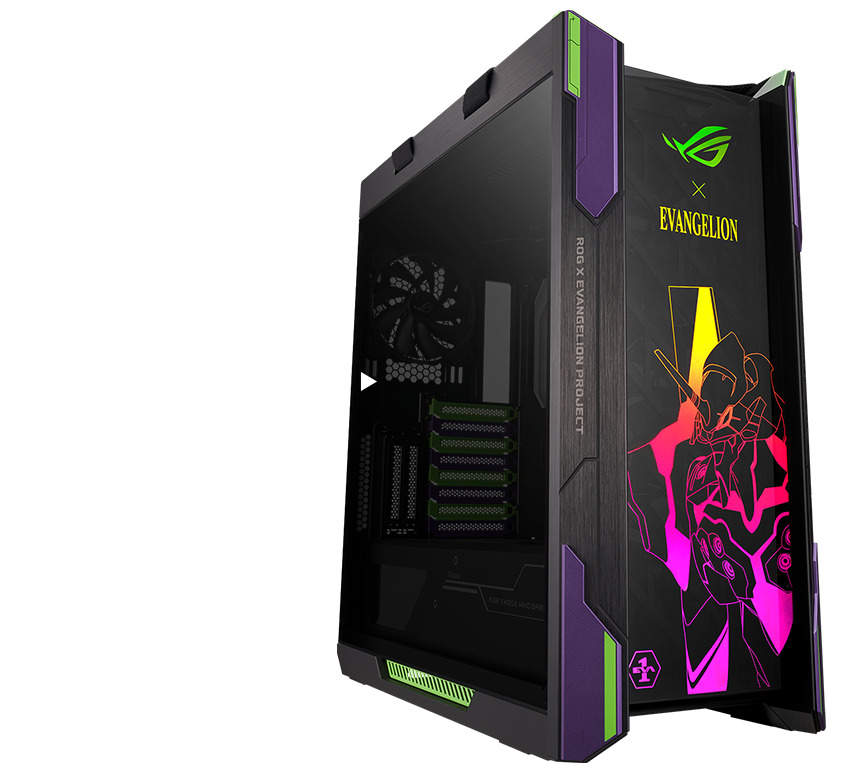

It's 2022. The Republic of Gamers is launching new equipment for the EVANGELION project. The ROG Strix Helios EVA Edition is a premium mid-tower gaming chassis with three tempered-glass panels, refined aluminum frame, and integrated front-panel RGB lighting. Interior and exterior details have been fashioned to match the aesthetics of the EVA-01 and house the other ROG x EVANGELION components, making it the cornerstone of the collaboration.
MADE FOR SHOWCASE BUILDS
ROG Strix Helios EVA EDITION CHASSIS
-
Premium aesthetics
-
Easy cable management
-
Ready for serious cooling
-
Comfortable case handles

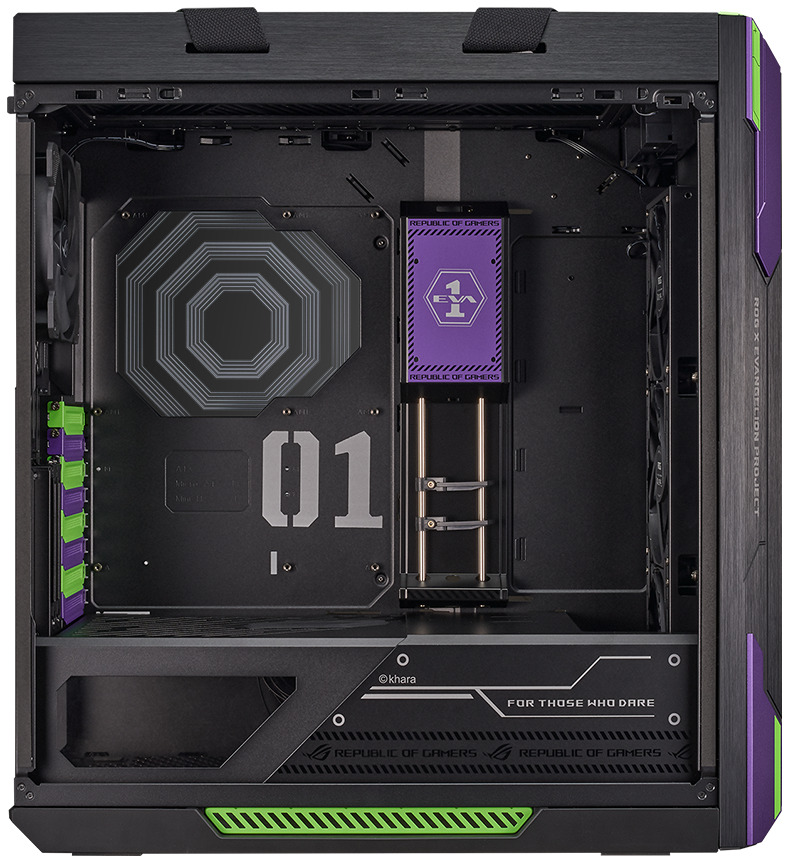

EASE CABLE MANAGEMENT
Multifunction cover with GPU braces, PSU shroud and translucent rear cover for an effortlessly tidy build.

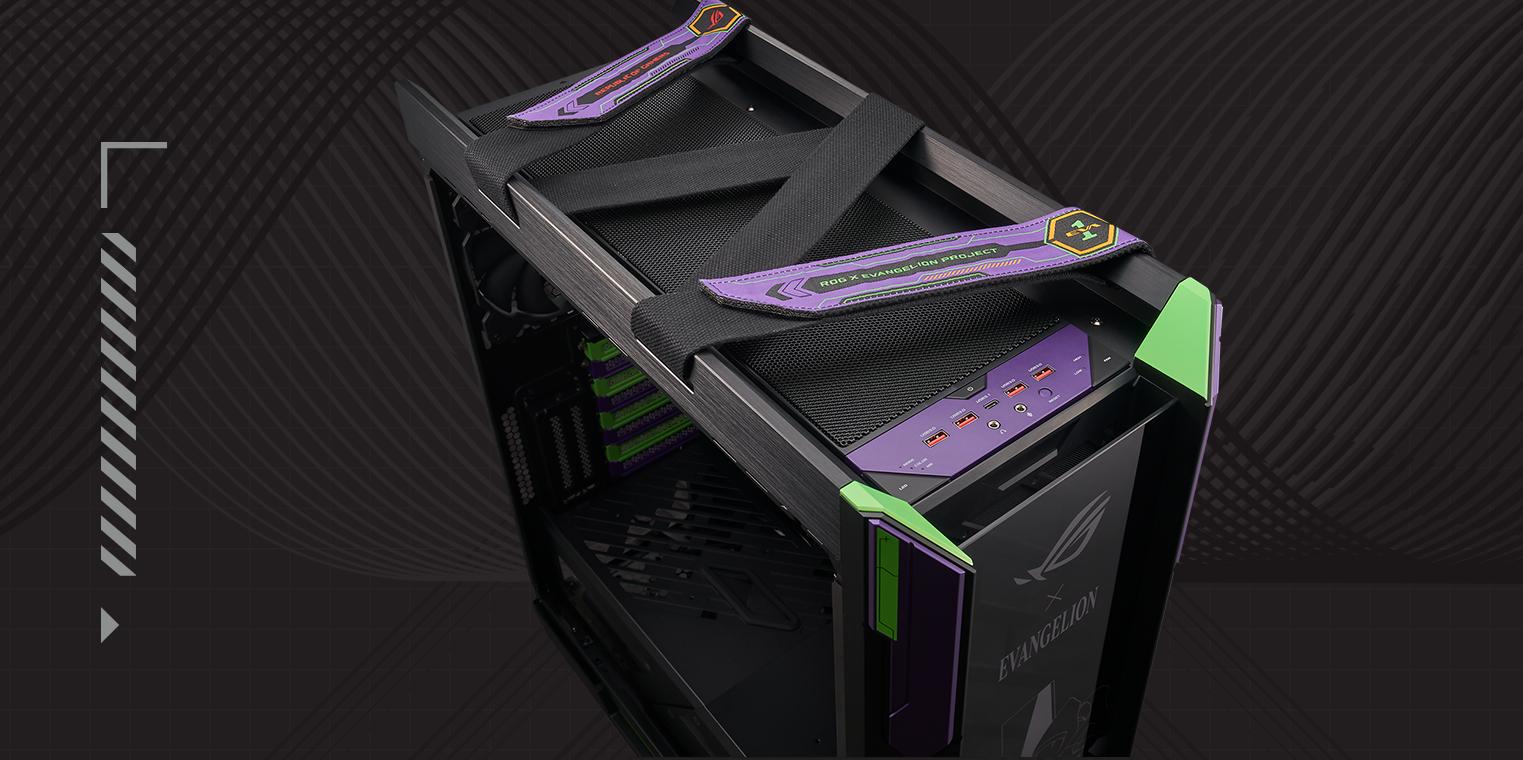

COMFORTABLE CASE HANDLES
Easily carry your prized build to LAN parties using the ergonomic and stylish fabric handles that are rigorously tested to support up to 50 kg
ROG Strix Helios EVA Edition
Case Size
Mid Tower
Motherboard Support
EATX (12"x10.9")
ATX
Micro-ATX
Mini-ITX
Drive Bays
4 x 2.5" Bay
2 x 2.5"/3.5" Combo Bay
Expansion Slots
8
2 (additional vertical)
Front I/O Port
1 x Headphone
1 x Microphone
4 x USB 3.1 Gen1
1 x USB 3.1 Gen2 Type C
LED Control Button
Fan Control Button
Reset Button
Tempered Glass
Front Side
Left Side
Right Side
Radiator Support (Front)
120 mm
140 mm
240 mm
280 mm
360 mm
420 mm
Radiator Support (Top)
120 mm
140 mm
240 mm
280 mm
360 mm
Radiator Support (Rear)
120 mm
140 mm
Cooling Support (Front)
3 x 120 mm
3 x 140 mm
Radiator + Fan Thickness: Max. 90 mm
Cooling Support (Top)
3 x 120 mm
2 x 140 mm
Radiator + Fan Thickness: Max. 60 mm
Cooling Support (Rear)
1 x 120 mm
1 x 140 mm
Pre-installed Fans (Front)
3 x 140 mm
Pre-installed Fans (Rear)
1 x 140 mm
Maximum CPU Cooler Height
190 mm
Maximum GPU Length
450 mm (Riser Cable above 200mm in length is required for one GPU install in vertical position)
Maximum PSU Length
220 mm
Removable Dust Filters
Front
Top
Bottom
Maximum Cable Management Space
33 mm
Dimensions
250 x 565 x 591 mm
Weight
18Kg
AURA Sync
ARGB
JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
Виж още Компютърни кутии Asus
Виж всички Компютърни кутии в категорията
Технически характеристики
| Захранване: | Не |
|---|---|
| Прозорец: | Да |
| Цвят: | Черен |
