Дънна платка Asus ROG Maximus XI Formula, Z390, LGA1151, DDR4, PCI-Е (HDMI&VGA), (SLI&CFX), 6x SATA 6.0 Gb/s, 2x M.2 socket, 4x USB 3.1 Gen 2, Wi-Fi, Bluetooth, ATX

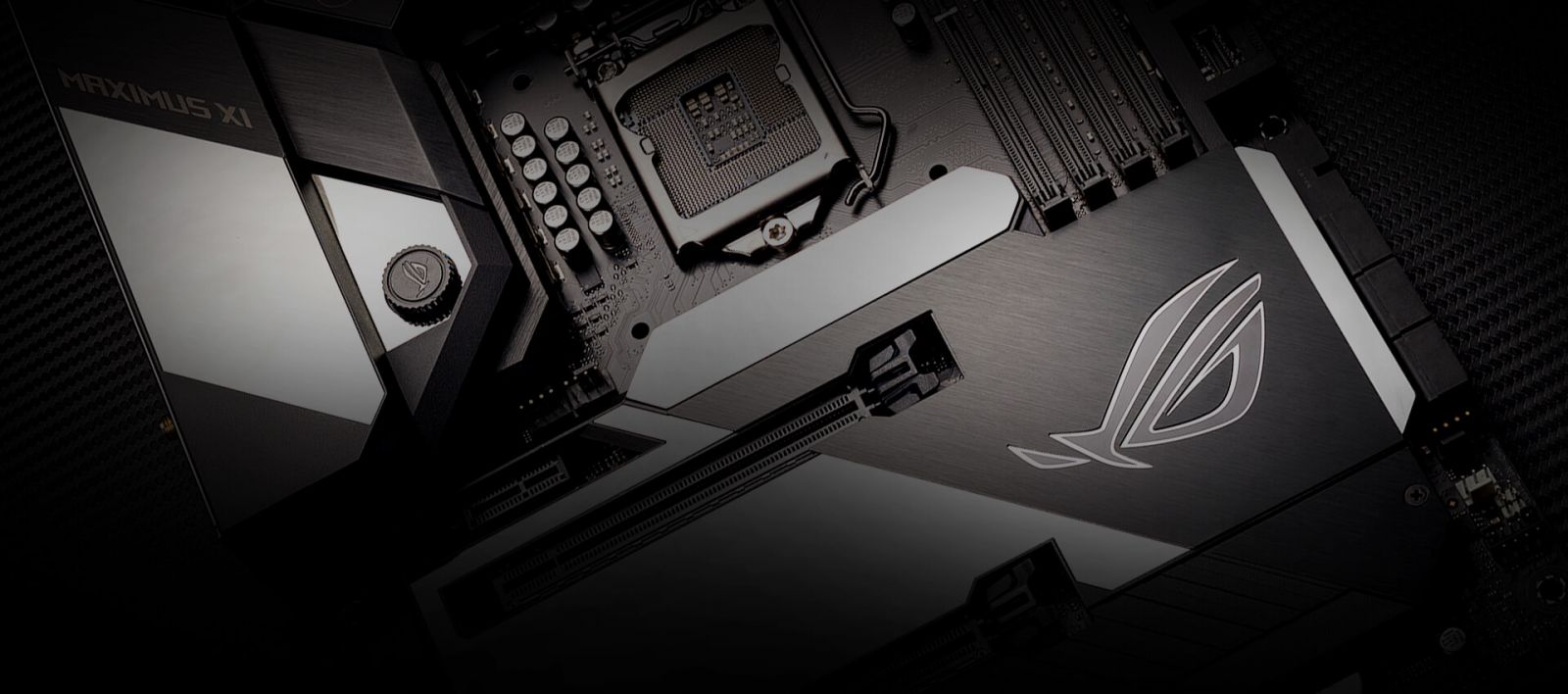

THE FORMULA

ROG Maximus XI Formula exhibits the sleek, refined and functional design that has become iconic in the Maximus motherboard series. With its distinctive integrated CrossChill EK III cooling block, intelligent overclocking software and a stunning polished-mirror finish, the latest-generation Formula is all set to make your showcase rig shine.

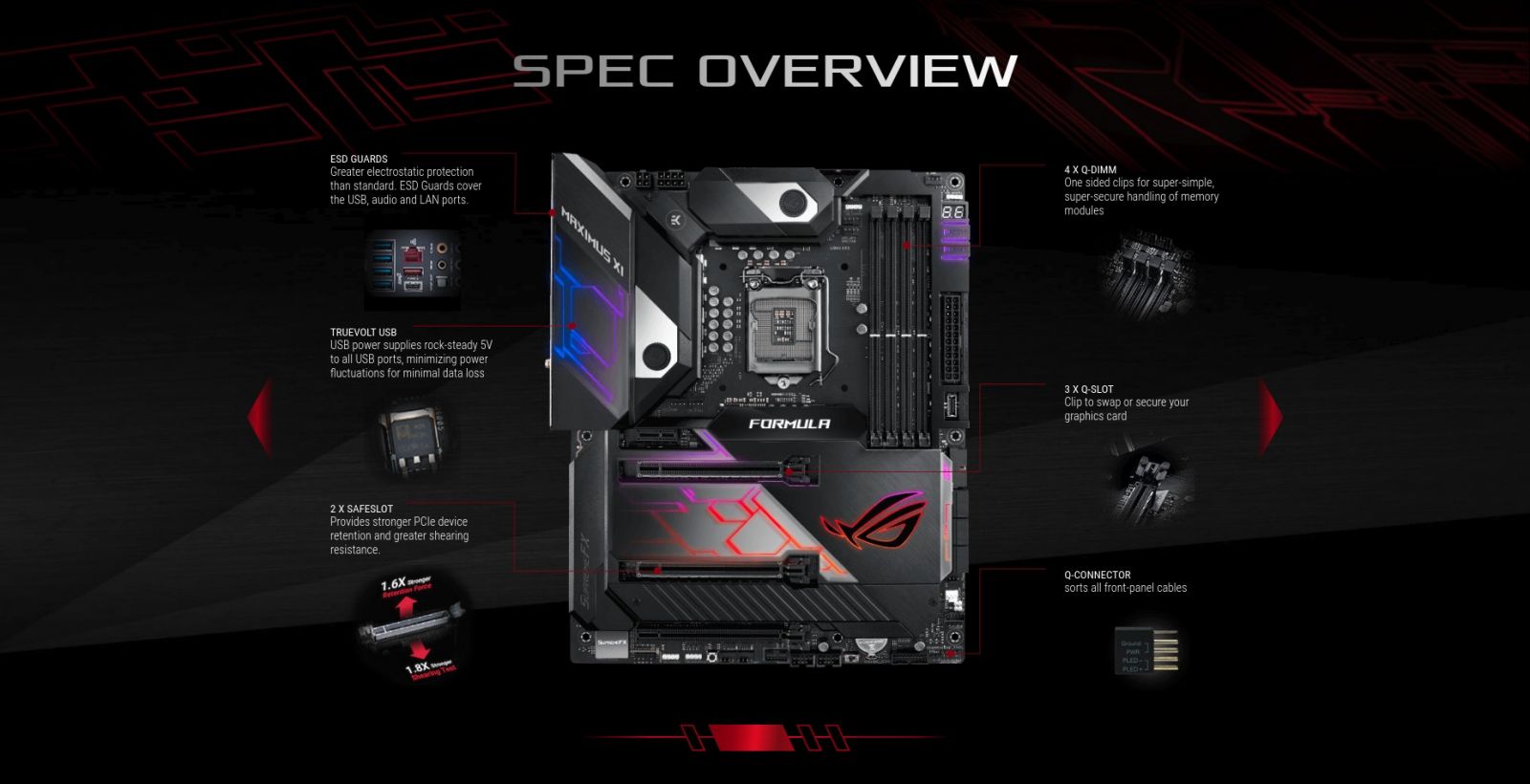

SPEC OVERVIEW

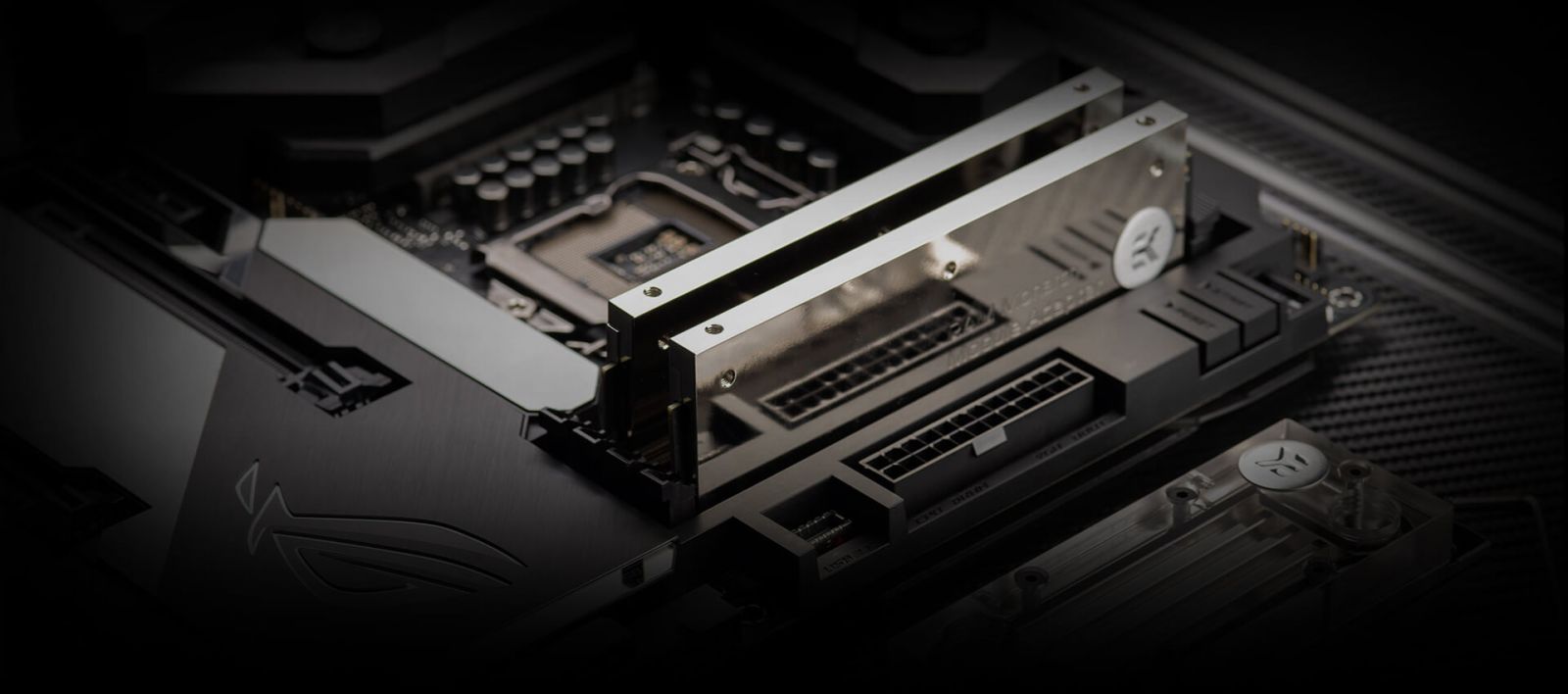

THRILLING PERFORMANCE

Building on over a decade of ROG engineering and refinement, Formula is the motherboard that lets you push the boundaries while keeping the thermals in check and under careful control.

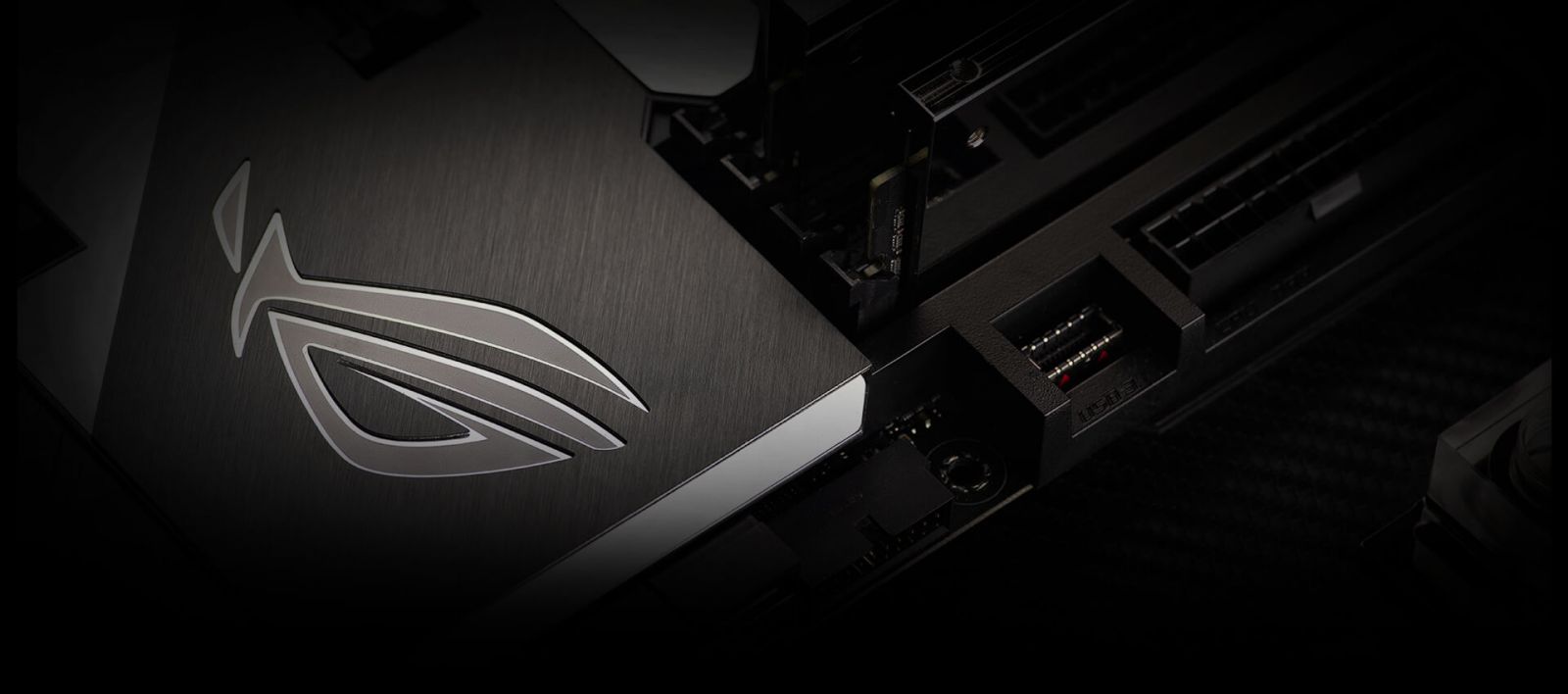

CONTROL YOUR RIG

Fast, intuitive control is vital for effective command of your rig, so we've loaded ROG Maximus XI Formula with simple, flexible tools that let you tweak almost every system aspect. Enjoy intelligent automated tuning with 5-Way Optimization technology, or dive deep into the revered ROG UEFI BIOS to take full manual control. Formula also makes short work of fine-tuning everything from sonics to storage, so it's easy to get every part of your system up to speed.

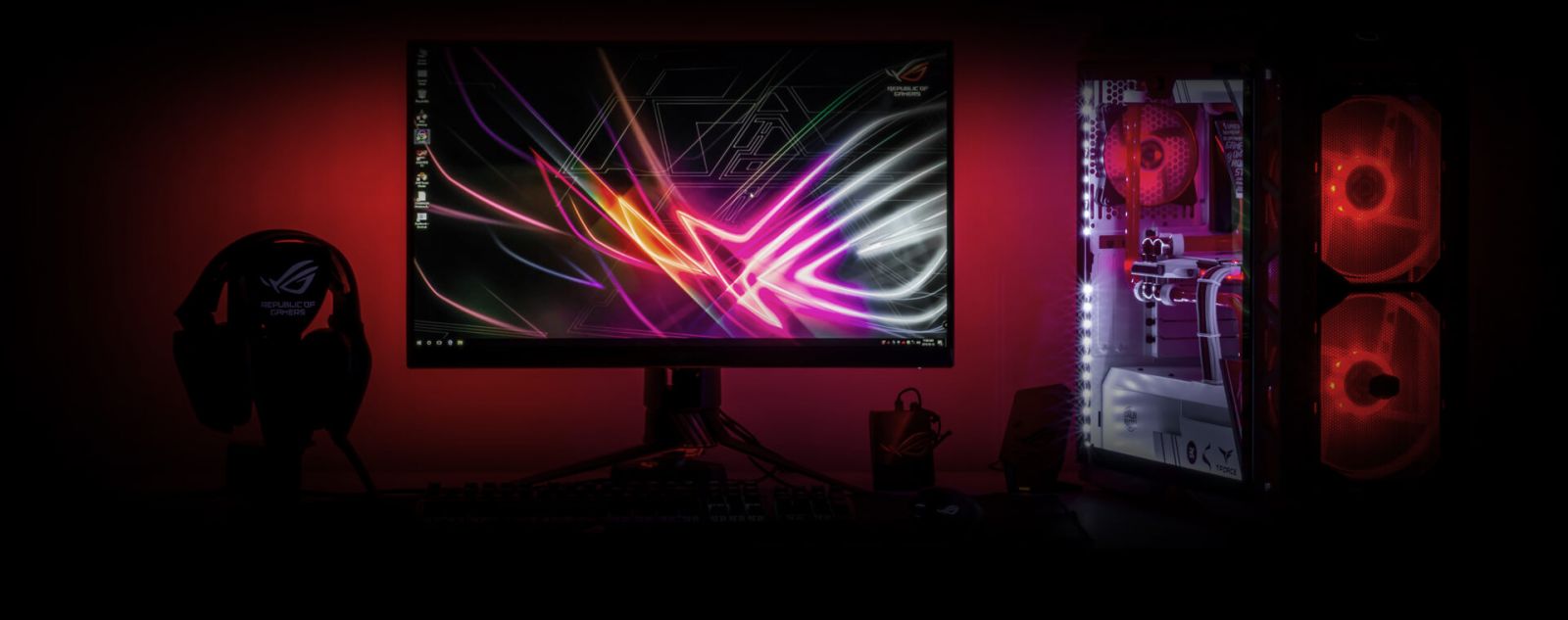

PERSONALIZED FOR YOU

With Aura Sync to unleash synchronized illumination effects that extend from motherboard to a vast ecosystem of compatible components, and the LiveDash OLED panel to display system stats and custom visuals, ROG Maximus XI Formula is primed for endless personalization.









Intel Z390 ATX Gaming motherboard with M.2 heatsink, Aura Sync RGB LED, DDR4 4400MHz, 802.11ac Wi-Fi , dual M.2, SATA 6Gb/s, and USB 3.1 Gen 2



• LGA1151 socket: Ready for 9th/8th Generation Intel® Core™ desktop processors
• Crosschill EK III and Water Cooling Zone: Keep your system cool when the action heats up
• ROG Eco-System: ASUS-exclusive Aura Sync RGB lighting, including headers for both standard and addressable RGB strips
• Gaming connectivity: Aquantia 5G LAN and Intel Gigabit Ethernet onboard, dual M.2, USB 3.1 Gen 2, Intel 2x2 802.11ac Wi-Fi with MU-MIMO support, LANGuard and GameFirst
• 5-way Optimization: Automated system-wide tuning, providing AI Overclocking and cooling profiles tailor-made for your rig
• Gaming Audio: SupremeFX and Sonic Studio III – High fidelity audio that draws you deeper into the action
• Gaming durability: ROG RGB Armor,ROG patented pre-mounted I/O shield, ASUS SafeSlot, and premium components for maximum durability







Specifications



CPU
Intel® Socket 1151 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.

Chipset
Build in Intel® Z390

Memory
4 x DIMM, Max. 64GB, DDR4 4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.

Graphic
Integrated Graphics Processor- Intel® UHD Graphics support
VGA output support : HDMI port
- Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 30 Hz

Multi-GPU Support
Supports NVIDIA® 2-Way SLI™ Technology
Supports AMD 3-Way CrossFireX™ Technology

Expansion Slots
Socket 1151 for 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors
2 x PCIe 3.0 x16 (x16, x8/x8, or x8/x4+x4)
Intel® Z390 Chipset
1 x PCIe 3.0 x16 (max at x4 mode) *
1 x PCIe 3.0 x1

Storage
Socket 1151 for 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors :
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*2
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s port(s)
Intel® Optane™ Memory Ready

LAN
Aquantia AQC111C 5G LAN
Intel® I219V
Anti-surge LANGuard
ROG GameFirst V Technology
Wireless Data Network
Intel® Wireless-AC 9560
Wi-Fi 802.11 b/g/n/ac
Supports dual band frequency 2.4/5 GHz
Supports channel bandwidth: HT20/HT40/HT80/HT160

Bluetooth
Bluetooth® 5.0

Audio
ROG SupremeFX 8-Channel High Definition Audio CODEC S1220
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- SupremeFX Shielding Technology
- ESS® ES9023P
- Supports up to 32-Bit/192kHz playback *3

Audio Feature :
- Optical S/PDIF out port(s) at back panel

USB Ports
Intel® Z390 Chipset :
1 x USB 3.1 Gen 2 front panel connector port(s)
Intel® Z390 Chipset :
4 x USB 3.1 Gen 2 port(s)
Intel® Z390 Chipset :
8 x USB 3.1 Gen 1 port(s)
Intel® Z390 Chipset :
4 x USB 2.0 port(s)
ASMedia® USB 3.1 Gen 1 controller :
2 x USB 3.1 Gen 1 port(s)

ROG Exclusive Features
ROG RGB Armor
ReTry Button
Start Button
Extreme Engine Digi+ :
- MicroFine Alloy Chokes
- 10K Black Metallic Capacitors
Extreme Tweaker
Crosschill EK III
ROG Patented Pre-mounted I/O Shield
ROG Exclusive Software
- Mem Tweakit
- RAMCache III
- RAMDisk
- CPU-Z
- GameFirst V
- Sonic Studio III + Sonic Studio Link
- Sonic Radar III

Special Features
5-Way Optimization by Dual Intelligent Processors 5
- 5-way Optimization tuning key perfectly consolidates TPU Insight, EPU Guidance,and Turbo app
2 ” LiveDash
AURA :
- Aura Lighting Control
- Aura RGB Strip Headers
- Aura Lighting Effects Synchronization with compatible ASUS ROG devices
- Aura Addressable Strip Header(s)
ASUS Exclusive Features :
- USB BIOS Flashback®
- MemOK! II
- AI Suite 3
- Ai Charger
- ASUS CrashFree BIOS 3
- Armoury Crate
- Pre-mounted I/O Shield
- ASUS NODE: hardware control interface
- OptiMem II
- ASUS EZ Flash 3
- ASUS C.P.R.(CPU Parameter Recall)
- BUPDATER
- BIOS Flashback® Button
- Clear CMOS Button
- Reset Button
ASUS Q-Design :
- ASUS Q-Code
- ASUS Q-LED (CPU, VGA, Boot Device LED)
- ASUS Q-DIMM
- ASUS Q-Connector

Back I/O Ports
1 x HDMI
4 x USB 3.1 Gen 2
6 x USB 3.1 Gen 1
1 x Optical S/PDIF out
1 x Clear CMOS button(s)
1 x USB BIOS Flashback® Button(s)
1 x ASUS Wi-Fi Module
5 x Gold-plated audio jacks
Anti-surge LAN (RJ45) port
1 x AQC-111C 5G LAN port

Internal I/O Ports
2 x Aura Addressable Strip Header(s)
2 x Aura RGB Strip Headers
2 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
1 x Chassis Fan connector(s)
1 x Optional Fan connector(s)
1 x AIO_PUMP connector
1 x H_AMP fan connector
1 x W_PUMP+ connector
1 x 4-pin EATX 12 V Power connector
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x 5-pin EXT_FAN(Extension Fan) connector
1 x MemOK! II switch(es)
1 x Thermal sensor connector(s)
1 x Node Connector(s)
1 x 5-pin EXT_FAN(Extension Fan) connector
1 x ReTry button
1 x System panel connector
1 x T_Sensor Connector
1 x W_IN header
1 x W_OUT header
1 x W_FLOW header
1 x USB 3.1 Gen 2 front panel connector
2 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x Start button
1 x Reset button
1 x Q-Code

Accessories
User's manual
1 x ROG logo plate sticker
1 x 2-Way SLI bridge(s)
4 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
1 x Q-Connector
1 x Extension Cable for RGB strips (80 cm)
1 x Extension cable for Addressable LED
1 x ROG coaster(s)
1 x USB 3.1 Gen 1 Header to USB 2.0 adapter cable
2 x ROG weave SATA 6G cable
1 x ROG Thank you card

BIOS
1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, SM BIOS 3.1, ACPI 6.1

Manageability
WOL , PXE

Operating System
Windows® 10 64-bit

Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
