Asus ProArt PA24AC
НазадAsus ProArt PA24ACAsus ProArt PA24ACAsus ProArt PA24ACAsus ProArt PA24ACНапред

Монитор Asus ProArt PA24AC, 24.1" (61.13cm), IPS панел, WUXGA, 5ms, 100000000:1, 350cd/m2, DisplayPort, HDMI, USB Type-C

id 157839 Код: MNLCASUSPA24AC
  • Модел: ProArt PA24AC
  • Марка: Asus
  • Гаранция: 36 месеца
  • Код на продукта: PA24AC
  • Гама: Професионален
  • Екран размер: 24" (60.96 cm)
  • Разделителна способност (max): 1920 x 1200
  • Тип матрица: IPS
  • Вградени колони: Да
  • DisplayPort: Да
  • Наличност: Стар продукт
    ОписаниеХарактеристикиРевюта / ВъпросиДокументация

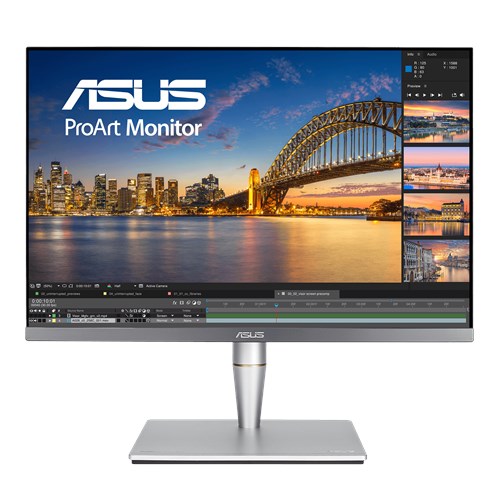

    ASUS ProArt PA24AC





    • 24-inch WUXGA 1920 x 1200 IPS display with frameless design
    • 100% of sRGB color gamut, pre-calibrated for excellent color accuracy (ΔE < 2)
    • Support HDR-10 presents HDR (High Dynamic Range) performance
    • ASUS ProArt Calibration technology offers advanced adjustments, including a 14-bit lookup table for color accuracy and 5 x 5 grid uniformity testing
    • I/O ports: DP over USB-C™ with 60W Power Delivery, DisplayPort, HDMI, USB 3.0 hub











    PA24AC HDR Professional Monitor

    Extreme clarity, superior contrast

    ASUS ProArt™ PA24AC features WUXGA 1920 x 1200 IPS panel with a frameless design and a wide 100% of sRGB color gamut. Up to 400 nits of brightness and VESA DisplayHDR 400 certified provide lifelike experience. PA24AC features USB-C™ port supports data transfers, DisplayPort and also support 60W power delivery. Advanced ProArt™ calibration technology and factory pre-calibrated to ensures the color accuracy (∆E < 2). With Windows- and Mac OS-certified, PA24AC is ideal for graphic designers, photographers, or anyone looking for high color accuracy.

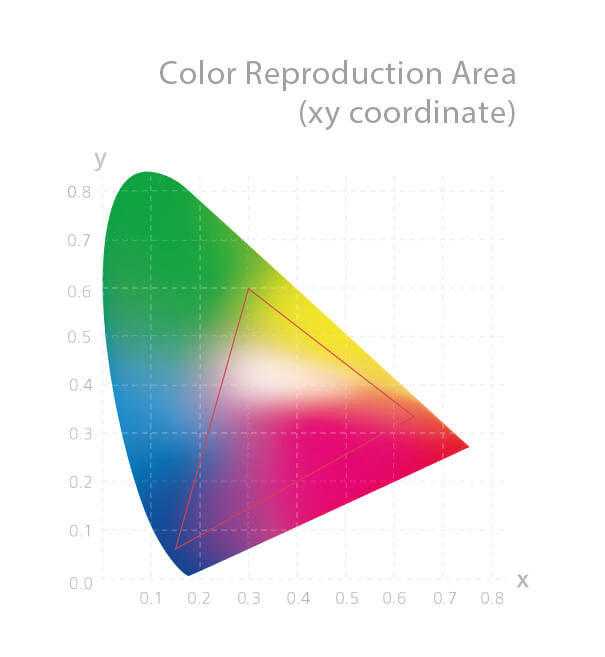

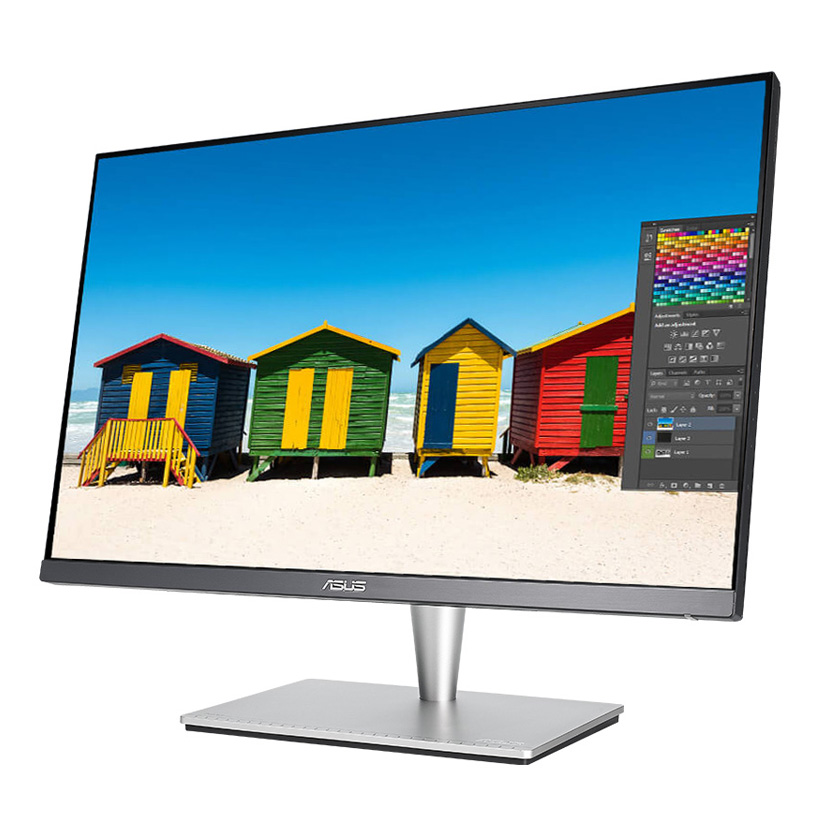

    Bring out the true beauty of your pictures

    Achieving 100% coverage of the sRGB color gamut, ProArt PA24AC reproduces richer and more vivid colors, ensuring that colors in your photos look more lifelike.





    Bring out the true beauty of your pictures

    Achieving 100% coverage of the sRGB color gamut, ProArt PA24AC reproduces richer and more vivid colors, ensuring that colors in your photos look more lifelike.











    A picture painted with extra colors

    Ideal for photographers, graphic designers or anyone looking for high accuracy, PA24AC offers 8-bit color graphics to display over 16.7 million colors. It uses a 14-bit internal lookup table and supports Gamma values of 2.6, 2.4, 2.2, 2.0 and 1.8 to give you natural-looking images, and smoother transitions between hues

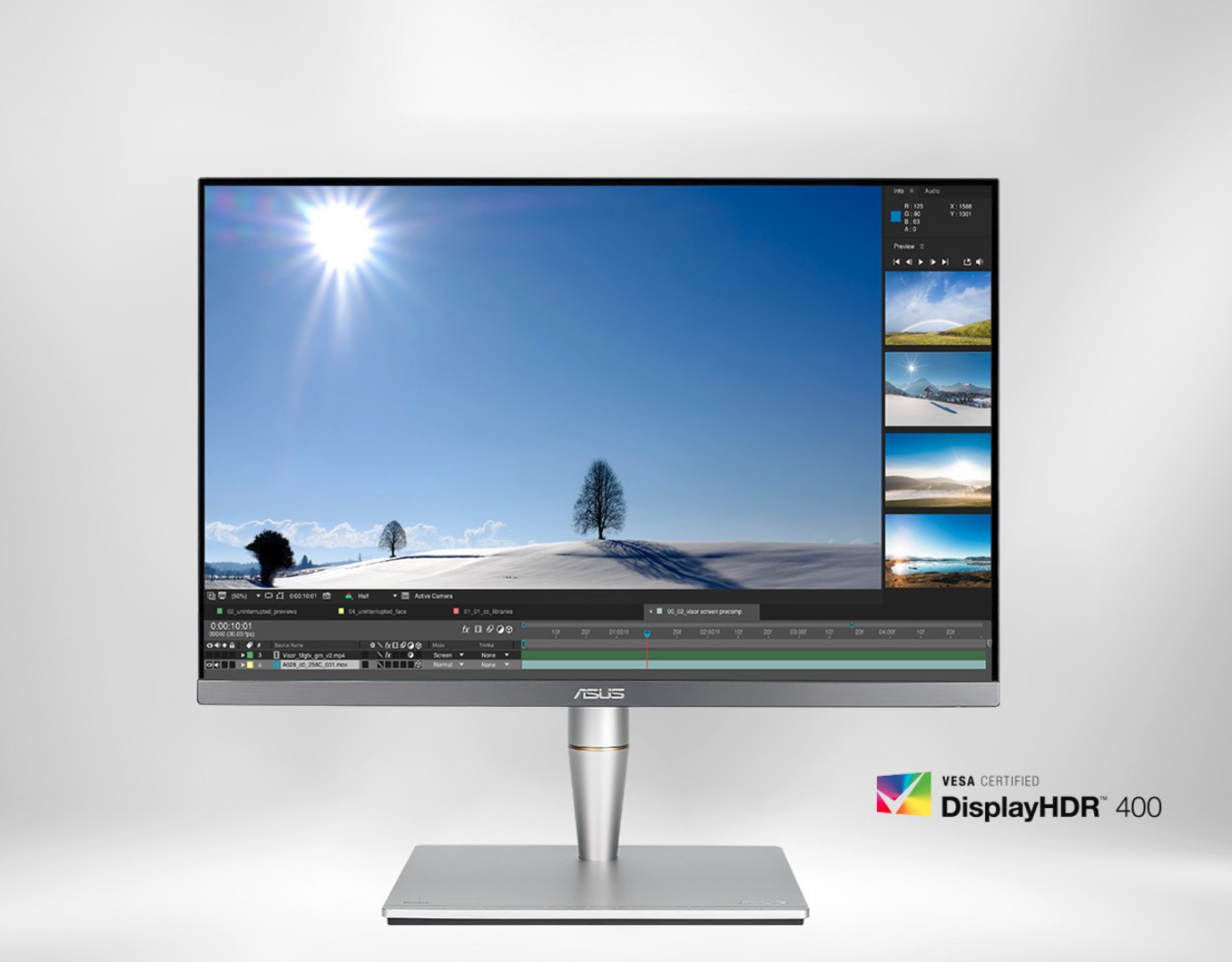

    A brighter, more lifelike viewing experience

    ProArt PA24AC features up to 400 nits of brightness and HDR-10 high dynamic range technology with VESA DisplayHDR 400 certified for brighter whites and darker blacks, resulting in a rich and lifelike viewing experience.

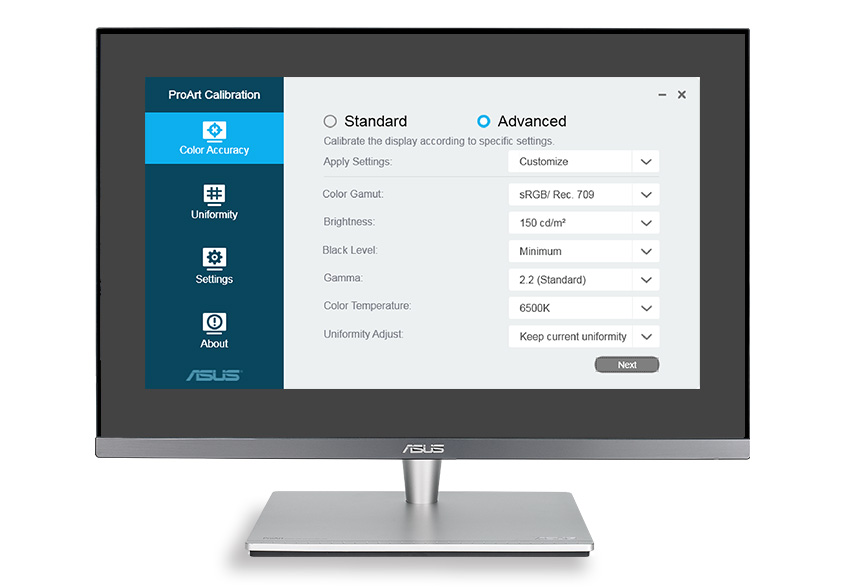

    ASUS ProArt Calibration Technology

    Whether you're using a desktop or laptop, PC or Mac, ASUS ProArt Calibration Technology offers color accuracy tuning and uniformity compensation to make things easy when it's time to recalibrate your display's brightness and color consistency

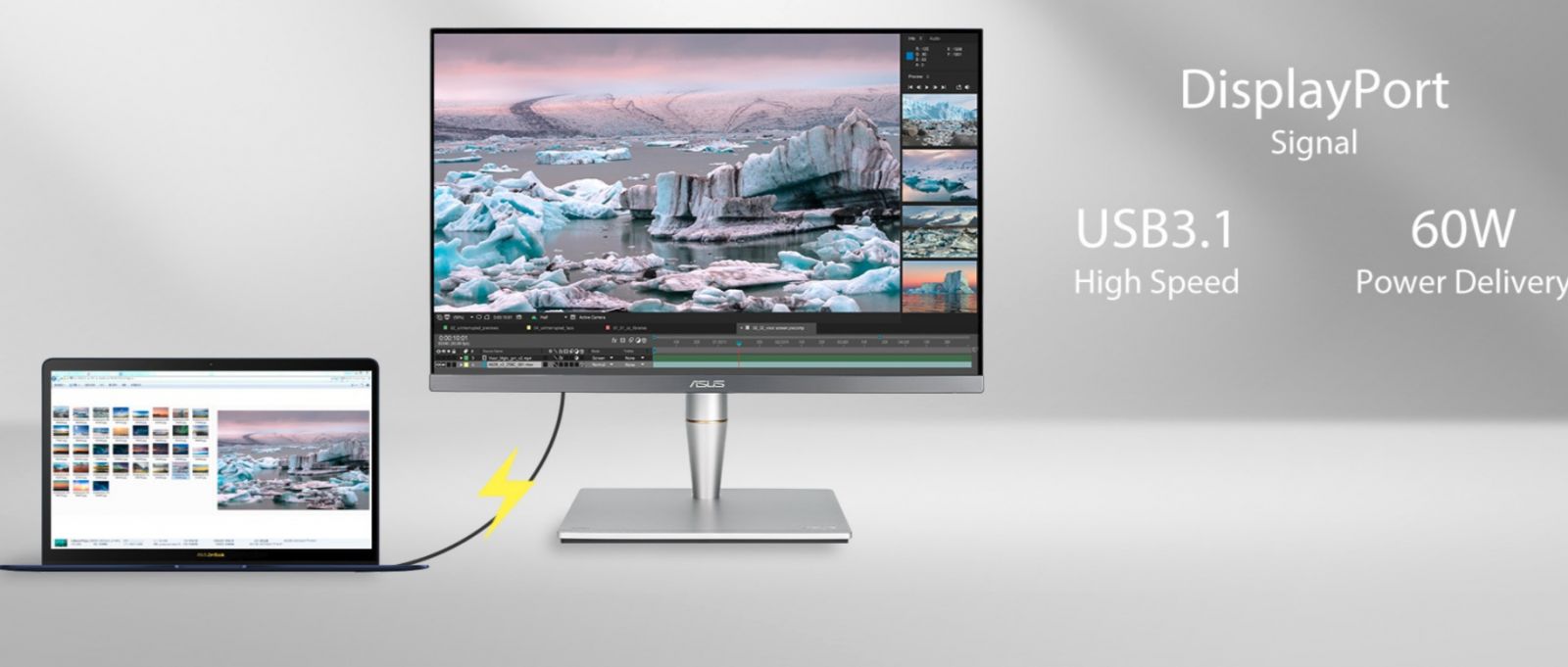

    The USB-C That Does It All

    PA24AC gives you unparalleled compatibility with most multimedia devices. Its USB-C™, DisplayPort and HDMI ports. The integrated USB-C™ port supports data transfers, DisplayPort and also support 60W power delivery. PA24AC also serves as a USB hub, meaning that when you connect to it via USB-C (using C to C cable, or C to A cable), your device gains access to whatever peripherals are connected to the USB ports

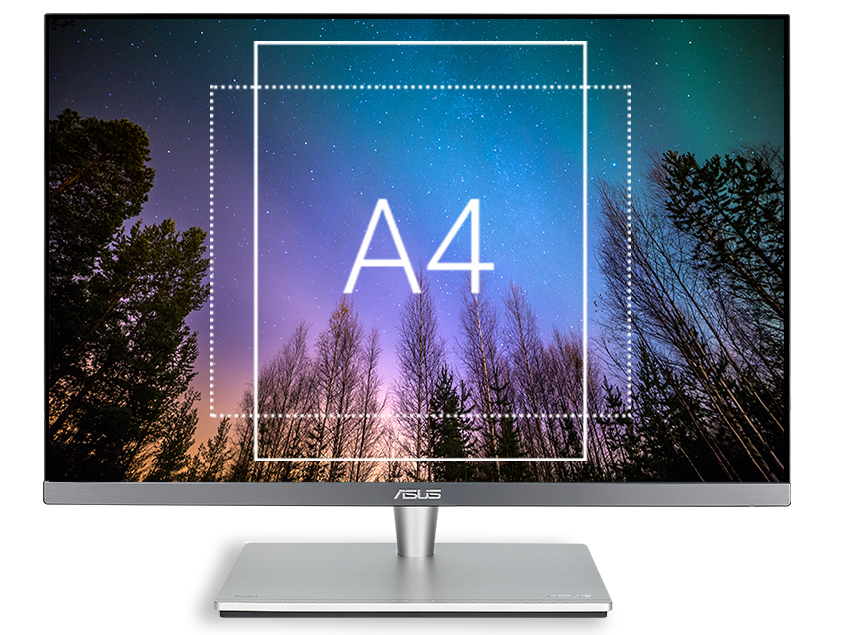

    QuickFit Virtual Scale

    Save time and work smarter with ASUS QuickFit Virtual Scale. It provides you with an onscreen grid overlay so you can align and preview documents in their actual sizes prior to printing. There's also an intuitive 5-way navigation joystick so you can easily access and switch settings using the onscreen menu.













    Ergonomic Design

    With ProArt PA24AC, a comfortable viewing position is always within reach thanks to its slim profile and ergonomically-designed stand with tilt, swivel, pivot, and height adjustments. Its onscreen menu even rotates automatically to display correctly when using the monitor in portrait orientation — handy when working with websites or longer documents.

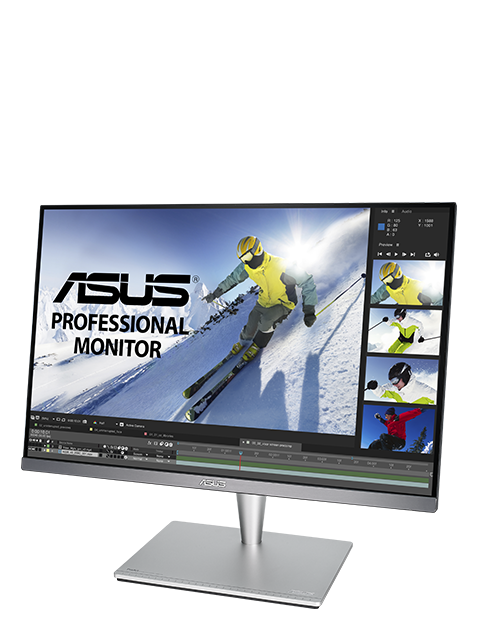

    Swivel
    -45°~+45°

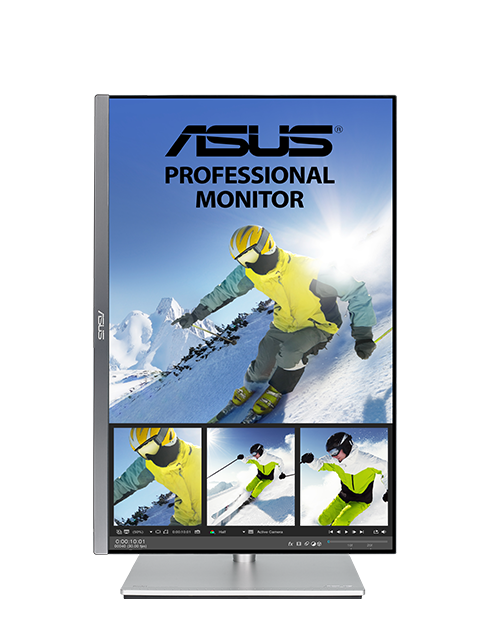

    Pivot
    -90°~+90°

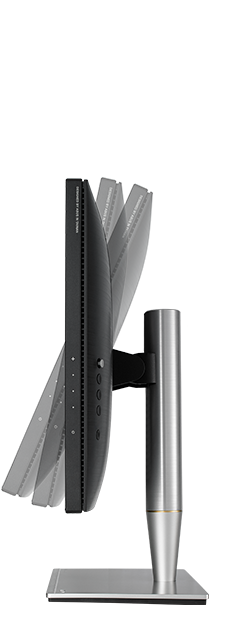

    Tilt
    -5°~+23°

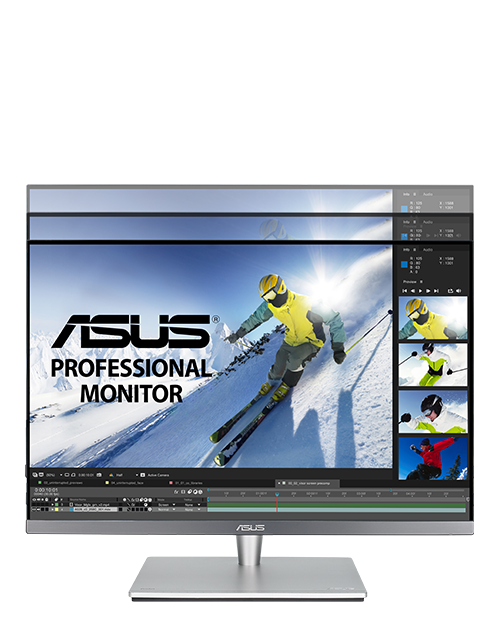

    Height Adjustment
    0~110 mm









    Specifications

    Display
    Panel Size : Wide Screen 24.1"(61.13cm) 16:10
    Color Saturation : 100%(sRGB)
    Panel Type : IPS
    True Resolution : 1920x1200
    Display Viewing Area(HxV) : 518.4 x 324 mm
    Brightness : 350 cd/㎡ (Typical)/400 cd/㎡ (Peak)
    Contrast Ratio : 1000 :1 (Typical)/8000 :1 (HDR)
    ASUS Smart Contrast Ratio (ASCR) : 100000000:1
    Viewing Angle (CR≧10) : 178°(H)/178°(V)
    Response Time : 5ms (Gray to Gray)
    Display Colors : 16.7M (real 8 bit)
    Flicker free
    LCD ZBD Warranty : Yes
    Dynamically Local Dimming : Yes, 4 Zones

    Video Feature
    Trace Free Technology : Yes
    SPLENDID Video Preset Modes : 8 Modes (sRGB Mode/Rec. 709 Mode/Scenery Mode/Standard Mode/User Mode 1/User Mode 2/Reading Mode/Darkroom Mode)
    Color Temperature Selection : 4 Modes
    Color Accuracy : △E< 2
    Gamma adjustment : Yes (Support Gamma 1.8/2.0/2.2/2.4/2.6 )
    Color Adjustment : 6-axis adjustment(R,G,B,C,M,Y)
    QuickFit (modes) : Yes (A4/B5/Alignment Grid/Ruler/Customization Modes)
    Picture-in-Picture : Yes
    Picture-by-Picture : Yes
    Low Blue Light : Yes
    HDCP support : Yes, 1.4 & 2.2
    Adaptive-Sync supported :Yes
    HDR (High Dynamic Range) Support :Yes



    Audio Features
    Stereo Speakers : 2W x 2 Stereo RMS



    I/O Ports
    Signal Input : HDMI(v2.0a) x2, DisplayPort 1.2, USB Type-C
    Earphone jack : 3.5mm Mini-Jack
    USB upstream : USB3.0 Type-C x1
    USB downstream : USB3.0 Type-A x4



    Signal Frequency
    Digital Signal Frequency : 30 ~85 KHz (H) /48 ~70 Hz(V)



    Power Consumption
    Power On (Typical): < 21W*
    Power Saving Mode : < 0.5W ; Power Off Mode : 0W (Hard Switch)
    100-240V, 50/60Hz



    Mechanical Design
    Chassis Colors : Gray
    Tilt : -5°~+23°
    Swivel : -45°~+45°
    Pivot : -90°~+90°
    Height Adjustment : 0~110 mm
    VESA Wall Mounting : 100x100mm
    Frameless Design : Yes
    Quick Release Stand Design : Yes



    Security
    Kensington lock



    Dimensions
    With Stand (WxHxD) : 21 x (3.6 - 8) x 19.2 in
    Without Stand (WxHxD) : 21 x 13.7 x 2.2 in
    Box Dimension (WxHxD) : 25.6 x 10.2 x 16.9 in

    With Stand (WxHxD) : 532 x (92 - 202) x 488 mm
    Without Stand (WxHxD) : 532 x 349 x 55 mm
    Box Dimension (WxHxD) : 650 x 260 x 430 mm



    Weight
    Net Weight (Esti.) : 14.3 lb
    Net Weight Without Stand (Esti.) : 9.4 lb
    Gross Weight (Esti.) : 19.8 lb

    Net Weight (Esti.) : 6.5 kg
    Net Weight Without Stand (Esti.) : 4.28 kg
    Gross Weight (Esti.) : 9 kg



    Accessories
    Power cord
    DisplayPort cable
    USB-C cable
    USB-C to A cable
    Quick start guide
    HDMI cable
    Warranty Card
    Color pre-calibration report
    Cable Clip


    Compliance and Standards
    Energy Star®, BSMI, CB, CCC, CE, CEL level , CU, ErP, FCC, ISO-9241-307, J-MOSS, KCC, Mac Compliance, PSE, RoHS, TCO7.0, UkrSEPRO, UL/cUL, VCCI, WEEE, WHQL (Windows 10, Windows 8.1, Windows 7), MEPS, TUV Flicker-free , KC , eStandby, TUV Low Blue Light, Vietnam MEPS, ICES-3, RCM, VESA DisplayHDR 400





    Виж още Монитори Asus
    Виж всички Монитори в категорията
    Документация
    Технически характеристики
    Портове
    DisplayPort:  Да
    HDMI:  Да
    USB Type-C:  Да
    USB Type-А:  Да
    Гама:  Професионален
    Екран размер:  24" (60.96 cm)
    Разделителна способност (max):  1920 x 1200
    Аспект изображение:  16:10
    Тип матрица:  IPS
    Честота на опресняване:  60 Hz
    Време за реакция:  5 ms
    Яркост:  350 cd/m²
    TV Тунер:  Не
    Тъчскрин:  Не
    Вградени колони:  Да
    3D:  Не
    Технология:  WLED
    Цвят:  Сребрист
    Формат екран:  Wide
    Преносим:  Не
