Монитор Asus ProArt PA169CDV, преносим, 15.6" (39.62 cm) IPS сензорен панел, 4K/UHD, 10ms, 15000:1, 500 cd/m2, HDMI, USB-C

ASUS ProArt PA169CDV Pen Display – 15.6-inch, IPS, 4K UHD (3840 x 2160), WACOM EMR, 100% sRGB, Color Accuracy ΔE < 2, Calman Verified, PANTONE Validated, USB-C, 10-point Touch, ASUS Dial, Control Panel

• 15.6-inch 4K UHD (3840 x 2160) IPS panel with anti-glare and capacitive 10-point multitouch
• Bundled ProArt Pen with Wacom EMR technology for pen-on-paper-like writing and drawing experiences
• 100% sRGB, Calman Verified, and factory pre-calibrated to Delta E < 2 for exceptional color accuracy
• ASUS Dial and Virtual Control Panel offer productive shortcuts and programmable hotkeys for compatible creative software
• Two innovative kickstands prop the display up at different angles to suit different needs
• Extensive I/O connectivity including USB-C (with DP Alt mode) and HDMI for compatibility with various devices
• TÜV Rheinland-certified Flicker-free and Low Blue Light technologies for comfortable viewing experiences

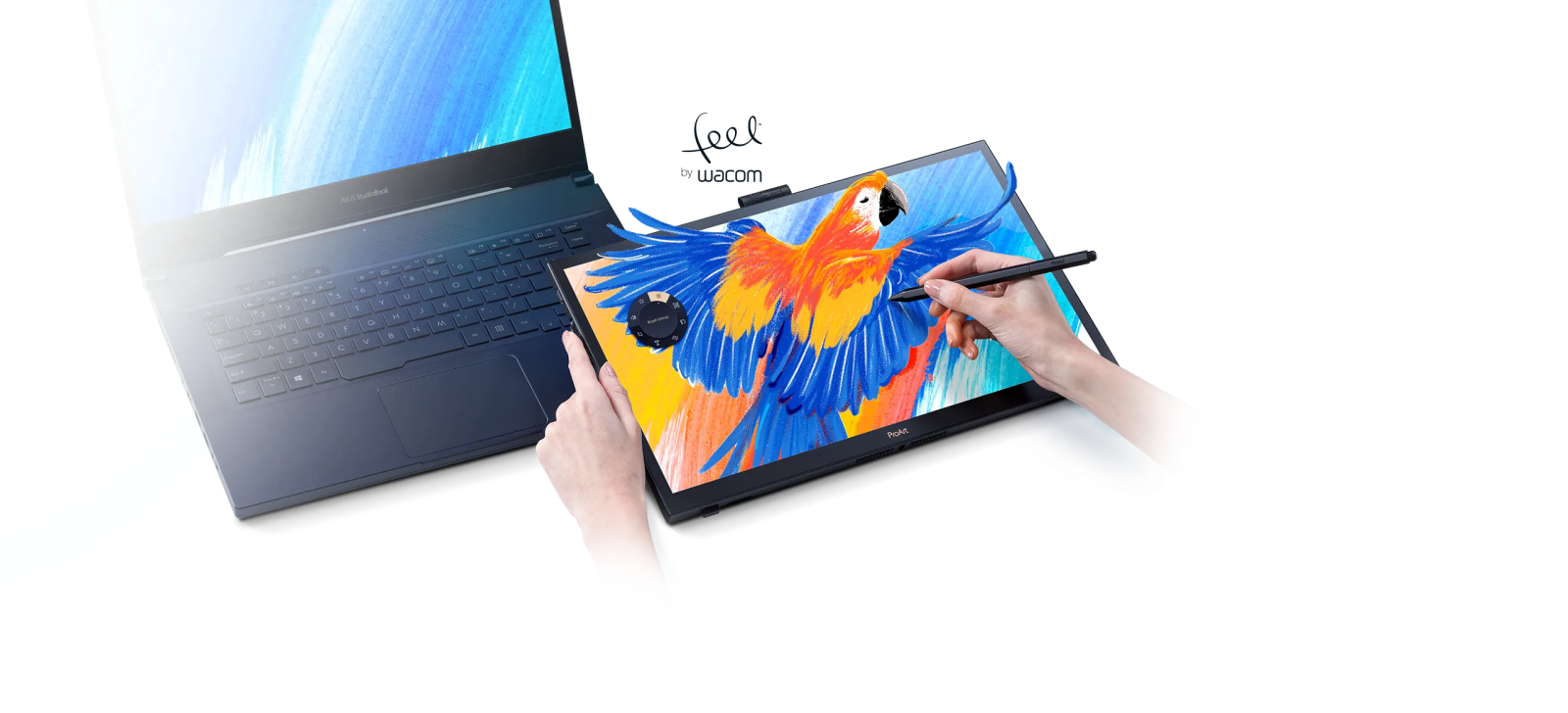

Your Canvas for Digital Art

ASUS ProArt PA169CDV Pen Display features a 15.6-inch, 10-bit, 4K UHD, IPS panel. It’s bundled with the ProArt Pen featuring Wacom EMR technology for great drawing experiences. PA169CDV is the world’s first portable monitor that’s both PANTONE® Validated and Calman Verified to ensure exceptional color accuracy. The ergonomic PA169CDV includes innovative upper and lower kickstands that allow for different tilt angles, making it easy to switch between daily productivity and creative workflows.

Impeccably-detailed Visuals

With a 4K UHD (3840 x 2160) panel, you’ll enjoy 4X pixel density and up to 300% more on-screen working space than similarly-sized Full HD (FHD) displays. Up to 400 nits of brightness and VESA DisplayHDR 400 certification delivers brighter, more lifelike viewing experiences, so every image is sharp, detailed and a pleasure to view.

Photorealistic Color

ProArt Display PA169CDV delivers exceptionally-detailed and realistic visuals, with 10-bit color depth, 100% sRGB, 100% Rec.709, and cinema-grade DCI-P3 color-gamut support. This means that the colors reproduced on the display are richer and more vivid: it’s ideal for color-intensive projects, but also enhances any kind of content.

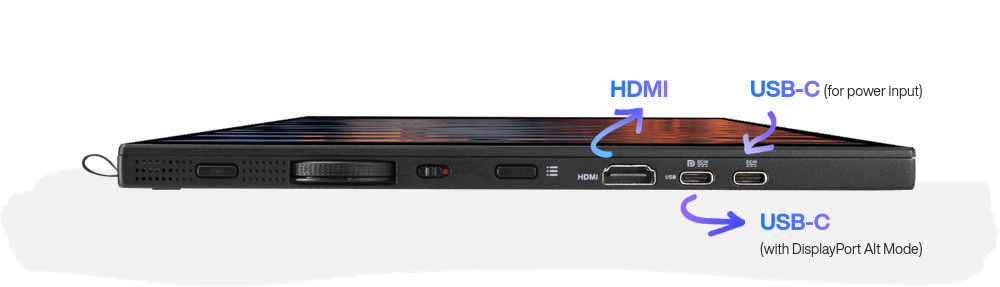

Rich Connectivity

PA169CDV offers a host of ports to cater to your creative needs, including a single-cable USB-C solution that supports DisplayPort™ Alt Mode and power input simultaneously. Plus, there’s another USB-C port solely for the power adaptor. There’s additional flexibility in the shape of an HDMI port, making it easy to connect PA169CDV to a wide variety of input sources.

Display

Panel Size (inch) : 15.6
Pixels Per Inch (PPI) : 282
Aspect Ratio : 16:9
Display Viewing Area (H x V) : 345.60 ×194.40 mm
Display Surface : AGAF (Anti-Glare, Anti-FingerPrint)
Backlight Type : LED
Panel Type : IPS
Viewing Angle (CR≧10, H/V) : 178°/ 178°
Pixel Pitch : 0.09mm
Resolution : 3840x2160
Color Space (sRGB) : 100%
Brightness (HDR, Peak) : 500 cd/㎡
Brightness (Typ.) : 450cd/㎡
Contrast Ratio (HDR, Max) : 15,000:1
Contrast Ratio (Typ.) : 1200:1
Display Colors : 1073.7M (10 bit)
Response Time : 10ms(GTG)
Refresh Rate (Max) : 60Hz
HDR (High Dynamic Range) Support : HDR10
Touch : Yes, Projective Capacitive 10-point Touch
Stylus Support : Yes, Wacom EMR Technology ProArt Pen (Feel by Wacom)
Protection Glass : Yes
Flicker-free : Yes

Video Feature

ProArt Preset : Standard
ProArt Preset : sRGB
ProArt Preset : Adobe RGB
ProArt Preset : DCI-P3
ProArt Preset : Rec.709
ProArt Preset : Scenery
ProArt Preset : Reading
ProArt Preset : HDR
ProArt Preset : User mode1
ProArt Preset : User mode2
Color Temp. Selection : Yes(5 modes)
Color Adjustment : 6-axis adjustment(R,G,B,C,M,Y)
Gamma Adjustment : Yes (Support Gamma 1.8/2.0/2.2/2.4/2.6 )
Color Accuracy : △E< 2
ProArt Palette : Yes
QuickFit Plus : Yes
PIP / PBP Technology : Yes
HDCP : Yes, 2.2
Low Blue Light : Yes

Audio Feature

Speaker : Yes(1Wx2)

I/O Ports

USB-C x 1 (DP Alt Mode)
HDMI(v2.0) x 1
USB-C Power Delivery : 15W

Signal Frequency

Digital Signal Frequency : HDMI: 29~160 KHz (H) / 40~60Hz (V)
USB-C: 29~160 KHz (H) / 40~60Hz (V)

Power Consumption

Power Consumption : <15W
Power Saving Mode : <0.5W
Power Off Mode : <0.3W
Voltage : 100-240V, 50/60Hz

Mechanical Design

Tilt : Yes (Upper Stand: 17°, Lower Stand: 54° ~ 75°)
Pivot : Yes (0° ~ 90° Clockwise)
1/4" Tripod Socket : Yes

Display

Panel Size (inch) : 15.6
Pixels Per Inch (PPI) : 282
Aspect Ratio : 16:9
Display Viewing Area (H x V) : 345.60 ×194.40 mm
Display Surface : AGAF (Anti-Glare, Anti-FingerPrint)
Backlight Type : LED
Panel Type : IPS
Viewing Angle (CR≧10, H/V) : 178°/ 178°
Pixel Pitch : 0.09mm
Resolution : 3840x2160
Color Space (sRGB) : 100%
Brightness (HDR, Peak) : 500 cd/㎡
Brightness (Typ.) : 450cd/㎡
Contrast Ratio (HDR, Max) : 15,000:1
Contrast Ratio (Typ.) : 1200:1
Display Colors : 1073.7M (10 bit)
Response Time : 10ms(GTG)
Refresh Rate (Max) : 60Hz
HDR (High Dynamic Range) Support : HDR10
Touch : Yes, Projective Capacitive 10-point Touch
Stylus Support : Yes, Wacom EMR Technology ProArt Pen (Feel by Wacom)
Protection Glass : Yes
Flicker-free : Yes

Video Feature

ProArt Preset : Standard
ProArt Preset : sRGB
ProArt Preset : Adobe RGB
ProArt Preset : DCI-P3
ProArt Preset : Rec.709
ProArt Preset : Scenery
ProArt Preset : Reading
ProArt Preset : HDR
ProArt Preset : User mode1
ProArt Preset : User mode2
Color Temp. Selection : Yes(5 modes)
Color Adjustment : 6-axis adjustment(R,G,B,C,M,Y)
Gamma Adjustment : Yes (Support Gamma 1.8/2.0/2.2/2.4/2.6 )
Color Accuracy : △E< 2
ProArt Palette : Yes
QuickFit Plus : Yes
PIP / PBP Technology : Yes
HDCP : Yes, 2.2
Low Blue Light : Yes

Audio Feature

Speaker : Yes(1Wx2)

I/O Ports

USB-C x 1 (DP Alt Mode)
HDMI(v2.0) x 1
USB-C Power Delivery : 15W

Signal Frequency

Digital Signal Frequency : HDMI: 29~160 KHz (H) / 40~60Hz (V)
USB-C: 29~160 KHz (H) / 40~60Hz (V)

Power Consumption

Power Consumption : <15W
Power Saving Mode : <0.5W
Power Off Mode : <0.3W
Voltage : 100-240V, 50/60Hz

Mechanical Design

Tilt : Yes (Upper Stand: 17°, Lower Stand: 54° ~ 75°)
Pivot : Yes (0° ~ 90° Clockwise)
1/4" Tripod Socket : Yes

Dimensions (Esti.)

Phys. Dimension (W x H x D) : 37.0 x 23.7 x 1.2 cm (14.57" x 9.33" x 0.47")
Box Dimension (W x H x D) : 53.90 x 10.75 x 32.30 cm (21.22" x 4.23" x 12.72")

Weight (Esti.)

Net Weight : 1.07 kg (2.36 lbs)
Gross Weight : 2.95 kg (6.50 lbs)
