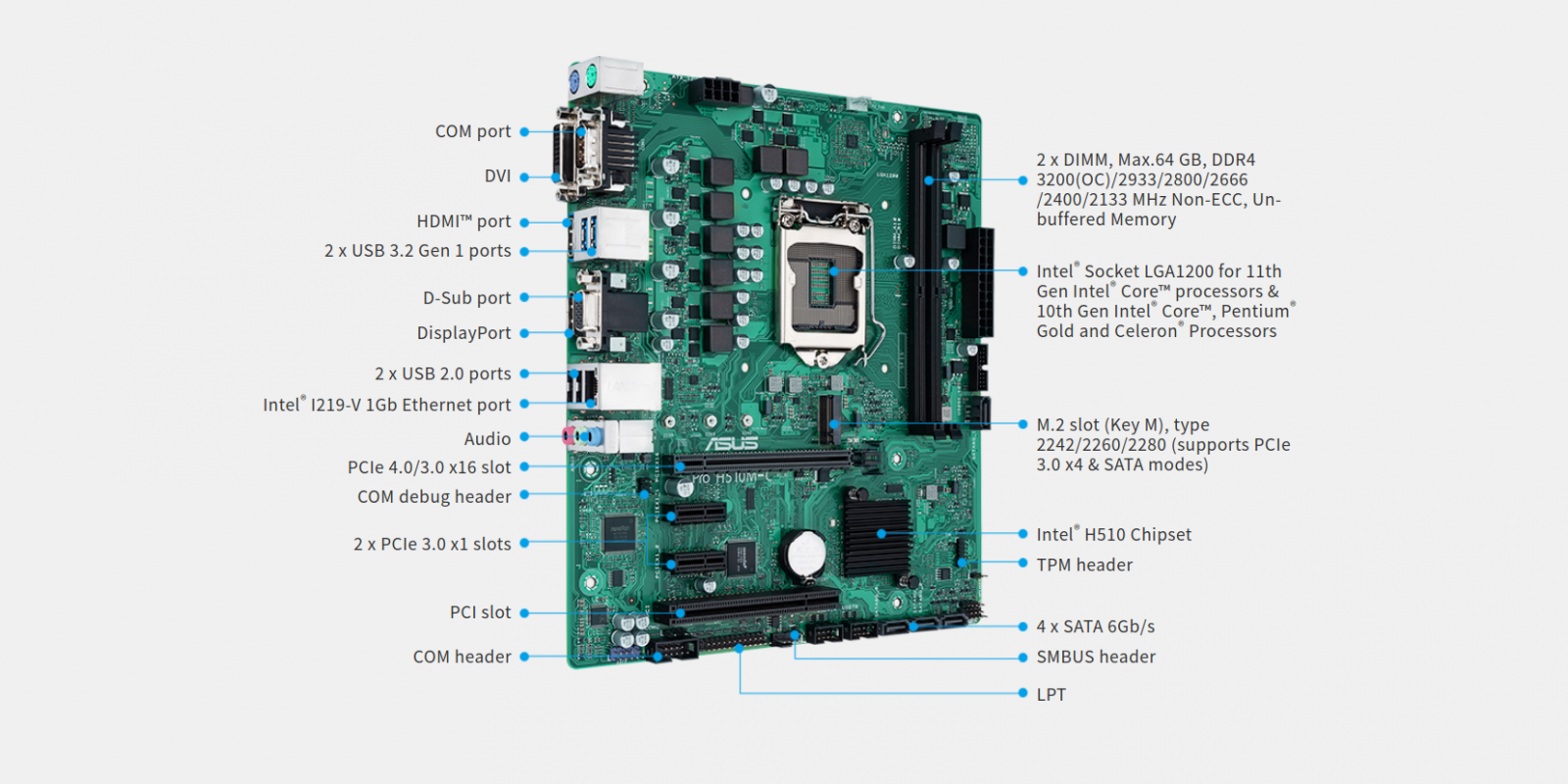

Дънна платка ASUS PRO H510M-C/CSM, H510, LGA1200, DDR4, PCI-E 4.0 (DP/HDMI/DVI/VGA), 4x SATA 6Gb/s, 1x M.2, 2 x USB 3.2 Gen 1, 2 x USB 2.0, Micro ATX

Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors

Supports Intel® 14 nm CPU

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

* Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

H510

Memory Channels:2DDR4 (Dual Channel)
Max Memory Size:64GB

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

* 10th Gen Intel® i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.

* 11th Gen Intel® processors support 2933/2800/2666/2400/2133 natively.



1 x DisplayPort 1.4
1 x D-Sub
1 x DVI-D
1 x HDMI™ 1.4 / 2.0***

* Graphics specifications may vary between CPU types.

** Intel® 11th & 10th processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz.

*** Only Intel® 11th processors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz .

**** Supports up to 2 displays simultaneously.

Intel® 11th &10th Gen Processors

1 x PCIe 4.0/3.0 x16 slot

- Intel® 11th processors support PCIe 4.0 x16 mode

- Intel® 10th processors support PCIe 3.0 x16 mode

Intel® H510 Chipset

2 x PCIe 3.0 x1 slots*

1 x PCI slot

* When a device is installed on the PCIe_1 slot, the PCI slot cannot be used.

Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports

Intel® H510 Chipset

M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)*

4 x SATA 6Gb/s ports

* When a device in SATA mode is installed on the M.2 socket, SATA6G_2 port cannot be used.

1 x Intel® I219-V 1Gb Ethernet

ASUS LANGuard

Rear USB:Total 4 ports

2 x USB 3.2 Gen 1 ports (2 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

Front USB:Front USB (Total 6 ports)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC*

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- Supports up to 24-Bit/192 kHz playback"

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

2 x USB 3.2 Gen 1 ports (2 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

1 x DisplayPort

1 x D-Sub port

1 x DVI-D port

1 x HDMI^TM port

1 x Intel^® I219-V 1Gb Ethernet port

3 x Audio jacks

1 x COM port

1 x PS/2 keyboard (purple) port

1 x PS/2 mouse (green) port

Fan and cooling related

1 x 4-pin CPU Fan header

1 x 4-pin Chassis Fan header

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

Storage related

1 x M.2 slot (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

1 x Clear CMOS header

1 x Chassis Intrude header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x COM debug header

1 x LPT header

1 x SMBUS header

1 x Speaker header

1 x SPI TPM header (14-1pin)

1 x 10-1 pin System Panel header

ASUS EZ DIY

- Box Headers

Bespoke Motherboard Design & Business Focused Features

- ASUS Self Recovering BIOS

- ASUS Event Log

- ASUS Commercial BIOS kit

- Anti-Moisture

- 24/7 Reliability

- Overcurrent Protection

ASUS Exclusive Software

IT Management software supported

- ASUS Control Center Express(ACCE)

128 Mb Flash ROM, UEFI AMI BIOS

WOL by PME, PXE



mATX Form Factor
24.4cm x 21.6cm
