Рутер Asus GS-AX5400, 5400Mbs, 2.4GHz (574 Mbps)/ 5.0 GHz (4804 Mbps), 1x WAN 10/100/1000, 4x LAN 10/100/1000, 4x външни антени

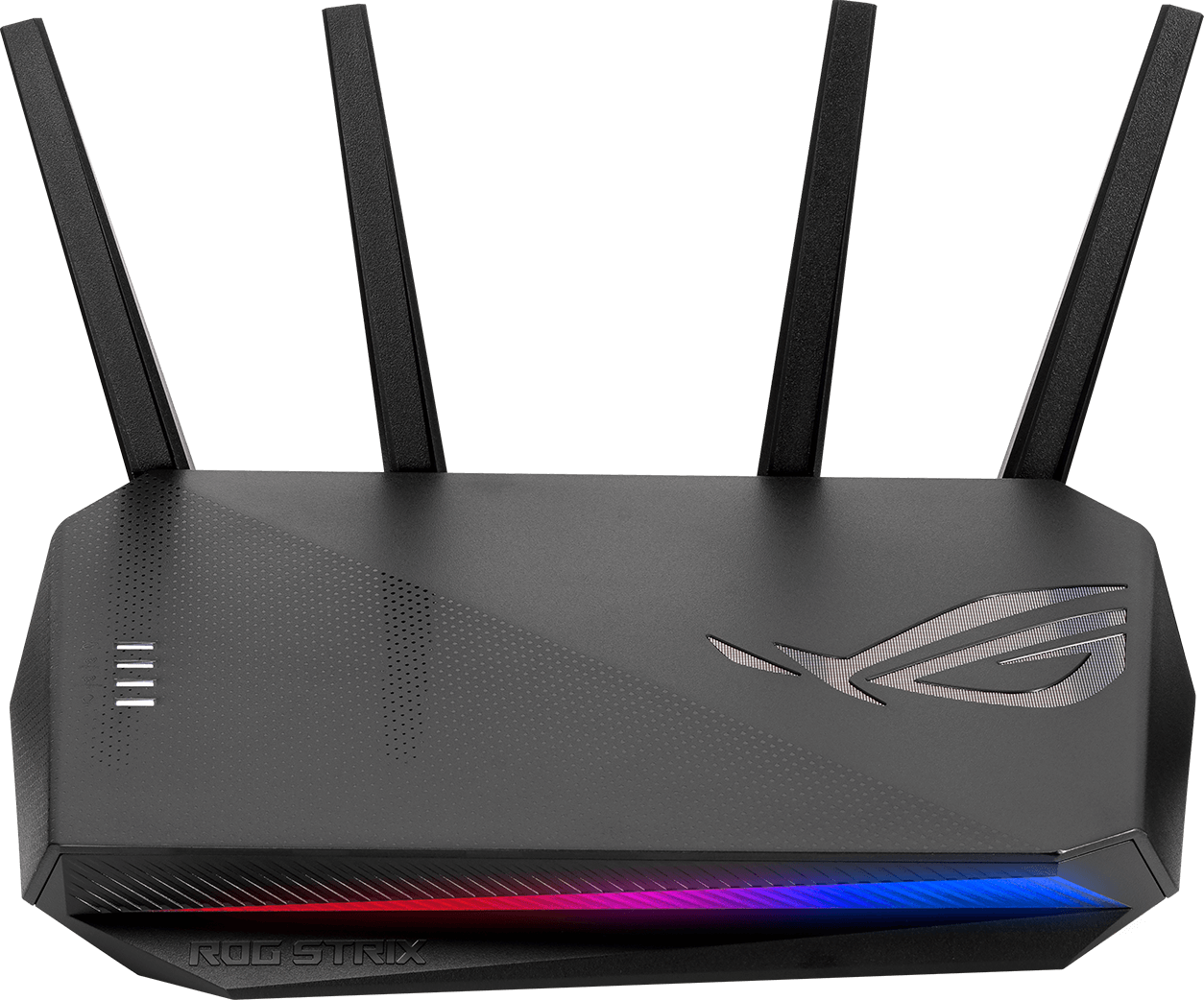

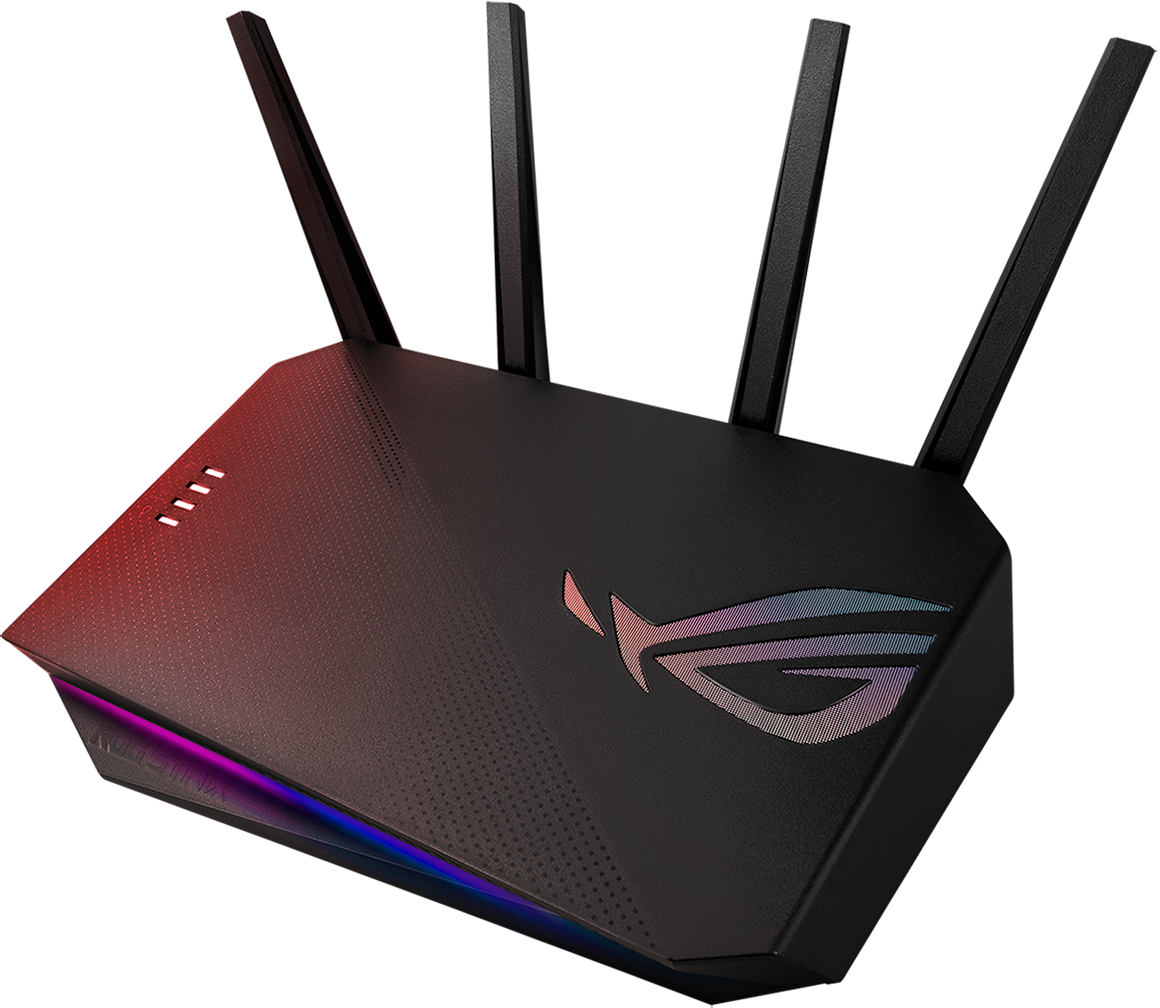

ASUS GS-AX5400




The First ROG Strix Router:
Built to Win!
Get the competitive edge with ROG Strix GS-AX5400, a WiFi 6 gaming router that gives you the fastest, smoothest WiFi gaming connections ever. With ultrafast WiFi speeds up to 5400 Mbps, it's ready for the most intense matches, and with fully customizable ASUS Aura RGB lighting effects, it looks great too. If you take gaming seriously, you need the GS-AX5400!
















WiFi 6 —
The Ultimate Gaming Power
WiFi 6 brings incredible speeds and coverage to your gaming network, and supports all your existing devices.*







Give Your Gaming Top Priority

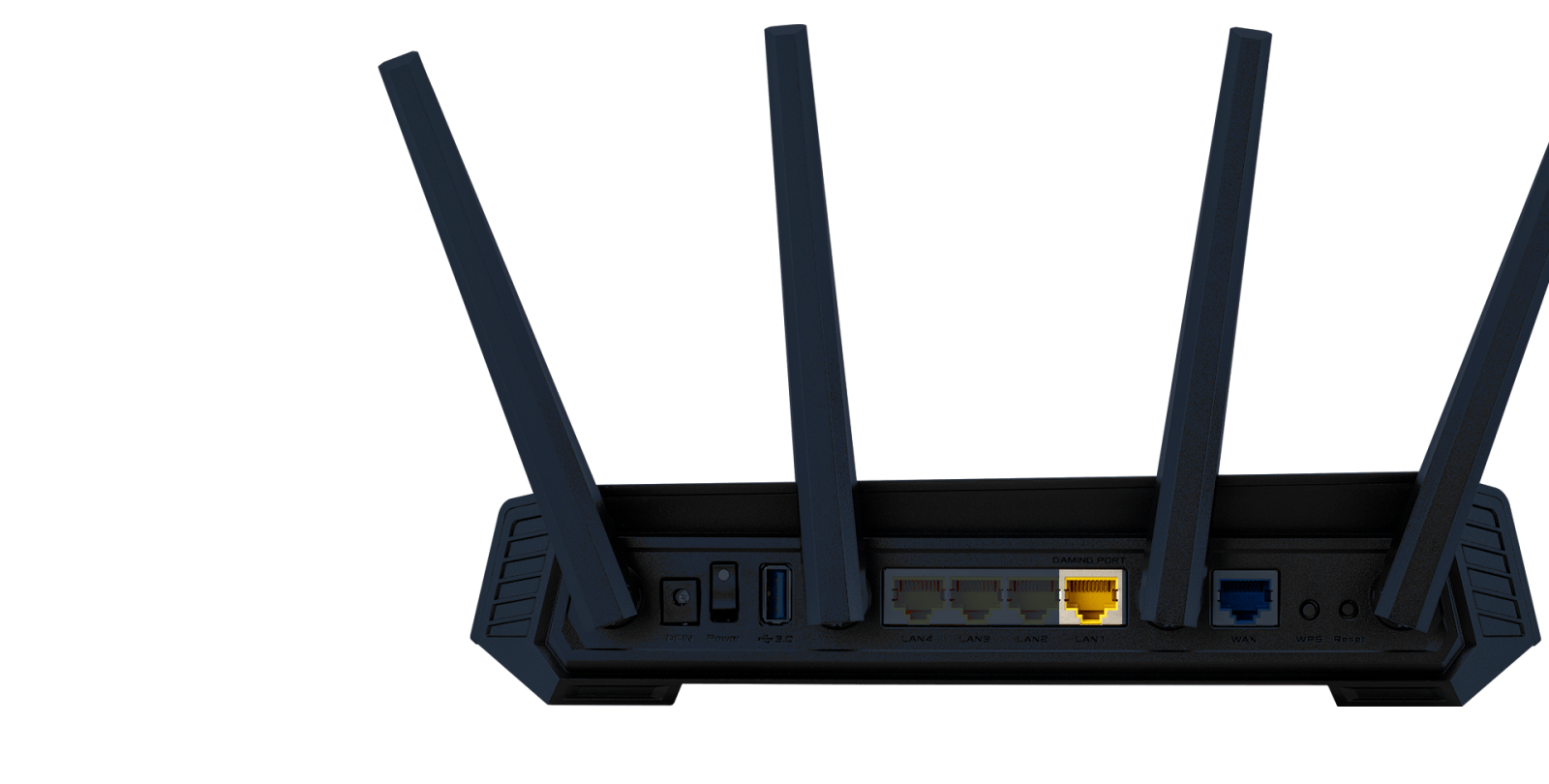

The dedicated Gaming Port on GS-AX5400 is a special LAN port that automatically prioritizes any wired device connected to it. You don't need to configure it, just connect your gaming PC or console to the gaming port to put it at the head of the queue for a fast, stable connection.











Easy port forwarding for different NAT types
With easy three-step port forwarding. it's never been simpler to improve your connection speed, lobby wait times, and overall gameplay — even if the host uses different types of NAT!






Model Name
GS-AX5400

Network Standard
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
IEEE 802.11ac
IEEE 802.11ax
IPv4
IPv6

Product Segment
AX5400 ultimate AX performance : 4804 Mbps+ 574 Mbps

AX technology
Yes

Data Rate
2.4GHz N: 2x2 (Tx/Rx) 1024 QAM 20/40MHz, up to 500Mbps
5GHz AC: 4x4 (Tx/Rx) 1024 QAM 20/40/80MHz, up to 2167Mbps
2.4GHz AX: 2x2 (Tx/Rx) 1024 QAM 20/40MHz, up to 574Mbps
5GHz AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps

Antenna
External antenna x 4

Transmit/Receive
2.4 GHz 2 x 2
5 GHz 4 x 4

Processor
1.5 GHz tri-core processor

Memory
256 MB Flash
512 MB RAM

Boosts speed
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80/160 MHz bandwidth

Operating Frequency
2.4G Hz / 5 GHz

Ports
RJ45 for Gigabits BaseT for WAN x 1
RJ45 for Gigabits BaseT for LAN x 4
USB 3.2 Gen 1 x 1

Button
WPS Button
Reset Button
Power Switch

LED Indicator
Power x 1
2.4G x 1
5G x 1
WAN x 1

Power Supply
AC Input : 110V~240V(50~60Hz)
DC Output : 19 V with max. 1.75 A current

Package content
GS-AX5400 Router
RJ-45 cable
Power adapter
Warranty card
Quick start guide

Product Weight (g)
701.3 g

AiMesh
AiMesh
Primary AiMesh router
AiMesh node

Router APP
ASUS Router APP

Game
Game Boost/acceleration
ROG_First
OpenNAT (Game Profile)
Gaming port

Alexa
Support Alexa skill

AiProtection
AiProtection Pro
Router Security Assessment
Malicious site blocking
Two-Way IPS
Infected Device Prevention and Blocking

Parental Control
Parental Control
Parental Control Customized Internet schedule

Traffic Control
Adaptive QoS
Bandwidth Monitor
Bandwidth limiter
Maximum Bandwidth limiter rule :
32
Traditional QoS
Maximum Traditional QoS rule :
32
Traffic Monitor
Real-time traffic monitor
Wired Traffic Monitor
Wireless Traffic Monitor
Traffic Analyzer
Traffic analysis period :
Daily, Weekly, Monthly
Website history

Wireless
IPv6
MU-MIMO
WiFi Encryption :
WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise , WPA2-Enterprise , WPS support
UTF-8 SSID
Guest Network
Maximum Guest Network rule :
2.4GHz x3, 5GHz x3
Guest Network Connection time limit
WPS
Wi-Fi MAC address filter
Maximum MAC filters :
64
Wireless scheduler
Wi-Fi Radar
Airtime fairness
Universal beamforming

WAN
Explicit beamforming
Internet connection Type :
PPPoE, PPTP, L2TP, Automatic IP, Static IP
Dual WAN
WAN Aggregation
3G/4G LTE dongle
Android tethering
Port forwarding
Maximum port forwarding rule :
64
Port triggering
Maximum port triggering rule :
32
DMZ
DDNS
NAT Passthrough :
PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, PPPoE relay

LAN
DHCP Server
IGMP snooping
IPTV
LAN Link Aggregation
Manually assign IP address
Maximum manually assign IP address rule :
64

VPN
VPN Client L2TP
VPN Client OVPN
VPN Client PPTP
VPN Server IPSec
VPN Server OVPN
VPN Server PPTP
VPN Fusion

USB application
File System :
HFS+, NTFS, vFAT, ext2, ext3, ext4
HDD hibernation
Safely Remove disk
AiCloud
Download master
AiDisk
Media Server
Time Machine
Samba Server
FTP Server
Shared Folder privileges

Administration
Operating mode :
Wireless router mode
Access point mode
Media bridge mode
Repeater mode
AiMesh node mode
Operating system :
ASUSWRT
Free OS upgrade
Firewall
Maximum Firewall keyword filter :
64
Maximum Firewall network service filter :
32
Maximum Firewall URL filter :
64
Wake on LAN (WOL)
SSH
Configuration backup and restore
Diagnosis tools
Feedback system
System log
