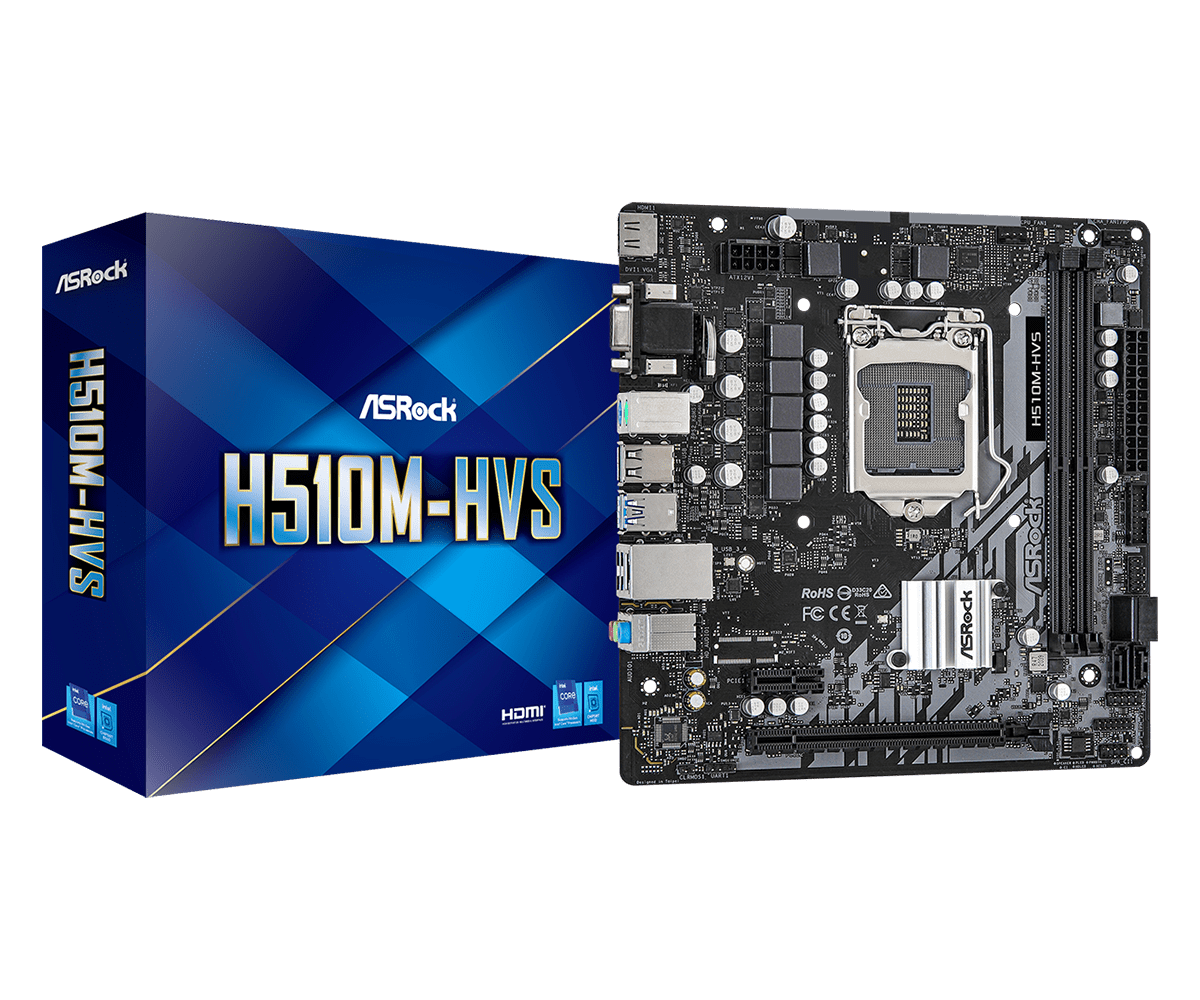

Дънна платка ASRock H510M-HVS, H510, LGA1200, DDR4, PCI-E 4.0 (HDMI/VGA), 4x SATA 6Gb/s, 2x USB 3.2 Gen 1, Micro ATX

H510M-HVS

• Supports 10-то поколение процесори Intel^® Core ™ and 11-то поколение процесори Intel^® Core ™
• Supports DDR4 3200MHz (OC)
• 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x1
• Graphics Output Options: HDMI, D-Sub
• 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• 4 SATA3
• 6 x USB 3.2 Gen1 (4 x Rear, 2 x Front)
• Realtek Gigabit LAN

Specifications:

• Уникални функции
  ASRock Super Alloy
  - Premium 50A Power Choke
  - Sapphire Black PCB
  - High Density Glass Fabric PCB
  ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
  ASRock Live Update & APP Shop
• Процесор
  - Supports 10-то поколение процесори Intel^® Core ™ and 11-то поколение процесори Intel^® Core ™ (LGA1200)
  - 5 Power Phase design
  - Supports Intel^® Turbo Boost Max 3.0 Technology
• Чипсет
  - Intel^® H510
• Памет
  - Dual Channel DDR4 Memory Technology
  - 2 x DDR4 DIMM Slots
  - Supports DDR4 3200 / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory
  - Supports ECC UDIMM memory modules (operate in non-ECC mode)
  - Max. capacity of system memory: 64GB**
  - Supports Intel^® Extreme Memory Profile (XMP) 2.0


  *11th Gen Intel^® Core™ (i9/i7/i5) support DDR4 up to 3200; Core™ (i3), Pentium^® and Celeron^® support DDR4 up to 2666.
  10th Gen Intel^® Core™ (i9/i7) support DDR4 up to 2933; Core™ (i5/i3), Pentium^® and Celeron^® support DDR4 up to 2666.

  **Поради ограничението на операционната система, действителният размер на паметта може да е по-малък от 4 GB за резервацията за използване на системата под Windows^® 32-bit OS. For Windows^® 64-bit OS with 64-bit CPU, there is no such limitation.
• BIOS
  - 128Mb AMI UEFI Legal BIOS with multilingual GUI support
  - ACPI 6.0 Compliant wake up events
  - SMBIOS 2.7 Support
  - CPU Core/Cache, CPU GT, VCCSA, DRAM, VCCIO, CPU Standby, VCCIN AUX Voltage Multi-adjustment
• Графика
  - 11-то поколение процесори Intel^® Core ™ support Intel^® Xe Graphics Architecture (Gen 12). 10-то поколение процесори Intel^® Core ™ support Gen 9 Graphics
  - Graphics, Media & Compute: Microsoft^® DirectX 12, OpenGL 4.5, Intel^® Built In Visuals, Intel^® Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1
  - Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft^® PlayReady 3.0, UHD/HDR Blu-ray Disc
  - Dual graphics output: support HDMI and D-Sub ports by independent display controllers
  - Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
  - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
  - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required)
  - Supports HDCP 2.3 with HDMI 2.0 Port


  *Intel^® UHD Graphics Built-in Visuals и VGA изходите могат да бъдат поддържани само с процесори, които имат интегриран GPU.
• Аудио
  - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  - Supports Surge Protection
• LAN
  - PCIE x1 Gigabit LAN 10/100/1000 Mb/s
  - 1 x Realtek RTL8111H
  - Supports Wake-On-LAN
  - Supports Lightning/ESD Protection
  - Supports Energy Efficient Ethernet 802.3az
  - Supports PXE
• Слотове
  11-то поколение процесори Intel^® Core ™
  - 1 x PCI Express 4.0 x16 Slot
  10-то поколение процесори Intel^® Core ™
  - 1 x PCI Express 3.0 x16 Slot

  - 1 x PCI Express 3.0 x1 Slot


• Съхранение
  - 4 x SATA3 6.0 Gb/s Connectors, support Intel^® Rapid Storage Technology 18, NCQ, AHCI and Hot Plug
• Конектор
  - 1 x SPI TPM Header
  - 1 x Chassis Intrusion and Speaker Header
  - 1 x CPU Fan Connector (4-pin)*
  - 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
  - 1 x 24 pin ATX Power Connector
  - 1 x 8 pin 12V Power Connector
  - 1 x Front Panel Audio Connector
  - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
  - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)


  *Конекторът за вентилатора на CPU поддържа вентилатора на CPU с максимална мощност на вентилатора 1A (12W).

  **The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
  CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.
• Заден панел с входове и изходи
  - 1 x PS/2 Keyboard Port
  - 1 x PS/2 Mouse Port
  - 1 x D-Sub Port
  - 1 x HDMI Port
  - 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
  - 4 x USB 2.0 Ports (Supports ESD Protection)
  - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
  - HD Audio Jacks: Line in / Front Speaker / Microphone
• Софтуер и UEFI
  Software
  - ASRock Motherboard Utility (A-Tuning)
  - ASRock XFast LAN
  UEFI
  - ASRock EZ Mode
  - ASRock Full HD UEFI
  - ASRock My Favorites in UEFI
  - ASRock Instant Flash
  - ASRock Internet Flash


  *Тези помощни програми можете да изтеглите от Live Update & APP Shop.
• CD с поддръжка
  - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
• Аксесоари
  - Quick Installation Guide, Support CD, I/O Shield
  - 2 x SATA Data Cables
• Хардуерен монитор
  - Fan Tachometer: CPU, Chassis/Water Pump Fans
  - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis/Water Pump Fans
  - Fan Multi-Speed Control: CPU, Chassis/Water Pump Fans
  - CASE OPEN detection
  - Voltage monitoring: CPU Vcore, +12V, +5V, +3.3V
• Форм фактор
  - Micro ATX Form Factor: 7.76-in x 7.4-in, 19.7 cm x 18.8 cm
  - Solid Capacitor design
• OC
  - Microsoft^® Windows^® 10 64-bit
• Сертификати
  - FCC, CE
  - ErP/EuP ready (ErP/EuP ready power supply is required)
