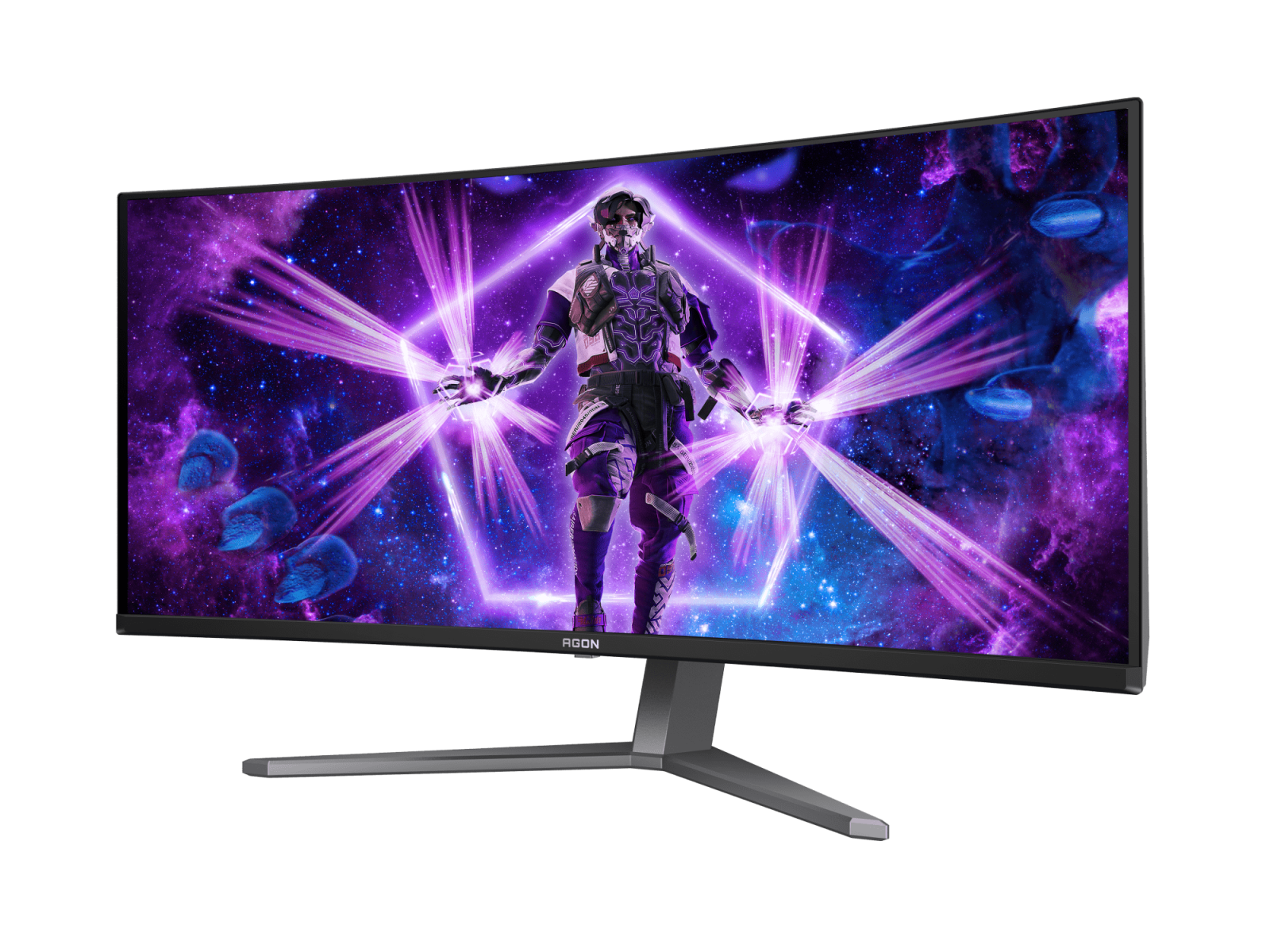

AG346UCD

34" OLED Gaming Monitor

The AGON PRO AG346UCD is a 34“ QD OLED gaming monitor equipped with a vast array of cutting-edge innovations for unparalleled gaming. OLED technology combined with Adaptive-Sync Compatible technology delivers flawless image quality with superior brightness and colours, while a lightning-fast refresh rate of 175Hz, low input lag, and ensure smooth, crisp, and truly immersive experiences. This game-changing monitor offers all of these features in a curved 1800R design that includes an eSport-optimized base that accommodates playing preferences resulting in better performance and customization.

QD-OLED
3440 X 1440(WQHD)
175Hz
0.03ms response time
Curved 1800R
DisplayHDR True Black 400

Expand your perspective with an ultra wide view in Quad HD

With 3440 x 1440 resolution, Wide Quad HD (WQHD) offers superior picture quality and crisp imagery that reveals every detail. The widescreen 21:9 aspect ratio is perfect for watching movies in an expansive format or immersing yourself in the latest game, plus it offers more space when it’s time to work.

Enjoy top-tier gaming performance

With a 175Hz refresh rate , your display will be equipped to perform at the pro gaming standard. Enjoy an ultra-smooth experience with no visible screen blur to ensure you're always prepped to win.

Instant response times

A pixel response time of 0.03ms MPRT means speed without the smear for an enhanced gaming experience. Fast-moving action and dramatic transitions will be rendered smoothly without the annoying effects of ghosting. Choose the right path to gaming success, and never let a slow display stop you.

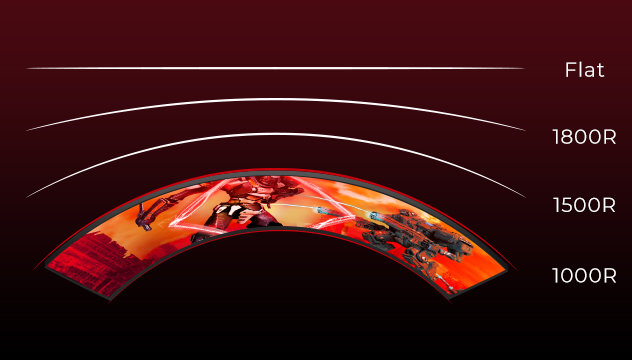

Total-Immersion Gaming

Curved Gaming Monitors deliver a totally immersive gaming experience that puts you right at the center of the unrelenting unleashed action and overwhelming fire-power. The curved screen of these precision-gaming monitors creates a “wrap-around” effect that keeps the user totally focused on the heart-pounding gameplay.

Optimized for Unparalleled Visual Quality

High Dynamic Range (HDR) displays deliver better contrast and color accuracy, as well as more vibrant colors, compared to Standard Dynamic Range (SDR) displays. The DisplayHDR True Black 400 variant is particularly tailored for OLED displays, representing a major advancement in visual technology. Leveraging the individual pixel dimming capability of OLED monitors, DisplayHDR True Black 400 delivers substantially deeper black levels, expanded dynamic range, and improved rise time, resulting in an incredible visual treat.

Specifications:

Panel	34" (QD-OLED 1800R)
Pixel Pitch (mm)	0.2315 (H) × 0.2315 (V)
Effective Viewing Area (mm)	800.6 (H) × 337.06 (V)
Brightness (typical)	250cd/m² (100% APL), 450 cd/m²(Typ.) (10% APL) / 1000 cd/m²(Typ.) (HDR 3% APL)
Contrast Ratio	1,500,000 : 1
Response Time	0.03ms (GtG)
Viewing Angle	178° (H) / 178° (V) (CR > 10)
Color Gamut	sRGB 100% (CIE1931) / DCI-P3 99% (CIE1976)
Color Accuracy	Delta E < 2
Optimum Resolution	3440 × 1440 @ 175Hz – DisplayPort1.4；3440 × 1440 @ 100Hz – HDMI2.0
Display Colors	1.07 Billion
Signal Input	HDMI 2.0 × 2, DisplayPort 1.4 × 1
HDCP Version	HDMI: 2.2 / DisplayPort: 2.2
USB Hub	USB 3.2 Gen1× 3
Power Supply	Internal 100 - 240V～2.5A, 50 / 60Hz
Power Consumption (typical)	100W
Speakers	8W × 2
Line in & Earphone	Earphone × 1
Wall-Mount	100mm x 100mm
Adjustable Stand	Height: 150mm, Swivel: -16° ~ 16°, Tilt: -5° ~ 23°
Product without Stand (mm)	361.2(H) × 811.7 (W) × 130.2 (D)
Product with Stand (mm)	421.5~551.2 (H) × 811.7 (W) × 294.3 (D)
Packaging (mm)	470 (H) × 930 (W) × 226 (D)
Product without Stand (kg)	7.65
Product with Stand (kg)	10.82
Product with Packaging (kg)	14.15

Виж още Монитори AOC
Виж всички Монитори в категорията

Документация

Технически характеристики

Портове
DisplayPort:	Да
HDMI:	Да
DVI:	Не
Thunderbolt:	Не
Mini DisplayPort:	Не
USB Type-C:	Не
USB Type-А:	Да
VGA (D-Sub):	Не

Гама:	Gaming
Екран размер:	34" (86.36 cm)
Разделителна способност (max):	3440 x 1440
Аспект изображение:	21:9
Тип матрица:	QD-OLED
Честота на опресняване:	175 Hz
Време за реакция:	0.03 ms
Яркост:	250 cd/m²
TV Тунер:	Не
Тъчскрийн:	Не
Вградени колони:	Да
3D:	Не
Технология:	QD-OLED
Цвят:	Черен
Формат екран:	UltraWide
Извит:	Да
Преносим:	Не
